EBAC Triton Professional Dehumidifier, 52 Pints/Day, 8,370 Cu. Ft., 110V, 470W, 13393GR-US

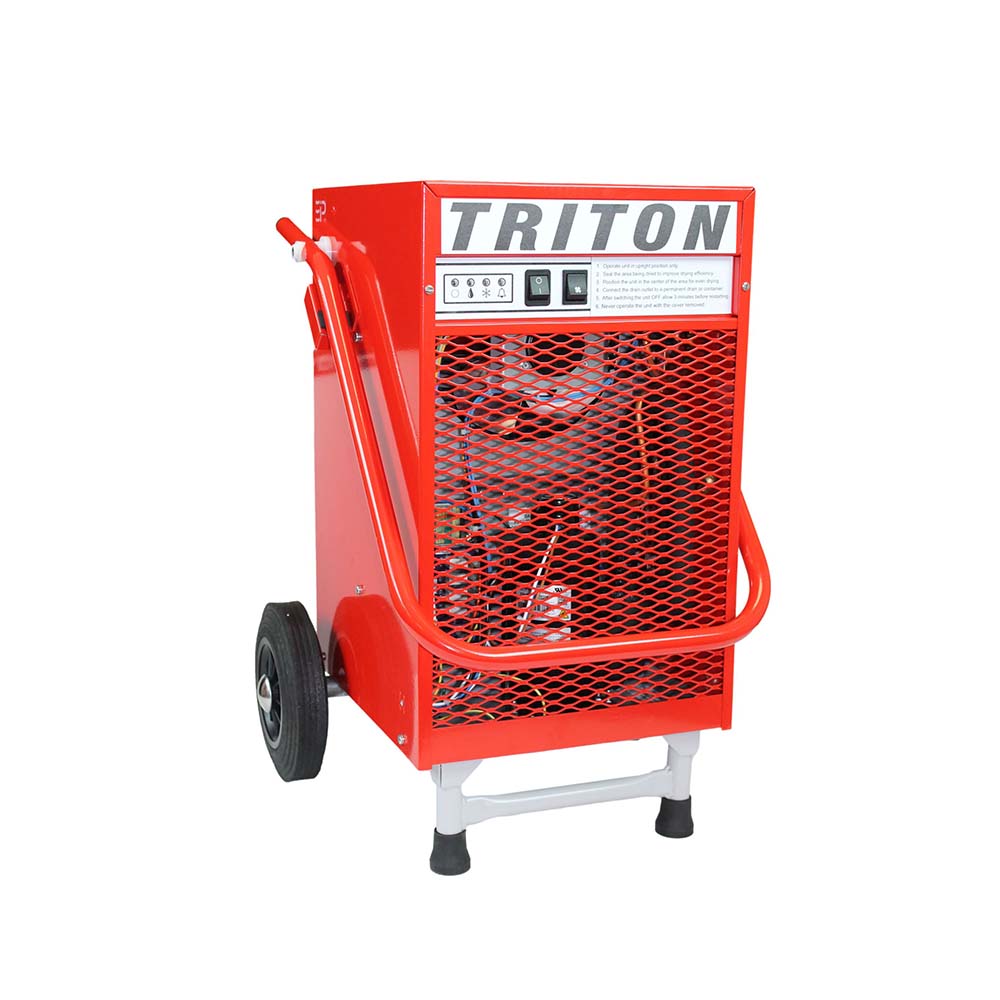

EBAC Triton Professional Dehumidifier

Portable Dehumidification for Cleaning & Restoration

The EBAC Triton Professional Dehumidifier is a compact, portable unit designed for commercial and residential cleaning, restoration, and moisture-control applications. This exact configuration is identified by manufacturer part number 13393GR-US and operates at 110V, single phase, 60 Hz. It provides a typical extraction rate of 52 pints per day and has an effective volume of 8,370 cubic feet.

The Triton combines a high-efficiency rotary compressor, temperature-sensitive defrost control, hot gas defrost, integral condensate pump, washable filter, rugged wheels, and a collapsible handle. Its compact design makes it easy to move between locations and suitable for restoration professionals who need portable moisture-removal equipment.

Compact and Portable Design

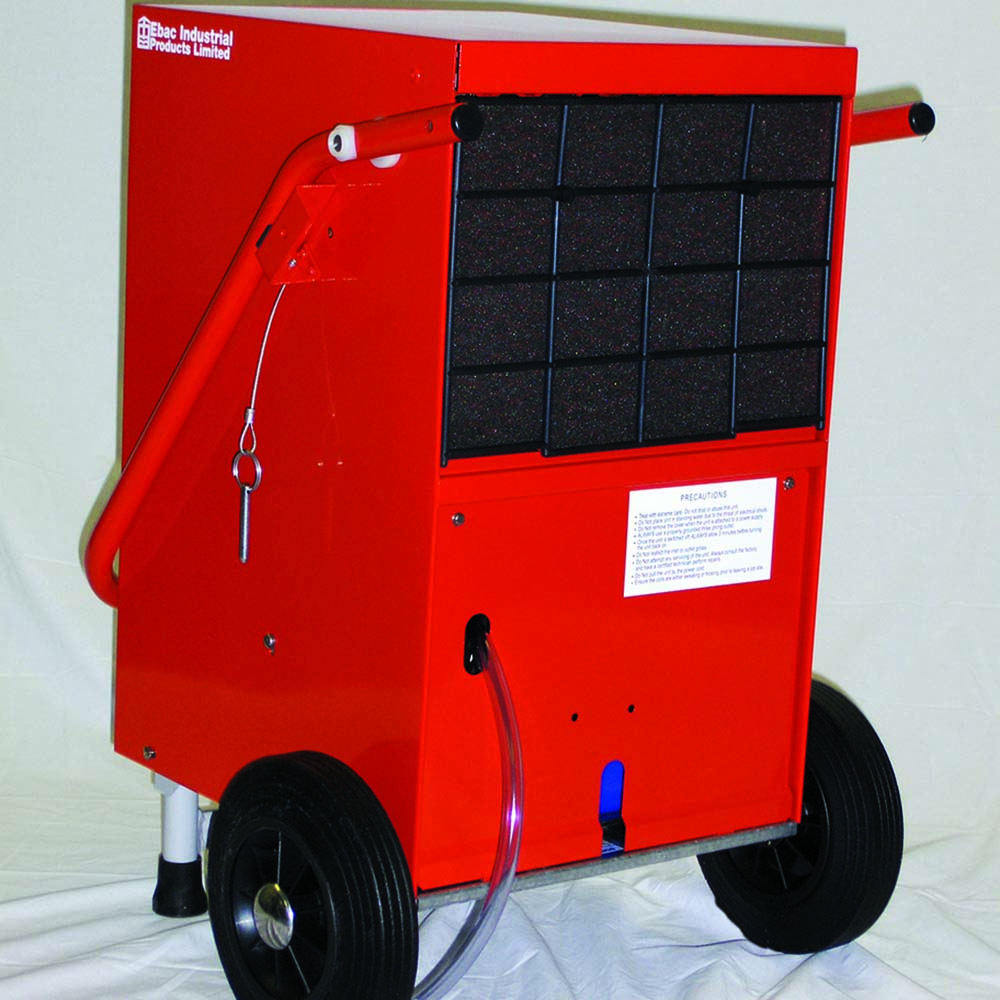

The Triton measures 29 inches high x 20 inches wide x 15 inches deep and weighs 75 pounds. Rugged wheels and a collapsible handle make the unit easier to transport and position at different work locations.

The manufacturer describes the Triton as a lightweight, compact portable dehumidifier suitable for commercial and residential work. Its portable construction allows the unit to be moved from job to job as needed.

52 Pints per Day Moisture Removal

The Triton provides a typical extraction rate of 52 pints per day. Its effective volume is listed at 8,370 cubic feet. Actual moisture removal can vary according to operating conditions and the environment in which the unit is used.

Refrigeration-Based Dehumidification

The Triton removes moisture through a refrigeration process. A fan draws moist air into the unit and passes it over the cold evaporator coil. As the air is cooled below its dew point, moisture condenses on the evaporator coil and collects in the condensate tray.

The cooled air then passes through the hot condenser coil, where it is reheated using energy recovered during the cooling process together with heat generated by the compressor. The air is discharged back into the room warmer and with lower absolute humidity. Continuous circulation gradually reduces relative humidity within the area.

Temperature-Sensitive Defrost

The Triton features temperature-sensitive defrost control and EIPL's hot gas defrost system. The defrost system automatically melts frost buildup from the evaporator, supporting operation within the manufacturer's specified temperature range of 33°F to 95°F.

Integral Condensate Pump

An integral condensate pump is included to manage collected moisture. The unit also features a pump purge switch, quick-release hose coupling, and a 25-foot PVC drain hose for condensate handling.

Rugged Construction

The Triton uses a rugged epoxy powder-coated steel chassis and housing. The manufacturer also specifies a washable air filter, providing a reusable filtration component for routine maintenance.

Key Features

• Professional portable dehumidifier
• Model Triton
• Part number 13393GR-US
• 52 ppd typical extraction
• 8,370 cu. ft. effective volume
• 110V, single phase, 60 Hz
• 470W power
• 5A current
• 280 CFM airflow
• 57 dBA noise level
• R32 refrigerant
• High-efficiency rotary compressor
• Temperature-sensitive defrost control
• Hot gas defrost system
• Integral condensate pump
• Pump purge switch
• Rugged wheels
• Collapsible handle
• 25-foot power cord
• Quick-release hose coupling
• 25-foot PVC drain hose
• Washable air filter
• Epoxy powder-coated chassis and housing
• Lightweight compact portable design
• Low amp draw
• Fitted mains plug

What's Included

• 1 x Triton Dehumidifier
• 1 x Triton Owner's Manual
• 1 x 3/8" PVC Tube I/D - 7.8M long
• 1 x Quick Release Hose Coupling

Product Resources

Review the manufacturer's product resources for additional technical, installation, operating, maintenance, and wiring information before purchasing or installing the EBAC Triton.

• Product Brochure
• Product Instruction Manual
• Product Wiring Diagram
• Product Wiring Schematic

Applications for the EBAC Triton

The EBAC Triton Professional Dehumidifier is designed for commercial and residential cleaning and restoration work. Its compact portable construction allows it to be transported between locations while providing a typical extraction capacity of 52 pints per day.

Cleaning and Restoration

The manufacturer positions the Triton for cleaning and restoration applications. Its portable design, rugged wheels, collapsible handle, integral condensate pump, and 25-foot power cord make it practical for moving between restoration work areas.

Commercial Applications

The Triton can be used for commercial humidity-control and drying applications where its 52 ppd extraction capacity and 8,370 cubic foot effective volume are appropriate.

Residential Applications

The manufacturer also identifies commercial and residential work as applications for the Triton. Its compact size allows it to be transported and positioned where moisture removal is required.

Water Damage Restoration

The manufacturer describes EIPL dehumidifiers as equipment for water damage restoration. The Triton's refrigeration-based moisture removal system can assist with drying areas after water-related incidents when the unit is appropriately sized for the application.

Portable Job-Site Use

The Triton's rugged wheels, collapsible handle, compact dimensions, and portable construction make it suitable for moving from one work area or job site to another.

Installation Considerations

The Triton measures 29 inches high x 20 inches wide x 15 inches deep and weighs 75 pounds. Provide suitable clearance around the unit for airflow and operation. Verify the 110V electrical supply and provide an appropriate condensate drainage route using the supplied drain hose.

Frequently Asked Questions

What is the EBAC Triton?

The EBAC Triton is a compact professional dehumidifier designed for commercial and residential cleaning, restoration, and moisture-control applications.

What is the part number for the Triton?

The manufacturer part number is 13393GR-US.

What voltage does SKU 13393GR-US use?

The Triton 13393GR-US operates at 110V, single phase, 60 Hz.

What is the power rating?

The manufacturer lists 470W power and 5A current.

How much moisture does the Triton remove?

The Triton has a typical extraction rate of 52 pints per day.

What is the effective volume?

The manufacturer lists an effective volume of 8,370 cubic feet.

What is the airflow?

The manufacturer lists airflow of 280 CFM.

What is the noise level?

The listed noise level is 57 dBA.

What refrigerant does the Triton use?

The manufacturer currently lists R32 refrigerant for SKU 13393GR-US.

Does the Triton have a condensate pump?

Yes. The Triton includes an integral condensate pump and pump purge switch.

Does the Triton include a drain hose?

Yes. The unit includes a 25-foot PVC drain hose and quick-release hose coupling.

How long is the power cord?

The manufacturer specifies a 25-foot power cord.

Does the Triton have wheels?

Yes. The unit has rugged wheels for portability.

Does the Triton have a collapsible handle?

Yes. The manufacturer specifies a collapsible handle for easier transport.

Does the Triton have a defrost system?

Yes. It includes temperature-sensitive defrost control and a hot gas defrost system.

What is the operating temperature range?

The manufacturer specifies a minimum operating temperature of 33°F and a maximum operating temperature of 95°F.

What type of compressor does it use?

The Triton uses a rotary compressor.

Is the air filter washable?

Yes. The Triton includes a washable air filter.

What are the dimensions?

The Triton measures 29 inches high x 20 inches wide x 15 inches deep.

How much does the Triton weigh?

The unit weighs 75 pounds.

What applications is the Triton designed for?

The manufacturer describes the Triton for commercial and residential cleaning and restoration work, including portable moisture-removal applications.

What comes with SKU 13393GR-US?

The package includes one Triton Dehumidifier, one Triton Owner's Manual, one 3/8-inch PVC tube with 7.8-meter length, and one Quick Release Hose Coupling.
