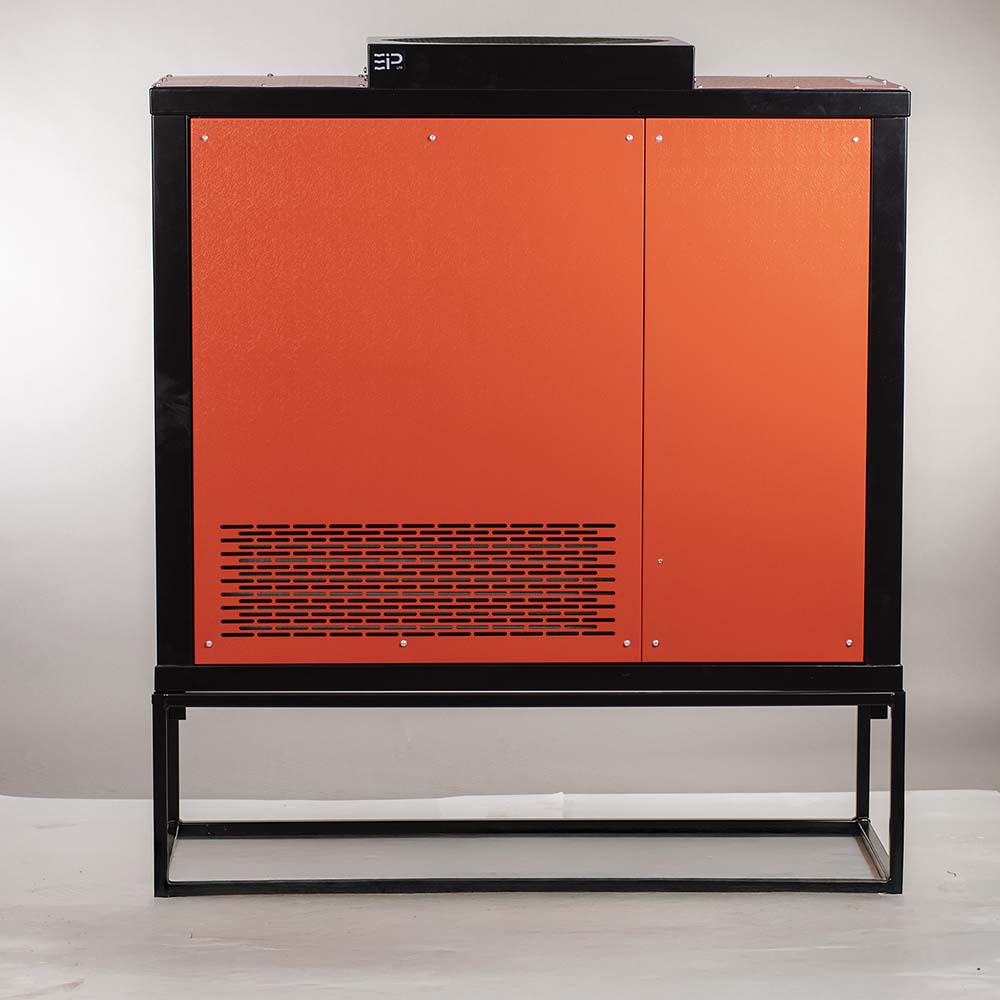

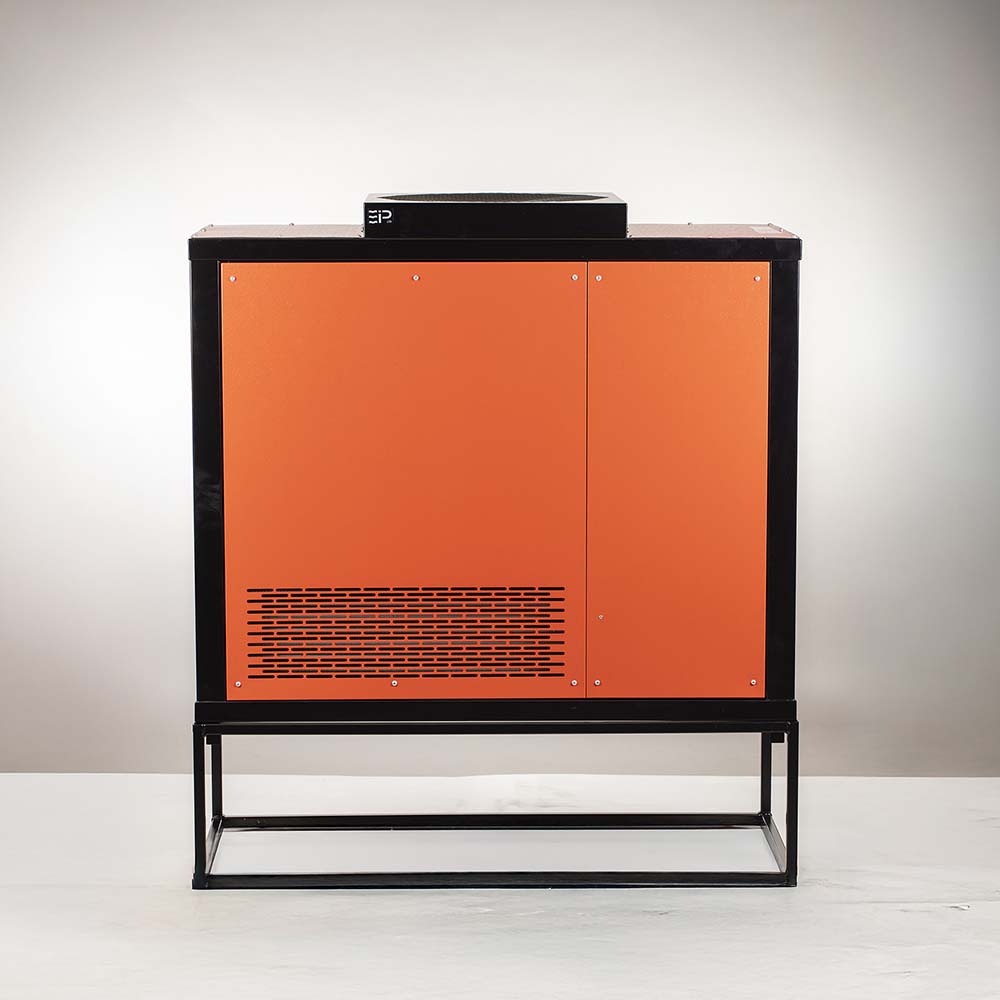

EBAC CD425-D (220V) Industrial Dehumidifier with Pump, 285 Pints/Day, 52,972 Cu. Ft., 220V, 3-Phase, 3,680W, 10141BR-US

EIPL CD425-D (220V) Industrial Dehumidifier with Pump, 285 Pints/Day, 52,972 Cu. Ft., 220V, 3-Phase, 3,680W

High-Capacity Industrial Dehumidification for Large Facilities

The EIPL CD425-D (220V) with Pump is a high-capacity industrial dehumidifier designed for environmental humidity control in very large areas and demanding industrial conditions. This specific product variant is identified by manufacturer part number 10141BR-US and includes the internal high-capacity water pump option.

The unit has a manufacturer-listed effective volume of 52,972 cubic feet and a typical extraction rating of 285 pints per day. Actual moisture removal depends on environmental conditions, including temperature, relative humidity, moisture load, and airflow. The manufacturer's rated specifications should be used when evaluating the unit for a particular installation.

220V Three-Phase Industrial Power

The CD425-D with Pump operates on 220V, three-phase, 60 Hz electrical power. It is rated at 3,680W with a listed current of 16A. The unit provides 1,750 CFM of airflow and has a listed noise level of 69 dBA.

Because this model requires three-phase electrical power, customers should verify that the intended installation location has a compatible 220V, three-phase, 60 Hz electrical supply before ordering.

High-Capacity Water Pump Variant

This listing is specifically for the CD425-D (220V) with Pump, part number 10141BR-US. The manufacturer identifies the internal high-capacity water pump as an included feature of this variant. The pump version is different from the standard 10140BR-US model, which uses a gravity-drain configuration.

The pump configuration can be useful when the condensate drainage arrangement requires pumped removal rather than relying on gravity alone. Customers should review the manufacturer's installation instructions and confirm that the planned condensate discharge arrangement is appropriate for the site.

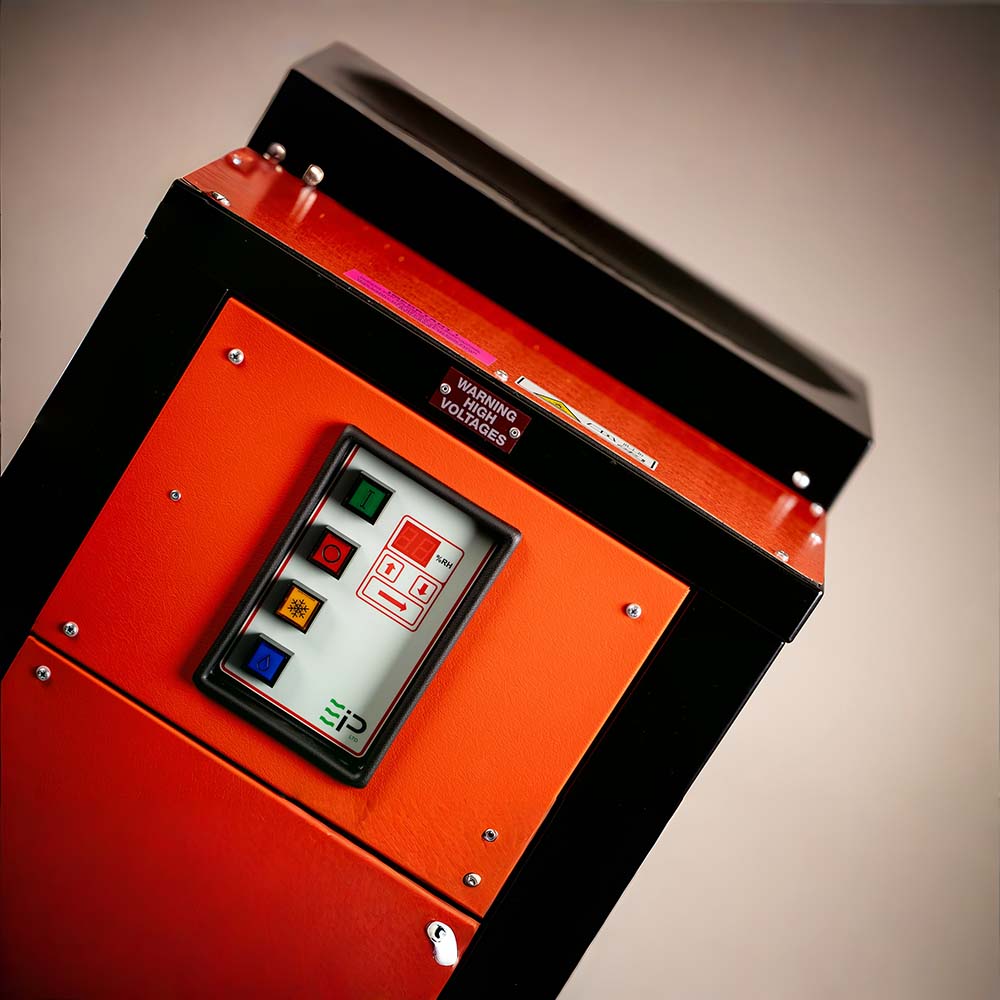

Digital Humidity Control

The CD425-D features digital humidity control and an adjustable humidistat that allows the desired level of dryness to be selected. The unit can regulate operation according to the selected humidity level, helping provide automatic moisture management for suitable large-area applications.

The manufacturer also indicates that the CD425-D can display actual room humidity and automatically regulate drying requirements through intermittent operation.

Reverse Cycle Defrost for Low-Temperature Operation

The EIPL CD425-D incorporates an electronic reverse-cycle defrost system designed to support operation in lower ambient temperatures. The manufacturer specifies an operating range from 33°F to 95°F.

The reverse-cycle defrost system helps manage frost accumulation during operation in cooler environments within the specified temperature range. Customers should verify the expected ambient temperature before selecting the unit for a particular facility.

Rugged Industrial Construction

The CD425-D uses a welded steel chassis with baked epoxy-coated and vinyl coatings intended to provide abrasion and corrosion resistance. Its rugged construction is designed for demanding industrial environments where a high-capacity, stand-alone dehumidification system is required.

The unit measures 47 inches high x 43 inches wide x 19 inches deep and weighs 353 pounds. Its substantial size and weight should be considered when planning transportation, placement, service access, and installation.

Large-Area Moisture Control

The CD425-D range was developed for very large areas and environments affected by severe humidity conditions. The manufacturer identifies warehouses, factories, offices, and other large-scale facilities as potential applications.

The unit can be used as a stand-alone dehumidifier, and multiple units may be utilized where the size or environmental conditions of a facility require additional capacity. Ducted applications are also possible where the system design requires them.

Refrigeration-Based Dehumidification

The CD425-D removes moisture from air through a refrigeration-based process. Moist air is drawn through the unit by the fan and passes over the cold evaporator coil. As the air is cooled below its dew point, moisture condenses and is collected as condensate.

The air then passes over the condenser coil and is reheated before being returned to the surrounding space. Continuous air circulation gradually reduces relative humidity, while the selected humidity setting allows the unit to regulate drying operation.

Key Features

• Industrial high-capacity dehumidifier with internal high-capacity water pump
• Manufacturer part number 10141BR-US
• 285 pints/day typical extraction
• 52,972 cubic feet effective volume
• 220V, three-phase, 60 Hz operation
• 3,680W power consumption
• 16A listed current
• 1,750 CFM airflow
• 69 dBA listed noise level
• R454c refrigerant
• Digital humidity control
• Adjustable control humidistat
• Electronic defrost control
• Reverse-cycle defrost system
• 33°F to 95°F operating temperature range
• Reciprocating compressor
• Welded steel chassis
• Epoxy powder coating
• Free-standing design
• Status indicators
• High-capacity water pump
• Ductable design

What's Included

• 1x CD425-D - 220V Dehumidifier
• 1x 3/8" PVC Tube I/D � 7.8M long

Product Resources

Review the manufacturer's product resources for additional technical, installation, operating, maintenance, and replacement-parts information before ordering or installing the EIPL CD425-D (220V) with Pump.

• Product Brochure
• Product Wiring Diagram
• Product Wiring Schematic

Applications for the EIPL CD425-D (220V) with Pump

The EIPL CD425-D (220V) with Pump is designed for environmental humidity control in very large areas and demanding industrial conditions. Its 52,972 cubic foot effective volume, 285 pints/day typical extraction rating, high airflow, rugged steel construction, and pumped condensate configuration make it suitable for appropriately designed large-scale installations.

Warehouses

The manufacturer identifies warehouses as an application for the CD425-D range. Large warehouse environments can require dedicated humidity control where excess moisture is present. The CD425-D can be used as a stand-alone unit or as part of a larger system using multiple units where required.

Factories and Manufacturing Facilities

Factories and manufacturing facilities may contain large production, storage, and equipment areas where humidity needs to be managed. The rugged welded steel chassis and high-capacity design make the CD425-D suitable for appropriate industrial environments within its specified operating conditions.

Large Offices and Commercial Facilities

The manufacturer identifies offices and other large-scale facilities as potential applications. The digital humidity control and adjustable humidistat allow the unit to regulate operation according to the selected humidity level.

Because this is a large industrial dehumidifier with a listed noise level of 69 dBA, customers should consider equipment placement, occupied-area requirements, and facility layout during installation planning.

Large Industrial Areas

The CD425-D range was developed for environmental control of very large areas and locations affected by severe conditions. The unit can provide high-capacity moisture removal for appropriate industrial spaces when the facility meets the required electrical and environmental conditions.

Ducted Applications

The manufacturer identifies ducted applications as possible where design requirements specify. Ducting should be planned according to the specific system design and manufacturer requirements. Customers should verify airflow requirements and installation details before incorporating the dehumidifier into a ducted system.

Multiple-Unit Installations

The CD425-D range can be utilized singly or in multiple-unit configurations. Larger facilities may require more than one dehumidifier depending on total volume, moisture load, temperature, humidity, ventilation, and other environmental conditions.

Facilities With Pumped Condensate Requirements

The 10141BR-US variant includes the manufacturer's high-capacity internal water pump. This configuration is intended for installations where pumped condensate removal is required rather than the gravity-drain configuration used by the standard 10140BR-US variant.

Before installation, customers should determine the planned condensate discharge route and verify that it is compatible with the pump configuration and manufacturer's installation requirements.

Low-Temperature Industrial Environments

The CD425-D is specified for operation from 33°F to 95°F and uses an electronic reverse-cycle defrost system. This makes the unit suitable for appropriately designed applications where ambient temperatures fall within the manufacturer's stated operating range.

Typical Facility Types

Installation Considerations

The CD425-D with Pump requires a 220V, three-phase, 60 Hz electrical supply. The unit measures 47 inches high x 43 inches wide x 19 inches deep and weighs 353 pounds. Adequate space should be provided for placement, airflow, service access, and condensate discharge.

The unit's high-capacity pump configuration should be considered when planning the condensate discharge route. The standard 10140BR-US model and the 10141BR-US pump model use different condensate configurations, so the correct part number should be verified before installation.

Frequently Asked Questions

The following FAQs cover common questions about the EIPL CD425-D (220V) with Pump, including the exact SKU, capacity, electrical requirements, pump configuration, applications, and installation considerations.

What is the EIPL CD425-D (220V) with Pump?

The EIPL CD425-D (220V) with Pump is a high-capacity industrial dehumidifier designed for environmental humidity control in very large areas and demanding industrial environments.

What is the part number for this pump variant?

The manufacturer part number for the CD425-D (220V) with Pump is 10141BR-US.

Is 10141BR-US the same as 10140BR-US?

No. The 10141BR-US is the CD425-D (220V) with Pump. The standard CD425-D (220V) is listed under 10140BR-US. The pump variant includes the high-capacity water pump, while the standard variant has a gravity-drain configuration.

How much moisture does the CD425-D remove?

The manufacturer lists a typical extraction rating of 285 pints per day.

What area can the CD425-D handle?

The manufacturer lists an effective volume of 52,972 cubic feet, equivalent to approximately 1,500 cubic meters.

What voltage does the CD425-D with Pump require?

The unit requires 220V, three-phase, 60 Hz electrical power.

How much power does the unit use?

The manufacturer lists power consumption at 3,680W and current at 16A.

What is the airflow rating?

The EIPL CD425-D has a listed airflow of 1,750 CFM.

What is the noise level?

The manufacturer lists a noise level of 69 dBA.

What refrigerant does the CD425-D use?

The manufacturer lists R454c refrigerant for the 220V CD425-D variant.

Does this SKU include a water pump?

Yes. Part number 10141BR-US is the CD425-D (220V) with Pump and includes the manufacturer's high-capacity water pump.

Does the 10141BR-US model use a gravity drain?

No. The manufacturer's specification table identifies the high-capacity water pump as present for 10141BR-US and gravity drain as not present for this variant.

Does the unit have humidity control?

Yes. The CD425-D features digital humidity control and an adjustable control humidistat.

Does the CD425-D have automatic defrost?

Yes. The unit features electronic defrost control and a reverse-cycle defrost system.

What is the operating temperature range?

The manufacturer specifies an operating temperature range of 33°F to 95°F.

Can the CD425-D be used in cold environments?

The unit is specified for operation down to 33°F and incorporates a reverse-cycle defrost system for low-temperature operation within its specified range.

What are the dimensions?

The manufacturer lists dimensions of 47 inches high x 43 inches wide x 19 inches deep.

How much does the CD425-D weigh?

The unit weighs 353 pounds.

What type of compressor does it use?

The manufacturer lists a reciprocating compressor.

Can the CD425-D be ducted?

Yes. The manufacturer identifies ducted applications as possible where design requirements specify.

Where can the CD425-D be used?

Manufacturer-identified applications include warehouses, factories, offices, and other large-scale facilities affected by humidity and condensation conditions.

Can multiple CD425-D units be used together?

Yes. The manufacturer states that CD425-D units can be utilized singly or in multiple-unit installations to provide protection on different scales.

What comes with the 10141BR-US unit?

The standard package includes one CD425-D (220V) dehumidifier, one owner's manual, and one 3/8-inch PVC tube with a 7.8-meter length.

What should I verify before ordering?

Verify the exact 10141BR-US part number, 220V three-phase 60 Hz electrical supply, installation dimensions, effective volume requirement, expected operating temperature, condensate discharge arrangement, and available service space.

Is the pump included with 10141BR-US?

Yes. The manufacturer specifically identifies 10141BR-US as the CD425-D (220V) with Pump and lists the high-capacity water pump as present.

What is the difference between the pump and non-pump versions?

The 10141BR-US version includes the high-capacity water pump, while the 10140BR-US standard version uses a gravity-drain configuration. The two variants should not be treated as interchangeable when planning condensate removal.
