EBAC CD85 Commercial Industrial Dehumidifier, 56 Pints/Day, 8,370 Cu. Ft., 110V 11293GL-US

EIPL CD85-D Commercial Industrial Dehumidifier, 56 Pints/Day, 8,370 Cu. Ft., 110V

The EIPL CD85-D is a high-capacity refrigeration dehumidifier designed for commercial, industrial, HVAC, and facility moisture-control applications. Its compact footprint, configurable air inlet and outlet positions, internal condensate pump, and low-temperature operating capability provide flexibility for installations where reliable humidity management is required.

The manufacturer identifies the CD85 for applications including offices, laboratories, storage areas, restaurants, bars, museums, locker rooms, computer rooms, telecommunication rooms, basements, and crawl spaces. The unit is also suitable for other appropriate environments where its specified electrical, temperature, drainage, and capacity requirements can be met.

56 Pints Per Day Typical Extraction

The CD85-D has a manufacturer-listed typical extraction rate of 56 pints per day and an effective volume of 8,370 cubic feet. Actual moisture removal depends on environmental conditions, including temperature, relative humidity, moisture load, and airflow.

When selecting the unit, customers should evaluate the actual space and environmental conditions rather than choosing a dehumidifier based only on its pint-per-day rating.

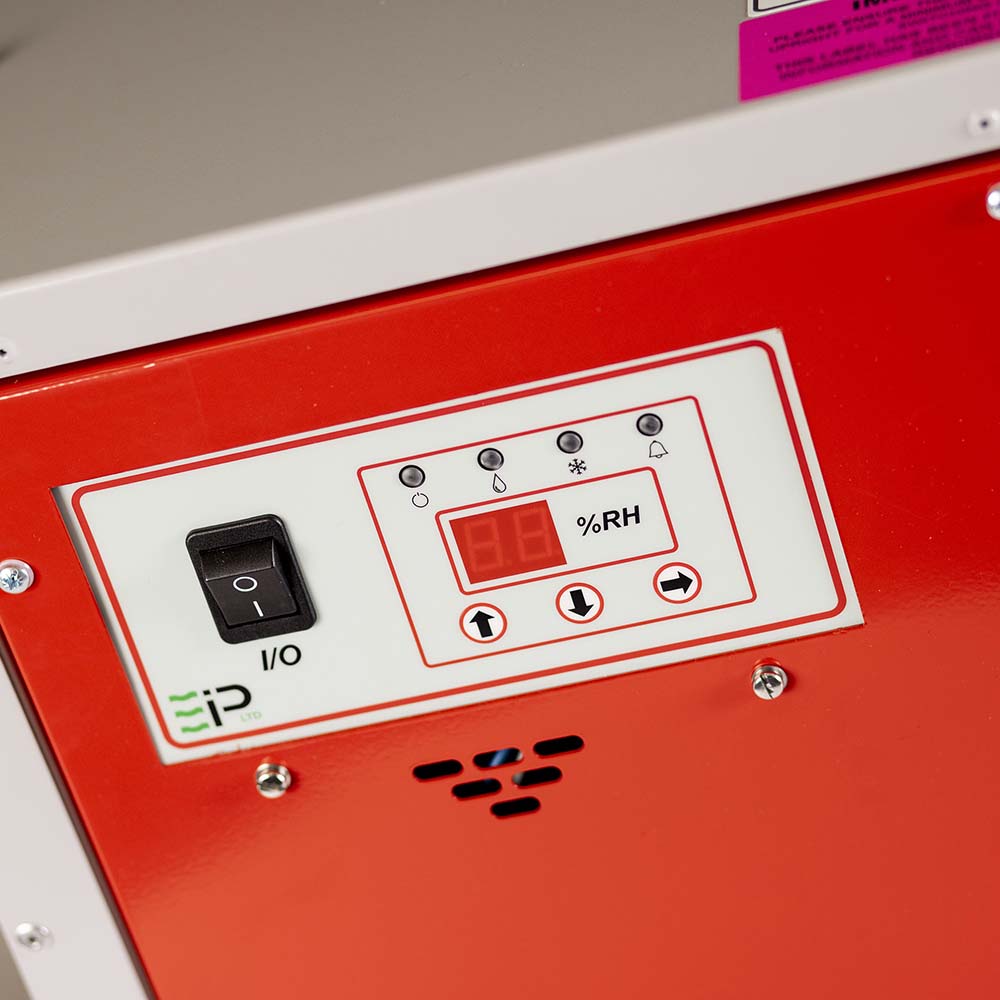

Adjustable Digital Humidistat

The CD85-D features an adjustable digital humidistat for controlling the desired level of dryness. Humidity-based operation allows the dehumidifier to operate according to the moisture conditions of the surrounding environment.

This can be useful in commercial and facility applications where maintaining a controlled humidity level is part of routine environmental management.

Configurable Airflow Connections

The CD85-D provides configurable inlet and outlet positions, giving installers greater flexibility when planning the unit's placement. This feature can be useful when the available installation space or airflow arrangement requires a particular configuration.

Customers should verify the planned installation area, required clearances, and desired inlet and outlet arrangement before ordering.

Low-Temperature Operation

The CD85-D is designed for operation from 33°F to 95°F. Its temperature-sensitive defrost system helps manage frost buildup during operation in lower ambient temperatures within the manufacturer's specified operating range.

Low-temperature capability can make the unit appropriate for applications such as basements, crawl spaces, storage areas, and other environments where temperatures may fall below typical indoor room conditions.

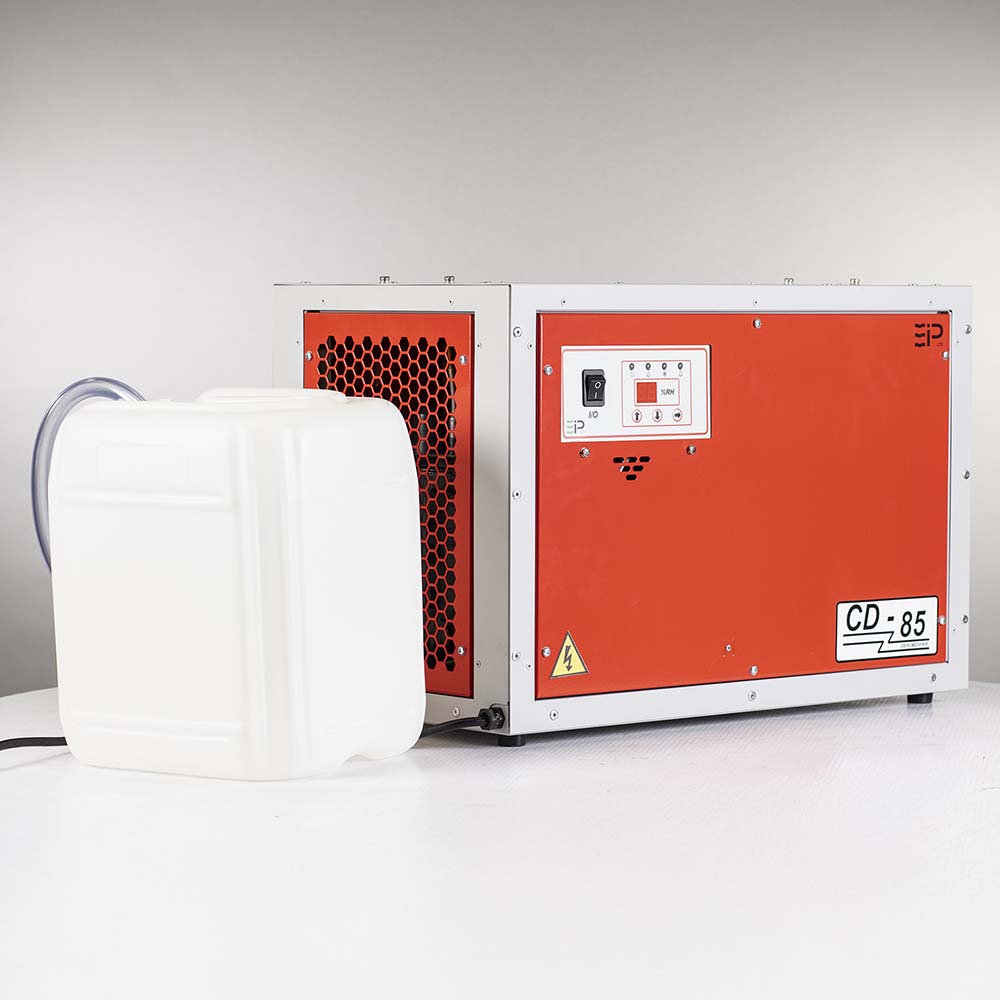

Internal Condensate Pump

An internal condensate pump provides a convenient method for removing collected moisture when the drainage point is above the unit. The manufacturer indicates an approximate pumping head of 36 inches.

The unit also includes a condensate drain connection and drainage components. Customers should verify the planned drainage route and elevation before installation.

Industrial Construction

The CD85-D uses a rugged, epoxy powder-coated steel chassis and housing. Anti-vibration rubber feet help support stable placement, while the included handles assist with handling the unit.

The unit measures 15.75 inches high by 23.6 inches wide by 13.5 inches deep and weighs 75 pounds. Its compact dimensions relative to its capacity can be useful in installations where floor space is limited.

Refrigeration-Based Moisture Removal

The CD85-D removes moisture through a refrigeration-based dehumidification process. Moist air is drawn through the unit and passes over a cold evaporator surface, causing moisture to condense. The collected condensate is then removed through the drainage system.

The air is subsequently reheated through the heat recovery process before being returned to the surrounding area. Continuous air circulation gradually reduces moisture levels when the unit is correctly sized and operated for the application.

Electrical and Operating Specifications

The CD85-D operates on 110V, single-phase, 60 Hz electrical power. The manufacturer lists 7A current draw, 880W power consumption, 230 CFM airflow, and a 57 dBA noise level.

The unit uses R407C refrigerant and has an operating temperature range of 33°F to 95°F.

Key Features

• Commercial and industrial dehumidifier
• 56 pints/day typical extraction
• 8,370 cubic feet effective volume
• 110V, single-phase, 60 Hz operation
• 7A current rating
• 880W power consumption
• 230 CFM airflow
• 57 dBA listed noise level
• Adjustable digital humidistat
• Temperature-sensitive defrost control
• Low-temperature operation from 33°F to 95°F
• Rotary compressor
• Configurable inlet and outlet positions
• Inlet filter
• Internal condensate pump
• Internal float switch
• Quick-disconnect hose coupling
• Epoxy powder-coated steel chassis and housing
• Anti-vibration rubber feet
• Extra-long power cord
• R407C refrigerant

What's Included

• 1 x CD85 Dehumidifier
• 1 x CD85 Owner's Manual
• 1 x PVC Tube, 3/8-inch ID, 3 meters long
• 1 x Jubilee Clip
• 2 x Handles

Product Resources

Review the manufacturer's resources for additional installation, maintenance, replacement-parts, wiring, and technical information before installing the CD85.

• Product Brochure
• Product Instruction Manual
• Product Wiring Diagram
• Product Wiring Schematic

Applications for the EIPL CD85-D

The EIPL CD85-D is designed for humidity-control applications in commercial, industrial, HVAC, and facility environments. Its 8,370 cubic foot effective volume, 56 pints/day typical extraction, configurable airflow positions, and internal condensate pump provide flexibility for suitable installations.

Offices

Offices can experience elevated humidity due to building conditions, seasonal changes, or moisture entering from surrounding areas. The CD85-D can provide dedicated dehumidification for appropriately sized office areas where its capacity and installation requirements are suitable.

Laboratories

Laboratories may require controlled environmental conditions for equipment and facility operations. The CD85-D can be used for suitable humidity-control applications where its operating specifications meet the requirements of the environment.

Storage Areas

Storage areas can benefit from humidity management when moisture levels need to be controlled. The CD85-D can provide continuous air circulation and moisture removal in appropriately sized storage environments.

Restaurants and Bars

Restaurants and bars can experience moisture from routine operations and environmental conditions. The CD85-D can be considered for suitable areas where additional humidity control is required and the installation location meets the unit's electrical, drainage, and temperature requirements.

Museums

Museums may require controlled humidity conditions as part of broader environmental management. The CD85-D can provide dehumidification for suitable areas, but customers should verify the environmental requirements for sensitive collections and ensure that the equipment is appropriate for the specific facility.

Locker Rooms

Locker rooms can experience increased moisture from occupants and changing conditions. The CD85-D can be used for appropriate humidity-control applications where the space is within its rated capacity.

Computer and Telecommunication Rooms

Computer and telecommunication rooms may require environmental control to maintain suitable conditions around sensitive equipment. The CD85-D can provide moisture removal in appropriately sized areas when its operating specifications are compatible with the facility's requirements.

Customers should follow the environmental specifications provided by the equipment manufacturer and should not rely on the dehumidifier as a substitute for required environmental controls.

Basements

Basements can experience elevated humidity because of their location below grade and limited natural ventilation. The CD85-D can provide dedicated dehumidification for suitable basement spaces within its effective volume and operating temperature specifications.

Crawl Spaces

Crawl spaces are specifically identified by the manufacturer as an application for the CD85. The CD85-D can provide moisture removal in appropriately sized crawl spaces where the unit can be installed with suitable airflow, drainage, electrical access, and temperature conditions.

Warehouses

Warehouses may require humidity management to help maintain suitable environmental conditions for stored materials and equipment. The CD85-D can be used in an appropriately sized area when its effective volume and moisture-removal capacity are suitable.

Factories and Industrial Facilities

Industrial facilities can contain areas where humidity needs to be managed around equipment, materials, or workspaces. The CD85-D provides a compact commercial and industrial dehumidification option for suitable areas.

Typical Facilities

Environmental Considerations

The CD85-D operates within a manufacturer-specified temperature range of 33°F to 95°F. Customers should evaluate the expected conditions of the installation area before selecting the unit.

The dehumidifier manages moisture in the surrounding air. If excessive moisture is caused by leaks, inadequate drainage, ventilation problems, or another underlying issue, those conditions should also be addressed as part of the overall moisture-control strategy.

Frequently Asked Questions

These FAQs address common questions about the EIPL CD85 commercial and industrial dehumidifier, including capacity, specifications, applications, installation, drainage, and ordering considerations.

What is the EIPL CD85?

The EIPL CD85 is a commercial and industrial dehumidifier designed for humidity control in suitable offices, laboratories, storage areas, restaurants, bars, museums, locker rooms, computer rooms, telecommunication rooms, basements, crawl spaces, and other appropriate environments.

What is the part number for the CD85?

The manufacturer identifies the CD85 with part number 11293GL-US. Verify the exact model and part number before ordering.

How much moisture does the CD85 remove?

The manufacturer lists typical extraction of 56 pints per day. Actual extraction can vary depending on temperature, relative humidity, moisture load, and other environmental conditions.

What size area can the CD85 handle?

The manufacturer lists an effective volume of 8,370 cubic feet. Customers should evaluate the actual environmental conditions and moisture load when determining whether the unit is appropriately sized.

What voltage does the CD85 use?

The unit operates on 110V, single-phase, 60 Hz electrical power.

How much power does the CD85 consume?

The manufacturer lists power consumption at 880W and current at 7A.

What is the airflow rating?

The CD85 has a listed airflow of 230 CFM.

What is the operating temperature range?

The manufacturer specifies an operating temperature range of 33°F to 95°F.

Does the CD85 have a humidistat?

Yes. The CD85 is equipped with an adjustable digital humidistat for controlling the desired level of dryness.

Does the CD85 have a defrost system?

Yes. The unit features temperature-sensitive defrost control designed to help manage frost buildup during operation at lower ambient temperatures.

What type of compressor does the CD85 use?

The manufacturer lists a rotary compressor for the CD85.

What refrigerant does the CD85 use?

The manufacturer lists R407C refrigerant.

How loud is the CD85?

The manufacturer lists a noise level of 57 dBA.

What are the dimensions of the CD85?

The unit measures 15.75 inches high x 23.6 inches wide x 13.5 inches deep.

How much does the CD85 weigh?

The manufacturer lists the unit weight at 75 pounds.

Does the CD85 have a condensate pump?

Yes. The unit includes an internal condensate pump for removing collected moisture. The manufacturer indicates an approximate pumping head of 36 inches.

Does the CD85 include a drain hose?

The manufacturer lists a 25-foot PVC drain hose as a feature and also lists a 3/8-inch ID PVC tube measuring 3 meters long among the included components. Verify the package contents against the current manufacturer documentation when ordering.

Can the inlet and outlet positions be configured?

Yes. The CD85-D has configurable inlet and outlet positions, allowing greater flexibility when planning the installation.

Where can the CD85 be used?

Manufacturer-identified applications include offices, laboratories, storage areas, restaurants, bars, museums, locker rooms, computer rooms, telecommunication rooms, basements, and crawl spaces.

Can the CD85 be used in a crawl space?

Yes. Crawl spaces are among the applications identified by the manufacturer. Verify the crawl-space volume, temperature, electrical supply, drainage, and available installation space before use.

Can the CD85 be used in a basement?

Yes. Basements are identified as an application for the CD85. The installation should meet the unit's capacity, temperature, electrical, drainage, and placement requirements.

Can the CD85 be used in an office?

Yes. Offices are identified by the manufacturer as an application. The customer should consider the unit's 57 dBA listed noise level and ensure the installation location is appropriate for an occupied area.

Is the CD85 suitable for commercial use?

Yes. The CD85 is identified by the manufacturer as a commercial and industrial dehumidifier and is intended for a range of commercial, facility, HVAC, and industrial applications.

What is the difference between the CD85 and another EIPL dehumidifier?

EIPL offers multiple dehumidifier models with different capacities, electrical requirements, dimensions, controls, and application specifications. Always compare the exact model and part number rather than applying specifications from another EIPL product.

What drainage limitations should I consider?

The CD85 uses an internal condensate pump for water removal. The manufacturer indicates an approximate 36-inch pumping head. Confirm that the planned drainage route is compatible with the pump and installation requirements.

Is the CD85 portable?

The unit includes handles and anti-vibration rubber feet, but it is a 75-pound commercial/industrial dehumidifier. Customers should plan movement and installation according to the unit's weight and intended placement.

What comes with the CD85?

The manufacturer lists a CD85 dehumidifier, owner's manual, 3/8-inch ID PVC tube measuring 3 meters long, Jubilee clip, and two handles among the included components.
