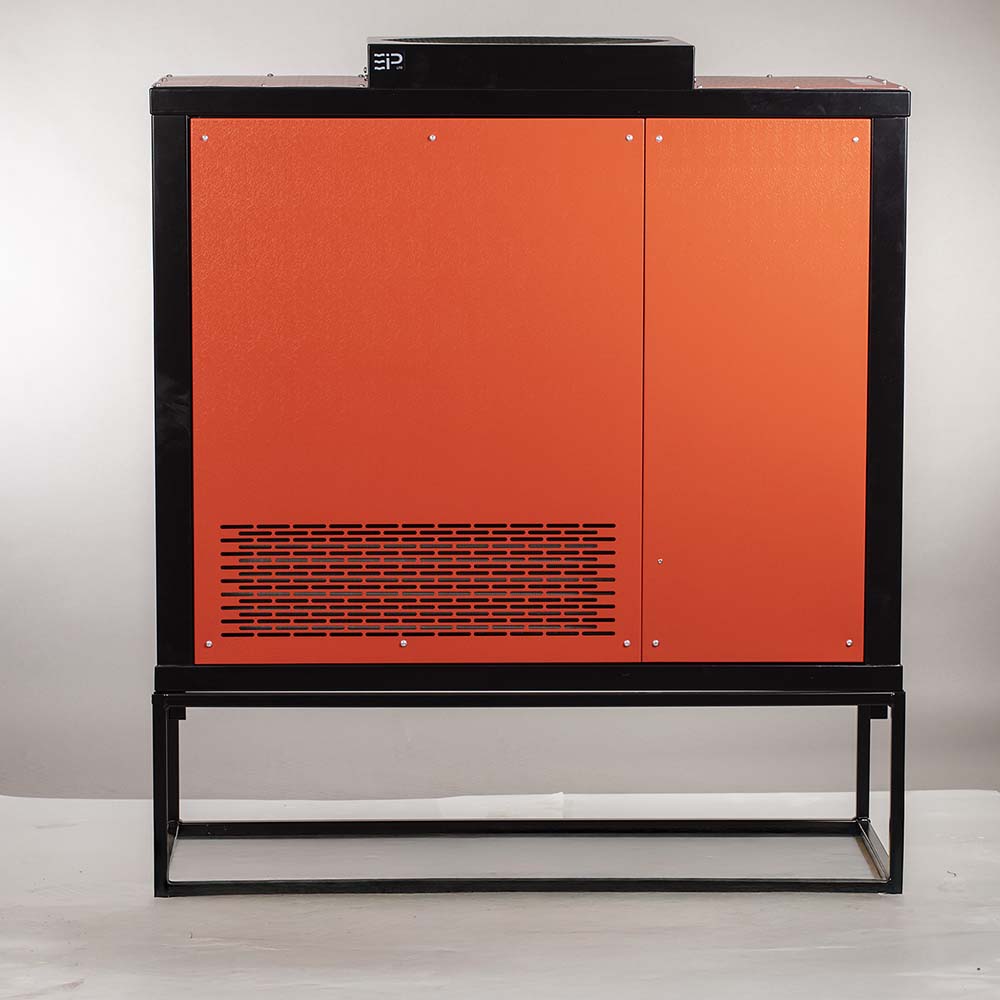

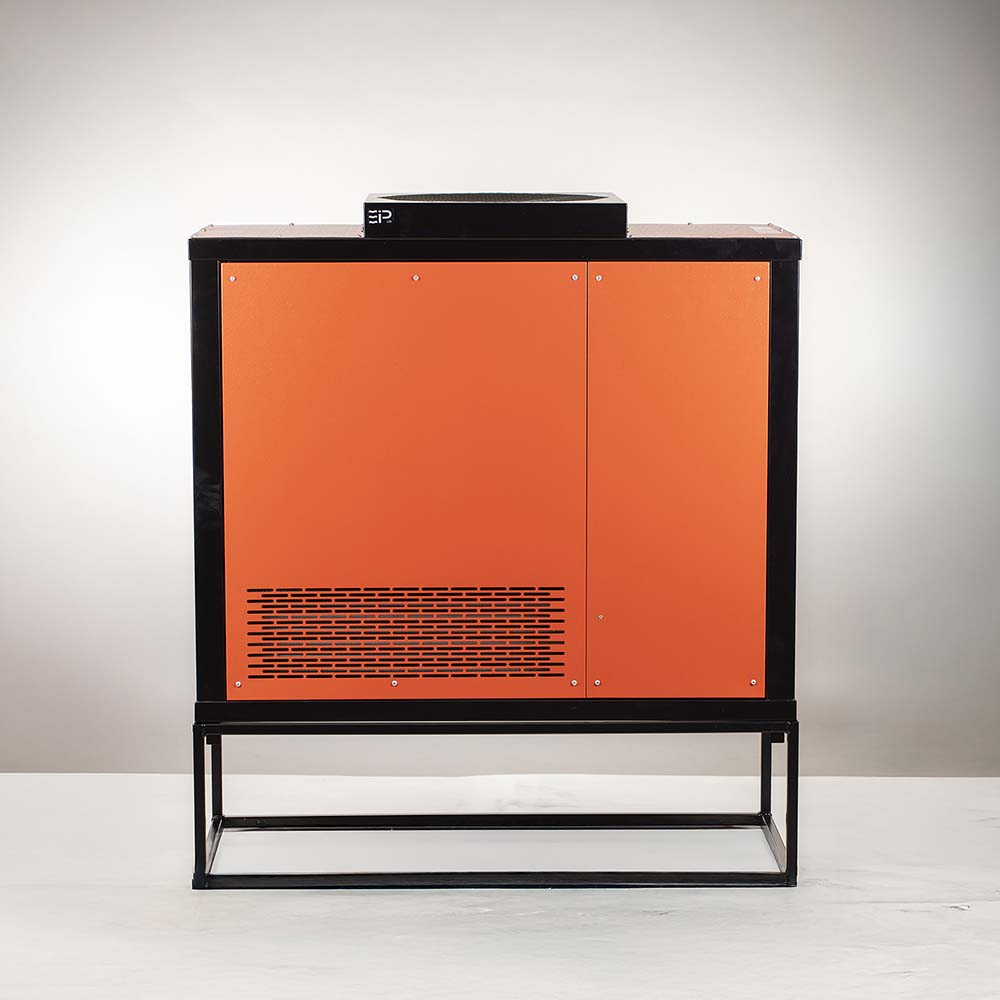

EBAC CD425-D (220V) Commercial Industrial Dehumidifier, 285 Pints/Day, 52,972 Cu. Ft., 220V, 3-Phase, 3,680W, 10140BR-US

EIPL CD425-D (220V) Commercial Industrial Dehumidifier, 285 Pints/Day, 52,972 Cu. Ft.

High-Capacity Dehumidification for Large Industrial Spaces

The EIPL CD425-D (220V) is a high-capacity industrial dehumidifier designed for moisture and humidity control in large commercial, industrial, and facility environments. With a manufacturer-rated effective volume of 52,972 cubic feet and typical extraction of 285 pints per day, the CD425-D is intended for applications where a substantially higher moisture-removal capacity is required.

Large Effective Volume and High Moisture Removal

The CD425-D provides a listed effective volume of 52,972 cubic feet, equivalent to approximately 1,500 cubic meters. Its typical extraction rating is 285 pints per day, making it suitable for appropriately sized areas where excess humidity and condensation need to be managed.

Actual moisture removal depends on environmental conditions such as temperature, relative humidity, moisture load, and ventilation. Customers should evaluate the specific installation conditions rather than selecting a dehumidifier based only on its rated extraction capacity.

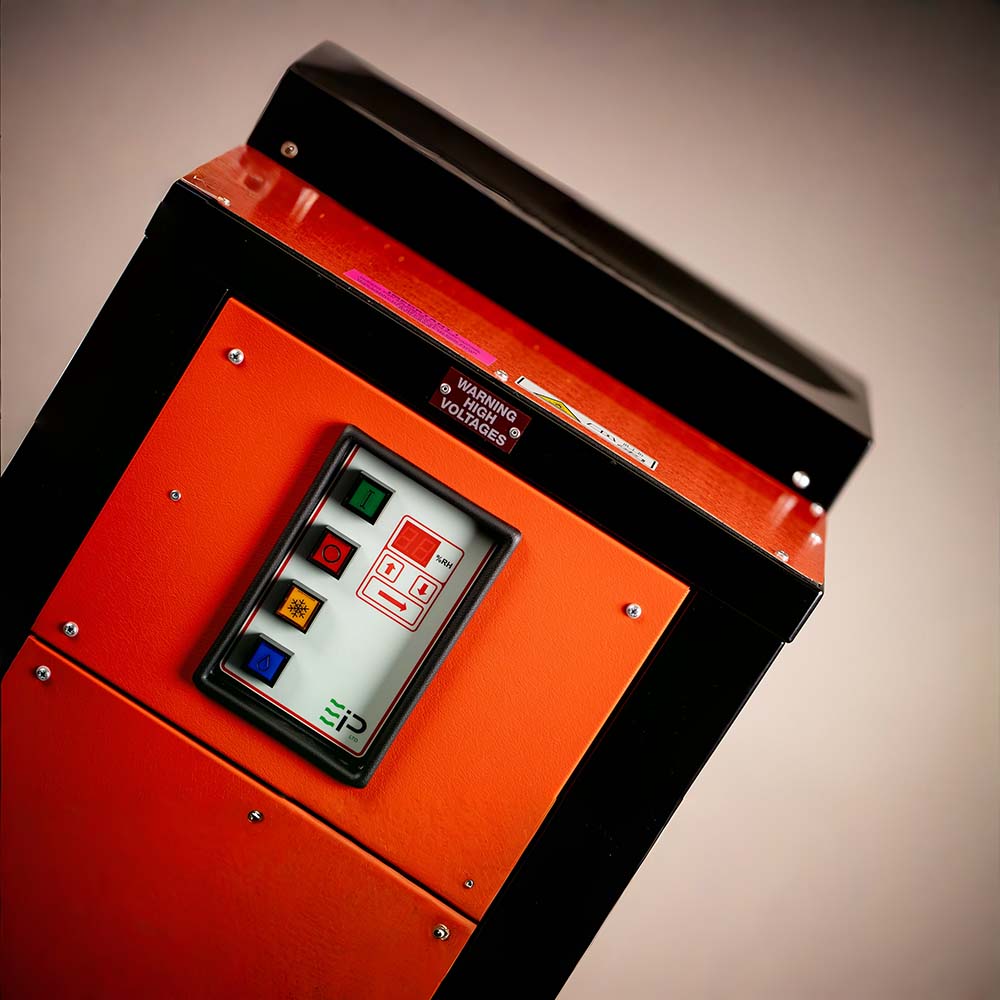

Digital Humidity Control

The CD425-D features digital humidity control and an adjustable control humidistat. The system allows a desired humidity level to be selected while providing humidity information for the surrounding environment.

This control system allows the dehumidifier to regulate operation according to the selected humidity level. The unit can automatically cycle as required to maintain the desired drying condition.

Industrial Construction

The CD425-D is built around a welded steel chassis with baked epoxy-coated and vinyl coatings intended to provide resistance to abrasion and corrosion. Its rugged construction is designed for suitable industrial environments where equipment may be exposed to demanding operating conditions.

The free-standing design allows the unit to be positioned on the floor in an appropriate installation area. The unit measures 47 inches high, 43 inches wide, and 19 inches deep and weighs 353 pounds.

Reverse-Cycle Defrost for Low-Temperature Operation

The EIPL CD425-D incorporates a reverse-cycle defrost system designed to automatically remove frost buildup during low-temperature operation. The manufacturer's standard operating range is 33°F to 95°F.

This makes the CD425-D suitable for appropriately configured applications where temperatures may fall below typical room conditions. Customers should verify the expected ambient temperature before installation.

Powerful Airflow and Refrigeration-Based Dehumidification

The CD425-D uses a refrigeration-based dehumidification process. Moist air is drawn into the unit and passed over the cold evaporator surface, where moisture condenses. The air is then reheated and returned to the surrounding environment with lower absolute humidity.

The 220V model operates on 3-phase, 60 Hz electrical power and is rated at 3,680W with a listed current of 16A. Airflow is rated at 1,750 CFM, while the listed noise level is 69 dBA.

Ductable Design

The CD425-D provides ductability for installations where the application requires air to be directed through a duct system. Ducted configurations should be planned according to the requirements of the specific installation.

Customers should evaluate airflow requirements, duct routing, available space, and installation conditions before selecting a ducted configuration.

Gravity Drainage

The standard CD425-D 220V model uses gravity drainage. The manufacturer specifies two 5/8-inch outside-diameter gravity drain connections for the standard version.

The standard package includes a 3/8-inch inside-diameter PVC tube measuring 7.8 meters in length. The installation should provide a suitable condensate drainage route before the unit is placed into service.

Designed for Large-Scale Moisture Control

The CD425-D range is designed for environmental control in large areas affected by humidity and condensation. Manufacturer-identified applications include warehouses, factories, offices, pumping stations, oil rigs, agriculture, stadiums, ships and barges, basements, sports halls, storage areas, and laboratories.

The unit can be used individually or as part of a multiple-unit installation where the overall application requires additional dehumidification capacity.

Key Features

• High-capacity industrial dehumidifier
• CD425-D 220V model
• Manufacturer part number 10140BR-US
• Typical extraction of 285 pints per day
• 52,972 cubic feet effective volume
• 1,500 cubic meters effective volume
• 220V electrical supply
• 3-phase operation
• 60 Hz frequency
• 3,680W power consumption
• 16A listed current
• 1,750 CFM airflow
• 69 dBA listed noise level
• R454C refrigerant
• Digital humidity control
• Adjustable control humidistat
• Reverse-cycle defrost system
• Operating temperature range of 33°F to 95°F
• Welded steel chassis
• Epoxy powder-coated construction
• Vinyl-coated finish
• Free-standing design
• Ductable configuration
• Gravity drainage

What's Included

• 1 x CD425-D 220V Dehumidifier
• 1 x CD425-D 220V Owner's Manual
• 1 x 3/8-inch ID PVC Tube, 7.8 meters long

Product Resources

Review the manufacturer's resources for additional installation, maintenance, replacement-parts, wiring, and technical information before installing the CD425-D (220V).

• Product Brochure
• Product Wiring Diagram
• Product Wiring Schematic

Applications for the EIPL CD425-D (220V)

The EIPL CD425-D range is designed for large-scale environmental humidity control. The manufacturer identifies applications across industrial, commercial, agricultural, marine, storage, and facility environments.

Warehouses

Large warehouses can experience humidity and condensation that affect stored goods, equipment, and building areas. The CD425-D can provide high-capacity moisture removal for appropriately sized warehouse environments within its rated effective volume.

Factories and Manufacturing Facilities

Factories may contain large production, storage, and equipment areas where humidity needs to be managed. The CD425-D provides a high-capacity option for suitable industrial environments and can be used where its electrical and installation requirements can be satisfied.

Pumping Stations

Pumping stations can experience moisture and condensation around mechanical equipment and enclosed spaces. The CD425-D can be used as part of an appropriate environmental-control setup for suitable areas.

Oil Rigs

The manufacturer identifies oil rigs as an application for the CD425-D range. Customers should evaluate the specific installation environment, electrical requirements, drainage, operating temperature, and facility requirements before deployment.

Agricultural Facilities

Agricultural applications can include large areas where environmental humidity needs to be managed. The manufacturer identifies agriculture among the applications for the CD425-D range.

Stadiums and Sports Halls

Large sports facilities can require substantial moisture-control capacity. The CD425-D can be considered for suitable stadium and sports-hall environments when the rated capacity and installation requirements are appropriate.

Ships and Barges

The manufacturer identifies ships and barges as applications for the CD425-D range. Marine installations require careful evaluation of electrical supply, physical placement, drainage, environmental conditions, and other site-specific requirements.

Storage Areas

Storage areas may require humidity management to help maintain appropriate environmental conditions. The CD425-D can provide high-capacity moisture removal for appropriately sized storage environments.

Laboratories

Laboratories may require environmental humidity control depending on the facility and process requirements. The CD425-D can be considered where its capacity, electrical requirements, noise level, and environmental specifications are appropriate.

Basements

The manufacturer identifies basements as an application for the CD425-D range. Customers should evaluate the available installation area, drainage route, temperature, electrical supply, and required moisture-removal capacity.

Typical Facilities

Installation Considerations

The CD425-D requires a 220V, 3-phase, 60 Hz electrical supply. The unit also requires suitable condensate drainage because the standard model uses gravity drainage.

The manufacturer's operating temperature range is 33°F to 95°F. Verify the expected ambient conditions of the installation location before selecting the unit.

Ducted Applications

The CD425-D is ductable, allowing installations to be configured for applications where air distribution through ductwork is required. Duct design and installation should be evaluated according to the requirements of the specific facility.

Frequently Asked Questions

The following FAQs address common questions about the EIPL CD425-D 220V industrial dehumidifier, including capacity, electrical requirements, drainage, applications, dimensions, and ordering considerations.

What is the EIPL CD425-D?

The EIPL CD425-D is a high-capacity industrial dehumidifier designed for large commercial, industrial, and facility moisture-control applications.

What is the part number for the CD425-D 220V?

The manufacturer part number for the 220V version is 10140BR-US.

What voltage does this CD425-D use?

This version operates at 220V.

Is the CD425-D 220V single phase or three phase?

The 220V model is a 3-phase unit operating at 60 Hz.

How much moisture does the CD425-D remove?

The manufacturer lists typical extraction at 285 pints per day.

What size area can the CD425-D handle?

The manufacturer lists an effective volume of 52,972 cubic feet, equivalent to approximately 1,500 cubic meters.

What is the airflow rating?

The CD425-D has a listed airflow of 1,750 CFM.

What is the power consumption?

The 220V model is rated at 3,680W.

What is the current rating?

The manufacturer lists the current at 16A for the 220V model.

What is the operating temperature range?

The manufacturer specifies an operating range of 33°F to 95°F.

Does the CD425-D have a humidistat?

Yes. The CD425-D includes an adjustable control humidistat and digital humidity control.

What type of defrost system does it use?

The CD425-D uses a reverse-cycle defrost system with electronic defrost control.

What refrigerant does the CD425-D use?

The manufacturer specifies R454C refrigerant.

What are the dimensions of the CD425-D?

The unit measures 47 inches high x 43 inches wide x 19 inches deep.

How much does the CD425-D weigh?

The listed unit weight is 353 pounds.

Does the CD425-D use gravity drainage?

Yes. The standard CD425-D 220V version uses a gravity drain.

Does the standard CD425-D include a drain tube?

Yes. The standard package includes a 3/8-inch ID PVC tube measuring 7.8 meters long.

Is the CD425-D ductable?

Yes. The manufacturer identifies ductability as a feature of the CD425-D.

Where can the CD425-D be used?

Manufacturer-identified applications include warehouses, factories, offices, pumping stations, oil rigs, agriculture, stadiums, ships and barges, basements, sports halls, storage areas, and laboratories.

Is this the 220V version?

Yes. This listing is specifically for the CD425-D 220V model, part number 10140BR-US.

Is the 460V version the same product?

The CD425-D is available in different electrical configurations, but the electrical specifications differ. Customers requiring 220V should verify the 10140BR-US part number before ordering.

Does this listing include the pump-equipped version?

No. This listing is for the standard CD425-D 220V model. The manufacturer identifies a separate pump-equipped variant with a different part number.

What comes with the standard CD425-D 220V?

The standard package includes one CD425-D 220V dehumidifier, one owner's manual, and one 3/8-inch ID PVC tube measuring 7.8 meters long.

Is the CD425-D suitable for large warehouses?

The manufacturer identifies warehouses as an application. Customers should verify that the area and environmental conditions are appropriate for the unit's 52,972 cubic foot effective volume rating.

What should I verify before ordering?

Verify the CD425-D 220V / 10140BR-US model, 220V 3-phase electrical supply, 60 Hz frequency, available installation space, effective volume, operating temperature, condensate drainage arrangement, and any ducting requirements.
