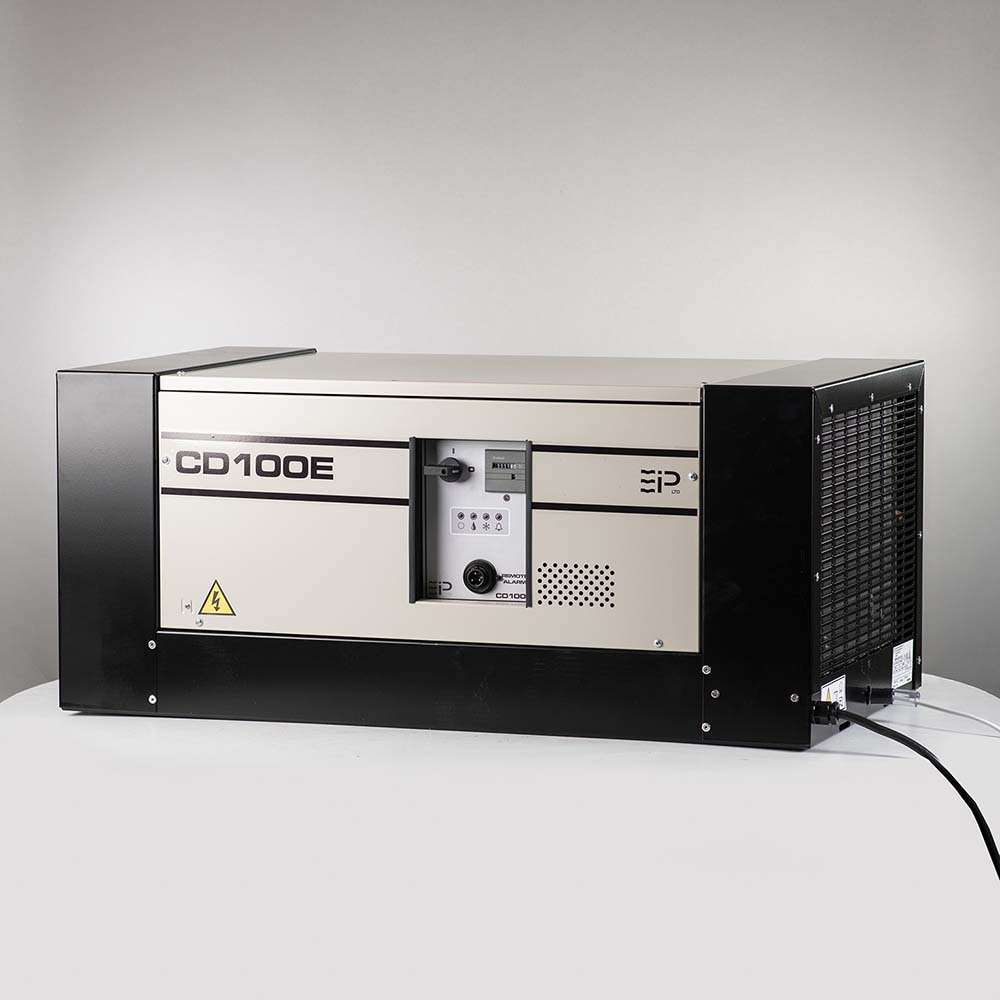

EBAC CD100 High-Capacity Industrial Dehumidifier, 97 Pints/Day, 10,594 Cu. Ft., 110V, 1.09kW, 11324BR-US

EIPL CD100 High-Capacity Industrial Dehumidifier, 97 Pints/Day, 10,594 Cu. Ft., 110V, 1.09kW

High-Capacity Industrial Moisture Control

The EIPL CD100 is a high-capacity industrial dehumidifier designed to help control excess humidity in demanding commercial and industrial environments. Its rugged construction, adjustable humidistat, high-capacity moisture extraction, and reverse-cycle defrost system make it suitable for applications where maintaining controlled humidity is an important part of facility or equipment management.

The CD100 provides typical extraction of 97 pints per day and has an effective volume rating of 10,594 cubic feet. Actual moisture removal depends on environmental conditions such as temperature, relative humidity, moisture load, ventilation, and the characteristics of the installation.

Rugged Industrial Construction

The CD100 features a rugged epoxy-coated steel chassis designed for demanding environments. The unit also uses a floating compressor intended to provide vibration and mobility protection.

The free-standing design and carrying handle/skid allow the unit to be moved between suitable locations when required. The CD100 can also be permanently mounted and ducted for appropriate applications when the installation is configured according to manufacturer requirements.

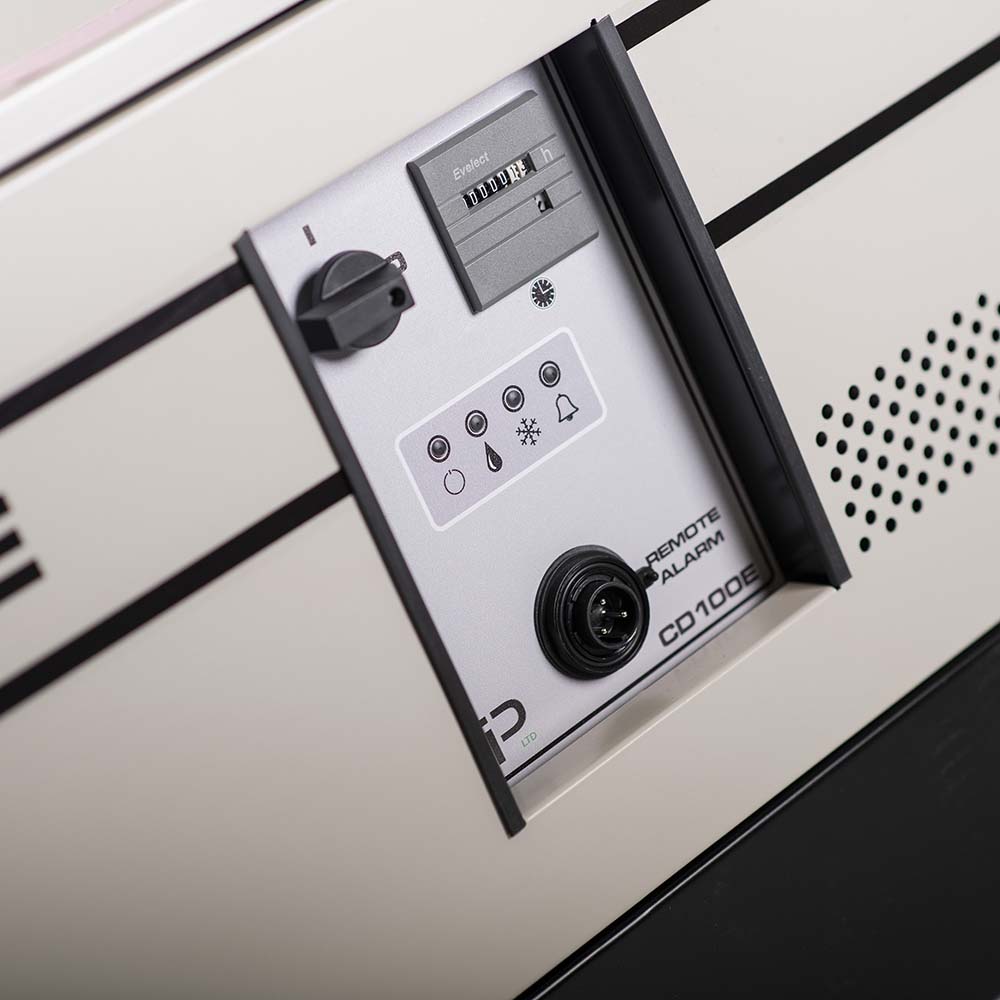

Adjustable Humidistat

An adjustable control humidistat allows the desired level of dryness to be selected. The internal humidistat enables the unit to cycle on and off according to the selected humidity level, providing automatic humidity management rather than requiring continuous manual operation.

This feature can be useful in warehouses, storage areas, equipment spaces, basements, pumping stations, and other suitable environments where humidity needs to be controlled over time.

Reverse-Cycle Defrost for Low-Temperature Operation

The EIPL CD100 uses a reverse-cycle defrost system designed to support operation in low ambient temperatures. The manufacturer specifies an operating temperature range of 33°F to 95°F.

Reverse-cycle defrost helps manage frost formation on the refrigeration system during lower-temperature operation. Customers should verify the expected ambient conditions before selecting the unit for a particular installation.

Refrigeration-Based Moisture Removal

The CD100 removes moisture from the air through a refrigeration process. A fan draws humid air through the cold evaporator coil, where the air is cooled below its dew point and moisture condenses. The collected condensate is directed away through the drainage system.

The cooled air then passes over the condenser coil and is reheated before being returned to the surrounding area. Continuous air circulation gradually reduces the relative humidity when the unit is appropriately sized for the application.

Electrical and Airflow Performance

The CD100 operates on 110V, single-phase, 60 Hz electrical power. The manufacturer lists a current rating of 16A, power consumption of 1.09kW, and airflow of 324 CFM.

The listed noise level is 66 dBA. Customers should consider the operating environment and expected occupancy when selecting the installation location.

Flexible Installation

The CD100 is designed for free-standing use and can be moved between suitable locations. A wall mounting bracket is available separately as an optional accessory. The optional mounting kit should not be considered part of the standard CD100 package.

The unit uses a 1/2-inch outside-diameter gravity drain. Customers should plan the condensate drainage route before installation and verify that the selected location provides appropriate drainage conditions.

Key Features

• High-capacity industrial dehumidifier
• 97 pints/day typical extraction
• 10,594 cubic feet effective volume
• 110V, single-phase, 60 Hz operation
• 16A current rating
• 1.09kW power consumption
• 324 CFM airflow
• 66 dBA listed noise level
• Adjustable control humidistat
• Electronic defrost control
• Reverse-cycle defrost system
• 33°F to 95°F operating temperature range
• Reciprocating compressor
• R454C refrigerant
• Rugged epoxy-coated steel chassis
• Epoxy powder coating
• Floating compressor for vibration and mobility protection
• Free-standing design
• Carrying handle/skid
• High-level cut-out switch
• 1/2-inch O/D gravity drain
• Optional wall mounting bracket

What's Included

• 1 x CD100 Static Dryer
• 1 x CD100 Owner's Manual
• 1 x Jubilee Clip
• 1 x 12mm ID PVC Tubing, 3m Long

Product Resources

Review the manufacturer's resources for additional installation, maintenance, replacement-parts, wiring, and technical information before installing the CD100.

• Product Brochure
• Product Instruction Manual
• Product Wiring Diagram
• Product Wiring Schematic

Applications for the EIPL CD100

The EIPL CD100 is designed for high-capacity humidity control in demanding environments. The manufacturer identifies applications including warehouses, storage rooms, electrical and communications switching stations, locker rooms, basements, pumping stations, offshore oil rigs, and active and laid-up marine vessels.

Warehouses

Warehouses can experience humidity fluctuations that affect stored equipment, materials, and building conditions. The CD100 can provide moisture control for appropriately sized warehouse areas where its capacity and operating requirements are suitable.

Storage Rooms

Storage rooms may require ongoing humidity management to help maintain appropriate environmental conditions. The CD100's adjustable humidistat allows the desired level of dryness to be selected for suitable applications.

Electrical Switching Stations

The manufacturer identifies electrical switching stations as an application for the CD100 range. The unit can provide humidity control in suitable areas where environmental conditions and installation requirements can be met.

Communications Switching Stations

Communications switching stations can benefit from controlled humidity where moisture is an environmental concern. The CD100 provides high-capacity dehumidification for appropriately sized spaces while operating within its specified temperature and electrical requirements.

Locker Rooms

Locker rooms can experience elevated humidity due to occupancy and moisture introduced into the space. The CD100 can be considered for suitably sized locker-room environments where its 10,594 cubic foot effective volume is appropriate.

Basements

Basements can experience moisture accumulation and humidity fluctuations. The CD100 can be used for suitable basement applications where the space, temperature, electrical supply, and gravity drainage requirements can be satisfied.

Pumping Stations

Pumping stations are identified by the manufacturer as an application for the CD100 range. The dehumidifier can provide moisture control in suitable pumping-station areas while operating within the specified temperature range.

Offshore Oil Rigs

The manufacturer identifies offshore oil rigs as an application. Customers should evaluate the specific environmental, electrical, physical installation, and drainage requirements of the intended location before selecting the CD100.

Marine Vessels

The CD100 range is identified for active and laid-up marine vessels. The unit can be considered for appropriate marine humidity-control applications where the installation conditions meet the manufacturer's requirements.

Typical Facilities

Environmental Considerations

The CD100 is specified for operation from 33°F to 95°F. Customers should verify the expected ambient temperature and humidity conditions of the application before installation.

The unit's reverse-cycle defrost system is designed to support operation in low ambient temperatures. The CD100 should nevertheless be used within the manufacturer's specified operating conditions.

Installation Considerations

The CD100 is free-standing and includes a carrying handle/skid. An optional wall mounting kit is available separately. The unit uses gravity drainage, so the condensate drainage arrangement should be planned before installation.

Frequently Asked Questions

What is the EIPL CD100?

The EIPL CD100 is a high-capacity industrial dehumidifier designed to control excess humidity in suitable commercial, industrial, storage, and harsh environments.

What is the part number for the CD100?

The manufacturer lists the CD100 part number as 1133560. Verify this part number when ordering to ensure you select the correct model.

How much moisture does the CD100 remove?

The CD100 has a manufacturer-listed typical extraction rate of 97 pints per day.

What size area can the CD100 handle?

The manufacturer lists an effective volume of 10,594 cubic feet. Actual dehumidification requirements depend on temperature, humidity, moisture load, ventilation, and other environmental factors.

What voltage does the CD100 use?

The CD100 operates on 110V, single-phase, 60 Hz electrical power.

What is the current rating?

The manufacturer lists a current rating of 16A.

How much power does the CD100 consume?

The manufacturer lists power consumption at 1.09kW.

What is the airflow rating?

The CD100 has a listed airflow of 324 CFM.

What refrigerant does the CD100 use?

The manufacturer lists R454C refrigerant for the CD100.

What is the operating temperature range?

The manufacturer specifies an operating temperature range of 33°F to 95°F.

Does the CD100 have a humidistat?

Yes. The CD100 has an adjustable control humidistat for selecting the desired level of dryness.

Does the CD100 have reverse-cycle defrost?

Yes. The CD100 uses a reverse-cycle defrost system designed to support operation in low ambient temperatures.

Is the CD100 portable?

The CD100 is a free-standing unit with a carrying handle/skid, allowing it to be moved between suitable locations.

Can the CD100 be wall mounted?

Yes, a wall mounting kit is available as an optional accessory. It is not included as standard with the CD100.

Does the CD100 include drain tubing?

Yes. The standard package includes 12mm ID PVC tubing measuring 3 meters long and a Jubilee clip.

What are the dimensions of the CD100?

The CD100 measures 16 inches high x 36 inches wide x 20 inches deep.

How much does the CD100 weigh?

The manufacturer lists the unit weight at 135 pounds.

What type of compressor does the CD100 use?

The manufacturer lists a reciprocating compressor.

Where can the CD100 be used?

Manufacturer-identified applications include warehouses, storage rooms, electrical and communications switching stations, locker rooms, basements, pumping stations, offshore oil rigs, and active and laid-up marine vessels.

Is the CD100 suitable for low-temperature applications?

Yes. The manufacturer specifies operation down to 33°F and equips the CD100 with a reverse-cycle defrost system.

What is included with the CD100?

The standard package includes the CD100 static dryer, CD100 owner's manual, Jubilee clip, and 12mm ID PVC tubing measuring 3 meters long.

Does the CD100 include a wall mounting bracket?

No. The wall mounting bracket is listed as an optional accessory for the CD100.

What should I verify before ordering?

Verify the exact CD100 model, required space volume, 110V electrical supply, expected operating temperature, drainage arrangement, installation space, and whether an optional wall mounting kit is required.
