EBAC CD425-D (460V) with Pump Industrial Dehumidifier, 285 Pints/Day, 52,972 Cu. Ft., 460V, 3-Phase, 3,680W, 10143BR-US

EIPL CD425-D (460V) with Pump Industrial Dehumidifier

The EIPL CD425-D (460V) with Pump is a high-capacity industrial dehumidifier designed for environmental humidity control in very large areas and demanding industrial conditions. This exact configuration is identified by manufacturer part number 10143BR-US and includes an internal high-capacity condensate pump for moisture removal.

The CD425-D provides a manufacturer-listed effective volume of 52,972 cubic feet and a typical extraction rating of 285 pints per day. It is designed for a 460V, three-phase, 60 Hz electrical supply and provides 1,750 CFM airflow.

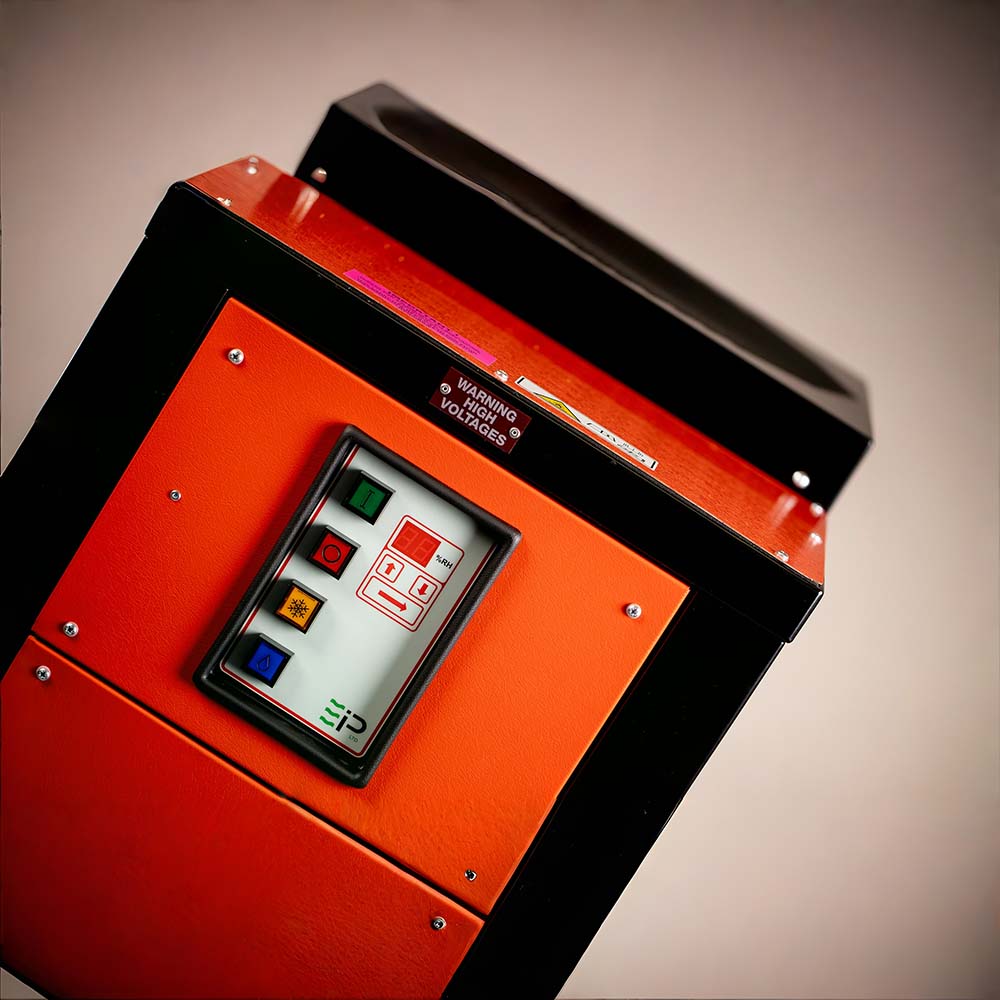

Digital Humidity Control

The CD425-D features digital humidity control and an adjustable humidistat that allows the desired level of dryness to be selected. The unit can regulate its operation according to the selected humidity level for automatic environmental moisture management.

High-Capacity Condensate Pump

This 10143BR-US configuration includes a high-capacity water pump. The internal pump provides a method for removing collected condensate and distinguishes this model from the standard 10142BR-US configuration, which uses a gravity drain and does not include the pump.

The pump version is supplied with two 1/2-inch PVC tubes with an inside diameter and a 3-meter length, along with two Jubilee clips.

Reverse Cycle Defrost System

The EIPL CD425-D uses a reverse-cycle defrost system designed for effective operation in low ambient temperatures. The manufacturer specifies a standard operating temperature range of 33°F to 95°F.

Electronic defrost control helps manage frost buildup during operation in cooler conditions within the specified range. The manufacturer also identifies low-temperature operation down to 0°F as an available option.

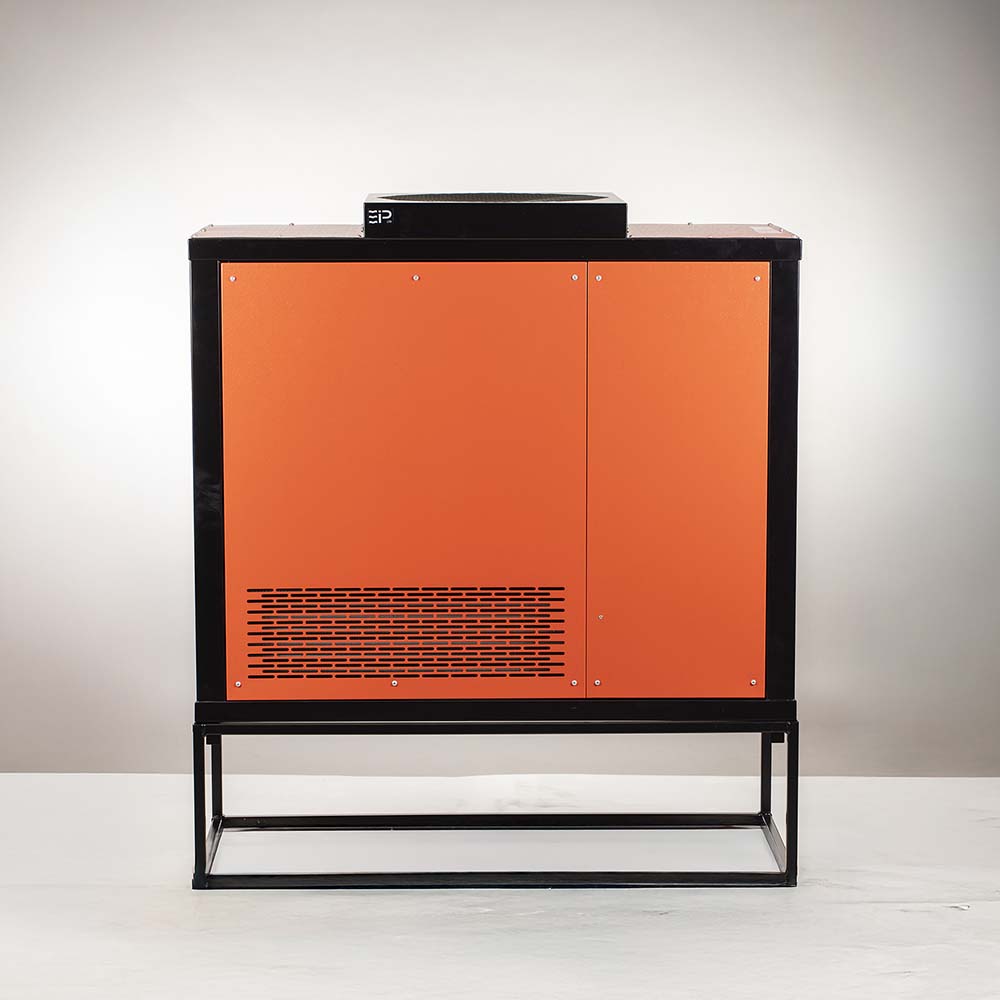

Rugged Industrial Construction

The CD425-D features a welded steel chassis with baked epoxy-coated and vinyl coatings for abrasion and corrosion resistance. Its rugged design is intended for harsh industrial environments.

The unit measures 47 inches high x 43 inches wide x 19 inches deep and weighs 353 pounds. These dimensions and weight should be considered when planning transportation, installation, equipment placement, and service access.

High Airflow for Large Areas

With a listed airflow of 1,750 CFM and typical extraction of 285 pints per day, the CD425-D is designed for large-scale humidity-control requirements. The manufacturer lists an effective volume of 52,972 cubic feet.

The CD425-D range is intended for very large areas and facilities affected by severe conditions. Units can be utilized singly or in multiple-unit installations depending on facility requirements. Ducted applications are also possible where design requirements specify.

Refrigeration-Based Dehumidification

The CD425-D removes moisture from air through a refrigeration process. A fan draws humid air into the unit and passes it over a cold evaporator coil. As the air is cooled below its dew point, moisture condenses and is collected.

The cooled air then passes through the hot condenser coil, where it is reheated before being discharged back into the surrounding area. Continuous air circulation gradually reduces relative humidity, while the selected humidity level allows the unit to self-regulate its drying operation.

Key Features

• High-capacity industrial dehumidifier
• Part number 10143BR-US
• 285 pints/day typical extraction
• 52,972 cu. ft. effective volume
• 1,500 m� effective volume
• 460V, three-phase, 60 Hz electrical requirement
• 3,680W power
• 8A current
• 1,750 CFM airflow
• 69 dBA noise level
• R454c refrigerant
• Digital humidity control
• Adjustable control humidistat
• Electronic defrost control
• Reverse-cycle defrost system
• 33°F to 95°F operating temperature range
• Reciprocating compressor
• High-capacity water pump
• Welded steel chassis
• Epoxy powder coating
• Free-standing design
• Status indicators
• Power-on indicator
• Compressor restart delay timer
• Ductability

What's Included

• 1 x CD425-D - 460V Dehumidifier
• 2 x 1/2-inch PVC Tube I/D � 3M long
• 2 x Jubilee Clips

Product Resources

Review the manufacturer's product resources for additional technical, installation, operating, maintenance, and replacement-parts information before ordering or installing the EIPL CD425-D (460V) with Pump.

• Product Brochure
• Product Wiring Diagram
• Product Wiring Schematic

Applications for the EIPL CD425-D (460V) with Pump

The EIPL CD425-D (460V) with Pump is designed for environmental humidity control in very large areas and demanding industrial conditions. The manufacturer identifies warehouses, factories, offices, and other large-scale facilities as applications for the CD425-D range.

Warehouses

The CD425-D range can be used in large warehouse environments where humidity and condensation need to be managed. The 10143BR-US pump configuration provides an internal high-capacity condensate pump for collected moisture removal.

Factories and Manufacturing Facilities

Factories and manufacturing facilities may require humidity control across large production and equipment areas. The rugged welded steel chassis and high-capacity design are intended for appropriate industrial environments within the manufacturer's specified operating conditions.

Large Offices and Commercial Facilities

The manufacturer identifies offices and other large-scale facilities as potential applications. Digital humidity control and the adjustable humidistat allow the unit to regulate operation according to the selected humidity level.

Large Industrial Areas

The CD425-D range was developed for environmental control of very large areas and locations affected by severe conditions. Its large effective volume and high-capacity extraction rating make it suitable for appropriately designed large-scale installations.

Ducted Applications

Ductability is listed as a feature of the CD425-D. Ducted installations may be considered where the facility design requires controlled air distribution. Specific ducting requirements should be evaluated as part of the installation design.

Multiple-Unit Installations

The manufacturer states that CD425-D units can be utilized singly or in multiple units to provide environmental protection on different scales. Multiple units may be considered for larger facilities depending on area, moisture conditions, ventilation, and system requirements.

Facilities Requiring Pumped Condensate Removal

The 10143BR-US configuration includes an internal high-capacity condensate pump. This makes the pump-equipped configuration distinct from the standard 10142BR-US model, which uses a gravity drain.

Low-Temperature Industrial Environments

The standard CD425-D operating temperature range is 33°F to 95°F and includes a reverse-cycle defrost system. The manufacturer also identifies low-temperature operation down to 0°F as an available option.

Installation Considerations

The CD425-D (460V) with Pump requires a 460V, three-phase, 60 Hz electrical supply. The unit measures 47 inches high x 43 inches wide x 19 inches deep and weighs 353 pounds.

Because this exact 10143BR-US configuration includes an internal high-capacity condensate pump, installation planning should account for the condensate discharge arrangement and the supplied 1/2-inch PVC tubing.

Frequently Asked Questions

What is the EIPL CD425-D (460V) with Pump?

The EIPL CD425-D (460V) with Pump is a high-capacity industrial dehumidifier designed for humidity control in very large areas and demanding industrial environments.

What is the part number?

The manufacturer part number for this pump-equipped configuration is 10143BR-US.

How much moisture does the CD425-D remove?

The manufacturer lists a typical extraction rating of 285 pints per day.

What effective volume does the unit have?

The manufacturer lists an effective volume of 52,972 cubic feet, or 1,500 cubic meters.

What voltage does 10143BR-US require?

The manufacturer identifies the product with a 460V / 3-phase / 60 Hz voltage requirement.

What is the power consumption?

The manufacturer lists power at 3,680W and current at 8A.

What is the airflow rating?

The listed airflow is 1,750 CFM.

What is the noise level?

The manufacturer lists a noise level of 69 dBA.

What refrigerant does it use?

The manufacturer lists R454c refrigerant.

Does 10143BR-US include a condensate pump?

Yes. The manufacturer lists the high-capacity water pump as included for 10143BR-US.

Does the pump version use a gravity drain?

No. The manufacturer lists gravity drain as not included for 10143BR-US.

What tubing is included with 10143BR-US?

The manufacturer lists 2 x 1/2-inch PVC Tube I/D, 3M long, along with two Jubilee clips.

Does the unit have humidity control?

Yes. It features digital humidity control and an adjustable control humidistat.

Does the unit have reverse-cycle defrost?

Yes. The CD425-D includes an electronic reverse-cycle defrost system.

What is the standard operating temperature range?

The manufacturer specifies a standard operating range of 33°F to 95°F.

Can it operate below 33°F?

The manufacturer identifies low-temperature operation down to 0°F as an available option.

What are the dimensions?

The dimensions are 47 inches high x 43 inches wide x 19 inches deep.

How much does it weigh?

The unit weighs 353 pounds.

What type of compressor does it use?

The manufacturer lists a reciprocating compressor.

Can the CD425-D be ducted?

Yes. Ductability is listed as a feature of the CD425-D range where design requirements specify.

Where can the CD425-D be used?

Manufacturer-identified applications include warehouses, factories, offices, and other large-scale facilities.

Can multiple units be used?

Yes. The manufacturer states that CD425-D units can be utilized singly or in multiple units depending on the required scale of environmental control.

What is included with 10143BR-US?

The package includes one CD425-D 460V dehumidifier, one owner's manual, two 1/2-inch PVC tubes with a 3-meter length, and two Jubilee clips.

What is the difference between 10142BR-US and 10143BR-US?

10143BR-US is the CD425-D (460V) with Pump and includes a high-capacity water pump. 10142BR-US is the standard CD425-D (460V) configuration with a gravity drain and no high-capacity water pump.

What should I verify before ordering?

Verify the exact 10143BR-US part number, 460V three-phase electrical supply, required effective volume, expected operating temperature, condensate discharge arrangement, dimensions, weight, and available service space.
