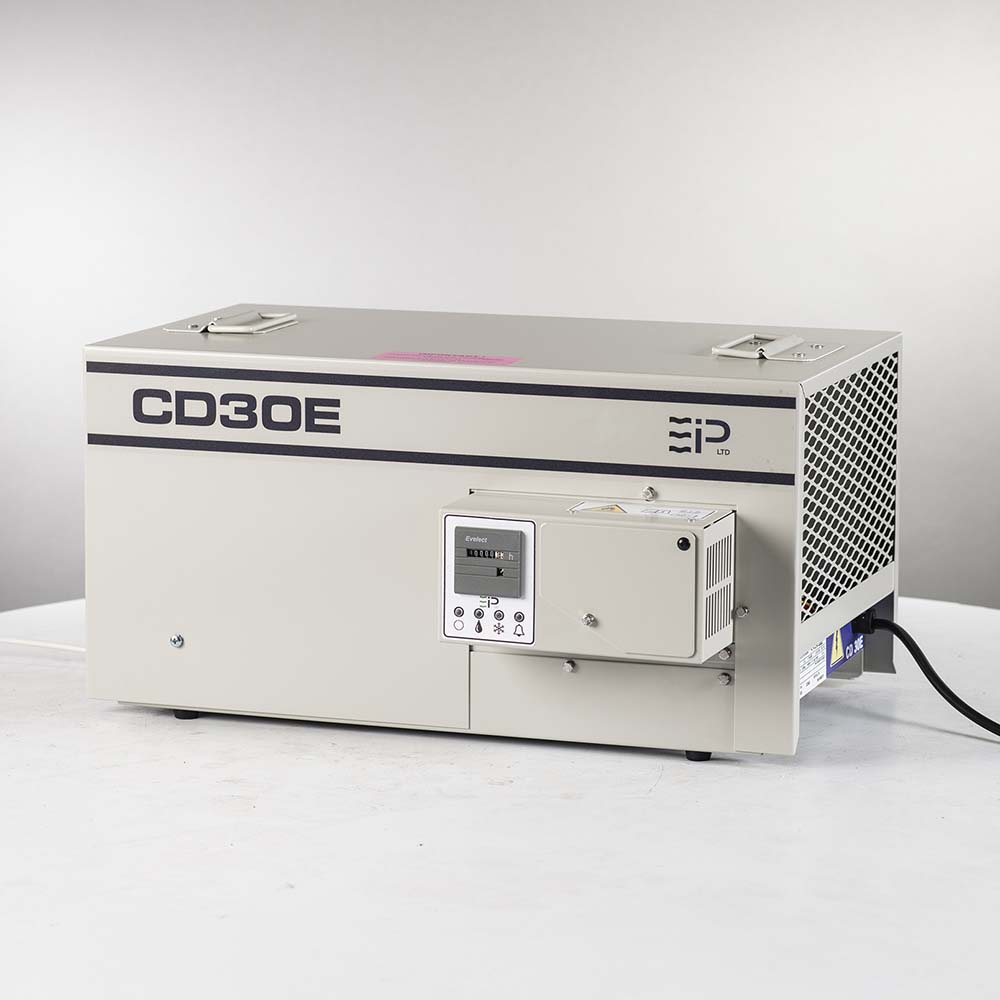

EBAC CD30-SE Static Dryer Dehumidifier, 24 Pints/Day, 3,000 Cu. Ft., 100V, 480W, 11420GS-US

Product Resources

Review the manufacturer's product resources for additional technical, installation, operating, maintenance, and replacement-parts information before ordering or installing the EBAC CD30-SE.

• Product Brochure
• Product Instruction Manual
• Product Wiring Diagram
• Product Wiring Schematic

Applications for the EBAC CD30-SE

The EBAC CD30-SE is a compact, heavy-duty dehumidifier designed for humidity control in small spaces and demanding environments. The manufacturer identifies applications including industrial and marine environments, remote pump stations, pipe galleries, electronic and mechanical equipment areas, crawl spaces, warehouses, offices, factories, shops, and other areas where excess humidity needs to be controlled.

Industrial Environments

The manufacturer describes the CD30-SE range as suitable for demanding industrial environments. Its compact dimensions and heavy-duty construction make it suitable for appropriately sized areas where humidity control is required.

Marine Environments

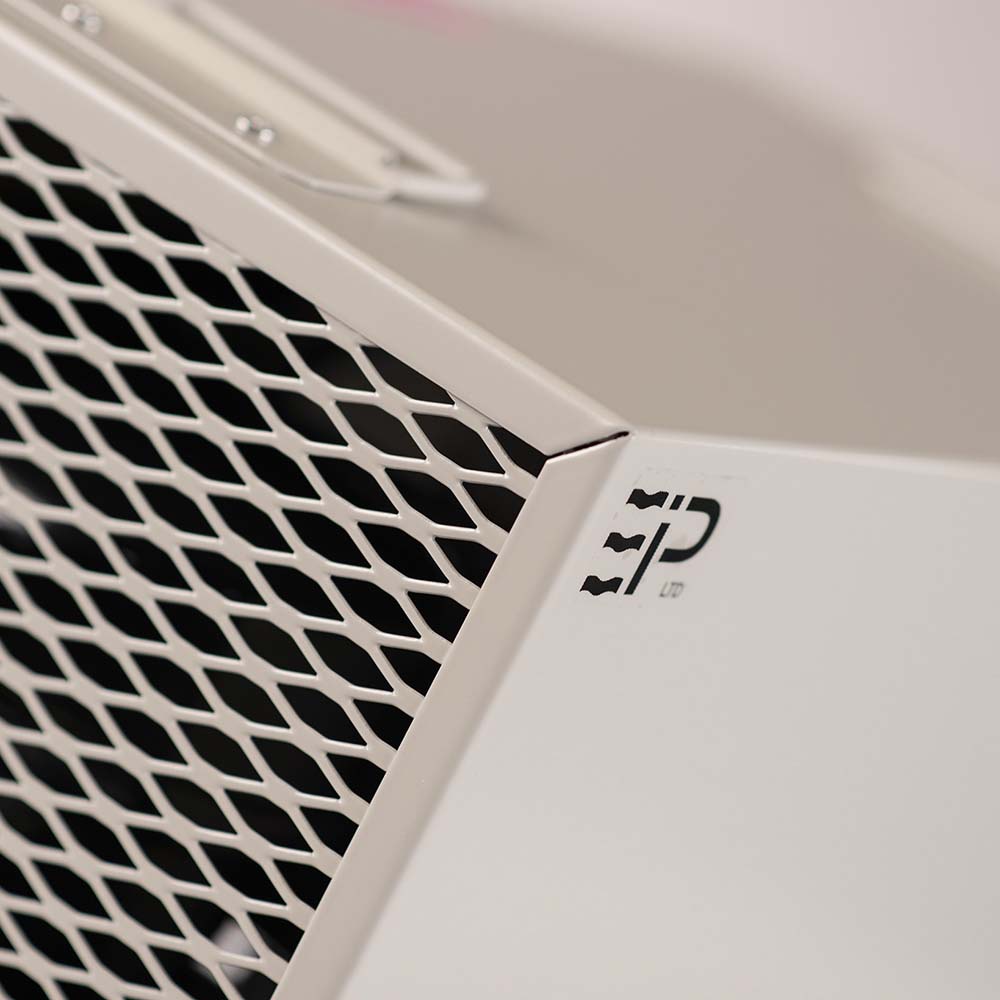

EIPL identifies the CD30-S and CD30-SE as suitable for marine environments. The unit's heavy-gauge steel case, epoxy powder coating, and enclosed coils support its durable construction.

Remote Pump Stations

The manufacturer identifies permanent installation in remote pump stations as an application for the CD30-S and CD30-SE range. Humidity control can help manage moisture conditions in enclosed equipment areas.

Pipe Galleries

Pipe galleries are another manufacturer-identified application. The compact CD30-SE can be considered for appropriately sized enclosed areas where excess humidity needs to be managed.

Electronic and Mechanical Equipment Areas

The manufacturer identifies electronic and mechanical equipment areas among the applications for the CD30-SE range. Proper humidity management can be considered where moisture conditions are a concern.

Crawl Spaces

The manufacturer identifies crawl spaces among the applications for the CD30 family. The compact size of the CD30-SE makes it suitable for appropriately sized spaces where moisture needs to be controlled.

Warehouses, Offices, Factories and Shops

EIPL identifies warehouses, offices, factories, and shops as environments where excess humidity can create moisture-related concerns. The CD30-SE can be considered where its 3,000 cubic foot effective volume and 24 pints/day typical extraction are appropriate.

Permanent or Portable Use

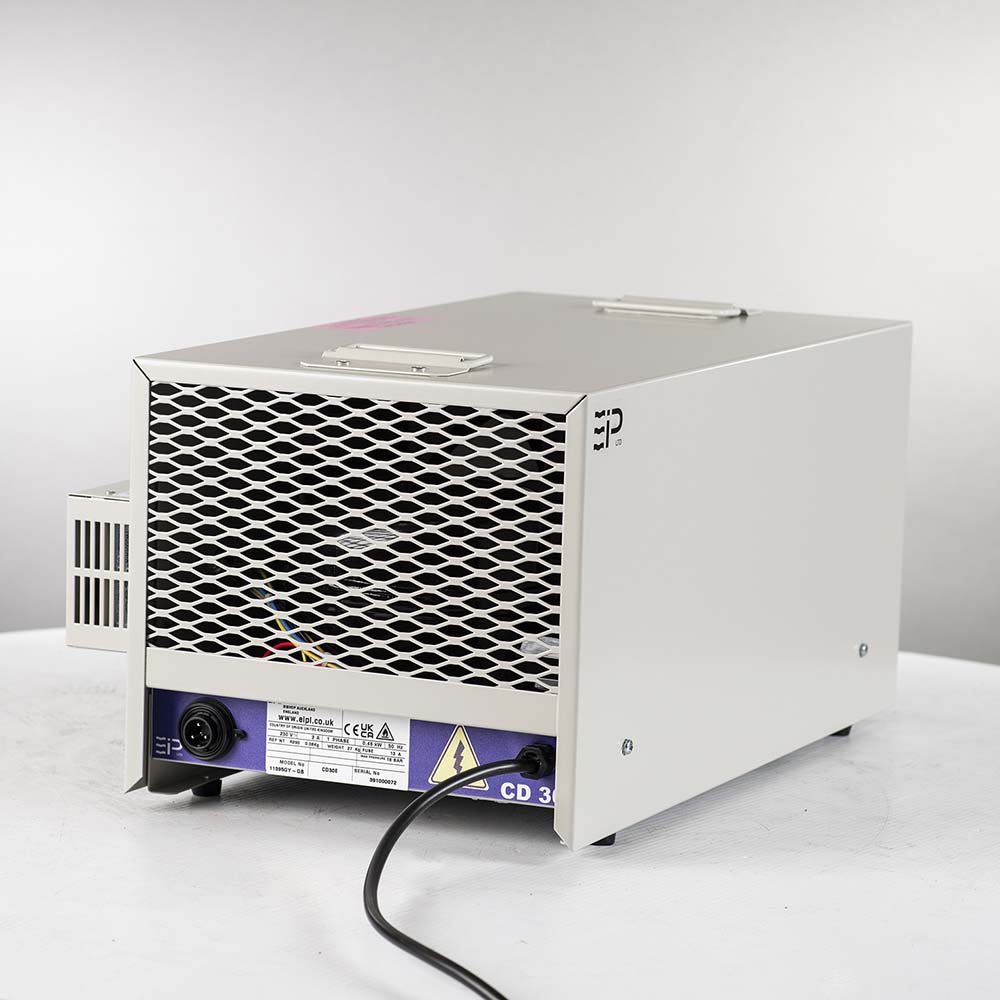

The manufacturer describes the CD30-S and CD30-SE for permanent installation as well as quick transport between job sites and problem areas. The CD30-SE includes carrying handles and can operate as a free-standing unit.

Installation Considerations

The CD30-SE measures 12 inches high x 12 inches wide x 22 inches deep and weighs 50 pounds. Provide sufficient clearance for airflow, service access, and condensate drainage. For gravity drainage, the unit must be positioned higher than the drain.

Frequently Asked Questions

What is the EBAC CD30-SE?

The EBAC CD30-SE is a compact, heavy-duty static dryer and dehumidifier designed for humidity control in small spaces and demanding environments.

What is the part number for the CD30-SE?

The manufacturer part number is 11420GS-US.

Is 11420GS-US the CD30-SE model?

Yes. The manufacturer identifies 11420GS-US as the CD30-SE.

What is the effective volume?

The manufacturer lists an effective volume of 3,000 cubic feet.

How much moisture does the CD30-SE remove?

The manufacturer lists typical extraction of 24 pints per day at 80°F and 60% RH and 15 pints per day at 65°F and 60% RH.

What is the airflow?

The manufacturer lists airflow at 88 CFM on its current product page.

What is the noise level?

The manufacturer lists a noise level of 47 dBA.

What refrigerant does the CD30-SE use?

The manufacturer lists R290 refrigerant.

What voltage does SKU 11420GS-US use?

The current manufacturer product page lists 100V, single phase, 60 Hz. However, the manufacturer's brochure lists 110V for 11420GS-US. Confirm the required voltage with the manufacturer before ordering.

How much power does the CD30-SE use?

The manufacturer lists 480W power and 4A current.

Does the CD30-SE have a humidistat?

Yes. It includes an adjustable control humidistat and an adjustable alarm humidistat.

Does the CD30-SE have an alarm function?

Yes. The unit includes an adjustable alarm humidistat and voltage-free alarm signal.

Does the CD30-SE have status indicators?

Yes. The manufacturer lists status indicators and a power-on indicator.

Does the CD30-SE have an hours-run meter?

Yes. An hours-run meter is included.

Does the CD30-SE have automatic defrost?

Yes. The unit features electronic temperature-sensitive defrost and hot gas defrost.

What is the operating temperature range?

The manufacturer specifies a minimum operating temperature of 33°F and maximum operating temperature of 95°F.

Can the CD30-SE be wall mounted?

Yes. The CD30-SE includes a wall mounting bracket.

Can the CD30-SE be used free-standing?

Yes. The manufacturer lists free-standing operation with rubber feet.

How is condensate drained?

The CD30-SE uses a 1/2-inch inside-diameter gravity drain. The manufacturer states that the unit must be mounted higher than the drain for gravity drainage.

What drain tube is included?

The package includes one 12mm inside-diameter PVC tube measuring 3 meters long and one Jubilee Clip.

What are the dimensions?

The CD30-SE measures 12 inches high x 12 inches wide x 22 inches deep.

How much does the CD30-SE weigh?

The unit weighs 50 pounds.

What compressor does the CD30-SE use?

The manufacturer lists a reciprocating compressor.

What applications are suitable for the CD30-SE?

The manufacturer identifies industrial and marine environments, remote pump stations, pipe galleries, electronic and mechanical equipment areas, crawl spaces, warehouses, offices, factories, and shops among the applications for the CD30-S/CD30-SE range.

What comes with SKU 11420GS-US?

The package includes one CD30-SE Static Dryer, one CD30-SE Owner's Manual, one wall mounting bracket, one 12mm ID PVC tube measuring 3 meters, one Jubilee Clip, three brass wood screws, and three Rawl plugs.
