EBAC AD850E Dehumidifier with Condensate Pump, 95 Pints/Day, 8,370 Cu. Ft., 110V, 1-Phase, 880W, 1028020

EBAC AD850E Dehumidifier with Condensate Pump, 95 Pints/Day, 8,370 Cu. Ft., 110V, 1-Phase, 880W

High-Capacity Dehumidification for Commercial and Facility Applications

The EBAC AD850E is a high-capacity dehumidifier designed for humidity control across a wide range of commercial, institutional, and facility environments. This specific product is identified by manufacturer model number and part number 1028020 and provides a typical extraction capacity of 95 pints per day.

The AD850E has a manufacturer-listed effective volume of 8,370 cubic feet. Its refrigeration-based dehumidification process removes moisture from the air while its electronic humidistat allows the unit to regulate operation according to the selected humidity level.

110V Single-Phase Operation

The AD850E operates on 110V, single-phase, 60 Hz electrical power. It is rated at 880W and provides 294 CFM of airflow. The manufacturer lists a noise level of 50 dBA, making the unit suitable for a variety of commercial and occupied-space applications where humidity control is required.

Customers should verify that the intended installation location has a compatible 110V, single-phase, 60 Hz electrical supply before ordering.

Integral Condensate Pump

This AD850E configuration, part number 1028020, includes an integral condensate pump. The manufacturer's brochure identifies the condensate pump as present for model 1028020, and the manufacturer product description also states that the condensate tray is equipped with an internal condensate pump for removal of collected moisture.

The internal pump helps facilitate removal of collected condensate from the dehumidification process. Customers should review the manufacturer's installation instructions and confirm that the planned condensate discharge arrangement is suitable for the installation.

Electronic Humidity Control

The AD850E features a built-in electronic humidistat designed to provide accurate humidity readings. The unit can automatically switch on and off to maintain the selected level of humidity through intermittent operation.

A digital humidity readout and membrane operating control panel are also included. These controls allow users to monitor humidity conditions and operate the dehumidifier according to the requirements of the space.

Two-Speed Fan and Adjustable Airflow

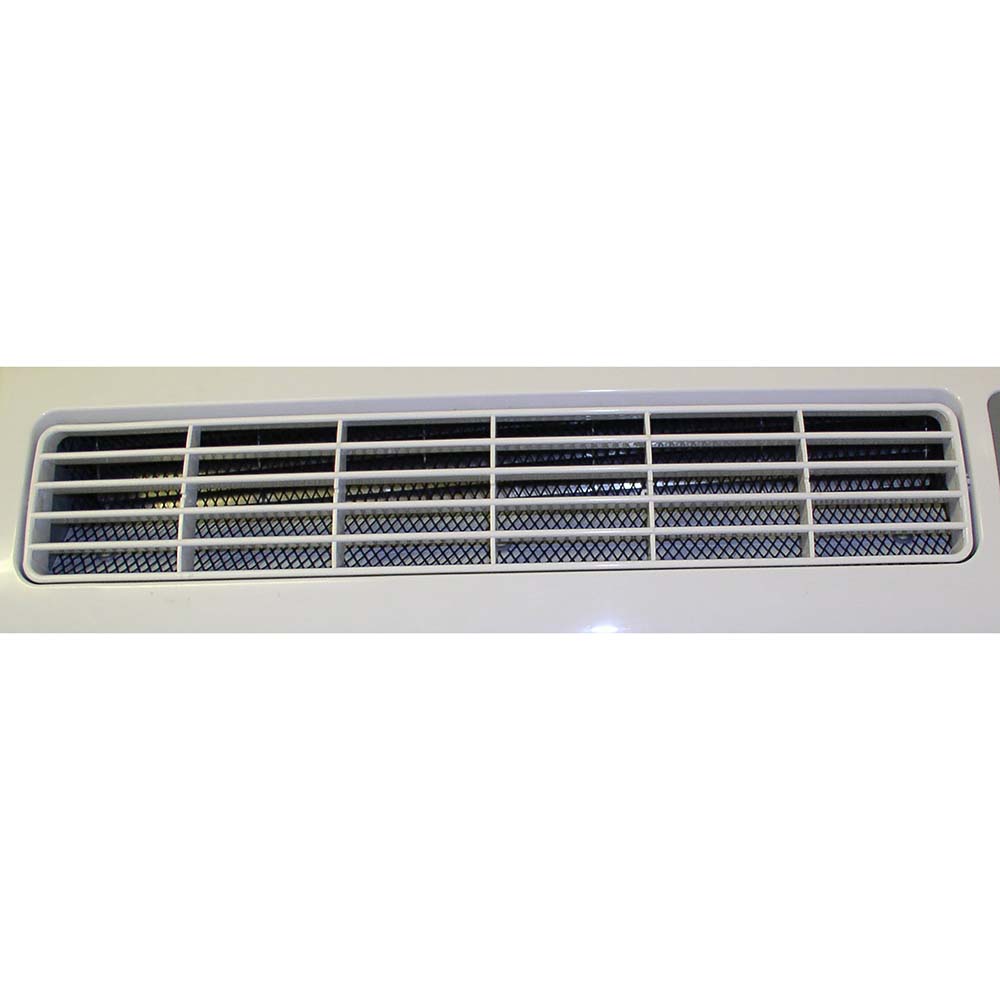

The AD850E uses a two-speed fan motor designed to adapt to environmental conditions. The manufacturer also lists directional airflow adjustable louvers, allowing airflow direction to be adjusted according to the installation requirements.

The cross-flow blower-style fan is designed for quiet operation, with the manufacturer specifying a noise level of 50 dBA.

Electronic Temperature-Sensitive Defrost

The AD850E incorporates electronic temperature-sensitive defrost control for operation down to 41°F. The defrost system automatically de-ices the unit as necessary during operation within the specified temperature range.

The manufacturer lists a minimum operating temperature of 41°F and a maximum operating temperature of 95°F. Customers should compare the expected ambient temperature of the installation area with these specifications before selecting the unit.

Compact Design and Flexible Installation

The AD850E features a streamlined design intended to blend into different environments. It measures 29.5 inches high x 26 inches wide x 13.5 inches deep and weighs 86 pounds.

The manufacturer lists both free-standing installation and a wall mounting bracket. This provides flexibility when planning equipment placement according to the available floor and wall space.

Washable Air Filtration

The AD850E includes two removable washable air filters. Washable filters provide a reusable filtration option and can be removed for cleaning according to the manufacturer's maintenance recommendations.

Refrigeration-Based Dehumidification

The AD850E removes moisture from air through a refrigeration process. A fan draws moist air into the unit, where the air passes over a cold evaporator surface. As the air is cooled below its dew point, moisture condenses and is collected in the condensate tray.

The cooled air then passes over the hot condenser coil, where it is reheated before being discharged back into the room. Continuous circulation gradually reduces the relative humidity within the treated area. The internal humidistat allows the unit to automatically regulate operation according to the selected humidity level.

Key Features

• High-capacity AD850E dehumidifier
• Manufacturer part number 1028020
• 95 pints/day typical extraction
• 8,370 cubic feet effective volume
• 110V, single-phase, 60 Hz operation
• 880W power rating
• 294 CFM airflow
• 50 dBA noise level
• R410a refrigerant
• Electronic humidistat
• Digital humidity readout
• Two-speed fan motor
• Directional airflow adjustable louvers
• Electronic temperature-sensitive defrost
• 41°F to 95°F operating temperature range
• Rotary compressor
• Two removable washable air filters
• Integral condensate pump
• Internal float switch
• Wall mounting bracket
• Free-standing installation
• Fitted mains plug
• Power-on and drying-on indicators

What's Included

• 1x AD850E Dehumidifier
• 1x AD850E Owner's Manual

Product Resources

Review the manufacturer's product resources for additional technical, installation, operating, maintenance, and replacement-parts information before ordering or installing the EBAC AD850E.

• Product Brochure
• Product Instruction Manual
• Wiring Diagram

Applications for the EBAC AD850E

The EBAC AD850E is designed for humidity control across a wide variety of commercial, institutional, and facility environments. Its 95 pints/day typical extraction capacity, 8,370 cubic foot effective volume, electronic humidistat, and integral condensate pump make it suitable for appropriately designed installations within the manufacturer's operating specifications.

Offices

The manufacturer identifies offices as an application for the AD850E. Its 50 dBA listed noise level, streamlined design, electronic humidity control, and adjustable airflow features make it suitable for appropriately planned office installations where humidity needs to be managed.

Stores and Retail Spaces

The AD850E can be used in stores where environmental humidity control is required. The electronic humidistat allows the unit to regulate operation according to the selected humidity level.

Restaurants, Bars and Salons

The manufacturer specifically identifies restaurants, bars, and salons among the potential applications for the AD850E. The unit's compact design, two-speed fan, washable filters, and humidity control provide features that can support appropriately designed commercial installations.

Museums and Storerooms

Museums and storerooms are also identified by the manufacturer as suitable applications. The AD850E can provide controlled dehumidification for spaces where humidity management is part of the facility's environmental requirements.

Computer and Telecommunications Rooms

The manufacturer lists computer and telecommunications rooms as potential applications. Before installation, customers should verify the required environmental conditions and ensure the dehumidifier is positioned appropriately for airflow, service access, and condensate management.

Garages and Cellars

The AD850E is identified for use in garages and cellars. These spaces can require dedicated humidity control depending on their environmental conditions. The expected temperature should remain within the manufacturer's specified 41°F to 95°F operating range.

Animal Enclosures

The manufacturer identifies animal enclosures as an application for the AD850E. Installation planning should consider the environmental requirements of the enclosure, equipment placement, airflow, maintenance access, and condensate removal.

Hotel and Motel Spa Rooms

The AD850E is also identified for spa rooms in hotels and motels. Its refrigeration-based dehumidification process continuously circulates air through the unit while the electronic humidistat helps regulate operation according to the selected humidity level.

Typical Facility Types

Installation Considerations

The AD850E requires a 110V, single-phase, 60 Hz electrical supply. The unit measures 29.5 inches high x 26 inches wide x 13.5 inches deep and weighs 86 pounds. Adequate space should be provided for placement, airflow, maintenance, and condensate discharge.

The unit is listed as both free standing and suitable for wall mounting with the manufacturer's wall mounting bracket. Customers should select the installation method according to the requirements of the intended space and manufacturer's installation instructions.

Frequently Asked Questions

The following FAQs cover common questions about the EBAC AD850E, part number 1028020, including capacity, electrical requirements, condensate pumping, controls, operating temperature, dimensions, and applications.

What is the EBAC AD850E?

The EBAC AD850E is a high-capacity dehumidifier designed for humidity control in commercial, institutional, and other facility environments.

What is the part number for this AD850E?

The manufacturer part number for this specific AD850E is 1028020.

How much moisture does the AD850E remove?

The manufacturer lists a typical extraction rating of 95 pints per day.

What area can the AD850E handle?

The manufacturer lists an effective volume of 8,370 cubic feet.

What voltage does the AD850E require?

The unit requires 110V, single-phase, 60 Hz electrical power.

How much power does the AD850E use?

The manufacturer lists power at 880W.

What is the airflow rating?

The AD850E has a manufacturer-listed airflow of 294 CFM.

What is the noise level?

The manufacturer lists a noise level of 50 dBA.

What refrigerant does the AD850E use?

The manufacturer lists R410a refrigerant.

Does this SKU include a condensate pump?

Yes. The manufacturer's documentation identifies part number 1028020 as the pump-equipped AD850E configuration, and the product description identifies an integral condensate pump.

Does the AD850E have humidity control?

Yes. The unit features an electronic humidistat and digital humidity readout. It can automatically switch on and off to maintain the selected humidity level.

Does the AD850E have a digital humidity readout?

Yes. The manufacturer lists a digital humidity readout and membrane operating control panel.

How many fan speeds does the AD850E have?

The AD850E has two fan speeds.

Does the AD850E have adjustable airflow?

Yes. The manufacturer lists directional airflow adjustable louvers.

Does the AD850E have automatic defrost?

Yes. The unit features electronic temperature-sensitive defrost control that automatically de-ices the unit as necessary.

What is the operating temperature range?

The manufacturer specifies an operating temperature range of 41°F to 95°F.

Can the AD850E be used at 41°F?

The manufacturer specifies a minimum operating temperature of 41°F and identifies the electronic temperature-sensitive defrost system as allowing operation down to 41°F.

What are the dimensions of the AD850E?

The manufacturer lists dimensions of 29.5 inches high x 26 inches wide x 13.5 inches deep.

How much does the AD850E weigh?

The unit weighs 86 pounds.

What type of compressor does the AD850E use?

The manufacturer lists a rotary compressor.

Does the AD850E have washable filters?

Yes. The unit includes two removable washable air filters.

Can the AD850E be wall mounted?

Yes. The manufacturer lists a wall mounting bracket and also identifies the unit as free standing.

Where can the AD850E be used?

Manufacturer-identified applications include offices, stores, restaurants, bars, salons, museums, storerooms, computer and telecommunications rooms, garages, cellars, animal enclosures, and hotel/motel spa rooms.

What comes with part number 1028020?

The manufacturer lists one AD850E Dehumidifier and one AD850E Owner's Manual in the box.

What should I verify before ordering?

Verify the exact 1028020 part number, 110V single-phase 60 Hz electrical supply, installation dimensions, expected operating temperature, required dehumidification capacity, and condensate discharge arrangement.
