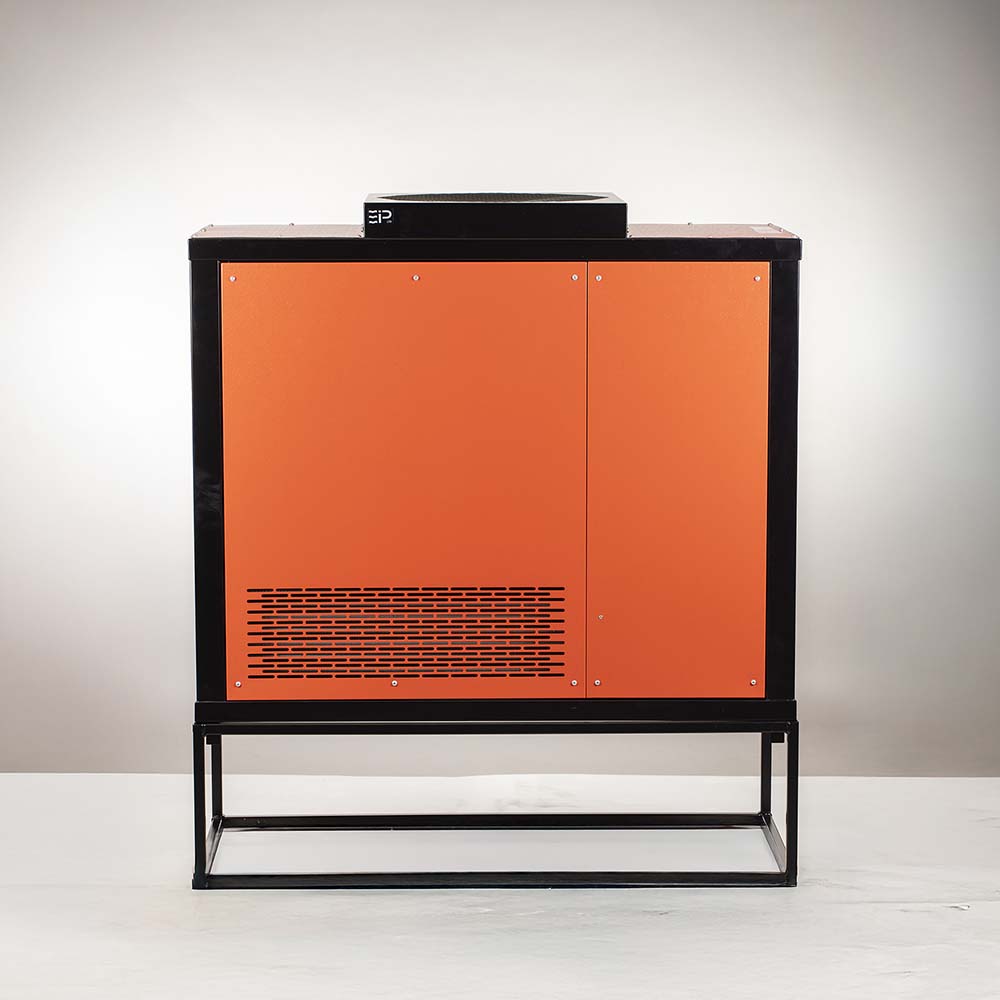

EBAC CD425-D (460V) Industrial Dehumidifier, 285 Pints/Day, 52,972 Cu. Ft., 460V, 3-Phase, 3,680W, 10142BR-US

EIPL CD425-D (460V) Industrial Dehumidifier, 285 Pints/Day, 52,972 Cu. Ft., 3-Phase, 3,680W

High-Capacity Industrial Dehumidification for Large Facilities

The EIPL CD425-D (460V) is a high-capacity industrial dehumidifier designed for environmental humidity control in very large areas and demanding industrial conditions. This exact product is identified by manufacturer part number 10142BR-US and is configured for a 460V, three-phase, 60 Hz electrical supply.

The CD425-D has a manufacturer-listed effective volume of 52,972 cubic feet and a typical extraction rating of 285 pints per day. Actual moisture removal depends on temperature, relative humidity, moisture load, ventilation, and other environmental conditions, so the manufacturer's rated specifications should be considered when evaluating the unit for a specific application.

460V Three-Phase Electrical Configuration

This CD425-D variant is designed for 460V, three-phase, 60 Hz electrical service. The manufacturer lists 3,680W power consumption, 8A current, and 1,750 CFM airflow.

Customers should verify that the intended installation location has the appropriate three-phase electrical supply before ordering. The electrical requirements should be reviewed together with the facility's installation and service requirements.

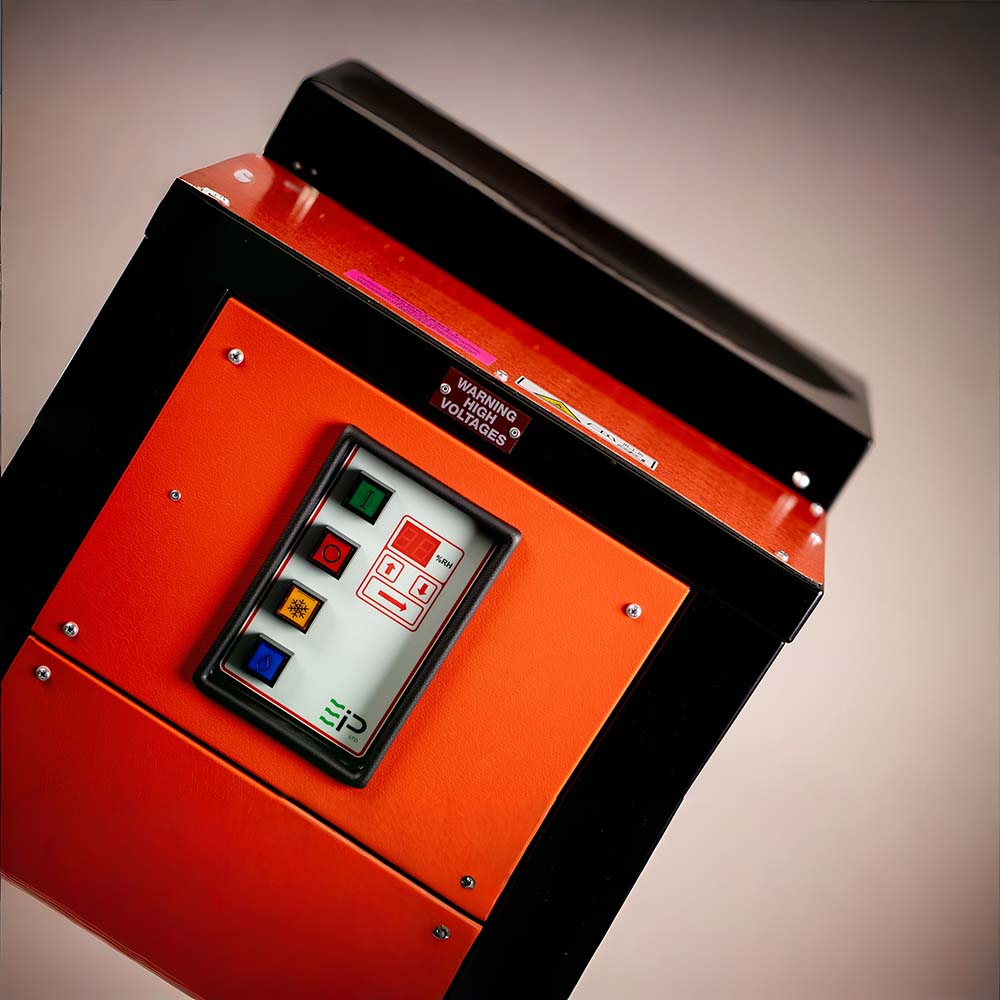

Digital Humidity Control

The EIPL CD425-D features digital humidity control and an adjustable humidistat for selecting the desired level of dryness. The system can regulate operation according to the selected humidity level, providing automatic moisture management for appropriate large-area applications.

The manufacturer also describes the CD425-D as providing an actual room humidity display and automatically regulating drying requirements through intermittent operation. This allows the unit to switch on and off according to the selected humidity conditions.

Reverse Cycle Defrost

The CD425-D incorporates EIPL's reverse-cycle defrost system for operation in lower ambient temperatures. The manufacturer specifies a standard operating temperature range of 33°F to 95°F.

The electronic defrost control and reverse-cycle defrost system are designed to help manage frost buildup during operation in cooler conditions within the manufacturer's specified range. A low-temperature operating option down to 0°F is also identified by the manufacturer and should be treated as an optional configuration rather than a standard specification.

Rugged Industrial Construction

The CD425-D features a welded steel chassis with baked epoxy-coated and vinyl coatings for abrasion and corrosion resistance. Its rugged construction is intended for harsh industrial environments where high-capacity environmental humidity control is required.

The unit measures 47 inches high x 43 inches wide x 19 inches deep and weighs 353 pounds. The substantial dimensions and weight should be considered when planning transportation, placement, access, and maintenance space.

High Airflow for Large Areas

The CD425-D provides a listed airflow of 1,750 CFM. Combined with its 285 pints/day typical extraction rating and 52,972 cubic foot effective volume, the unit is designed for large-scale moisture-control requirements.

The manufacturer identifies the CD425-D range for very large areas and severe conditions. Units can be used individually or in multiple-unit installations depending on facility size and environmental requirements. Ducted applications are also possible where the system design requires them.

Refrigeration-Based Moisture Removal

The EIPL CD425-D removes moisture from the air through a refrigeration process. A fan draws humid air into the unit, where the air passes over a cold evaporator surface. As the air is cooled below its dew point, moisture condenses and is collected.

The cooled air then passes over the hot condenser coil and is reheated before being returned to the surrounding area. Continuous air circulation gradually reduces relative humidity. The selected humidity level allows the unit to regulate drying operation automatically.

Standard Gravity Drain Configuration

This listing is specifically for 10142BR-US, the standard CD425-D (460V) configuration. The manufacturer lists the high-capacity water pump as not included and specifies a gravity drain with two 5/8-inch outside-diameter connections.

Customers should plan the condensate drainage arrangement before installation and verify that the intended location can accommodate the manufacturer's specified gravity-drain configuration.

Key Features

• High-capacity industrial dehumidifier
• Part number 10142BR-US
• 285 pints/day typical extraction
• 52,972 cubic feet effective volume
• 1,500 m� effective volume
• 460V, three-phase, 60 Hz electrical requirement
• 3,680W power consumption
• 8A current
• 1,750 CFM airflow
• 69 dBA listed noise level
• R454c refrigerant
• Digital humidity control
• Adjustable control humidistat
• Electronic defrost control
• Reverse-cycle defrost system
• 33°F to 95°F operating temperature range
• Reciprocating compressor
• Welded steel chassis
• Epoxy powder coating
• Free-standing design
• Status indicators
• Power-on indicator
• Compressor restart delay timer
• Gravity drain
• Ductable design

What's Included

• 1x CD425-D - 460V Dehumidifier
• 1x CD425-D - 460V Owner�s Manual
• 2x 3/8" PVC Tube I/D � 3M long
• 2 x Jubilee Clips

Product Resources

Review the manufacturer's product resources for additional technical, installation, operating, maintenance, and replacement-parts information before ordering or installing the EIPL CD425-D (460V).

• Product Brochure
• Product Instruction Manual
• Product Wiring Diagram
• Product Wiring Schematic

Applications for the EIPL CD425-D (460V)

The EIPL CD425-D (460V) is designed for environmental humidity control in very large areas and demanding industrial conditions. Its 52,972 cubic foot effective volume, 285 pints/day typical extraction rating, 1,750 CFM airflow, rugged steel construction, and automatic humidity control make it suitable for appropriately designed large-scale installations.

Warehouses

The manufacturer identifies warehouses as an application for the CD425-D range. Large warehouse environments may require dedicated humidity control where excess moisture and condensation are concerns. The CD425-D can be used individually or as part of a multiple-unit installation depending on facility requirements.

Factories and Manufacturing Facilities

Factories and manufacturing facilities may contain large production, storage, and equipment areas where environmental humidity needs to be managed. The rugged welded steel chassis and high-capacity design are suited to appropriate industrial environments within the manufacturer's specified operating conditions.

Large Offices and Commercial Facilities

The manufacturer identifies offices and other large-scale facilities as potential applications. Digital humidity control and the adjustable humidistat allow the unit to regulate operation according to the selected humidity level.

The listed 69 dBA noise level should be considered when planning equipment placement in occupied areas or facilities where sound levels are an important installation consideration.

Large-Scale Industrial Areas

The CD425-D range was developed for environmental control in very large areas and locations affected by severe conditions. The high-capacity design provides a solution for suitable industrial spaces where the required electrical and environmental conditions can be met.

Ducted Applications

The manufacturer identifies ductability as a feature of the CD425-D. Ducted installations may be considered where the facility design requires controlled air distribution. Customers should verify the specific ducting design and installation requirements before incorporating the unit into a ducted system.

Multiple-Unit Installations

The manufacturer states that CD425-D units can be utilized singly or in multiple units to provide environmental protection on different scales. Larger facilities may require multiple units depending on the total area, moisture conditions, ventilation, and system design.

Facilities Requiring Gravity Condensate Drainage

The 10142BR-US configuration uses a gravity-drain arrangement rather than the internal high-capacity water pump available on the separate pump variant. The manufacturer specifies two 5/8-inch outside-diameter gravity-drain connections.

Installation planning should account for the gravity-drain configuration and the location of the condensate discharge point. Customers should verify that the intended installation can accommodate the required drainage arrangement before ordering.

Low-Temperature Industrial Environments

The standard CD425-D is specified for operation from 33°F to 95°F and includes an electronic reverse-cycle defrost system. The manufacturer also identifies low-temperature operation down to 0°F as an available option.

Typical Facility Types

Installation Considerations

The CD425-D (460V) requires a 460V, three-phase, 60 Hz electrical supply. The unit measures 47 inches high x 43 inches wide x 19 inches deep and weighs 353 pounds. Adequate space should be provided for placement, airflow, service access, and condensate drainage.

The standard 10142BR-US model uses a gravity-drain configuration. If the installation requires pumped condensate removal, customers should review the separate pump-equipped variant rather than assuming the pump is included with this SKU.

Frequently Asked Questions

The following FAQs cover common questions about the EIPL CD425-D (460V), including the exact SKU, capacity, electrical requirements, drainage configuration, applications, and installation considerations.

What is the EIPL CD425-D (460V)?

The EIPL CD425-D (460V) is a high-capacity industrial dehumidifier designed for environmental humidity control in very large areas and demanding industrial environments.

What is the part number for this model?

The manufacturer part number for the standard CD425-D (460V) is 10142BR-US.

Is 10142BR-US the pump version?

No. Part number 10142BR-US is the standard CD425-D (460V) configuration. The manufacturer separately identifies 10143BR-US as the CD425-D (460V) with Pump.

How much moisture does the CD425-D remove?

The manufacturer lists a typical extraction rating of 285 pints per day.

What effective volume does the CD425-D have?

The manufacturer lists an effective volume of 52,972 cubic feet, equivalent to approximately 1,500 cubic meters.

What voltage does the 10142BR-US require?

The manufacturer identifies this variant with a 460V, three-phase, 60 Hz voltage requirement.

How much power does the unit use?

The manufacturer lists power consumption at 3,680W and current at 8A.

What is the airflow rating?

The EIPL CD425-D has a listed airflow of 1,750 CFM.

What is the noise level?

The manufacturer lists a noise level of 69 dBA.

What refrigerant does the CD425-D use?

The manufacturer lists R454c refrigerant for the CD425-D (460V).

Does 10142BR-US include a water pump?

No. The manufacturer lists the high-capacity water pump as not included for 10142BR-US.

How does the 10142BR-US drain condensate?

The standard 10142BR-US configuration uses a gravity drain. The manufacturer specifies two 5/8-inch outside-diameter gravity-drain connections.

Does the CD425-D have humidity control?

Yes. The unit features digital humidity control and an adjustable control humidistat.

Does the CD425-D have automatic defrost?

Yes. The unit features electronic defrost control and EIPL's reverse-cycle defrost system.

What is the operating temperature range?

The manufacturer specifies a standard operating temperature range of 33°F to 95°F.

Can the CD425-D operate below 33°F?

The standard unit is specified for operation down to 33°F. The manufacturer identifies low-temperature operation down to 0°F as an available option.

What are the dimensions?

The manufacturer lists dimensions of 47 inches high x 43 inches wide x 19 inches deep.

How much does the CD425-D weigh?

The unit weighs 353 pounds.

What type of compressor does it use?

The manufacturer lists a reciprocating compressor.

Can the CD425-D be ducted?

Yes. The manufacturer lists ductability as a feature of the CD425-D range where design requirements specify.

Where can the CD425-D be used?

Manufacturer-identified applications include warehouses, factories, offices, and other large-scale facilities affected by humidity and condensation conditions.

Can multiple CD425-D units be used?

Yes. The manufacturer states that CD425-D units can be utilized singly or in multiple units to provide environmental control on different scales.

What comes with the 10142BR-US unit?

The standard package includes one CD425-D - 460V dehumidifier, one owner's manual, two 3/8-inch PVC tubes with a 3-meter length, and two Jubilee clips.

What should I verify before ordering?

Verify the exact 10142BR-US part number, 460V three-phase 60 Hz electrical supply, effective volume requirement, expected operating temperature, gravity-drain arrangement, installation dimensions, and available service space.

What is the difference between 10142BR-US and 10143BR-US?

The 10142BR-US is the standard CD425-D (460V) with a gravity-drain configuration. The 10143BR-US is the separate CD425-D (460V) with Pump variant. The high-capacity water pump should not be assumed to be included with 10142BR-US.

Is the CD425-D suitable for large industrial facilities?

Yes. The manufacturer developed the CD425-D range for environmental control of very large areas and severe conditions, including warehouses, factories, offices, and other large-scale facilities.
