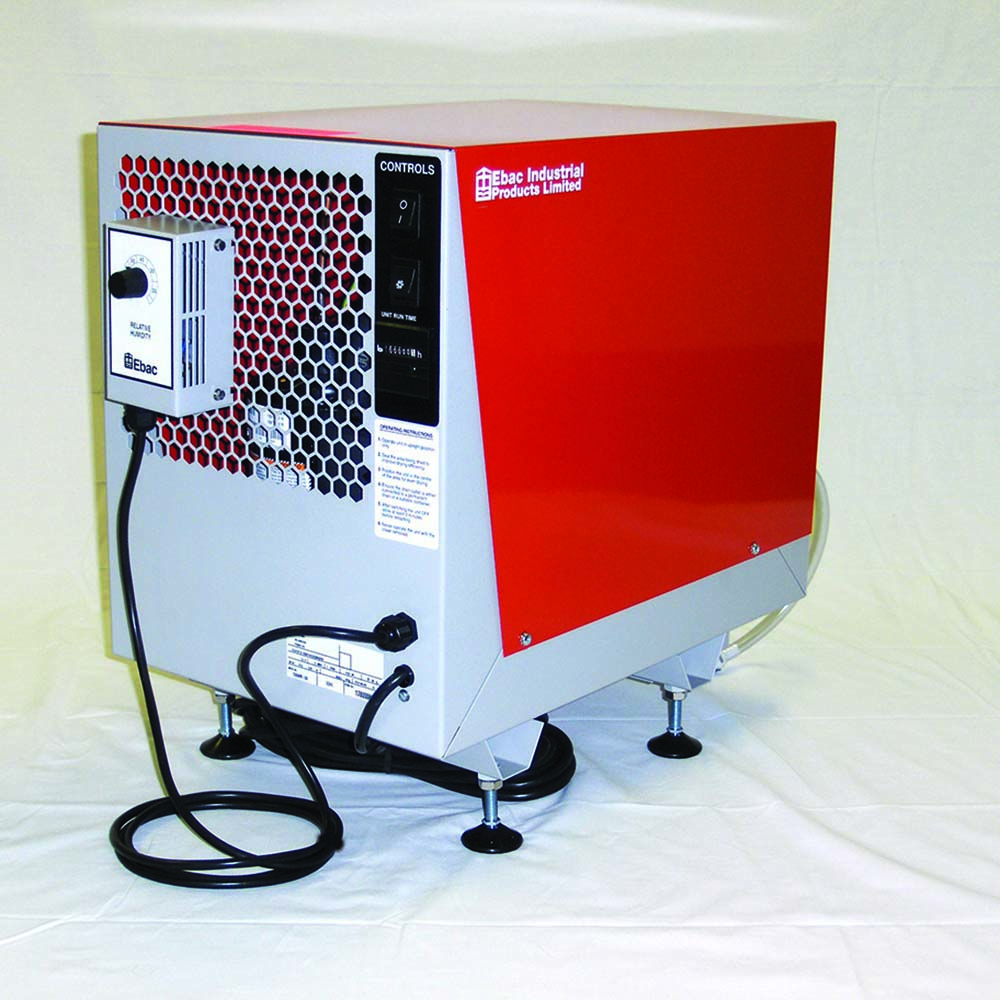

EBAC CD60 Commercial Industrial Dehumidifier, 56 Pints/Day, 8,370 Cu. Ft., 110V 11264FR-US

EIPL CD60 Commercial Industrial Dehumidifier, 56 Pints/Day, 8,370 Cu. Ft., 110V

Commercial and Industrial Humidity Control

The EIPL CD60 is a high-capacity commercial and industrial dehumidifier designed to help manage excess humidity in suitable facilities and enclosed spaces. It combines refrigeration-based moisture removal with an adjustable control humidistat, hot-gas defrost, and rugged epoxy powder-coated construction.

The unit operates on 110V, single-phase, 60 Hz electrical power and is designed for applications where dedicated humidity management is required. Its specified operating temperature range is 33°F to 95°F.

56 Pints/Day Typical Extraction

The CD60 provides typical extraction of 56 pints per day and has an effective volume rating of approximately 8,370 cubic feet. Actual moisture removal depends on environmental conditions including temperature, relative humidity, moisture load, and ventilation.

Adjustable Humidity Control

The CD60 features an adjustable control humidistat that allows the desired level of dryness to be selected. This helps the unit automatically regulate operation according to surrounding humidity conditions.

Automatic humidity control can be useful in facilities where moisture levels need to be managed continuously as part of normal building or equipment maintenance.

Rugged Construction

The CD60 features a rugged epoxy powder-coated steel chassis and housing. The unit measures 17 inches high by 20 inches wide by 14 inches deep and weighs 80 pounds.

Its compact physical dimensions relative to its rated capacity make it suitable for appropriately sized commercial and industrial locations where dedicated moisture control is required.

Low-Temperature Operation

The CD60 is specified for operation from 33°F to 95°F. Electronic defrost control and hot-gas defrost help manage frost buildup during operation under lower ambient conditions within the specified operating range.

Before installation, verify the expected temperature range of the location and compare it with the manufacturer's operating requirements.

Refrigeration-Based Dehumidification

The CD60 removes moisture from the air through a refrigeration process. A fan draws humid air through the unit, where the air passes over a cold evaporator surface and moisture condenses.

The air is subsequently reheated through the heat-recovery process before being returned to the surrounding area. Continued circulation gradually reduces the relative humidity of the treated space.

Electrical Performance

The CD60 operates at 110V, single phase, 60 Hz. The manufacturer lists 7A current and 880W power consumption. The current EIPL product page lists airflow at 170 CFM and noise at 57 dBA.

Customers should verify the available electrical supply and current technical specifications before installation.

Condensate Drainage

The CD60 includes a convenient condensate drain point for hose attachment. Manufacturer documentation identifies a quick-disconnect hose coupling and PVC drainage tubing for removing collected condensate.

The manufacturer's manual lists a 3/8-inch inside-diameter PVC tube measuring 7.8 meters long and a quick-release hose coupling as part of the package.

Installation-Friendly Features

The CD60 includes a fitted mains plug and extra-long power cord. The unit also includes an hours-run meter and adjustable control humidistat for routine operation and monitoring.

Customers should evaluate the installation area for adequate clearance, electrical access, condensate drainage, and suitable environmental conditions before ordering.

Key Features

• Commercial and industrial dehumidifier
• 56 pints/day typical extraction
• Approximately 8,370 cu. ft. effective volume
• 110V, single-phase, 60 Hz operation
• 7A listed current
• 880W power consumption
• 170 CFM airflow listed on the product page
• 57 dBA listed noise level
• Adjustable control humidistat
• Electronic defrost control
• Hot-gas defrost
• 33°F to 95°F operating temperature range
• R454C refrigerant
• Rotary compressor
• Epoxy powder-coated steel chassis and housing
• Hours-run meter
• Fitted mains plug
• Extra-long power cord
• Quick-disconnect hose coupling

What's Included

• 1 x CD60 Dehumidifier
• 1 x CD60 Owner's Manual
• 1 x PVC Tube, 3/8" ID, 7.8 meters long
• 1 x Quick-Release Hose Coupling

Product Resources

Review the manufacturer's resources for additional installation, maintenance, replacement-parts, wiring, and technical information before installing the CD60.

• Product Brochure
• Product Instruction Manual
• Product Wiring Diagram
• Product Wiring Schematic

Applications for the EIPL CD60

The EIPL CD60 is designed for humidity-control applications in appropriately sized commercial, industrial, institutional, and facility environments. The manufacturer identifies applications including offices, laboratories, storage areas, restaurants, bars, museums, locker rooms, computer rooms, telecommunications rooms, basements, warehouses, factories, shops, and crawl spaces.

Warehouses and Storage Areas

Warehouses and storage areas may require humidity control to maintain appropriate environmental conditions for stored materials, equipment, and inventory. The CD60 can be considered for appropriately sized areas within its rated effective volume.

Customers should evaluate the total space volume and moisture conditions before determining whether the CD60 provides the required capacity.

Offices and Commercial Buildings

Offices and commercial areas can use dehumidification where excess humidity needs to be managed. The adjustable humidistat allows the CD60 to regulate operation according to the selected humidity setting.

The listed 57 dBA noise level should be considered when selecting a location in an occupied commercial environment.

Laboratories

The manufacturer identifies laboratories as potential applications for the CD60. The unit can provide humidity control in appropriately sized areas where the electrical, temperature, drainage, and environmental requirements can be satisfied.

For specialized laboratory equipment or processes, follow the environmental requirements specified by the equipment or process manufacturer.

Restaurants and Bars

Restaurants and bars can experience varying humidity levels due to occupancy, cooking, cleaning, ventilation, and environmental conditions. The CD60 can be considered for suitable spaces requiring dedicated humidity management.

Installation should account for available space, electrical access, condensate drainage, and the expected operating environment.

Museums

The manufacturer identifies museums as an application for the CD60. Humidity control can be an important consideration in facilities where environmental conditions need to be managed.

For collections, artifacts, or sensitive materials, follow the applicable environmental requirements and verify that the CD60 is suitable for the specific space.

Locker Rooms

Locker rooms can experience elevated humidity due to showers, occupancy, and moisture brought into the facility. The CD60 can be used for appropriate humidity-control applications where the installation conditions are suitable.

Computer and Telecommunications Rooms

The manufacturer identifies computer and telecommunications rooms among the potential CD60 applications. These areas may require controlled environmental conditions for equipment operation.

Customers should verify the environmental requirements of the equipment and ensure that the dehumidifier's operating conditions and installation requirements can be met.

Basements

Basements can experience elevated humidity because of their location below grade and limited ventilation. The CD60 can provide dedicated dehumidification for appropriately sized basement spaces.

Condensate drainage should be planned carefully, particularly where the installation is below the normal building drainage level.

Factories and Industrial Facilities

Factories and industrial facilities may contain work areas, storage rooms, equipment areas, or other spaces where humidity needs to be managed. The CD60 can provide dedicated moisture removal for suitable areas within its rated capacity.

Crawl Spaces

The manufacturer identifies crawl spaces as an application for the CD60. Customers should measure the crawl-space volume and verify that the expected temperature and installation conditions fall within the unit's specifications.

Access, electrical supply, condensate drainage, and available installation space should be evaluated before selecting the unit for a crawl-space application.

Shops and Workshops

Shops and workshops can use dehumidification where humidity needs to be controlled in enclosed work areas. The CD60 provides adjustable humidity control and dedicated condensate drainage provisions.

Typical Facilities

Environmental Considerations

The CD60 is specified for operation from 33°F to 95°F. Customers should evaluate the expected temperature, relative humidity, moisture load, ventilation, and space volume before installation.

The dehumidifier manages moisture in the air. Where humidity originates from leaks, groundwater, inadequate drainage, ventilation problems, or other building conditions, those underlying issues may also need to be addressed.

Frequently Asked Questions

The following FAQs cover common questions about the EIPL CD60 commercial and industrial dehumidifier, including capacity, specifications, installation, drainage, applications, and ordering considerations.

What is the EIPL CD60?

The EIPL CD60 is a commercial and industrial dehumidifier designed to provide dedicated humidity control in suitable commercial, industrial, institutional, and facility environments.

What is the part number for the EIPL CD60?

The manufacturer part number for the CD60 is 11264FR-US. Verify this part number when ordering to ensure you are selecting the exact product variant.

How much moisture does the CD60 remove?

The manufacturer lists typical extraction of 56 pints per day.

What size area can the CD60 dehumidify?

The CD60 has an effective volume rating of approximately 8,370 cubic feet. Actual dehumidification requirements depend on temperature, humidity, moisture load, ventilation, and other environmental conditions.

What voltage does the CD60 use?

The CD60 operates on 110V, single-phase, 60 Hz electrical power.

How much power does the CD60 use?

The manufacturer lists power consumption at 880W and current at 7A.

What is the airflow rating?

The current EIPL product page lists airflow at 170 CFM. Customers requiring airflow-based application planning should verify the current manufacturer specification before ordering.

What is the operating temperature range?

The manufacturer specifies an operating range of 33°F to 95°F.

Does the CD60 have a humidistat?

Yes. The CD60 features an adjustable control humidistat for automatic humidity management.

Does the CD60 have hot-gas defrost?

Yes. The CD60 incorporates hot-gas defrost and electronic defrost control to help manage frost buildup during operation at lower temperatures within its specified operating range.

What refrigerant does the CD60 use?

The current EIPL product page specifies R454C refrigerant.

How loud is the EIPL CD60?

The manufacturer lists a noise level of 57 dBA.

How much does the CD60 weigh?

The CD60 weighs approximately 80 pounds.

What are the dimensions of the CD60?

The manufacturer lists the dimensions as 17 inches high x 20 inches wide x 14 inches deep.

How does the CD60 remove moisture?

The CD60 uses refrigeration-based dehumidification. Moist air passes over a cold evaporator surface where moisture condenses. The air is then reheated before being returned to the surrounding environment.

How does the CD60 drain condensate?

The CD60 includes a condensate drain point for hose attachment. The manufacturer's documentation identifies a quick-disconnect hose coupling and PVC drainage tubing for condensate management.

Does the CD60 include a drain hose?

Yes. The manufacturer's manual lists a 3/8-inch ID PVC tube measuring 7.8 meters long and a quick-release hose coupling in the package contents.

What comes with the EIPL CD60?

The standard package includes one CD60 dehumidifier, one CD60 owner's manual, one 3/8-inch ID PVC tube measuring 7.8 meters long, and one quick-release hose coupling.

Does the CD60 have a rotary compressor?

Yes. The manufacturer identifies the compressor type as rotary.

Does the CD60 have an hours-run meter?

Yes. An hours-run meter is listed among the CD60's features.

Where can the CD60 be used?

Manufacturer-identified applications include offices, laboratories, storage areas, restaurants, bars, museums, locker rooms, computer rooms, telecommunications rooms, basements, warehouses, factories, shops, and suitable crawl spaces.

Can the CD60 be used in a warehouse?

Yes. Warehouses are identified as an application. Verify that the space volume and environmental conditions are appropriate for the CD60's rated capacity.

Can the CD60 be used in a basement?

Yes. Basements are identified as an application. The condensate drainage arrangement should be evaluated carefully before installation.

Can the CD60 be used in a crawl space?

Yes, the manufacturer identifies crawl spaces as an application. Verify the space volume, temperature, electrical supply, drainage, and access requirements before installation.

Is the CD60 suitable for commercial use?

Yes. The CD60 is designed as a commercial and industrial dehumidifier and is identified for a range of commercial, institutional, and industrial applications.

What should I verify before ordering the CD60?

Verify the exact CD60 / 11264FR-US model, required space volume, expected temperature and humidity, 110V electrical supply, available installation space, and condensate drainage arrangement.

What is the difference between the CD60 and other EIPL models?

EIPL offers multiple dehumidifier models with different capacities, dimensions, electrical requirements, and features. Do not substitute specifications from another model when selecting the CD60. Compare the exact model and manufacturer part number before ordering.

What is the listed effective volume of the CD60?

The manufacturer lists the CD60 with an effective volume of approximately 8,370 cubic feet.

What temperature range should I consider before installation?

The specified operating temperature range is 33°F to 95°F. Verify that the expected ambient conditions fall within this range.

Is the CD60 a low-temperature dehumidifier?

The CD60 is designed to operate down to 33°F and includes hot-gas defrost technology to help manage frost buildup during lower-temperature operation within the specified range.
