EBAC HM150-H Professional Dehumidifier with Humidity Control, 105 Pints/Day, 10,594 Cu. Ft., 110V, 850W, 11585RH-US

EBAC HM150-H Professional Dehumidifier with Humidity Control, 105 Pints/Day, 10,594 Cu. Ft., 110V, 850W

Professional Dehumidification for Cleaning and Restoration

The EBAC HM150-H is a professional dehumidifier designed for cleaning, restoration, and moisture-control applications. This specific product variant is identified by manufacturer part number 11585RH-US and includes an inbuilt humidity controller for selecting a desired humidity level and monitoring actual room humidity.

The HM150-H provides a manufacturer-listed typical extraction rate of 105 pints per day and an effective volume of 10,594 cubic feet. Actual moisture removal depends on environmental conditions such as temperature, relative humidity, moisture load, and airflow. The manufacturer's rated specifications should be considered when evaluating the unit for a particular application.

110V Electrical Operation

The HM150-H operates on 110V, single-phase, 60 Hz electrical power. It is rated at 850W with a listed current of 8A. The unit provides 412 CFM airflow and has a listed noise level of 68 dBA.

Customers should verify that the intended installation location has a compatible electrical supply before operating the dehumidifier.

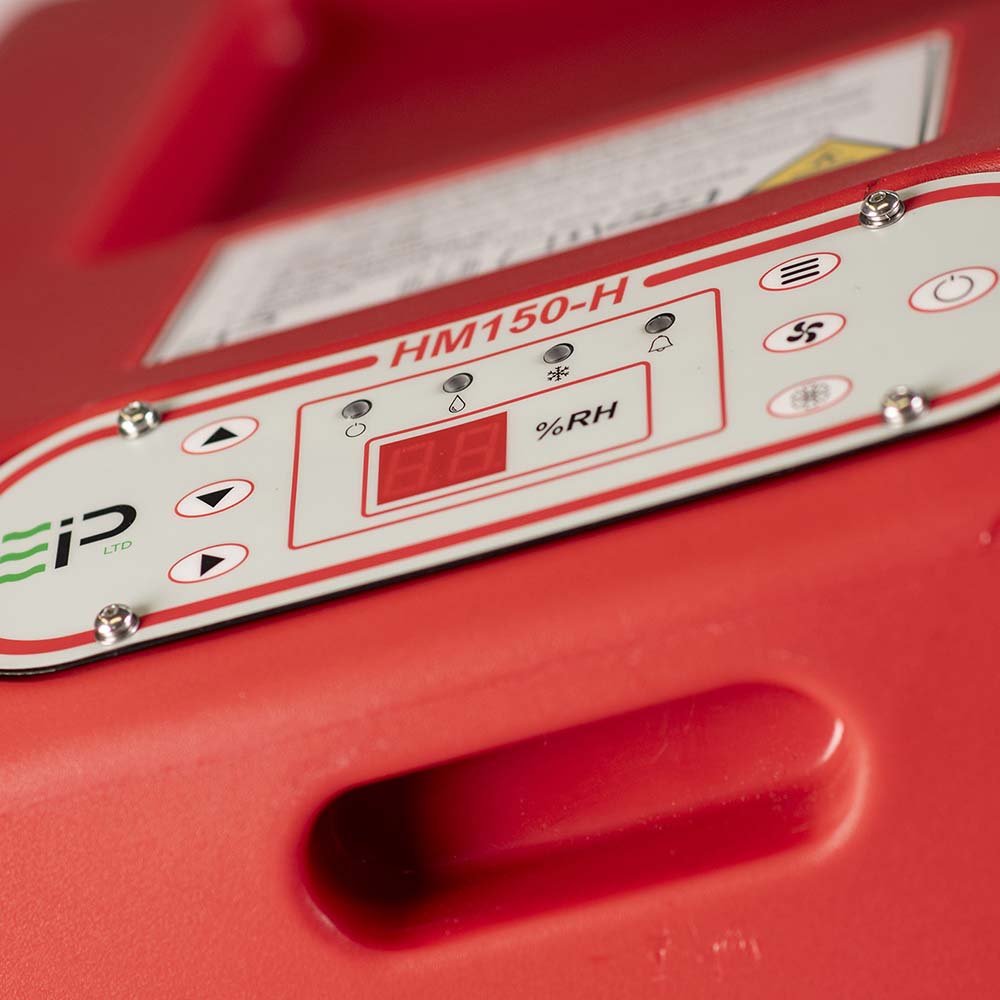

Built-In Humidity Control

The HM150-H includes an inbuilt electronic humidity controller that distinguishes this model from the standard HM150. The controller allows a desired humidity level to be entered while providing a continuous readout of actual room humidity.

The manufacturer also lists electronic humidity control, recirculation mode, and system timers with temperature display as additional HM150-H features. These controls provide greater flexibility when managing moisture conditions in restoration and commercial drying applications.

Integral Condensate Pump

The HM150-H incorporates a high-capacity integral condensate pump for continuous removal of collected water. The manufacturer specifies a maximum pump height of 3 meters. A pump purge facility allows residual water to be removed from the pump tank before the machine is moved.

The pump configuration can be useful when the installation requires condensate to be discharged to a permanent drain. Customers should verify the planned drainage arrangement and installation requirements before use.

Reverse-Cycle Defrost

The HM150-H features EIPL's thermostatically controlled ReverseCycle defrost system. The system automatically clears frost buildup from the coil to support operation in cooler environments within the specified temperature range.

The manufacturer specifies a minimum operating temperature of 33°F and a maximum operating temperature of 95°F. Customers should verify expected ambient conditions before selecting the unit for a particular application.

Rugged Rotational Molded Housing

The HM150-H uses a durable rotational molded polyethylene body designed for commercial and restoration environments. The unit features high-impact wheels, molded lifting handles, and a collapsible handle to support transportation and positioning.

The dehumidifier measures 18.5 inches high x 18.3 inches wide x 26.8 inches deep and weighs 95 pounds. Its compact dimensions and mobile design make it suitable for applications where equipment needs to be moved between rooms or job locations.

Stackable and Mobile Design

The HM150-H is designed to be stackable, which can help simplify equipment storage and transportation when multiple units are used. The collapsible handle, rugged wheels, molded lifting handles, and cable and hose wrap provide practical features for moving and organizing the equipment.

Refrigeration-Based Dehumidification

The HM150-H removes moisture from air using a refrigeration-based process. Air is drawn into the unit by a fan and passes over a cold surface. As the air is cooled, moisture condenses and is collected. The air is then reheated through the heat recovery system before being returned to the surrounding room.

The dehumidifier continues operating according to the selected control settings and environmental conditions. The ReverseCycle defrost system automatically de-ices the unit when required.

Key Features

• Professional dehumidifier for cleaning and restoration applications
• Manufacturer part number 11585RH-US
• 105 pints/day typical extraction
• 203 pints/day maximum extraction
• 10,594 cubic feet effective volume
• 110V, single-phase, 60 Hz operation
• 850W power consumption
• 8A listed current
• 412 CFM airflow
• 68 dBA listed noise level
• R454c refrigerant
• Inbuilt electronic humidity control
• Continuous room humidity readout
• Recirculation mode
• System timers and temperature display
• Reverse-cycle defrost
• Electronic defrost timer
• Integral condensate pump
• High-level pump safety cutout
• Pump purge switch
• Washable air filter
• High-impact wheels
• Collapsible handle
• Rotational molded polyethylene body
• Free-standing design
• Stackable construction

What's Included

• 1x HM150-H Dehumidifier
• 1x HM150-H Owner's Manual
• 1x 3/8-inch PVC Tube I/D - 7.8M long

Product Resources

Review the manufacturer's product resources for additional technical, installation, operating, maintenance, and replacement-parts information before ordering or installing the EBAC HM150-H.

• Product Brochure
• Product Instruction Manual
• Wiring Diagram
• Wiring Schematic

Applications for the EBAC HM150-H

The EBAC HM150-H is designed for professional cleaning, restoration, and moisture-control applications. Its 105 pints/day typical extraction capacity, integral condensate pump, electronic humidity control, mobile design, and stackable housing make it suitable for appropriately sized restoration and drying environments.

Flood Restoration

The HM150-H is part of EIPL's cleaning and restoration range and can be used in areas requiring moisture removal following water-related events. The unit can assist with drying appropriately sized areas where its rated capacity meets the requirements of the restoration project.

Commercial Restoration

The compact and mobile design of the HM150-H makes it suitable for commercial restoration work where equipment may need to be transported between rooms or job locations. Its collapsible handle, rugged wheels, and molded lifting handles support equipment movement.

Water-Damaged Areas

The manufacturer identifies restoration drying equipment for areas affected by events such as flooding, heavy rain, or water main breaks. The HM150-H can provide dehumidification for appropriately sized areas while operating within its specified environmental conditions.

Humidity-Controlled Drying

The built-in electronic humidity controller allows a desired humidity level to be entered, while the system provides a continuous readout of actual room humidity. This feature can be useful when a restoration application requires controlled moisture conditions.

Portable Restoration Applications

The HM150-H is equipped with high-impact wheels, a collapsible handle, molded lifting handles, and a cable and hose wrap. These features support transportation and positioning during restoration work.

Multiple-Unit Installations

The HM150-H is stackable, allowing multiple units to be stored or transported more efficiently. Multiple dehumidifiers may be used when project requirements exceed the capacity of a single unit, provided the equipment configuration is appropriate for the application.

Low-Temperature Environments

The HM150-H incorporates ReverseCycle defrost and is specified for operation from 33°F to 95°F. Customers should verify the expected ambient temperature before selecting the unit for a particular drying environment.

Typical Application Areas

Installation Considerations

The HM150-H requires a 110V, single-phase, 60 Hz electrical supply. The unit measures 18.5 inches high x 18.3 inches wide x 26.8 inches deep and weighs 95 pounds. Adequate space should be provided for equipment placement, airflow, maintenance access, and condensate drainage.

The integral condensate pump has a manufacturer-listed maximum pump height of 3 meters. Customers should verify the planned drainage route and ensure that the installation complies with the manufacturer's requirements.

Frequently Asked Questions

The following FAQs cover common questions about the EBAC HM150-H, including the exact SKU, capacity, electrical requirements, humidity control, condensate pump, operating range, and applications.

What is the EBAC HM150-H?

The EBAC HM150-H is a professional dehumidifier designed for cleaning, restoration, and moisture-control applications.

What is the part number for this HM150-H?

The manufacturer part number for this specific HM150-H variant is 11585RH-US.

How much moisture does the HM150-H remove?

The manufacturer lists a typical extraction rating of 105 pints per day and a maximum extraction rating of 203 pints per day.

What effective volume does the HM150-H handle?

The manufacturer lists an effective volume of 10,594 cubic feet, equivalent to approximately 300 cubic meters.

What voltage does the HM150-H require?

The HM150-H requires 110V, single-phase, 60 Hz electrical power.

How much power does the HM150-H use?

The manufacturer lists power consumption at 850W and current at 8A.

What is the airflow rating?

The HM150-H has a listed airflow of 412 CFM.

What is the noise level?

The manufacturer lists a noise level of 68 dBA.

Does the 11585RH-US include humidity control?

Yes. The HM150-H includes an electronic humidity controller and provides a continuous readout of actual room humidity.

Does the HM150-H have a condensate pump?

Yes. The HM150-H includes an integral high-capacity condensate pump and high-level pump safety cutout.

What is the maximum pump height?

The manufacturer identifies a maximum pump height of 3 meters.

Does the unit have a pump purge switch?

Yes. The HM150-H includes a pump purge switch that can be used to remove residual water before moving the machine.

What refrigerant does the HM150-H use?

The manufacturer lists R454c refrigerant.

What is the operating temperature range?

The manufacturer specifies an operating temperature range of 33°F to 95°F.

Does the HM150-H have reverse-cycle defrost?

Yes. The unit features ReverseCycle defrost and an electronic defrost timer.

What are the dimensions?

The HM150-H measures 18.5 inches high x 18.3 inches wide x 26.8 inches deep.

How much does the HM150-H weigh?

The unit weighs 95 pounds.

Is the HM150-H stackable?

Yes. The manufacturer identifies the HM150-H as a stackable dehumidifier.

What type of body does the HM150-H have?

The HM150-H uses a rotational molded polyethylene body.

Does the HM150-H have a washable air filter?

Yes. The unit includes a washable air filter for maintenance.

Where can the HM150-H be used?

The HM150-H is designed for cleaning and restoration applications, including appropriately sized areas affected by water damage and other moisture-control requirements.

What comes with the 11585RH-US unit?

The package includes one HM150-H dehumidifier, one HM150-H owner's manual, and one 3/8-inch PVC tube with a 7.8-meter length.
