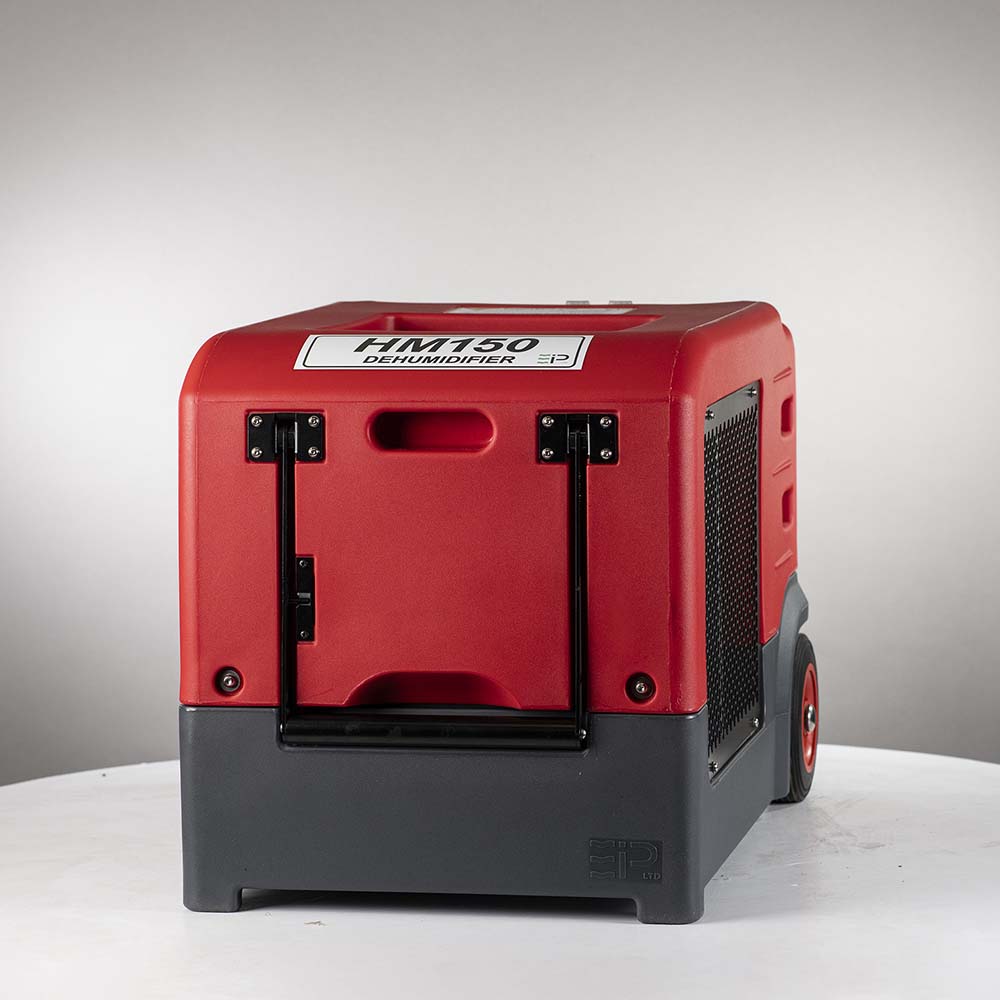

EBAC HM150 Professional Dehumidifier, 105 Pints/Day, 10,594 Cu. Ft., 110V, 850W, 11585RG-US

EBAC HM150 Professional Dehumidifier, 105 Pints/Day, 10,594 Cu. Ft., 110V, 850W

Professional Dehumidification for Cleaning and Restoration

The EBAC HM150 is a professional dehumidifier designed for cleaning, restoration, and commercial drying applications. This specific listing is for manufacturer part number 11585RG-US, the HM150 model without the additional HM150-H electronic humidity control features.

The HM150 provides a manufacturer-listed typical extraction of 105 pints per day and an effective volume of 10,594 cubic feet. Its compact, rugged construction, integrated condensate pump, wheels, and collapsible handle make it suitable for mobile drying applications where equipment needs to be transported between locations.

110V Professional Operation

The HM150 operates on 110V, single-phase, 60 Hz electrical power. It is rated at 850W with a listed current of 8A and provides 412 CFM of airflow.

The unit uses a standard electrical connection and is designed for straightforward installation and operation. Customers should verify the electrical requirements at the intended installation location before use.

High-Capacity Integral Condensate Pump

The HM150 includes an integral condensate pump for continuous water removal during operation. The manufacturer describes the pump as high capacity and indicates a maximum pump height of 3 meters.

A pump purge function allows residual water to be removed before moving the machine. This feature can help reduce water spillage when transporting the unit between drying locations.

Reverse-Cycle Defrost

The HM150 incorporates EIPL's thermostatically controlled ReverseCycle defrost system. The defrost function automatically clears frost buildup from the coil to support operation in lower ambient temperatures.

The manufacturer specifies a minimum operating temperature of 33°F and a maximum operating temperature of 95°F. Actual performance can vary according to temperature, relative humidity, moisture load, and other environmental conditions.

Rugged Rotationally Molded Housing

The HM150 features a durable rotationally molded polyethylene housing designed for commercial work and restoration environments. Its compact construction is combined with high-impact wheels and a collapsible handle to assist with transportation and maneuverability.

The unit measures 18.5 inches high x 18.3 inches wide x 26.8 inches deep and weighs 95 pounds. Its stackable design can also assist with storage and transportation where multiple units are used.

High-Efficiency Rotary Compressor

The manufacturer specifies a high-efficiency rotary compressor for the HM150. The refrigeration-based system removes moisture from air by cooling the air over a cold surface so that moisture condenses. The air is then reheated before being returned to the surrounding area.

Mobile Cleaning and Restoration Equipment

The HM150 is designed for professional cleaning and restoration applications where portable moisture removal equipment is required. Its wheels, collapsible handle, condensate pump, washable air filter, and compact housing support movement and routine operation.

Key Features

• Professional HM150 dehumidifier
• Manufacturer part number 11585RG-US
• 105 pints/day typical extraction
• 203 pints/day maximum extraction
• 10,594 cubic feet effective volume
• 300 m³ effective volume
• 110V, single-phase, 60 Hz operation
• 850W power consumption
• 8A listed current
• 412 CFM airflow
• 68 dBA noise level
• R454c refrigerant
• Integral condensate pump
• High-level pump safety cutout
• Pump purge switch
• Reverse-cycle defrost
• Electronic defrost timer
• Washable air filter
• High-impact wheels
• Collapsible handle
• Rotationally molded polyethylene body
• Stackable design
• Free-standing configuration

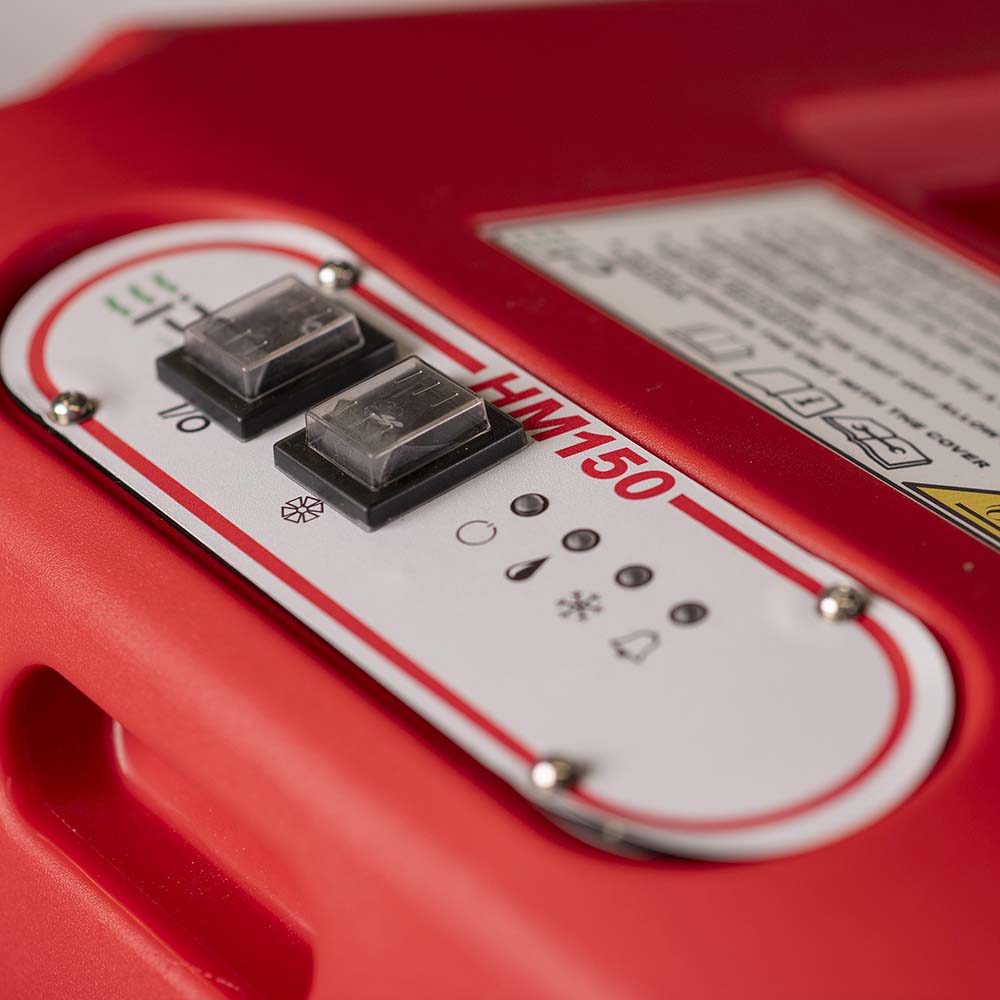

• Status indicators
• Molded lifting handles

What's Included

• 1x HM150 Dehumidifier
• 1x HM150 Owner's Manual
• 1x 3/8-inch PVC Tube I/D - 7.8M long

Product Resources

Review the manufacturer's product resources for additional technical, installation, operating, maintenance, and replacement-parts information before ordering or installing the EBAC HM150.

• Product Brochure
• Product Instruction Manual
• Product Wiring Diagram
• Product Wiring Schematic

Applications for the EBAC HM150

The EBAC HM150 is designed for professional cleaning and restoration environments where portable moisture removal is required. Its compact size, integrated condensate pump, wheels, collapsible handle, and rugged rotationally molded housing make it suitable for mobile commercial drying applications.

Cleaning and Restoration

The HM150 is part of EIPL's cleaning and restoration equipment range. It can be used where controlled moisture removal is required during appropriate restoration and drying operations.

Water Damage Restoration

The manufacturer identifies EIPL equipment for assisting with drying areas following water damage. The HM150's 105 pints/day typical extraction rating and integrated condensate pump provide a portable configuration for suitable drying applications.

Commercial Drying

The compact and mobile design of the HM150 makes it appropriate for commercial work where equipment may need to be moved between rooms or job locations. High-impact wheels and a collapsible handle assist with transportation.

Basements and Enclosed Areas

The manufacturer identifies flood restoration and drying applications that can include areas such as basements and offices. The HM150 can provide moisture removal for appropriately sized areas within its rated operating conditions.

Multiple-Unit Installations

The HM150 has a stackable housing design that can help with storage and transportation when multiple units are required. The number of units needed depends on the size of the area, moisture load, temperature, humidity, and drying requirements.

Low-Temperature Drying

The HM150 incorporates ReverseCycle defrost and is specified for operation from 33°F to 95°F. Customers should verify the expected ambient conditions before selecting the unit for a specific application.

Typical Application Areas

Installation Considerations

The HM150 requires a 110V, single-phase, 60 Hz electrical supply. The unit measures 18.5 inches high x 18.3 inches wide x 26.8 inches deep and weighs 95 pounds. Adequate space should be provided for airflow, equipment placement, maintenance access, and condensate discharge.

Frequently Asked Questions

What is the EBAC HM150?

The EBAC HM150 is a professional dehumidifier designed for cleaning, restoration, and commercial drying applications.

What is the part number for this HM150?

The manufacturer part number for this listing is 11585RG-US.

How much moisture does the HM150 remove?

The manufacturer lists a typical extraction rating of 105 pints per day and a maximum extraction rating of 203 pints per day.

What effective volume is listed for the HM150?

The manufacturer lists an effective volume of 10,594 cubic feet, equivalent to 300 cubic meters.

What voltage does the HM150 require?

The HM150 operates on 110V, single-phase, 60 Hz power.

How much power does the HM150 use?

The manufacturer lists power at 850W and current at 8A.

What is the airflow rating?

The HM150 has a listed airflow of 412 CFM.

Does the HM150 have a condensate pump?

Yes. The HM150 includes an integral condensate pump and a high-level pump safety cutout.

Does the HM150 have a pump purge function?

Yes. The manufacturer lists a pump purge switch, which can be used to remove residual water before moving the unit.

Does the HM150 have electronic humidity control?

No. The standard HM150 does not include electronic humidity control. The HM150-H variant includes this additional feature.

Does the HM150 have reverse-cycle defrost?

Yes. The HM150 includes a ReverseCycle defrost system and an electronic defrost timer.

What is the operating temperature range?

The manufacturer specifies an operating range from 33°F to 95°F.

What are the dimensions?

The HM150 measures 18.5 inches high x 18.3 inches wide x 26.8 inches deep.

How much does the HM150 weigh?

The unit weighs 95 pounds.

Is the HM150 portable?

Yes. The HM150 features high-impact wheels, a collapsible handle, molded lifting handles, and a compact rotationally molded housing for easier movement.

Is the HM150 stackable?

Yes. The manufacturer lists the HM150 as stackable, which can assist with storage and transportation.

What refrigerant does the HM150 use?

The manufacturer lists R454c refrigerant.

What type of compressor does the HM150 use?

The manufacturer describes the HM150 as using a high-efficiency rotary compressor.

What comes with the HM150?

The package includes one HM150 dehumidifier, one HM150 owner's manual, and one 3/8-inch PVC tube with a 7.8-meter length.

What is the difference between HM150 and HM150-H?

The HM150-H adds electronic humidity control, recirculation mode, and system timers and temperature display. The standard HM150 does not include these features.
