EBAC RM85 Professional Dehumidifier, 70 Pints/Day, 8,370 Cu. Ft., 110V, 680W, 11560RG-US

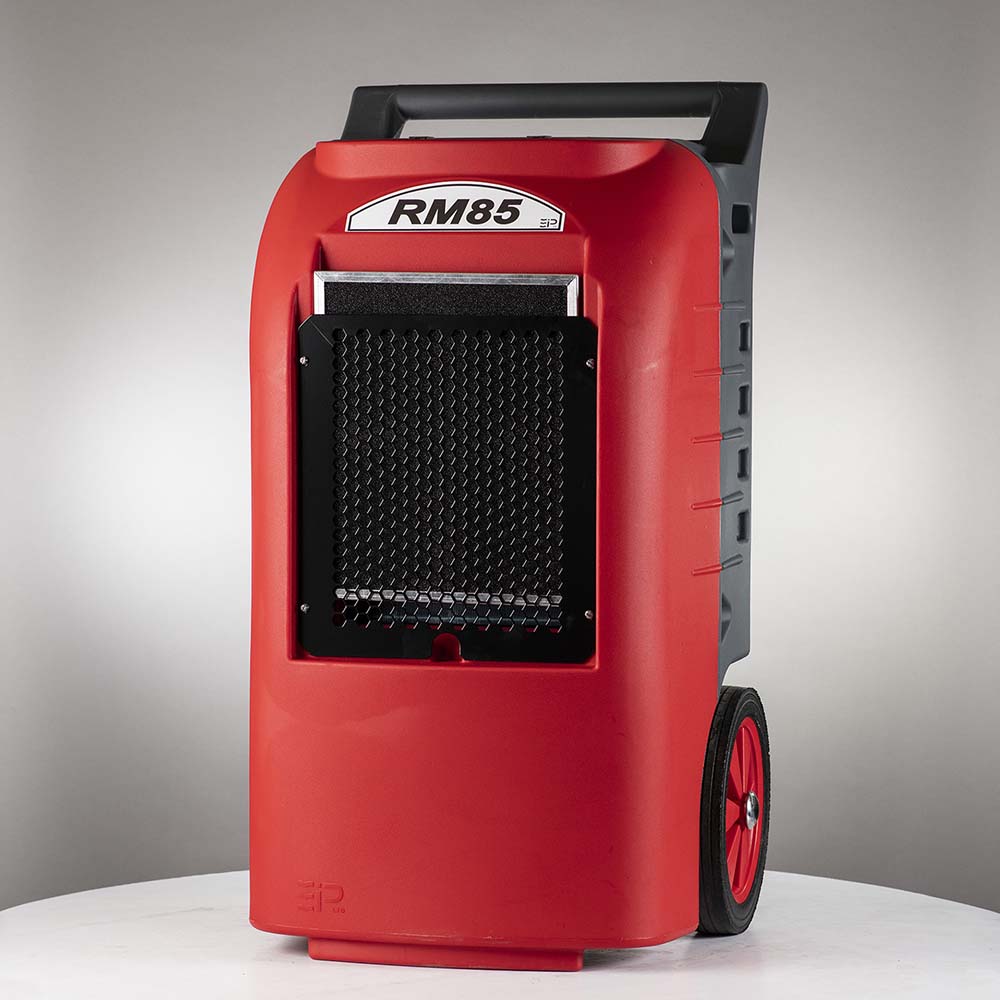

EBAC RM85 Professional Dehumidifier

Rugged Professional Dehumidification

The EBAC RM85 is a professional dehumidifier designed for commercial cleaning and restoration applications. This exact configuration is identified by manufacturer part number 11560RG-US. It operates at 110V, single phase, 60 Hz and provides a typical extraction rate of 70 pints per day with an effective volume of 8,370 cubic feet.

The RM85 combines a high-efficiency rotary compressor, integral condensate pump, hot gas defrost, washable air filter, rugged large-diameter wheels, molded lifting handles, and a ridged transport handle. Its rotationally molded polyethylene housing is designed for durability in demanding commercial and restoration environments.

Portable Rotomolded Design

The RM85 measures 37 inches high x 21.5 inches wide x 19 inches deep and weighs 99 pounds. Large-diameter rugged wheels and a ridged handle help make the unit easier to maneuver, while molded lifting handles provide additional handling options.

The manufacturer describes the RM85 as lightweight yet robust equipment for commercial work. Its compact size permits one-person operation while providing capacity to handle several room-size areas at a time.

70 Pints per Day Extraction

The RM85 provides a typical extraction rate of 70 pints per day and has an effective volume of 8,370 cubic feet. Actual moisture removal depends on operating conditions and the moisture load of the area being treated.

Refrigeration-Based Moisture Removal

The RM85 removes moisture through a refrigeration process. A fan draws air into the unit and passes it over a cold surface. As the air cools, moisture condenses and is collected. The air is then reheated through the heat recovery system before being returned to the room considerably dryer.

The defrost system automatically removes ice buildup as necessary, supporting continued operation under the specified temperature conditions.

Integral Condensate Pump

The RM85 includes a high-capacity integral condensate pump. The manufacturer specifies a maximum pump height of 3 meters, allowing condensate to be connected to a permanent drain for extended operation.

A pump purge switch allows residual water to be drained from the pump tank before moving the machine, helping reduce the possibility of water spillage during transportation.

Hot Gas Defrost

The RM85 features EIPL's thermostatically controlled Hot Gas defrost system. The manufacturer states that the system automatically melts frost buildup and supports effective operation at both low and high ambient temperatures. The specified minimum operating temperature is 37°F.

Durable Rotationally Molded Housing

The RM85 uses a durable rotationally molded polyethylene housing. This construction is designed for professional use while providing a robust exterior for mobile commercial and restoration applications.

Stackable Construction

The RM85 housing incorporates a facility for safely stacking units. According to the manufacturer, this design can help reduce storage and transportation requirements when multiple units are being handled.

Key Features

• Professional cleaning and restoration dehumidifier
• Model RM85
• Part number 11560RG-US
• 70 ppd typical extraction
• 8,370 cu. ft. effective volume
• 110V, single phase, 60 Hz
• 680W power
• 6A current
• 230 CFM airflow
• 52 dBA noise level
• R454c refrigerant
• High-efficiency rotary compressor
• High-capacity integral condensate pump
• 3-meter maximum pump height
• Pump purge switch
• Hot gas defrost
• Electronic defrost timer
• Washable air filter
• Large-diameter rugged wheels
• Molded lifting handles
• Ridged transport handle
• Hours run meter
• Ductable
• Cable and hose wrap
• Rotationally molded polyethylene body
• Stackable design
• Free-standing design

What's Included

• 1 x RM85 Dehumidifier
• 1 x RM85 Owner's Manual
• 1 x 3/8" PVC Tube I/D - 7.8M long
• 1 x Quick Release Hose Coupling

Product Resources

Review the manufacturer's product resources for technical, operating, maintenance, and installation information before purchasing or installing the EBAC RM85.

• Product Brochure
• Product Instruction Manual
• Product Wiring Diagram
• Product Wiring Schematic

Applications for the EBAC RM85

The EBAC RM85 Professional Dehumidifier is designed for commercial cleaning and restoration applications. Its rugged rotationally molded housing, portable construction, integral condensate pump, and 70 ppd typical extraction make it suitable for appropriately sized moisture-removal applications.

Flood Restoration

EIPL identifies its equipment as suitable for flood restoration drying. The RM85 can be used for appropriately sized drying applications following water-related events.

Water Damage Restoration

The RM85 is designed to assist with drying areas after water damage. Its integral condensate pump allows collected moisture to be directed to a permanent drain during extended operation.

Commercial Cleaning and Restoration

The manufacturer describes the RM85 as robust equipment designed for commercial work. Its compact size permits one-person operation while providing capacity to handle several room-size areas at a time.

Portable Drying Applications

Large-diameter wheels, a ridged handle, molded lifting handles, and cable and hose wraps support mobile use between rooms and job sites.

Long-Term Condensate Management

The high-capacity integral condensate pump can lift water up to 3 meters according to the manufacturer. Connecting the unit to a permanent drain can reduce the need for manual condensate handling during the job.

Installation Considerations

The RM85 measures 37 inches high x 21.5 inches wide x 19 inches deep and weighs 99 pounds. Provide suitable clearance for airflow and operation. Verify the 110V electrical supply and route the supplied drain hose appropriately for condensate removal.

Frequently Asked Questions

What is the EBAC RM85?

The EBAC RM85 is a professional dehumidifier designed for commercial cleaning and restoration applications.

What is the part number for the RM85?

The manufacturer part number is 11560RG-US.

What voltage does SKU 11560RG-US use?

The RM85 11560RG-US operates at 110V, single phase, 60 Hz.

What is the power rating?

The manufacturer lists 680W power and 6A current.

How much moisture does the RM85 remove?

The RM85 has a typical extraction rate of 70 pints per day.

What is the effective volume?

The manufacturer lists an effective volume of 8,370 cubic feet.

What is the airflow?

The manufacturer lists airflow of 230 CFM.

What is the noise level?

The listed noise level is 52 dBA.

What refrigerant does the RM85 use?

The manufacturer lists R454c refrigerant for the RM85.

Does the RM85 have a condensate pump?

Yes. The RM85 includes a high-capacity integral condensate pump.

How high can the condensate pump lift water?

The manufacturer specifies a maximum pump height of 3 meters.

Does the RM85 have a pump purge switch?

Yes. A pump purge switch is included to drain residual water from the pump tank before moving the machine.

What type of defrost system does the RM85 have?

The RM85 features hot gas defrost and an electronic defrost timer.

What is the operating temperature range?

The manufacturer specifies a minimum operating temperature of 37°F and a maximum operating temperature of 95°F.

What type of compressor does it use?

The RM85 uses a high-efficiency rotary compressor.

Is the air filter washable?

Yes. The RM85 includes a washable air filter for easy maintenance.

Does the RM85 have wheels?

Yes. The RM85 features large-diameter rugged wheels.

Is the RM85 stackable?

Yes. The manufacturer lists the RM85 as stackable.

Is the RM85 ductable?

Yes. Ductable operation is listed among the manufacturer's features.

What are the dimensions?

The RM85 measures 37 inches high x 21.5 inches wide x 19 inches deep.

How much does the RM85 weigh?

The unit weighs 99 pounds.

What applications is the RM85 designed for?

The manufacturer positions the RM85 for commercial cleaning, restoration, flood restoration, and drying applications.

What comes with SKU 11560RG-US?

The package includes one RM85 Dehumidifier, one RM85 Owner's Manual, one 3/8-inch PVC tube with a 7.8-meter length, and one Quick Release Hose Coupling.
