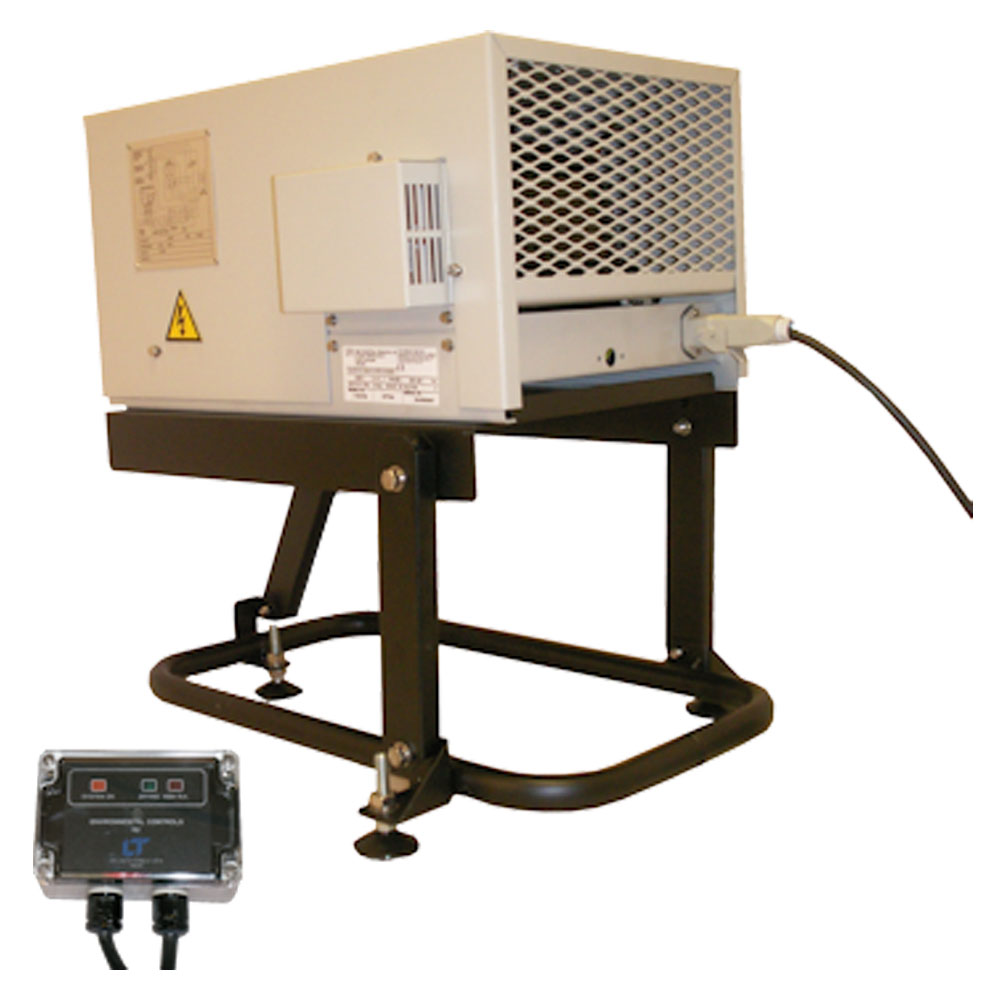

EBAC SPP6A Portable Dehumidifier, 11 Pints/Day, 110V, 0.51kW, 11398GY-US

EBAC SPP6A Portable Dehumidifier, 11 Pints/Day, 110V

Compact Portable Dehumidification

The EIPL SPP6A is a compact portable dehumidifier designed to maintain low humidity levels in storage and enclosed spaces. This listing is specifically for manufacturer part number 11398GY-US, with a 110V, single-phase, 60 Hz electrical configuration.

The SPP6A provides a typical moisture extraction rate of 11 pints per day at 80°F and 60% relative humidity. Its compact design, collapsible stand, remote indicator panel, and humidity controls make it suitable for applications where space, portability, and remote monitoring are important.

Automatic Humidity Control

The SPP6A features a concealed adjustable control humidistat along with a preset high-relative-humidity setting of 60%. Once the desired humidity level is selected, the unit can operate automatically to help maintain the selected level.

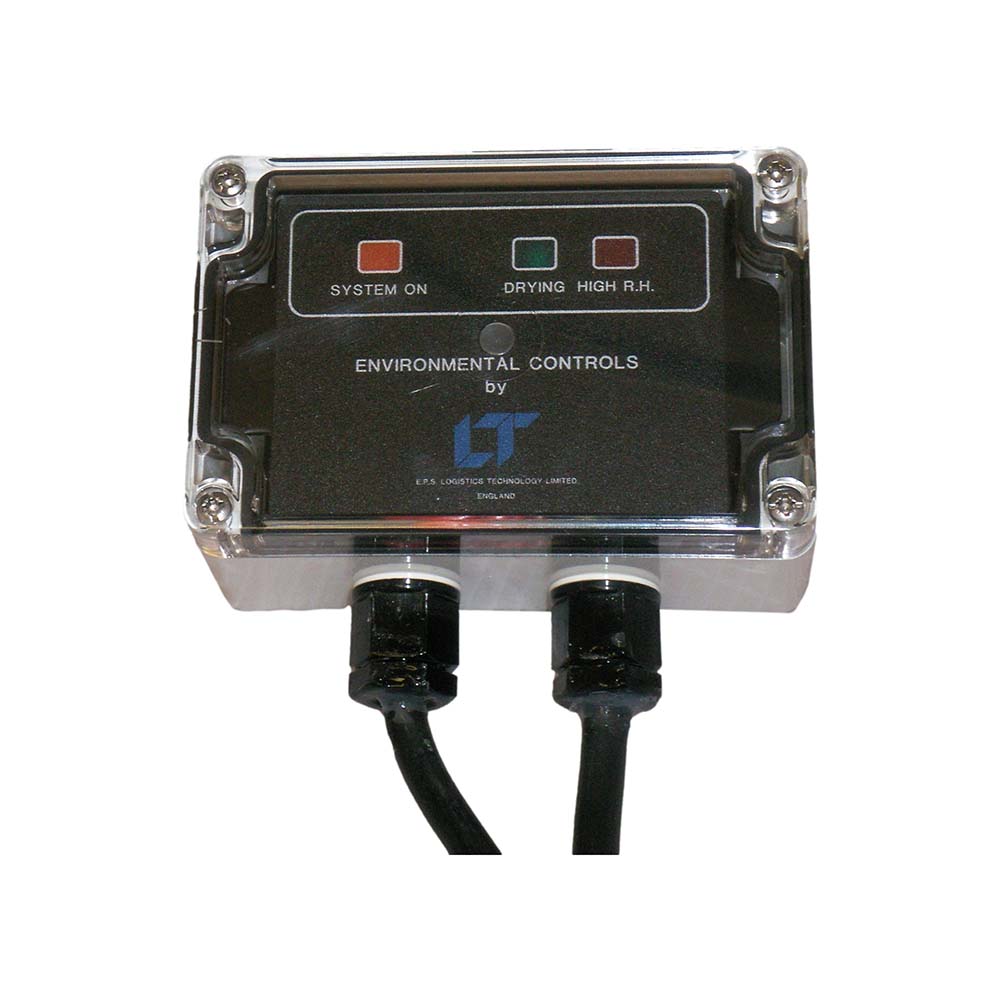

Remote Indicator Panel

A remote indicator box allows the operating status of the dehumidifier to be monitored from outside the area being dried. The indicator panel provides visual indications for power, dehumidifier operation, and high humidity.

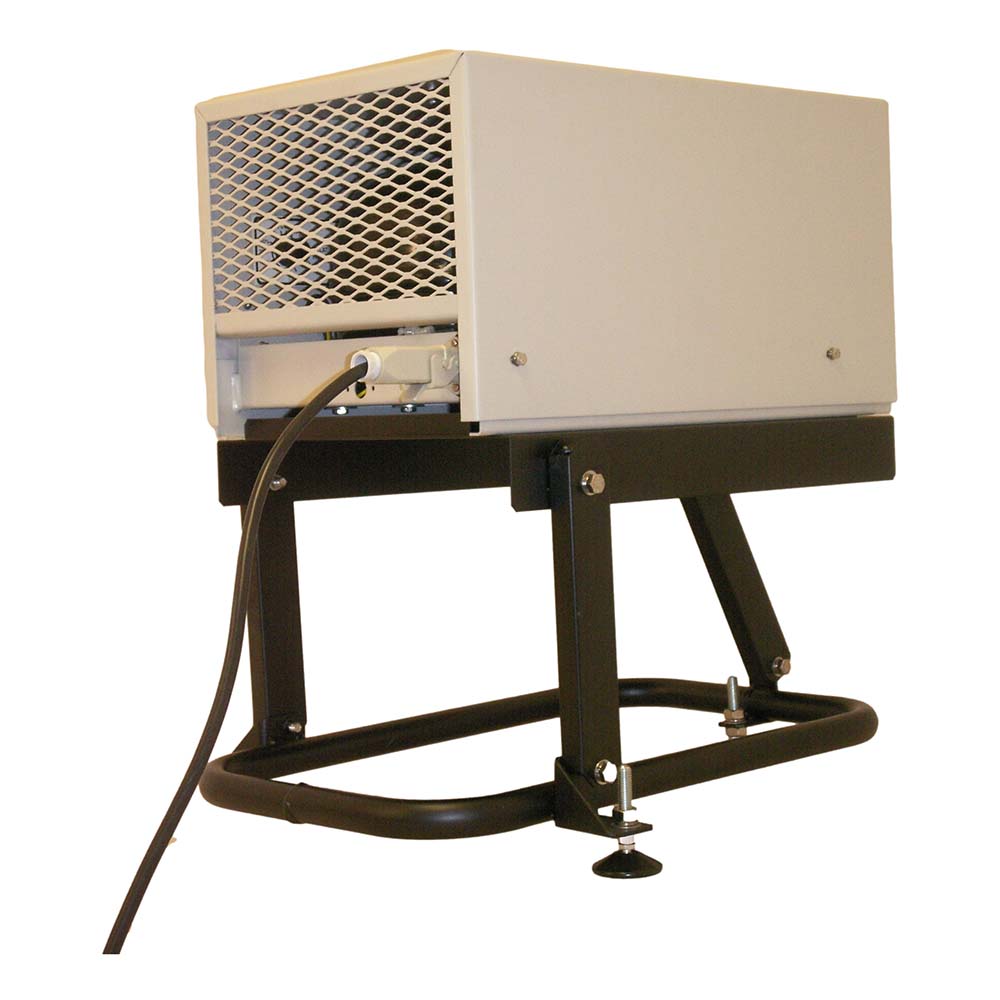

Compact and Portable Design

The SPP6A measures 10 inches high x 11.8 inches wide x 18.5 inches deep and weighs 55 pounds. Its free-standing collapsible stand allows the unit to be positioned in suitable storage areas, while rugged carrying handles assist with handling.

Low-Temperature Operation

The SPP6A is designed to operate across a wide temperature range, with a specified operating range from 33°F to 131°F. Its temperature-sensitive defrost and hot gas defrost system help the unit operate in changing environmental conditions.

Key Features

• EIPL SPP6A portable dehumidifier
• Manufacturer part number 11398GY-US
• Typical extraction of 11 PPD at 80°F and 60% RH
• 110V, single-phase, 60 Hz operation
• 0.51kW power rating
• 247 CFM airflow
• 3,000 cu. ft. effective volume
• Concealed control humidistat
• Adjustable control humidistat
• Preset high RH humidistat at 60%
• Remote indicator box
• Free-standing collapsible stand
• Temperature-sensitive defrost
• Electronic thermostat defrost control
• Hot gas defrost system
• Reciprocating compressor
• Gravity permanent drain facility
• Rubber anti-vibration feet
• Rugged carrying handles
• Epoxy powder-coated chassis
• Drying indicator
• High RH indicator
• Fitted mains plug
• Totally enclosed coils

What's Included

• 1x Owner's Manual
• 1x Dehumidifier Stand
• 1x Indicator Box
• 1x Jubilee Clip
• 1x PVC Tube - 12mm I/D - 3M long
• 1x Spanner

Buying Guide

Review the manufacturer's resources for additional installation, maintenance, replacement-parts, wiring, and technical information before installing the SPP6A.

• Product Brochure
• Product Instruction Manual
• Product Wiring Diagram

Applications for the EIPL SPP6A

The EIPL SPP6A is designed for compact moisture-control applications where maintaining low humidity is important.

Storage Areas

The SPP6A was originally designed for use in container bodies where sensitive equipment is stored. Its compact design makes it suitable for appropriately sized storage environments.

Military Vehicle Storage

The manufacturer's collapsible free-standing stand allows the unit to be installed in tented storage areas and suitable military vehicle storage applications.

Armored Vehicle Storage

The compact physical design allows the SPP6A to be considered for suitable enclosed armored vehicle storage environments where humidity control is required.

Warehouses and Small Enclosed Spaces

The manufacturer identifies crawl spaces, warehouses, offices, factories, and shops as environments where excess humidity can contribute to corrosion, mold growth, rotting, and moisture-related damage.

Remote-Monitoring Applications

The included remote indicator panel allows users to monitor power, dehumidifier operation, and high humidity without disturbing the drying process.

Frequently Asked Questions

What is the EIPL SPP6A?

The EIPL SPP6A is a compact portable dehumidifier designed to maintain low humidity levels in storage and enclosed spaces.

What is the part number for this SPP6A?

The manufacturer part number is 11398GY-US.

What voltage does 11398GY-US require?

This exact configuration operates at 110V, single-phase, 60 Hz.

What is the power rating?

The SPP6A has a listed power rating of 0.51kW.

What is the airflow?

The SPP6A provides 247 CFM airflow.

What is the effective volume?

The manufacturer lists an effective volume of 3,000 cubic feet.

Does the SPP6A have a humidistat?

Yes. It has an adjustable control humidistat and a preset high RH humidistat setting of 60%.

Does the SPP6A include remote monitoring?

Yes. A remote indicator box is included and provides indicators for power, dehumidifier operation, and high humidity.

What is the operating temperature range?

The manufacturer specifies an operating range from 33°F to 131°F.

What type of compressor does it use?

The SPP6A uses a reciprocating compressor.

What refrigerant does it use?

The manufacturer lists R290 as the refrigerant.

What are the dimensions?

The SPP6A measures 10 inches high x 11.8 inches wide x 18.5 inches deep.

How much does the SPP6A weigh?

The manufacturer lists the weight at 55 pounds.

Does it have a drain facility?

Yes. The unit has a gravity permanent drain facility and includes PVC tubing.

What is included with 11398GY-US?

The package includes an owner's manual, dehumidifier stand, indicator box, jubilee clip, 3-meter PVC tube, and spanner.

What should I verify before ordering?

Verify the exact 11398GY-US part number, 110V electrical supply, required extraction capacity, operating temperature, drainage arrangement, available space, and remote monitoring requirements.
