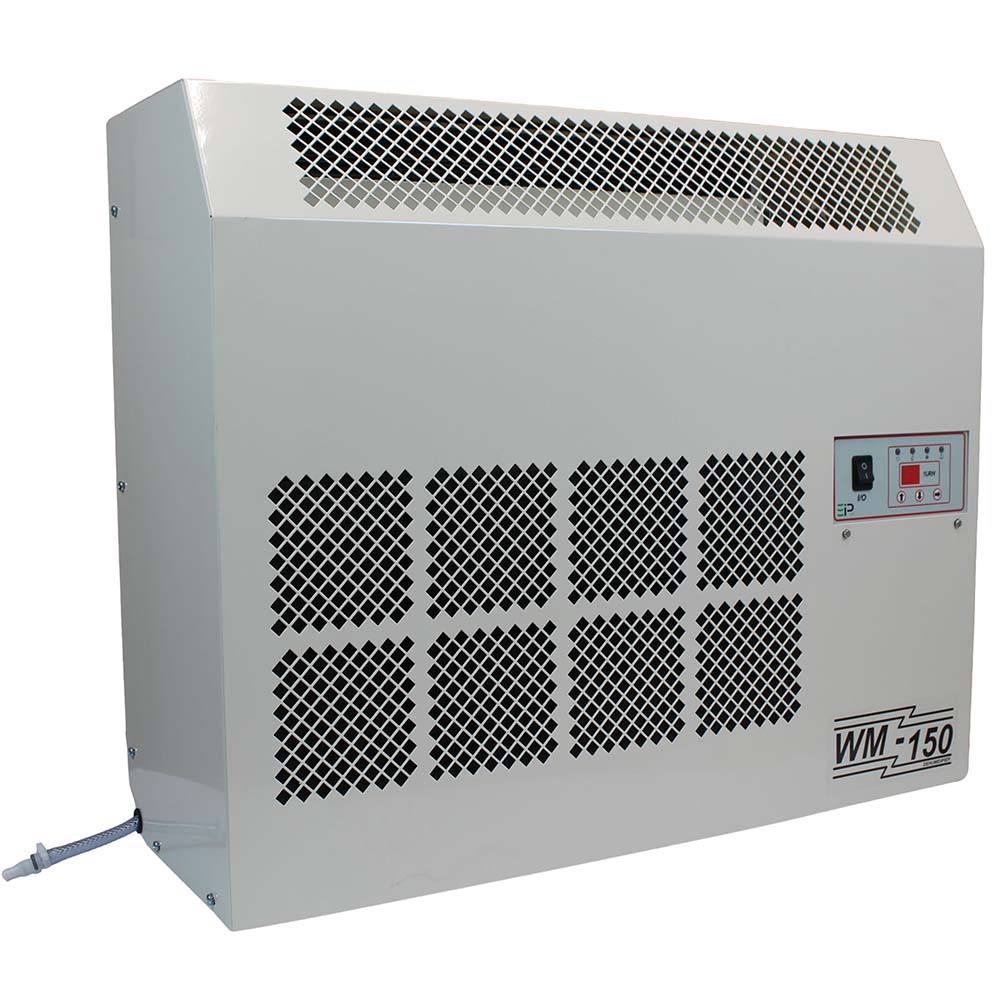

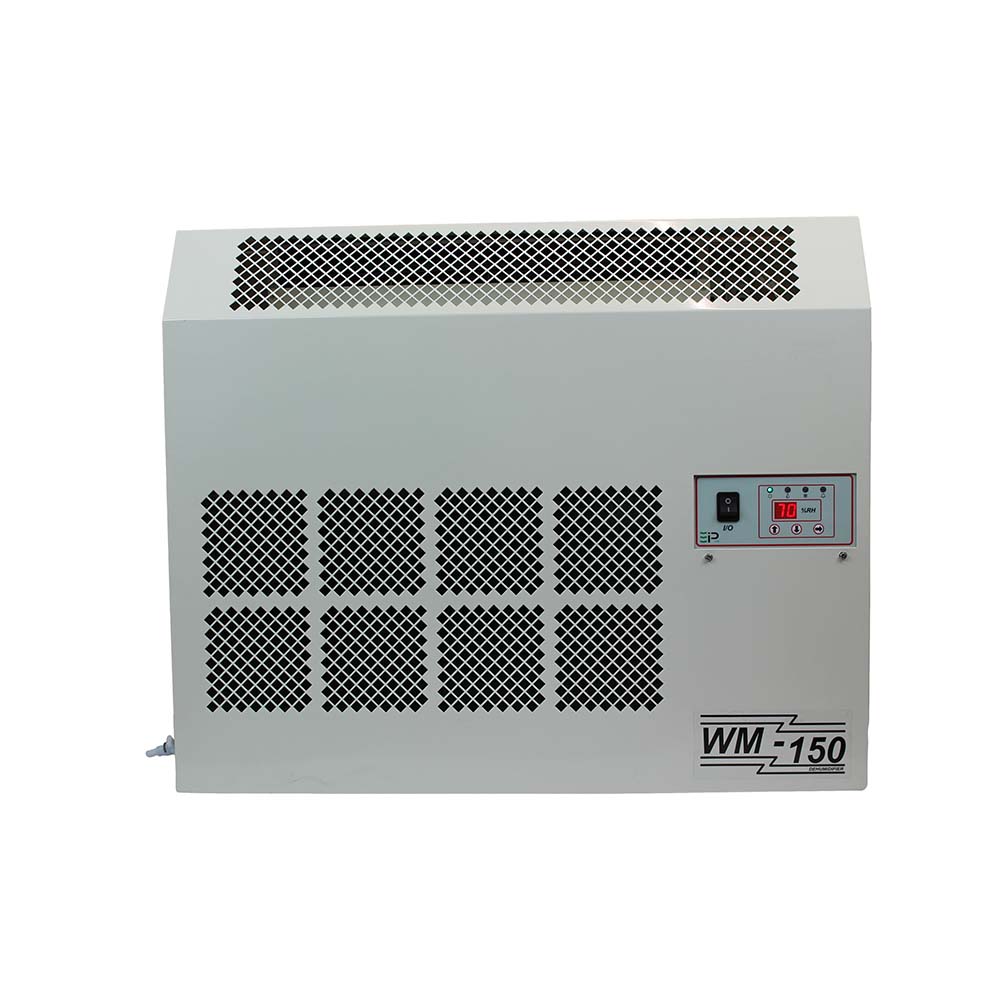

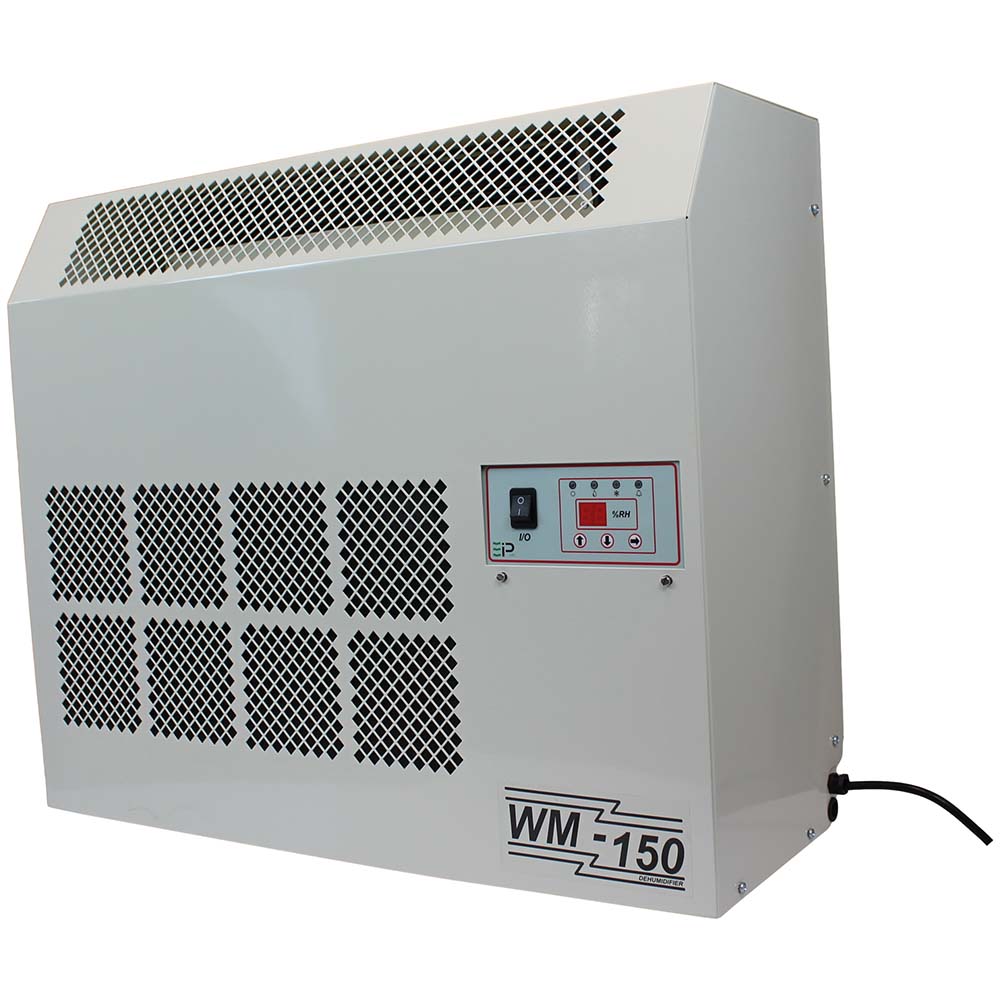

EBAC WM150-D Wall Mounted Industrial Dehumidifier, 71 Pints/Day, 10,594 Cu. Ft., 110V, 1.5kW

EIPL WM150-D Wall Mounted Industrial Dehumidifier, 71 Pints/Day, 10,594 Cu. Ft., 110V, 1.5kW

Digital Humidity Control

The WM150-D features electronic digital humidity control that allows a desired humidity level to be entered. A status and mode indicator panel provides operating information and fault indication associated with the condensate outlet.

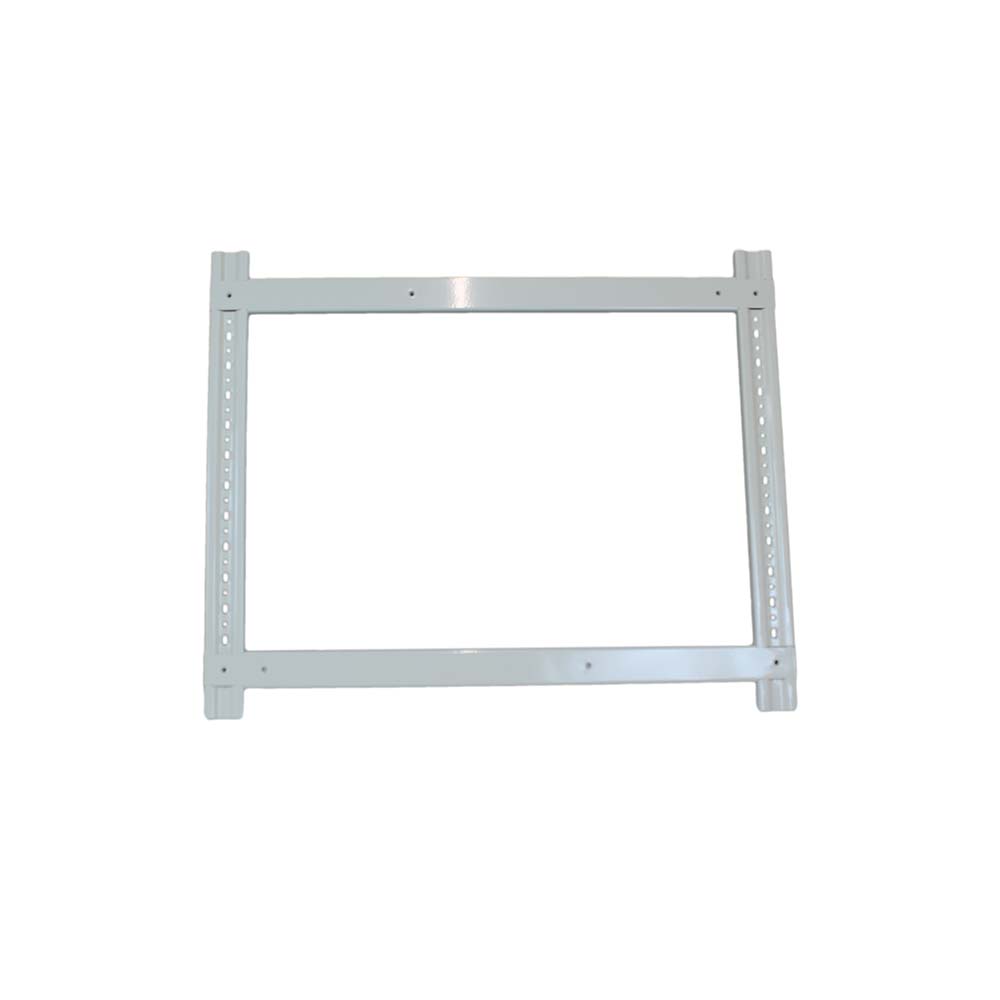

Wall-Mounted Installation

The WM150-D is supplied with a wall mounting bracket for suitable installations. Wall mounting can help preserve floor space in commercial and industrial environments. The unit also has free-standing rubber feet for appropriate alternative placement.

Industrial Construction

The unit features robust steel construction with epoxy powder coating. Its high-performance cross-flow fan provides 341 CFM airflow, while the rotary compressor supports the refrigeration-based dehumidification process.

Condensate Management

A high-capacity integral condensate pump removes collected moisture. Drainage can be arranged from either end of the unit. The standard package includes a 3/8-inch ID PVC tube measuring 7.8 meters long and a quick-release hose clip.

Low-Temperature Operation

The WM150-D is specified for operation from 33°F to 95°F and incorporates temperature-sensitive defrost and reverse-cycle defrost functionality.

Key Features

• 71 pints/day typical extraction at 80°F and 60% RH
• 10,594 cu. ft. effective volume
• 110V, single-phase, 60 Hz
• 1.5 kW power rating
• 341 CFM airflow
• 58 dBA noise level
• Electronic digital humidity control
• High-performance cross-flow fan
• Integral condensate pump
• Washable air filter
• R454c refrigerant
• Wall mounting bracket
• 33°F to 95°F operating range

What's Included

• 1 x WM150-D Static Dryer
• 1 x WM150-D Owner's Manual
• 1 x 3/8-inch ID PVC Tube, 7.8m Long
• 4 x Brass Wood Screws
• 4 x Rawl Plugs
• 1 x Quick Release Hose Clip

Product Resources

Review the manufacturer's resources for additional installation, maintenance, replacement-parts, wiring, and technical information before installing the WM150-D.

• Product Brochure
• Product Instruction Manual
• Product Wiring Diagram
• Product Wiring Schematic

Applications for the EIPL WM150-D

The WM150-D is designed for humidity-control applications where its capacity, operating temperature range, electrical requirements, mounting arrangement, and drainage system are appropriate.

Warehouses and Storage Areas

Warehouses and storage areas can experience moisture fluctuations that require dedicated humidity management. The WM150-D provides a wall-mounted option for appropriately sized spaces.

Factories and Industrial Facilities

Factories and industrial facilities can use the WM150-D in suitable areas where humidity needs to be controlled around equipment, storage, or working areas.

Offices and Commercial Buildings

The WM range is identified for offices and other commercial environments. The digital humidity control allows the desired humidity level to be selected for suitable applications.

Restaurants, Bars and Salons

The manufacturer identifies restaurants, bars, and salons among WM range applications. Customers should consider the 58 dBA listed noise level and available mounting space when selecting a location.

Museums and Storerooms

Museums and storerooms may require controlled humidity conditions. The WM150-D can be considered where its capacity and operating requirements are appropriate for the environment.

Computer and Telecommunications Rooms

The manufacturer identifies computer and telecommunications rooms as potential applications. Verify the environmental requirements of sensitive equipment before selecting the dehumidifier.

Garages and Cellars

Garages and cellars can be suitable applications where excess humidity needs to be controlled and the unit can operate within its specified 33°F to 95°F temperature range.

Hotels and Motels

The WM range is identified for spa rooms in hotels and motels. Installation should account for electrical requirements, drainage, mounting location, and the environmental conditions of the room.

Frequently Asked Questions

What is the EIPL WM150-D?

The EIPL WM150-D is a wall-mounted industrial and commercial dehumidifier designed for humidity control in suitable environments.

What is the part number for the WM150-D?

The manufacturer part number is 11285DL-US.

How much moisture does the WM150-D remove?

The manufacturer lists typical extraction of 71 pints per day.

What size area is the WM150-D designed for?

The manufacturer lists an effective volume of 10,594 cubic feet.

What voltage does the WM150-D require?

The WM150-D operates on 110V, single-phase, 60 Hz electrical power.

What is the power rating?

The listed power is 1.5 kW.

What is the airflow rating?

The manufacturer lists airflow at 341 CFM.

What is the operating temperature range?

The specified operating range is 33°F to 95°F.

Does the WM150-D have digital humidity control?

Yes. It features electronic digital humidity control.

Does the WM150-D have a condensate pump?

Yes. The unit includes a high-capacity integral condensate pump.

Is the WM150-D wall mounted?

Yes. The WM150-D is supplied with a wall mounting bracket.

Can the WM150-D stand on the floor?

The unit is also listed with free-standing rubber feet, providing an alternative suitable placement configuration.

What refrigerant does the WM150-D use?

The manufacturer specifies R454c refrigerant.

What type of compressor does it use?

The WM150-D uses a rotary compressor.

Does it have a washable filter?

Yes. The unit has a removable, washable air filter.

How loud is the WM150-D?

The manufacturer lists the noise level at 58 dBA.

How much does the WM150-D weigh?

The unit weighs 165 pounds.

What are the dimensions?

The WM150-D measures 26.7 inches high x 31.8 inches wide x 12 inches deep.

What drainage accessories are included?

The standard package includes a 3/8-inch ID PVC tube measuring 7.8 meters long and a quick-release hose clip.

What applications is the WM150-D suitable for?

Manufacturer-identified WM range applications include offices, stores, restaurants, bars, salons, museums, storerooms, computer and telecommunications rooms, garages, cellars, animal enclosures, hotels and motels, warehouses, factories, sports halls, storage areas, agriculture, ships, and stadiums.

What should I verify before ordering?

Verify the exact WM150-D model, required space volume, 110V electrical supply, operating temperature, mounting location, drainage arrangement, and available maintenance access.

Is the wall mounting bracket included?

Yes. The manufacturer lists the wall mounting bracket as included with the WM150-D.

What is included with the WM150-D?

The package includes the WM150-D static dryer, owner's manual, 3/8-inch ID PVC tube, four brass wood screws, four rawl plugs, and a quick-release hose clip.
