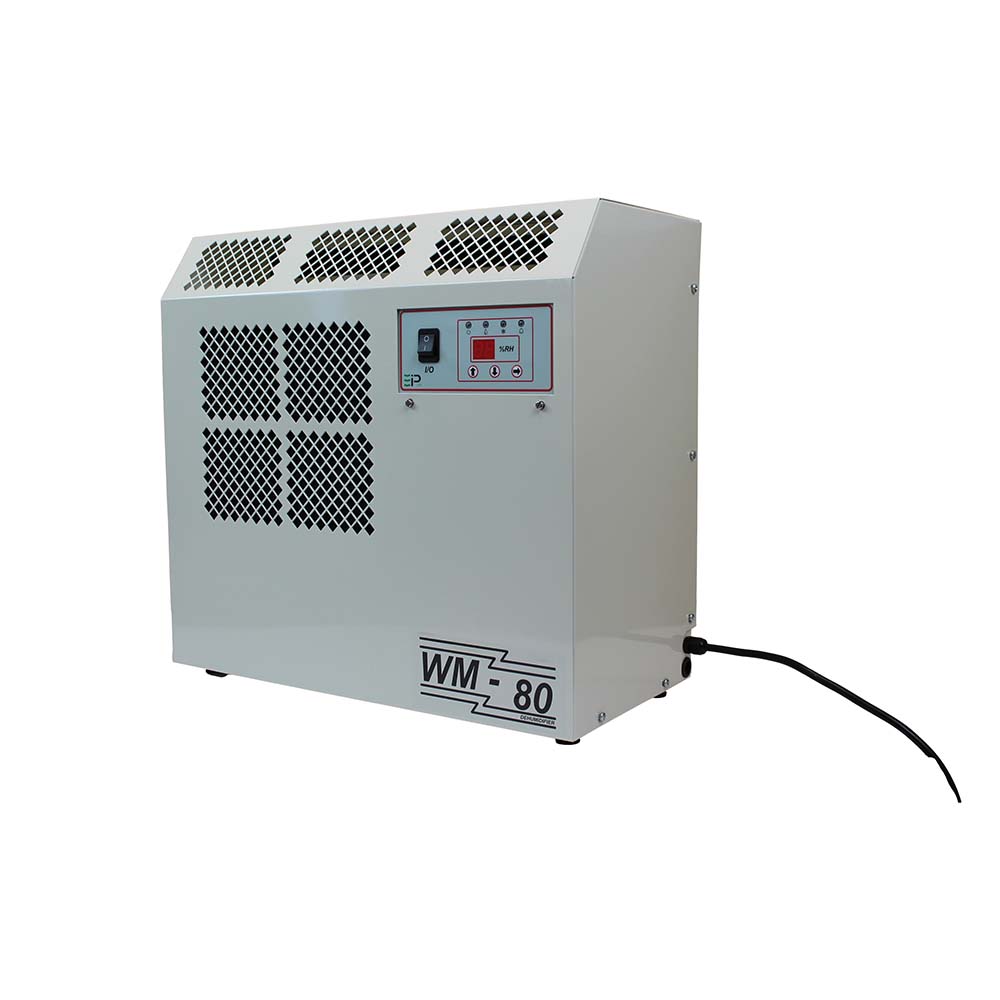

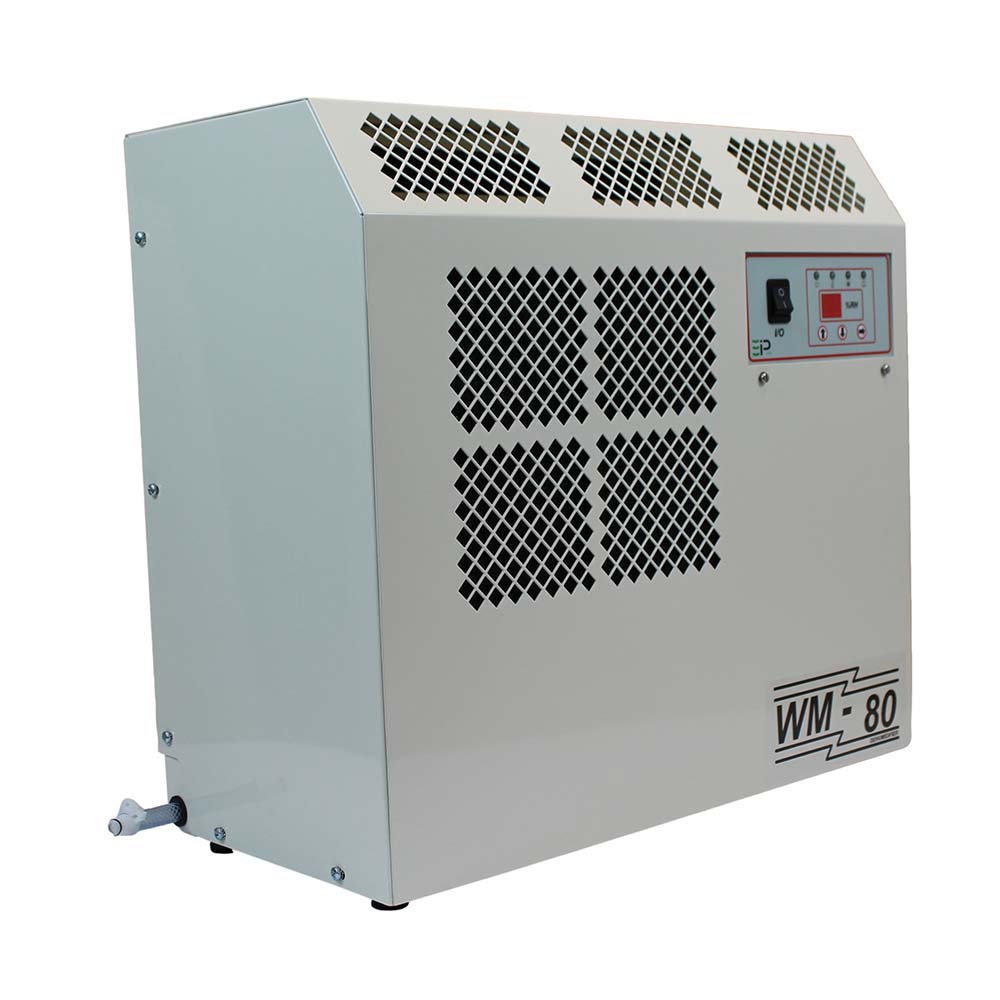

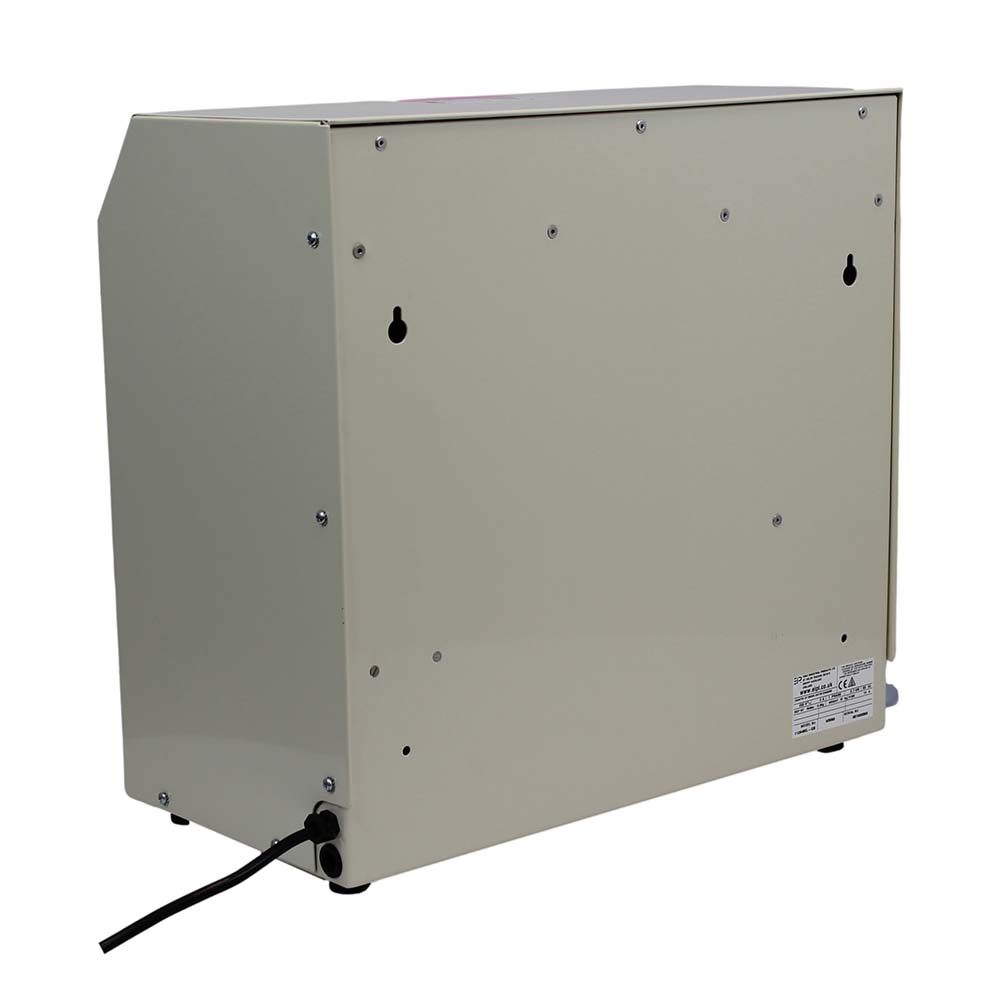

EBAC WM80-D Wall-Mounted Commercial Dehumidifier, 62 Pints/Day, 7,063 Cu. Ft., 110V

Ebac WM80-D Wall-Mounted Industrial Dehumidifier, 62 Pints/Day, 7,063 Cu. Ft., 110V

The Ebac WM80-D is a wall-mounted industrial dehumidifier designed to provide controlled moisture removal in commercial, industrial, storage, and facility environments. Its compact wall-mounted format helps keep floor space available while providing continuous air circulation and humidity management.

The unit combines a high-efficiency rotary compressor, cross-flow fan, electronic digital humidity control, internal condensate pump, washable air filter, and hot-gas defrost system. These features make the WM80-D suitable for environments where maintaining controlled humidity is an important part of facility management.

62 Pints/Day Typical Extraction

The WM80-D provides typical extraction of 62 pints per day and has a manufacturer-rated effective volume of 7,063 cubic feet. Actual moisture removal can vary according to temperature, relative humidity, moisture load, ventilation, and other environmental conditions.

When selecting the WM80-D, customers should evaluate the actual size and conditions of the space rather than relying only on the pint-per-day rating. The manufacturer specifies an operating temperature range of 33°F to 95°F.

Digital Humidity Control

The WM80-D features electronic digital humidity control that allows a desired humidity level to be selected. The digital control system also provides a continuous display of room humidity, helping users monitor environmental conditions during operation.

The unit's humidity control allows the dehumidifier to operate according to the selected humidity level. This can help reduce unnecessary continuous operation when the desired level of dryness has been reached.

Wall-Mounted Design

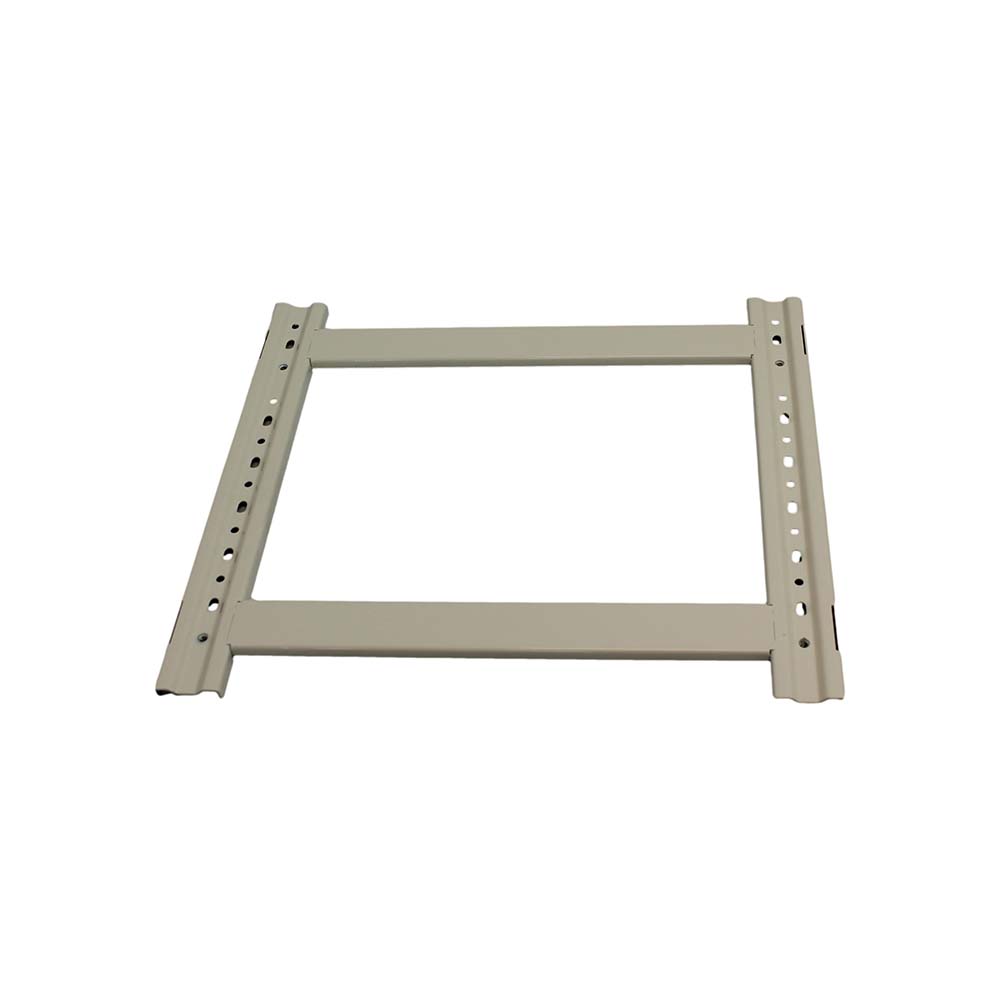

The WM80-D is designed for wall-mounted installation and is supplied with a wall mounting bracket. The wall-mounted configuration can be useful in locations where preserving floor space is important.

The unit measures approximately 19.4 inches high x 22 inches wide x 11.4 inches deep. Customers should verify the available wall space, mounting surface, electrical supply, and drainage arrangement before installation.

Internal Condensate Pump

Collected moisture is handled through an integral high-capacity condensate pump. The WM80-D also provides drainage facilities from either end, giving installation flexibility when planning the condensate route.

The standard package includes a 3/8-inch ID PVC tube measuring 7.8 meters long, along with a quick-release hose clip. Customers should plan the drainage route before installation and verify that the selected location supports the required drainage arrangement.

Low-Temperature Operation

The WM80-D is specified for operation from 33°F to 95°F. Its temperature-sensitive defrost and hot-gas defrost system are designed to support dehumidification operation in lower-temperature conditions within the manufacturer's specified range.

Customers should compare the expected temperature conditions of the installation area with the manufacturer's operating range before selecting the unit.

Air Filtration and Cross-Flow Air Movement

The WM80-D uses a high-performance cross-flow fan with a listed airflow of 160 CFM. A removable, washable air filter helps manage airborne particles entering the unit and can be removed for cleaning.

The unit has one fan speed and a listed noise level of 58 dBA. Customers should consider the operating environment and noise level when selecting an installation location.

Robust Commercial Construction

The WM80-D features robust steel construction with an epoxy powder-coated finish. The unit weighs approximately 85.5 pounds and is designed for fixed wall-mounted installation.

Its construction and component configuration are intended for suitable commercial and industrial humidity-control applications where dependable moisture removal is required.

Refrigeration-Based Dehumidification

The WM80-D removes moisture using a refrigeration-based dehumidification process. Moist air is drawn through the unit by the fan and passes across a cold evaporator surface. As the air is cooled, moisture condenses and is collected before the air passes through the condenser section and is returned to the surrounding environment.

Continuous circulation through the dehumidifier gradually reduces relative humidity within the treated area. The unit can automatically cycle according to the selected humidity level.

Status and Fault Indicators

The WM80-D includes a status indicator panel that provides visual information about the drying process. The manufacturer also identifies a pump fault indicator, which can help indicate a drainage or pump-related issue.

These controls provide useful operating information for facility personnel responsible for monitoring humidity-control equipment.

Key Features

• Wall-mounted commercial and industrial dehumidifier
• 62 pints/day typical extraction
• 7,063 cubic feet effective volume
• 110V, single-phase, 60 Hz operation
• 0.9 kW power rating
• 8A listed current
• 160 CFM airflow
• 58 dBA listed noise level
• Electronic digital humidity control
• Continuous room humidity display
• High-performance cross-flow fan
• High-efficiency rotary compressor
• Internal high-capacity condensate pump
• Pump fault indicator
• Removable washable air filter
• Temperature-sensitive defrost
• Hot-gas defrost system
• 33°F to 95°F operating temperature range
• Robust steel construction
• Epoxy powder-coated finish
• Wall mounting bracket
• Free-standing rubber feet
• Drainage facility from either end
• R454c refrigerant

What's Included

• 1 x WM80-D Static Dryer
• 1 x WM80-D Owner's Manual
• 1 x 3/8-inch ID PVC Tube, 7.8 meters long
• 4 x Brass Wood Screws
• 4 x Rawl Plugs
• 1 x Quick Release Hose Clip

Product Resources

Review the manufacturer's resources for additional installation, maintenance, replacement-parts, wiring, and technical information before installing the WM80-D.

• Product Brochure
• Product Instruction Manual
• Product Wiring Diagram
• Product Wiring Schematic

Applications for the Ebac WM80-D

The Ebac WM80-D is designed for humidity control across a variety of commercial, industrial, storage, and facility environments. Its wall-mounted design, digital humidity control, internal condensate pump, and 62 pints/day typical extraction make it suitable for applications where controlled moisture removal is required.

Offices

The WM80-D can be used in suitable office environments where excess humidity needs to be managed. Its wall-mounted configuration can preserve floor space, while digital humidity control allows the desired humidity level to be selected.

Stores and Storerooms

Storage areas can experience humidity fluctuations that affect the environment around stored goods and equipment. The WM80-D can provide controlled moisture removal in appropriately sized storage areas within its specified operating conditions.

Restaurants and Bars

Restaurants and bars are identified by the manufacturer as suitable application environments. The WM80-D can provide humidity management where moisture levels need to be controlled and the installation location can accommodate wall mounting and condensate drainage.

Salons

Salons may experience moisture from washing, cleaning, and routine operations. The WM80-D can be considered for suitable areas where additional humidity control is required.

Museums

Museums and similar facilities may require environmental humidity management. The WM80-D can be used where its capacity and operating specifications are appropriate for the intended area.

Computer and Telecommunications Rooms

Computer and telecommunications rooms can require controlled environmental conditions. The WM80-D can provide dehumidification in appropriately sized rooms when its electrical, temperature, clearance, and drainage requirements can be satisfied.

Customers should always follow the environmental requirements specified by the manufacturers of the equipment housed within the room.

Garages and Service Areas

Garages and similar service areas can experience elevated humidity due to temperature changes, vehicle activity, and environmental exposure. The WM80-D can be considered for suitable enclosed spaces within its rated operating conditions.

Cellars

Cellars can experience persistent moisture and humidity due to their below-grade construction. The WM80-D provides a wall-mounted option for suitable cellar spaces where the operating temperature remains within the manufacturer's specified range and condensate drainage can be arranged correctly.

Hotel and Motel Spa Rooms

The manufacturer identifies spa rooms in hotels and motels as potential applications for the WM80-D. The unit can provide humidity control in appropriately sized spaces where its operating specifications and installation requirements can be met.

Animal Enclosures

Animal enclosures are also identified by the manufacturer as an application. Before installation, customers should consider the environmental requirements of the animals and confirm that the dehumidifier is appropriate for the specific facility and conditions.

Typical Facilities

Environmental Considerations

The WM80-D is specified for operation from 33°F to 95°F. Customers should evaluate the expected temperature and humidity conditions of the installation area before selecting the unit.

The unit has a listed effective volume of 7,063 cubic feet and typical extraction of 62 pints per day. Larger or higher-moisture environments may require a different dehumidification solution.

Installation Considerations

The WM80-D is supplied with a wall mounting bracket and includes a 3/8-inch ID PVC drainage tube measuring 7.8 meters long. Ensure that the mounting location and drainage route are suitable before installation.

Frequently Asked Questions

The following FAQs address common questions about the Ebac WM80-D wall-mounted industrial dehumidifier, including capacity, installation, electrical requirements, drainage, applications, and product features.

What is the Ebac WM80-D?

The Ebac WM80-D is a wall-mounted commercial and industrial dehumidifier designed for humidity control. It provides typical extraction of 62 pints per day and has a manufacturer-rated effective volume of 7,063 cubic feet.

What is the part number for the WM80-D?

The manufacturer part number is 11284DL-US. Verify this number when ordering to ensure the exact product variant is selected.

How much moisture does the WM80-D remove?

The manufacturer lists typical extraction of 62 pints per day.

What size area can the WM80-D handle?

The manufacturer lists an effective volume of 7,063 cubic feet. Actual dehumidification requirements can vary based on temperature, humidity, moisture load, ventilation, and other environmental factors.

What voltage does the WM80-D use?

The WM80-D operates on 110V, single-phase, 60 Hz electrical power.

How much power does the WM80-D use?

The listed power rating is 0.9 kW, with a listed current of 8A.

What is the airflow rating?

The WM80-D has a listed airflow of 160 CFM.

What is the operating temperature range?

The manufacturer specifies a minimum operating temperature of 33°F and a maximum operating temperature of 95°F.

Does the WM80-D have digital humidity control?

Yes. The WM80-D features electronic digital humidity control and provides a continuous display of room humidity.

Does the WM80-D have a condensate pump?

Yes. The unit has an internal high-capacity condensate pump.

Does the WM80-D include a drain hose?

Yes. The standard package includes a 3/8-inch ID PVC tube measuring 7.8 meters long and a quick-release hose clip.

Is the wall mounting bracket included?

Yes. The WM80-D is supplied with a wall mounting bracket.

Can the WM80-D be free standing?

The manufacturer lists free-standing rubber feet as a feature. Customers should follow the manufacturer's installation requirements for the intended mounting configuration.

What type of refrigerant does the WM80-D use?

The manufacturer specifies R454c refrigerant.

What type of compressor does the WM80-D have?

The WM80-D uses a rotary compressor.

Does the WM80-D have a washable filter?

Yes. The unit includes a removable, washable air filter.

Does the WM80-D have an automatic defrost system?

Yes. The unit features temperature-sensitive defrost and a hot-gas defrost system.

How loud is the WM80-D?

The manufacturer lists the noise level at 58 dBA.

What are the dimensions of the WM80-D?

The manufacturer lists the dimensions as 19.4 inches high x 22 inches wide x 11.4 inches deep.

How much does the WM80-D weigh?

The listed unit weight is 85.5 pounds.

Where can the WM80-D be used?

Manufacturer-identified applications include offices, stores, restaurants, bars, salons, museums, storerooms, computer and telecommunications rooms, garages, cellars, animal enclosures, and hotel or motel spa rooms.

Can the WM80-D be used in a cellar?

Yes. Cellars are identified by the manufacturer as an application. The installation should meet the unit's temperature, electrical, mounting, drainage, and capacity requirements.

Can the WM80-D be used in a computer room?

Yes. Computer and telecommunications rooms are identified as applications. Verify the environmental requirements of the equipment in the room before installation.

What comes with the WM80-D?

The standard package includes the WM80-D static dryer, owner's manual, 3/8-inch ID PVC tube measuring 7.8 meters long, four brass wood screws, four rawl plugs, and one quick-release hose clip.

What should I verify before ordering?

Verify the exact WM80-D / 11284DL-US part number, required effective volume, 110V electrical supply, installation location, wall mounting requirements, drainage route, expected temperature range, and humidity-control requirements.

What is the difference between the WM80-D and another Ebac model?

Ebac offers multiple dehumidifier models with different capacities, dimensions, electrical requirements, and installation configurations. Always compare the exact model and manufacturer part number rather than using specifications from a related model.

Is the WM80-D suitable for commercial use?

Yes. The WM80-D is designed for commercial and industrial humidity-control applications and is identified for use in a range of commercial, storage, facility, and specialized environments.

Does the WM80-D have a pump fault indicator?

Yes. The manufacturer lists a pump fault indicator as one of the unit's features.

Does the WM80-D have a status indicator panel?

Yes. The WM80-D includes a status indicator panel for operating information.
