EBAC Orion Professional Dehumidifier, 105 Pints/Day, 8,370 Cu. Ft., 115V, 900W, 11270GR-US

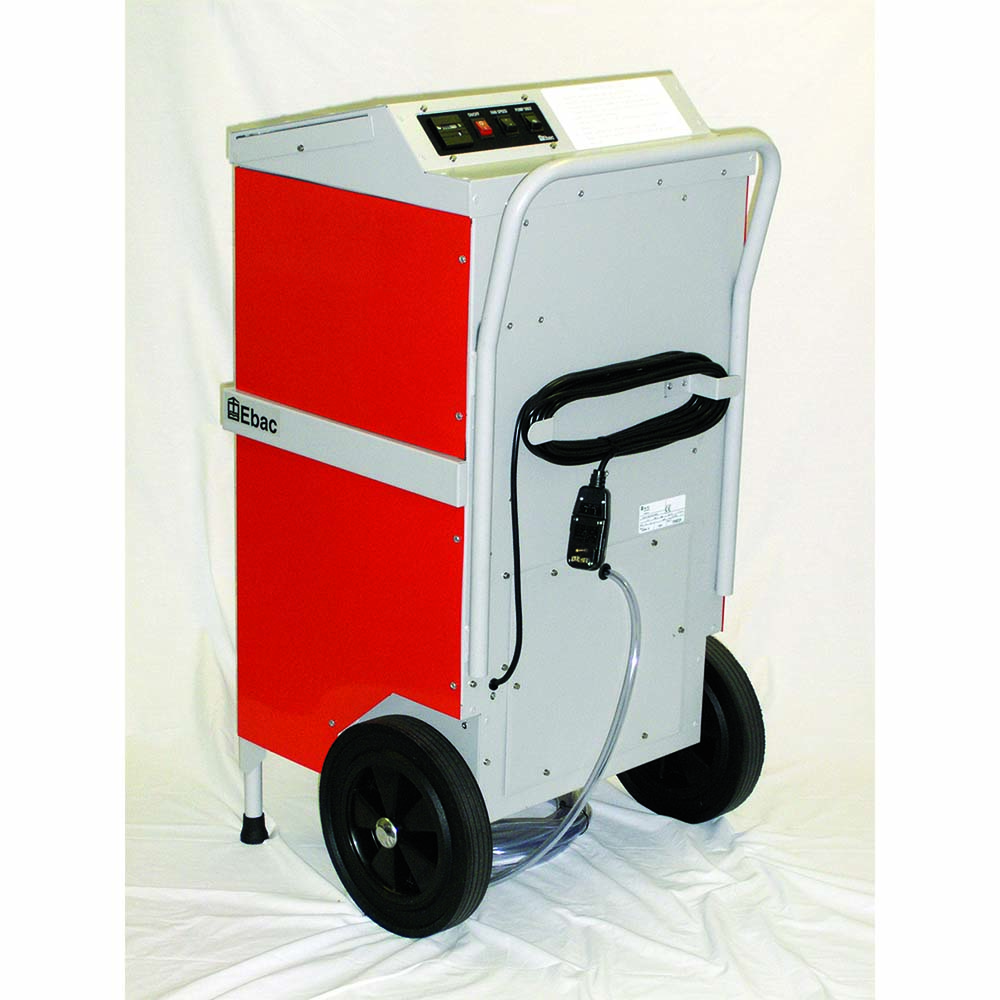

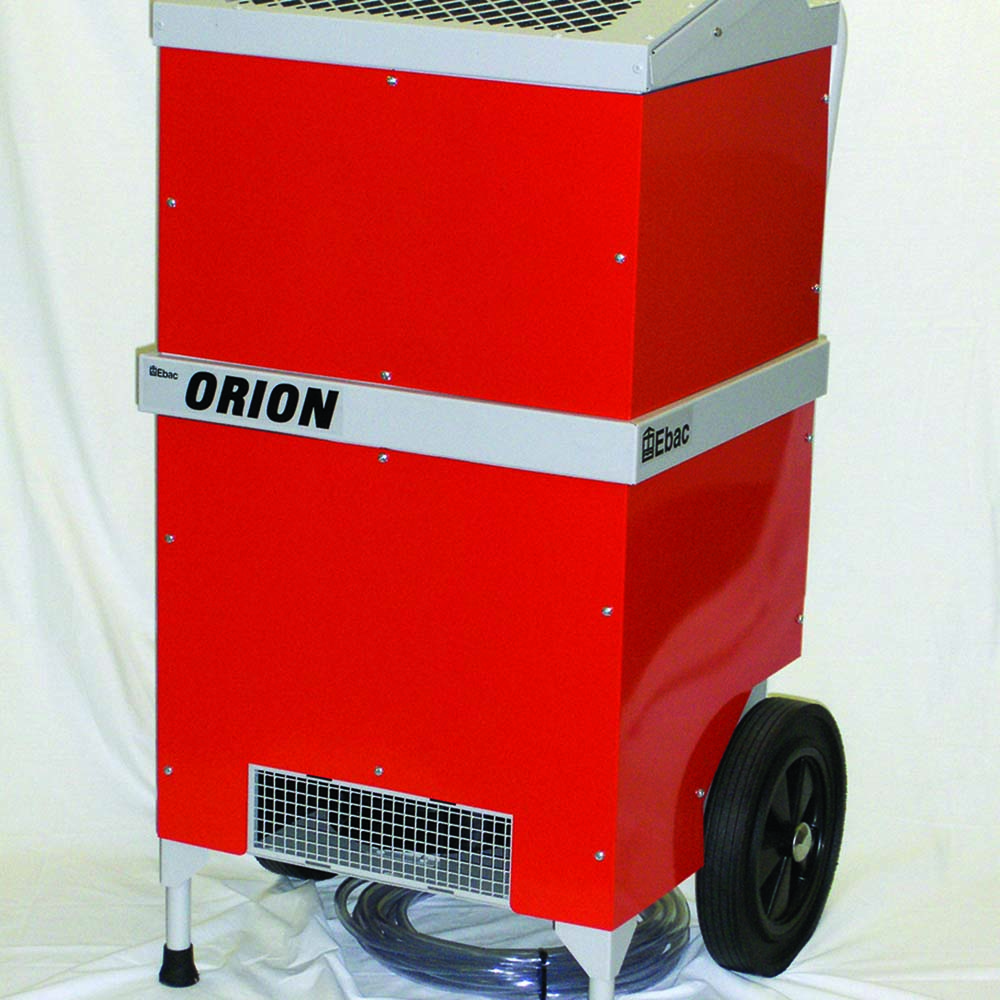

EBAC Orion Professional Dehumidifier

High-Capacity Professional Dehumidification

The EBAC Orion is a professional dehumidifier designed for commercial cleaning and restoration applications. This exact configuration is identified by manufacturer part number 11270GR-US. It operates at 115V, single phase, 60 Hz and provides a typical extraction rate of 105 pints per day with an effective volume of 8,370 cubic feet.

The Orion combines a high-efficiency, low-amp-draw rotary compressor, two-stage air cooling with an Air-to-Air heat exchange, a high-static backward-curved fan, temperature-sensitive defrost control, reverse-cycle defrost, an integral condensate pump, and a washable air filter.

Professional Restoration Equipment

The Orion is designed for commercial work and restoration applications where dependable moisture removal is required. Its compact design permits one-person operation while providing capacity to handle several room-size areas at a time.

The manufacturer describes the Orion as rugged yet mobile equipment capable of operating under demanding conditions and removing substantial amounts of moisture from the air.

105 Pints per Day Extraction

The Orion provides a typical extraction rate of 105 pints per day and has an effective volume of 8,370 cubic feet. Actual moisture removal depends on operating conditions, including temperature, humidity, and the moisture load of the area being treated.

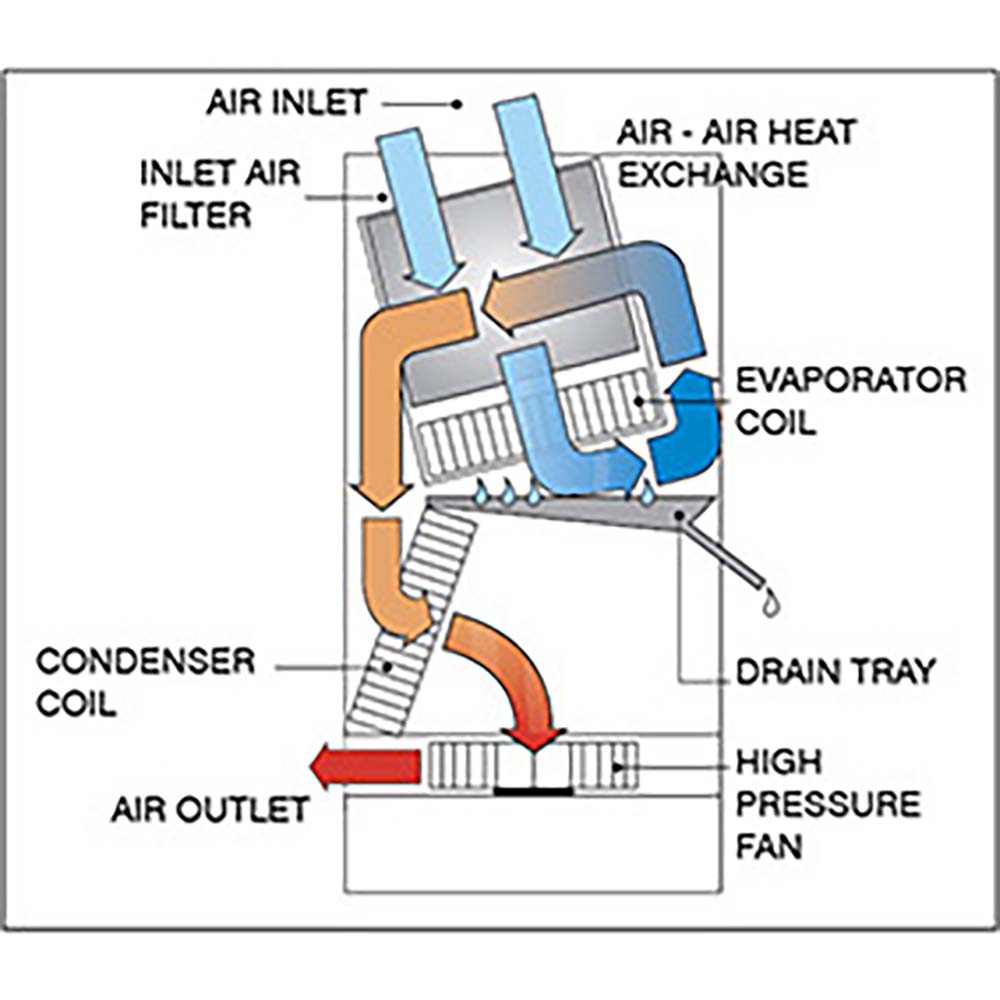

Two-Stage Cooling with Air-to-Air Heat Exchange

The Orion incorporates a two-stage cooling process with an Air-to-Air heat exchanger. Incoming moist air is pre-cooled through the heat exchanger before being drawn across the evaporator coil, where it is cooled below its dew point and moisture condenses.

The cooled air then passes across the hot condenser coil, where it is reheated using energy recovered during the cooling process together with heat generated by the compressor. The air is discharged back into the room at a slightly higher temperature with lower absolute humidity. Continuous circulation gradually reduces relative humidity within the treated area.

High-Static Backward-Curved Fan

The Orion uses a high-capacity backward-curved fan designed to maximize air delivery over longer distances. The manufacturer identifies this feature as part of the unit's design for fast and dependable drying applications.

Integral Condensate Pump

The Orion includes an integral condensate pump with a pump purge switch. The pump allows collected condensate to be discharged from the unit rather than requiring manual emptying of collected water.

The pump purge feature helps remove residual water before moving the machine, making transportation between work areas more convenient.

Temperature-Sensitive Reverse-Cycle Defrost

The Orion features temperature-sensitive defrost control and an effective reverse-cycle defrost system. The manufacturer states that the defrost feature automatically melts frost buildup and provides effective operation at low ambient temperatures. The specified operating temperature range is 33°F to 105°F.

Durable Professional Construction

The Orion features a rugged epoxy powder-coated steel chassis and housing. Rugged wheels support mobile operation, while power cord wraps help organize the long power cord during storage and transportation.

Key Features

• Professional commercial and restoration dehumidifier
• Model Orion
• Part number 11270GR-US
• 105 ppd typical extraction
• 8,370 cu. ft. effective volume
• 115V, single phase, 60 Hz
• 900W power
• 10A current
• 360 CFM airflow
• 57 dBA noise level
• R454c refrigerant
• High-efficiency rotary compressor
• Low-amp-draw design
• Two-stage cooling
• Air-to-Air heat exchange
• High-static backward-curved fan
• Temperature-sensitive defrost control
• Reverse-cycle defrost system
• Integral condensate pump
• Pump purge switch
• Hours run meter
• Washable air filter
• Fitted mains GFI plug
• Quick-release hose coupling
• 25-foot PVC drain hose
• 25-foot power cord
• Power cord wraps
• Rugged wheels
• Epoxy powder coating
• Quiet operation

What's Included

• 1 x Orion Dehumidifier
• 1 x Orion Owner's Manual
• 1 x 3/8" PVC Tube I/D - 7.8M long
• 1 x Quick Release Hose Coupling

Product Resources

Review the manufacturer's product resources for technical, operating, maintenance, and installation information before purchasing or installing the EBAC Orion.

• Product Brochure
• Product Instruction Manual
• Product Wiring Diagram
• Product Wiring Schematic

Applications for the EBAC Orion

The EBAC Orion Professional Dehumidifier is designed for commercial cleaning and restoration applications. Its 105 ppd typical extraction, two-stage cooling, integral condensate pump, high-static fan, and mobile construction make it suitable for appropriately sized moisture-removal applications.

Flood Restoration

EIPL identifies its equipment as flood restoration drying equipment. The Orion can be used for appropriately sized drying applications following water-related events.

Water Damage Restoration

The Orion is designed to assist with drying areas after water damage. Its high-capacity dehumidification system removes moisture from the air while the integral condensate pump provides a method for managing collected water.

Commercial Cleaning and Restoration

The manufacturer describes the Orion as an ideal unit for commercial work. Its compact design permits one-person operation while providing capacity to handle several room-size areas at a time.

Portable Drying Applications

Rugged wheels and a long power cord support movement between rooms and work areas. The unit's mobile construction makes it suitable for restoration specialists who need portable drying equipment.

Moisture-Control Applications

The Orion continuously circulates air through its refrigeration system to gradually reduce relative humidity within the treated area. Select the unit according to the size and moisture load of the application.

Installation Considerations

The Orion measures 44 inches high x 24 inches wide x 22 inches deep and weighs 165 pounds. Provide suitable clearance for airflow and operation. Verify the 115V electrical supply and route the supplied drain hose appropriately for condensate removal.

Frequently Asked Questions

What is the EBAC Orion?

The EBAC Orion is a professional dehumidifier designed for commercial cleaning and restoration applications.

What is the part number for the Orion?

The manufacturer part number is 11270GR-US.

What voltage does SKU 11270GR-US use?

The Orion 11270GR-US operates at 115V, single phase, 60 Hz.

What is the power rating?

The manufacturer lists 900W power and 10A current.

How much moisture does the Orion remove?

The Orion has a typical extraction rate of 105 pints per day.

What is the effective volume?

The manufacturer lists an effective volume of 8,370 cubic feet.

What is the airflow?

The manufacturer lists airflow of 360 CFM.

What is the noise level?

The listed noise level is 57 dBA.

What refrigerant does the Orion use?

The manufacturer lists R454c refrigerant.

Does the Orion have a condensate pump?

Yes. The Orion includes an integral condensate pump with a pump purge switch.

Does the Orion have a pump purge switch?

Yes. The pump purge switch is designed to help remove residual water from the pump before moving the unit.

What type of defrost system does the Orion have?

The Orion features temperature-sensitive defrost control and a reverse-cycle defrost system.

What is the operating temperature range?

The manufacturer specifies a minimum operating temperature of 33°F and a maximum operating temperature of 105°F.

What type of compressor does it use?

The Orion uses a rotary compressor.

Does the Orion have two-stage cooling?

Yes. The Orion features a two-stage cooling process with Air-to-Air heat exchange.

Does the Orion have a washable filter?

Yes. The Orion includes a washable air filter.

Does the Orion have a GFI plug?

Yes. The manufacturer lists a fitted mains GFI plug.

How long is the power cord?

The Orion has a 25-foot power cord.

How long is the drain hose?

The manufacturer lists a 25-foot PVC drain hose.

Does the Orion have wheels?

Yes. Rugged wheels are included as part of the unit's mobile design.

What are the dimensions?

The Orion measures 44 inches high x 24 inches wide x 22 inches deep.

How much does the Orion weigh?

The unit weighs 165 pounds.

What applications is the Orion designed for?

The manufacturer positions the Orion for commercial work, cleaning and restoration, flood restoration, and drying applications.

What comes with SKU 11270GR-US?

The package includes one Orion Dehumidifier, one Orion Owner's Manual, one 3/8-inch PVC tube with a 7.8-meter length, and one Quick Release Hose Coupling.
