EBAC Kompact Professional Dehumidifier, 56 Pints/Day, 8,370 Cu. Ft., 110V, 880W, 11240KP-US

EBAC Kompact Professional Dehumidifier

Compact Professional Dehumidification

The EBAC Kompact is a compact professional dehumidifier designed for commercial cleaning and restoration applications. This exact configuration is identified by manufacturer part number 11240KP-US and operates at 110V, single phase, 60 Hz. It provides a typical extraction rate of 56 pints per day and has an effective volume of 8,370 cubic feet.

The Kompact combines a high-efficiency rotary compressor, integral condensate pump, hot gas defrost, washable air filter, rugged wheels, collapsible carrying handles, and an hours run meter. Its compact construction is designed for easy transportation between work areas and job sites.

Portable Design for Restoration Work

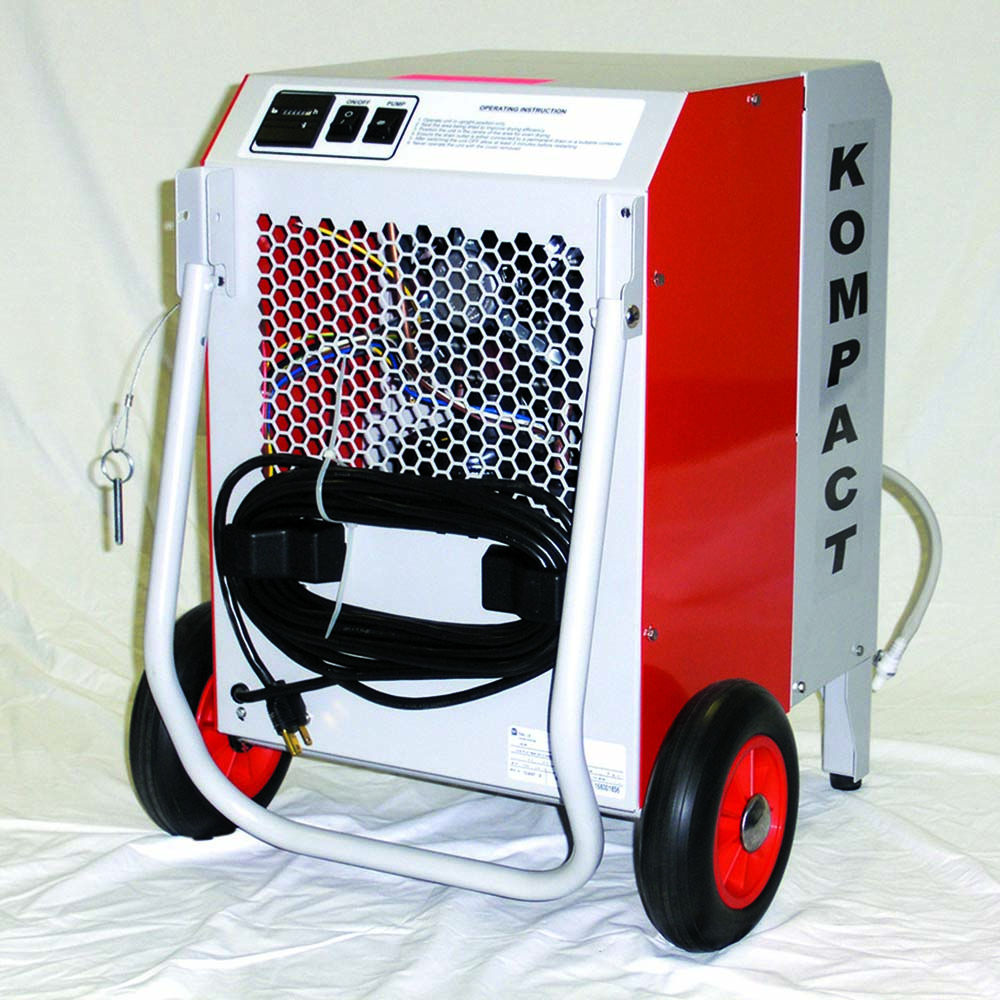

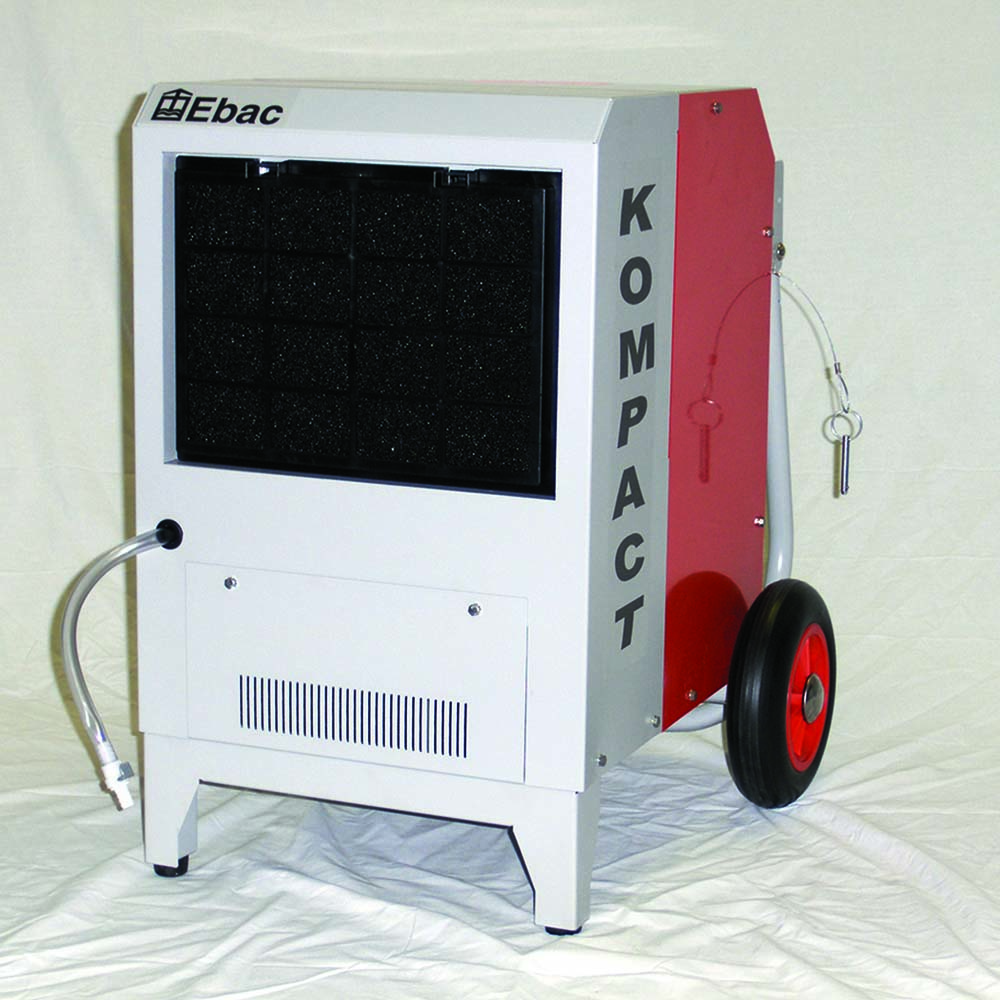

The Kompact measures 24 inches high x 20 inches wide x 19 inches deep and weighs 78 pounds. Rugged wheels with shock-absorbing semi-pneumatic tires and collapsible carrying handles make the unit easier to transport and position.

The manufacturer describes the Kompact as a mobile piece of equipment for commercial work. Its compact size permits one-person operation while providing capacity for several room-size areas at a time.

56 Pints per Day Moisture Removal

The Kompact provides a typical extraction rate of 56 pints per day and an effective volume of 8,370 cubic feet. Actual moisture removal depends on operating conditions, including temperature, humidity, and moisture load.

Refrigeration-Based Dehumidification

The Kompact removes moisture through a refrigeration process. A fan draws moist air through the cold evaporator coil, cooling the air below its dew point. Moisture forms on the evaporator coil and is collected in the condensate tray.

The cooled air then passes through the hot condenser coil, where it is reheated using energy recovered during the cooling process together with heat generated by the compressor. The air is discharged back into the room at a slightly higher temperature and with lower absolute humidity. Continuous circulation gradually reduces relative humidity within the treated area.

Integral Condensate Pump

The Kompact includes an integral condensate pump capable of a 20-foot vertical lift. This allows collected condensate to be pumped away without relying on manual bucket emptying. A pump purge switch is also included to drain the pump before the unit is moved, helping reduce water spillage during transportation.

Hot Gas Defrost

The Kompact features EIPL's hot gas defrost system. The manufacturer describes this system as automatically melting frost buildup to provide effective operation at low ambient temperatures. The specified operating temperature range is 33°F to 95°F.

High-Efficiency Rotary Compressor

A high-efficiency rotary compressor is used in the Kompact. The manufacturer describes the compressor as providing high extraction efficiency with low running costs.

Easy Maintenance

The Kompact includes a washable air filter for routine maintenance. An hours run meter provides operating-time measurements, while the quick-release hose coupling simplifies condensate hose connection and removal.

Key Features

• Professional commercial dehumidifier
• Model Kompact
• Part number 11240KP-US
• 56 ppd typical extraction
• 8,370 cu. ft. effective volume
• 110V, single phase, 60 Hz
• 880W power
• 7A current
• 358 CFM airflow
• 57 dBA noise level
• R454c refrigerant
• High-efficiency rotary compressor
• Integral condensate pump
• 20-foot vertical pump lift
• Pump purge switch
• Hot gas defrost system
• Electronic defrost control
• Washable air filter
• Hours run meter
• Rugged wheels with shock-absorbing semi-pneumatic tires
• Collapsible carrying handles
• Quick-release hose coupling
• Cable wrap facility
• 16-foot power cord
• 25-foot PVC drain hose
• Epoxy powder-coated steel chassis and housing
• Fitted mains plug

What's Included

• 1 x Kompact Dehumidifier
• 1 x Kompact Owner's Manual
• 1 x 3/8" PVC Tube I/D - 7.8M long
• 1 x Quick Release Hose Coupling

Product Resources

Review the manufacturer's product resources for technical, installation, operating, maintenance, and wiring information before purchasing or installing the EBAC Kompact.

• Product Brochure
• Product Instruction Manual
• Product Wiring Diagram
• Product Wiring Schematic

Applications for the EBAC Kompact

The EBAC Kompact Professional Dehumidifier is designed for commercial cleaning and restoration work. Its compact size, mobile construction, integral condensate pump, and 56 ppd typical extraction make it suitable for appropriately sized moisture-removal applications.

Cleaning and Restoration

The manufacturer positions the Kompact as professional equipment for commercial cleaning and restoration. Its portable design allows the unit to be transported between work areas and job sites.

Water Damage Restoration

EIPL describes its dehumidifiers as equipment for flood restoration and drying areas after water damage. The Kompact can be considered for appropriately sized restoration applications where moisture needs to be removed from the air.

Commercial Spaces

The Kompact is designed for commercial work and can handle several room-size areas at a time when properly sized for the application.

Portable Drying Applications

The compact dimensions, rugged wheels, collapsible handles, 16-foot power cord, and 25-foot drain hose provide flexibility for mobile drying applications.

Unattended Operation

The integral condensate pump can lift water up to 20 feet vertically, making the Kompact suitable for installations where collected condensate needs to be pumped away. The pump purge function also helps drain the pump before moving the unit.

Installation Considerations

The Kompact measures 24 inches high x 20 inches wide x 19 inches deep and weighs 78 pounds. Provide suitable clearance for airflow and operation. Verify the 110V electrical supply and route the supplied drain hose appropriately for condensate removal.

Frequently Asked Questions

What is the EBAC Kompact?

The EBAC Kompact is a compact professional dehumidifier designed for commercial cleaning and restoration applications.

What is the part number for the Kompact?

The manufacturer part number is 11240KP-US.

What voltage does SKU 11240KP-US use?

The Kompact 11240KP-US operates at 110V, single phase, 60 Hz.

What is the power rating?

The manufacturer lists 880W power and 7A current.

How much moisture does the Kompact remove?

The Kompact has a typical extraction rate of 56 pints per day.

What is the effective volume?

The manufacturer lists an effective volume of 8,370 cubic feet.

What is the airflow?

The manufacturer lists airflow of 358 CFM.

What is the noise level?

The listed noise level is 57 dBA.

What refrigerant does the Kompact use?

The manufacturer lists R454c refrigerant.

Does the Kompact have a condensate pump?

Yes. The Kompact includes an integral condensate pump capable of a 20-foot vertical lift.

Does the Kompact have a pump purge switch?

Yes. A pump purge switch is included to drain the condensate pump before moving the unit.

How long is the drain hose?

The manufacturer specifies a 25-foot PVC drain hose.

How long is the power cord?

The Kompact has a 16-foot power cord.

Does the Kompact have wheels?

Yes. It has rugged wheels with shock-absorbing semi-pneumatic tires.

Does the Kompact have a collapsible handle?

Yes. The manufacturer specifies collapsible carrying handles.

Does the Kompact have a defrost system?

Yes. It includes electronic defrost control and a hot gas defrost system.

What is the operating temperature range?

The manufacturer specifies a minimum operating temperature of 33°F and a maximum operating temperature of 95°F.

What type of compressor does it use?

The Kompact uses a rotary compressor.

Is the air filter washable?

Yes. The Kompact includes a washable air filter.

Does it have an hours run meter?

Yes. The unit includes an hours run meter for measuring operating time.

What are the dimensions?

The Kompact measures 24 inches high x 20 inches wide x 19 inches deep.

How much does the Kompact weigh?

The unit weighs 78 pounds.

What applications is the Kompact designed for?

The manufacturer describes the Kompact for commercial cleaning and restoration work, including portable drying and moisture-removal applications.

What comes with SKU 11240KP-US?

The package includes one Kompact Dehumidifier, one Kompact Owner's Manual, one 3/8-inch PVC tube with 7.8-meter length, and one Quick Release Hose Coupling.
