EBAC RM40P Dehumidifier with High-Lift Condensate Pump, 24 Pints/Day, 3,000 Cu. Ft., 110V, 0.344W, 11186MP-US

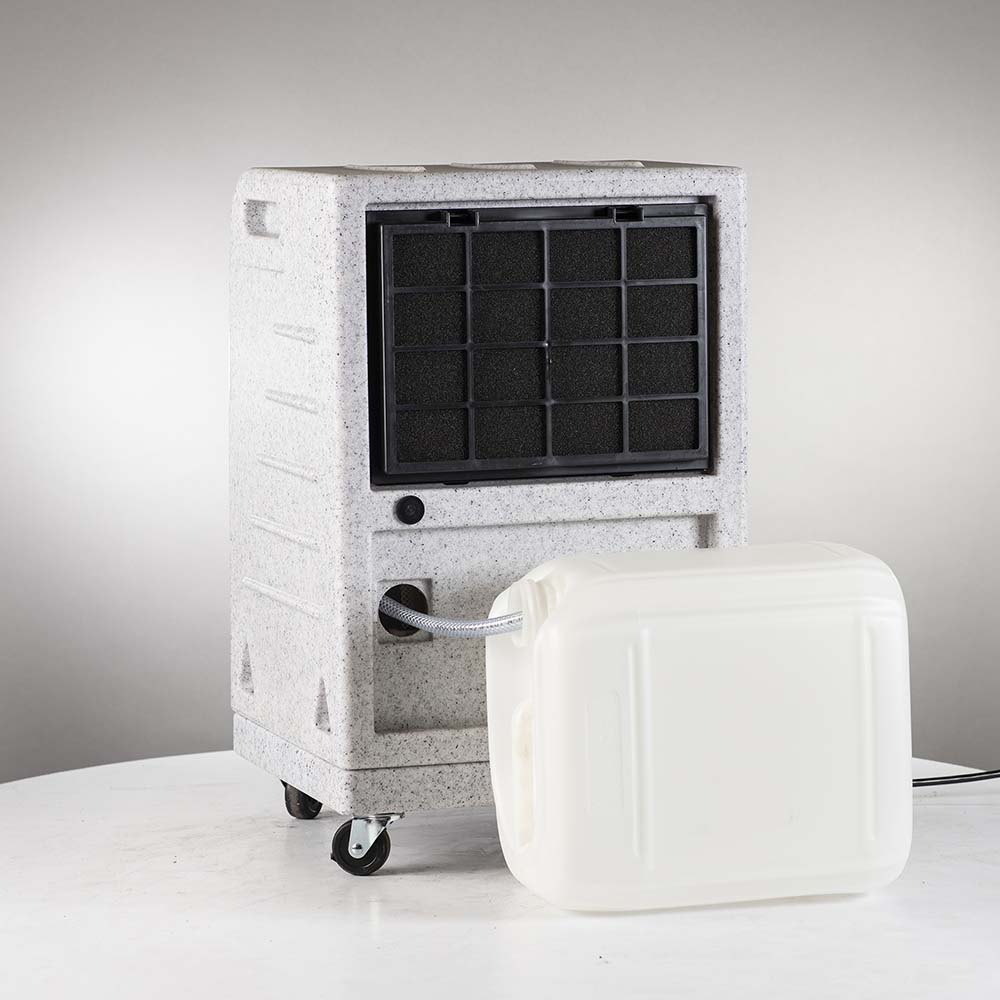

EBAC RM40P Dehumidifier with High-Lift Condensate Pump

Compact Commercial Dehumidification

The EBAC RM40P is a compact, stand-alone dehumidifier designed for humidity control in smaller areas. This exact configuration is identified by manufacturer part number 11186MP-US. The RM40P provides the features of the RM40 while replacing the integral water container with a high-lift integral condensate pump.

The manufacturer lists an effective volume of 3,000 cubic feet and typical extraction of 24 pints per day. The RM40P operates at 110V, single phase, 60 Hz, with 0.344W power and 3.3A current.

High-Lift Integral Condensate Pump

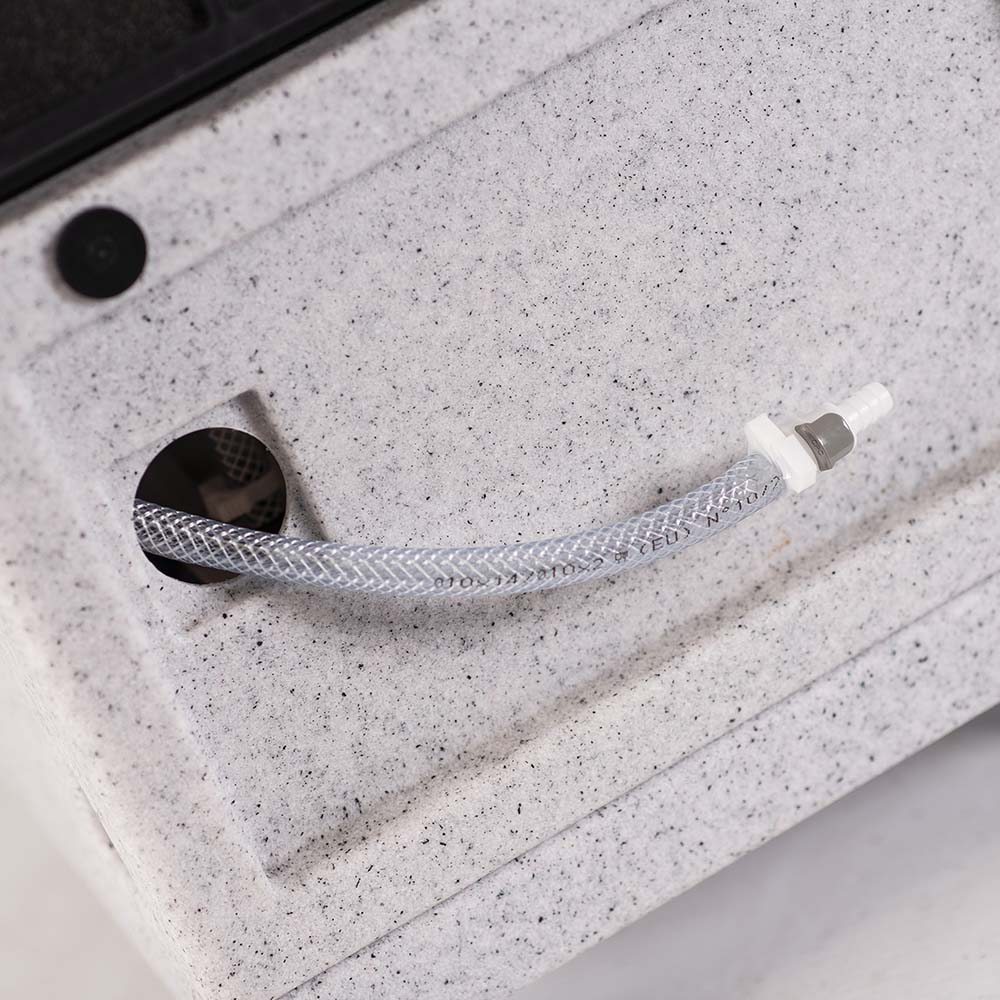

The defining feature of the RM40P is its high-lift integral condensate pump. Instead of using an internal water container, the RM40P pumps collected condensate away from the unit. The manufacturer states that the high-lift pump can raise water approximately 10 feet, making this configuration suitable for unattended installations and basement applications where gravity drainage is not suitable.

Electronic Humidity Control

The RM40P features an adjustable electronic humidistat and an OLED display. The menu-driven OLED display allows a precise humidity control point to be entered while providing a constant readout of actual room humidity. System temperatures can also be monitored through the display.

An LED status indicator panel provides visual information about the drying process. The unit can automatically stop when the selected level of dryness is achieved.

Compact and Portable Design

The RM40P measures 25 inches high x 15 inches wide x 14 inches deep and weighs 42 pounds. Castors and sturdy carrying handles make it convenient to transport between suitable areas requiring humidity control.

The manufacturer describes the RM40/RM40P family as free-standing units with a rotationally moulded body and base and a galvanised steel substructure.

Temperature-Sensitive Hot Gas Defrost

The RM40P incorporates temperature-sensitive defrost and hot gas defrost technology. The defrost system automatically de-ices the unit as necessary. The manufacturer specifies an operating range from 33°F to 95°F.

Recirculation Mode

The RM40P includes a recirculation or fan-only mode. This allows air movement when active dehumidification is not required.

Refrigeration-Based Moisture Removal

The RM40P removes moisture using a refrigeration-based process. Air is drawn into the unit by the fan and passes over a cold surface. As the air cools, moisture condenses and is collected for removal through the integral condensate pump.

The air is then reheated through the heat recovery system before being returned to the room. The manufacturer describes the returned air as approximately 2°C warmer and considerably drier. The defrost system automatically de-ices the unit as necessary.

Rugged Construction

The RM40P uses a rotationally moulded body and base with a galvanised steel substructure. The manufacturer describes the construction as rugged enough for industrial shops and storerooms. The unit also features a washable air filter and epoxy powder coating.

Key Features

• Compact stand-alone dehumidifier
• Model RM40P
• Part number 11186MP-US
• 24 ppd typical extraction
• 3,000 cu. ft. effective volume
• 110V, single phase, 60 Hz
• 0.344W power
• 3.3A current
• 100 CFM airflow
• 47 dBA noise level
• R454c refrigerant
• Adjustable electronic humidistat
• OLED display
• LED status indicator panel
• High-lift integral condensate pump
• Approximately 10 ft pump lift
• Temperature-sensitive defrost
• Hot gas defrost
• Recirculation / fan-only mode
• Washable air filter
• Castors
• Sturdy carrying handles
• Fitted mains plug
• Rotary compressor
• Rotomoulded body and base
• Galvanised steel substructure
• Epoxy powder coating

What's Included

• 1 x RM40P Dehumidifier
• 1 x RM40P Owner's Manual
• 1 x 3/8" ID PVC Tube - 7.8m Long
• 1 x Quick Release Tube Connector

Product Resources

Review the manufacturer's RM40P product resources for additional operating, installation, maintenance, and technical information before purchasing or installing the unit.

• Product Brochure
• Product Instruction Manual
• Product Wiring Diagram
• Product Wiring Schematic

Applications for the EBAC RM40P

The EBAC RM40P is a compact stand-alone dehumidifier designed for humidity control in smaller areas. The manufacturer identifies industrial shops, storerooms, basements, garages, crawl spaces, warehouses, offices, factories, shops, and locker rooms among potential applications.

Basements

The manufacturer specifically identifies basement applications and notes that the high-lift pump is suitable for unattended installations or basements. The pump can lift condensate approximately 10 feet according to the manufacturer.

Industrial Shops and Storerooms

The RM40P's compact construction and rugged rotomoulded housing with galvanised steel chassis make it suitable for appropriately sized industrial shops and storerooms.

Crawl Spaces and Warehouses

The manufacturer identifies crawl spaces and warehouses among potential applications for the RM40 family. The RM40P can be considered where its 3,000 cubic foot effective volume and rated extraction are appropriate.

Offices, Factories and Shops

The RM40P can be used in appropriately sized offices, factories, and shops where humidity control is required. Its adjustable electronic humidistat allows a desired humidity control point to be selected.

Locker Rooms

The manufacturer describes the RM40 family as suitable for damp basements and clammy locker rooms. The RM40P provides pumped condensate removal for applications where continuous drainage is preferred.

Protection of Cars, Tools and Machinery

EIPL identifies protection of cars, tools, and machinery as an application for the RM40 family. The RM40P can help manage humidity in appropriately sized areas when installed within its specified operating conditions.

Installation Considerations

The RM40P measures 25 inches high x 15 inches wide x 14 inches deep and weighs 42 pounds. Provide adequate space for airflow, service access, movement, and condensate discharge. Verify the condensate route and available electrical supply before installation.

Frequently Asked Questions

What is the EBAC RM40P?

The EBAC RM40P is a compact, stand-alone dehumidifier designed for humidity control in smaller areas and equipped with a high-lift integral condensate pump.

What is the part number for the RM40P?

The manufacturer part number for this model is 11186MP-US.

What is the effective volume of the RM40P?

The manufacturer lists an effective volume of 3,000 cubic feet.

How much moisture does the RM40P remove?

The manufacturer lists typical extraction of 24 pints per day.

What voltage does SKU 11186MP-US use?

The RM40P is specified at 110V, single phase, 60 Hz.

How much power does the RM40P use?

The manufacturer lists 0.344W power and 3.3A current.

What is the airflow?

The manufacturer lists airflow at 100 CFM.

What is the noise level?

The manufacturer lists a noise level of 47 dBA.

What refrigerant does the RM40P use?

The manufacturer lists R454c refrigerant.

Does the RM40P have an electronic humidistat?

Yes. The RM40P includes an adjustable electronic humidistat.

Does the RM40P have an OLED display?

Yes. The RM40P includes an OLED display for entering the humidity control point and monitoring room humidity.

Does the RM40P have an internal water container?

No. The RM40P replaces the internal water container with a high-lift integral condensate pump.

Does the RM40P have a condensate pump?

Yes. The RM40P has a high-lift integral condensate pump.

How high can the RM40P pump condensate?

The manufacturer states that the high-lift pump can pump water to a height of approximately 10 feet.

Is the RM40P suitable for unattended installations?

Yes. The manufacturer specifically identifies the high-lift pump as suitable for unattended installations and basement applications.

Does the RM40P have a permanent gravity drain?

No. The RM40P uses its integral high-lift condensate pump instead of the permanent gravity-drain facility used by the RM40.

Does the RM40P have automatic defrost?

Yes. The RM40P includes temperature-sensitive defrost and hot gas defrost.

What is the operating temperature range?

The manufacturer specifies a minimum operating temperature of 33°F and a maximum operating temperature of 95°F.

Does the RM40P have a fan-only mode?

Yes. The RM40P includes a recirculation or fan-only mode.

Is the RM40P portable?

Yes. The free-standing unit includes castors and sturdy carrying handles for movement between suitable areas.

Can the RM40P be used in a basement?

Yes. The manufacturer specifically identifies basements as an application and notes the high-lift pump's suitability for basement and unattended installations.

What are the dimensions?

The RM40P measures 25 inches high x 15 inches wide x 14 inches deep.

How much does the RM40P weigh?

The RM40P weighs 42 pounds.

What type of compressor does the RM40P use?

The manufacturer lists a rotary compressor.

What applications are suitable for the RM40P?

The manufacturer identifies industrial shops, storerooms, basements, garages, crawl spaces, warehouses, offices, factories, shops, and locker rooms among potential applications.

What comes with SKU 11186MP-US?

The package includes one RM40P Dehumidifier, one RM40P Owner's Manual, one 3/8-inch ID PVC Tube measuring 7.8 meters long, and one Quick Release Tube Connector.
