EBAC RM40 Dehumidifier, 24 Pints/Day, 3,000 Cu. Ft., 110V, 0.344W, 11186MB-US

EBAC RM40 Dehumidifier, 24 Pints/Day, 3,000 Cu. Ft., 110V, 0.344W

Compact Commercial Dehumidification

The EBAC RM40 is a compact, stand-alone dehumidifier designed for humidity control in smaller areas. This exact model is identified by manufacturer part number 11186MB-US. The RM40 combines a compact design with humidity control, temperature-sensitive defrost, an internal water container, and a facility for permanent gravity drainage.

The manufacturer lists an effective volume of 3,000 cubic feet and typical extraction of 24 pints per day. The current EBAC product page specifies operation at 110V, single phase, 60 Hz, with 0.344W power and 3.3A current.

Compact and Portable Design

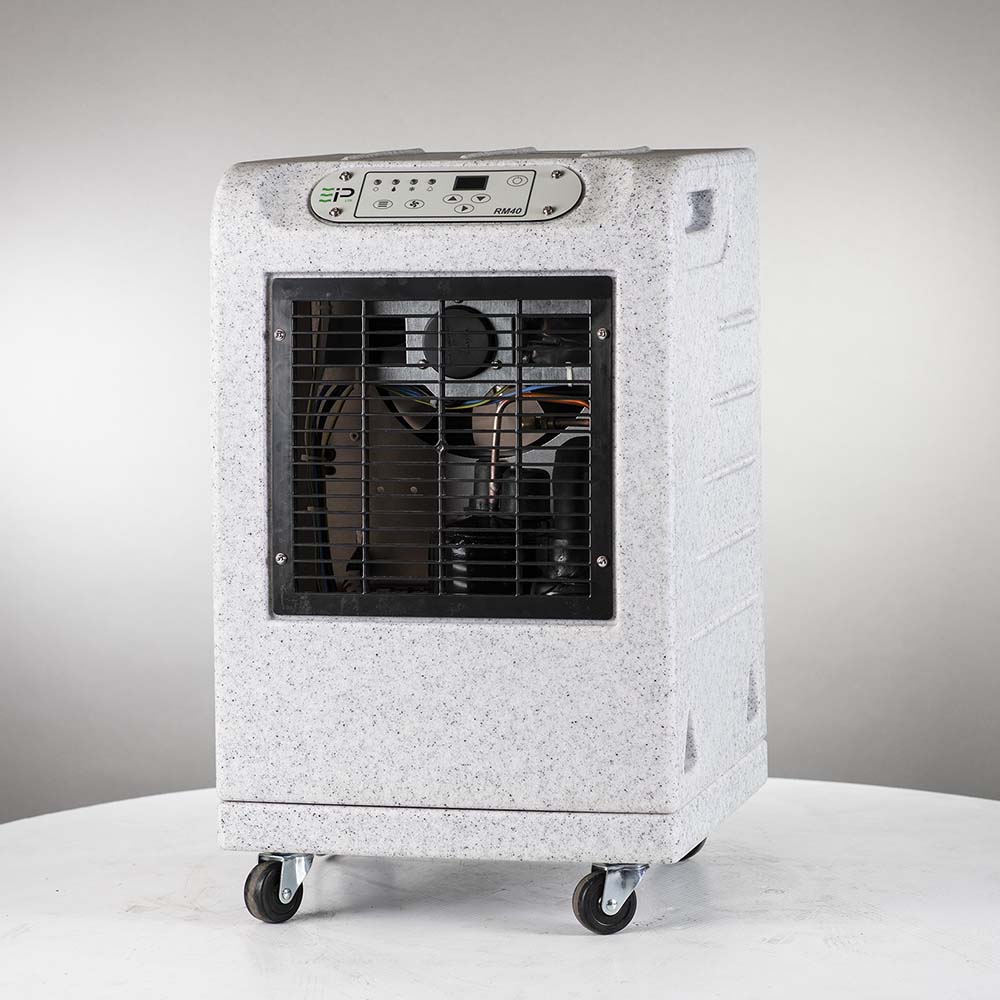

The RM40 measures 25 inches high x 15 inches wide x 14 inches deep and weighs 42 pounds. Its compact form factor, castors, and sturdy carrying handles make it convenient to move between suitable problem areas.

The manufacturer describes the RM40 as a free-standing unit suitable for applications where a compact dehumidifier is required. Its rotomoulded body and galvanised steel chassis provide a rugged construction for demanding environments.

Electronic Humidity Control

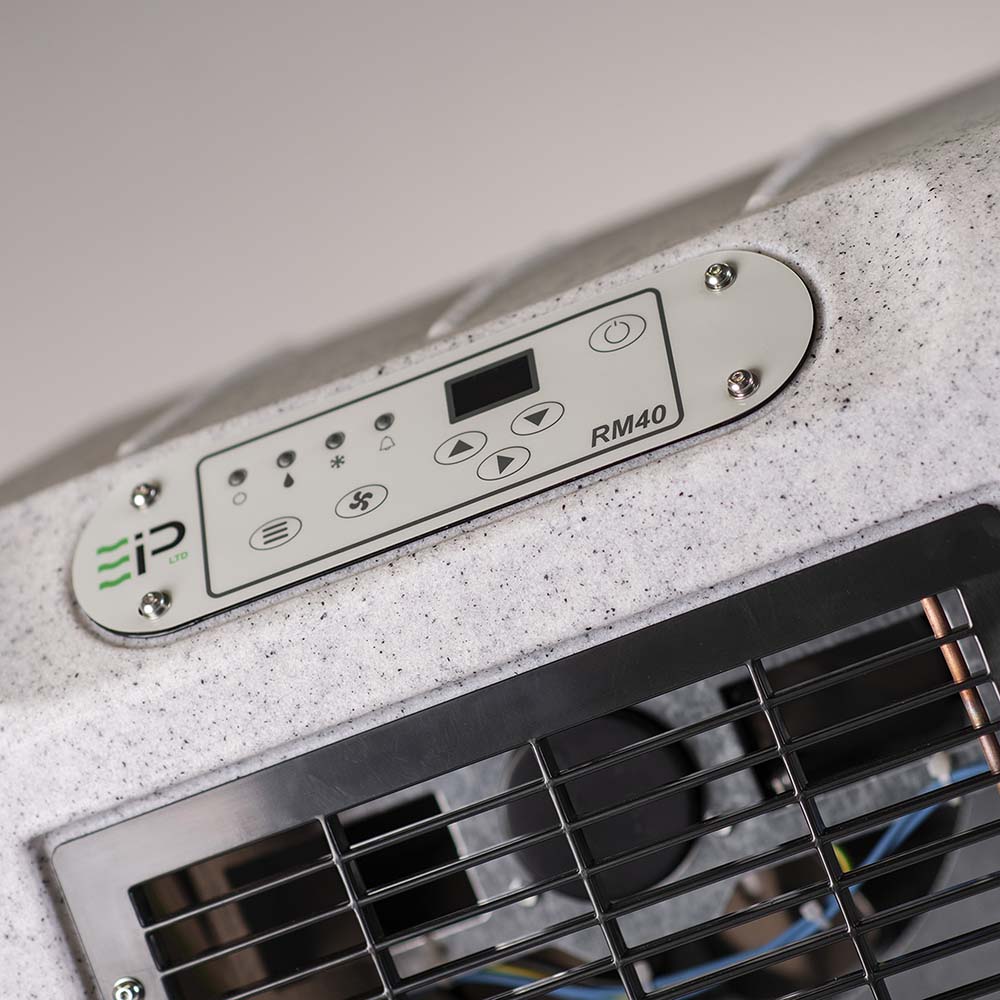

The RM40 features an adjustable electronic humidistat and an OLED display. The menu-driven display allows a precise humidity control point to be entered and provides a constant readout of actual room humidity.

The OLED display also allows system temperatures to be monitored. An LED status indicator panel provides visual information about the drying process and water-container condition.

Internal Water Container

This specific RM40 configuration includes an internal water container with approximately 4-liter capacity. A bucket-full indicator provides an indication when the container requires emptying.

The RM40 also has a facility for a permanent gravity drain. The RM40 should not be confused with the RM40P, which replaces the integral water container with a high-lift condensate pump.

Temperature-Sensitive Hot Gas Defrost

The RM40 incorporates temperature-sensitive defrost and hot gas defrost technology. The defrost system automatically de-ices the unit as necessary, helping the dehumidifier operate within the manufacturer's specified temperature range of 33°F to 95°F.

Recirculation Mode

The RM40 includes a recirculation or fan-only mode. This allows air movement without active dehumidification when air circulation is required without moisture removal.

Refrigeration-Based Moisture Removal

The RM40 removes moisture through a refrigeration-based process. Air is drawn into the unit by the fan and passes over a cold surface. As the air cools, moisture condenses and falls into the internal water container.

The air is then reheated through the heat recovery system before being returned to the room. The manufacturer explains that the air returns approximately 2°C warmer and considerably drier. The defrost system automatically de-ices the unit as required.

Rugged Construction

The RM40 uses a rotationally moulded body and base with a galvanised steel substructure. The manufacturer describes this construction as suitable for demanding environments. The unit also features a washable air filter and epoxy powder coating.

Key Features

• Compact stand-alone dehumidifier
• Manufacturer part number 11186MB-US
• 24 pints/day typical extraction according to current manufacturer product page
• 3,000 cubic feet effective volume
• 110V, single phase, 60 Hz
• 0.344W power
• 3.3A current
• 100 CFM airflow according to current manufacturer product page
• 47 dBA noise level
• R454c refrigerant
• Adjustable electronic humidistat
• OLED display
• LED status indicator panel
• Internal water container
• Bucket-full indicator
• Permanent gravity drain facility
• Temperature-sensitive defrost
• Hot gas defrost
• Recirculation fan-only mode
• Washable air filter
• Castors
• Sturdy carrying handles
• Fitted mains plug
• Rotary compressor
• Rotomoulded body and base
• Galvanised steel substructure
• Epoxy powder coating

What's Included

• 1x RM40 Dehumidifier
• 1x RM40 Owner's Manual

Product Resources

Review the manufacturer's product resources for additional technical, installation, operating, maintenance, and replacement-parts information before ordering or installing the EBAC RM40.

• Product Brochure
• Product Instruction Manual
• Product Wiring Diagram
• Product Wiring Schematic

Applications for the EBAC RM40

The EBAC RM40 is a compact stand-alone dehumidifier designed for humidity control in smaller areas. The manufacturer identifies applications including industrial shops, storerooms, basements, garages, crawl spaces, warehouses, offices, factories, shops, locker rooms, and areas requiring protection of cars, tools, and machinery.

Industrial Shops and Storerooms

The manufacturer describes the RM40's rotomoulded housing and galvanised steel chassis as rugged enough for industrial shops and storerooms. Its compact size makes it suitable for appropriately sized areas requiring humidity control.

Basements and Garages

The manufacturer specifically identifies basement and garage applications for the RM40. Its compact form factor and free-standing design allow it to be positioned in suitable areas where moisture needs to be controlled.

Crawl Spaces and Warehouses

EIPL identifies crawl spaces and warehouses among the areas where excess humidity can create moisture-related concerns. The RM40 can be considered when its 3,000 cubic foot effective volume and rated extraction are appropriate.

Offices, Factories and Shops

The manufacturer identifies offices, factories, and shops as potential applications. The RM40's electronic humidistat allows a desired humidity level to be selected for the application.

Locker Rooms

EIPL describes the RM40 as suitable for damp basements and clammy locker rooms. The unit can be used where compact humidity control is required and the application is within its specified operating conditions.

Protection of Cars, Tools and Machinery

The manufacturer describes the RM40 family as suitable for helping protect cars, tools, and machinery from damp conditions. Proper sizing and placement should be based on the actual environment and moisture load.

Permanent or Portable Use

The RM40 is a free-standing unit equipped with castors and carrying handles, allowing it to be transported to appropriate problem areas. The manufacturer also describes the unit for permanent installation where required.

Installation Considerations

The RM40 measures 25 inches high x 15 inches wide x 14 inches deep and weighs 42 pounds. Provide adequate space for airflow, service access, movement, and water drainage. The unit operates at 110V, single phase, 60 Hz according to the current manufacturer product page.

Frequently Asked Questions

What is the EBAC RM40?

The EBAC RM40 is a compact, stand-alone dehumidifier designed for humidity control in smaller areas.

What is the part number for the RM40?

The manufacturer part number for this RM40 is 11186MB-US.

What is the effective volume of the RM40?

The current manufacturer product page lists an effective volume of 3,000 cubic feet.

How much moisture does the RM40 remove?

The current manufacturer product page lists typical extraction of 24 pints per day.

What voltage does SKU 11186MB-US use?

The manufacturer currently lists the RM40 11186MB-US as 110V, single phase, 60 Hz.

How much power does the RM40 use?

The current manufacturer product page lists 0.344W power and 3.3A current.

What is the airflow?

The current manufacturer product page lists airflow at 100 CFM.

What is the noise level?

The manufacturer lists a noise level of 47 dBA.

What refrigerant does the RM40 use?

The manufacturer lists R454c refrigerant.

Does the RM40 have an electronic humidistat?

Yes. The RM40 includes an adjustable electronic humidistat.

Does the RM40 have an OLED display?

Yes. The RM40 includes an OLED display that allows the humidity control point to be entered and room humidity to be monitored.

Does the RM40 have a water container?

Yes. The RM40 has an internal water container with approximately 4-liter capacity.

Does the RM40 have a condensate pump?

No. The RM40 uses an internal water container and has a facility for permanent gravity drainage. The RM40P is the separate version with a high-lift integral condensate pump.

Does the RM40 have a bucket-full indicator?

Yes. The RM40 includes a bucket-full indicator.

Can the RM40 use a permanent drain?

Yes. The manufacturer lists a permanent drain facility for the RM40.

Does the RM40 have automatic defrost?

Yes. The RM40 features temperature-sensitive defrost and hot gas defrost.

What is the operating temperature range?

The manufacturer specifies a minimum operating temperature of 33°F and maximum operating temperature of 95°F.

Does the RM40 have a fan-only mode?

Yes. The RM40 includes a recirculation or fan-only mode for air movement without active dehumidification.

Is the RM40 portable?

The RM40 is a free-standing unit with castors and sturdy carrying handles, allowing it to be moved between appropriate areas.

Can the RM40 be used in a basement or garage?

Yes. The manufacturer specifically identifies basement and garage applications for the RM40.

What are the dimensions?

The RM40 measures 25 inches high x 15 inches wide x 14 inches deep.

How much does the RM40 weigh?

The unit weighs 42 pounds.

What type of compressor does the RM40 use?

The manufacturer lists a rotary compressor.

What applications are suitable for the RM40?

The manufacturer identifies industrial shops, storerooms, basements, garages, crawl spaces, warehouses, offices, factories, shops, and locker rooms among potential applications.

What comes with SKU 11186MB-US?

The manufacturer lists one RM40 Dehumidifier and one RM40 Owner's Manual in the box.
