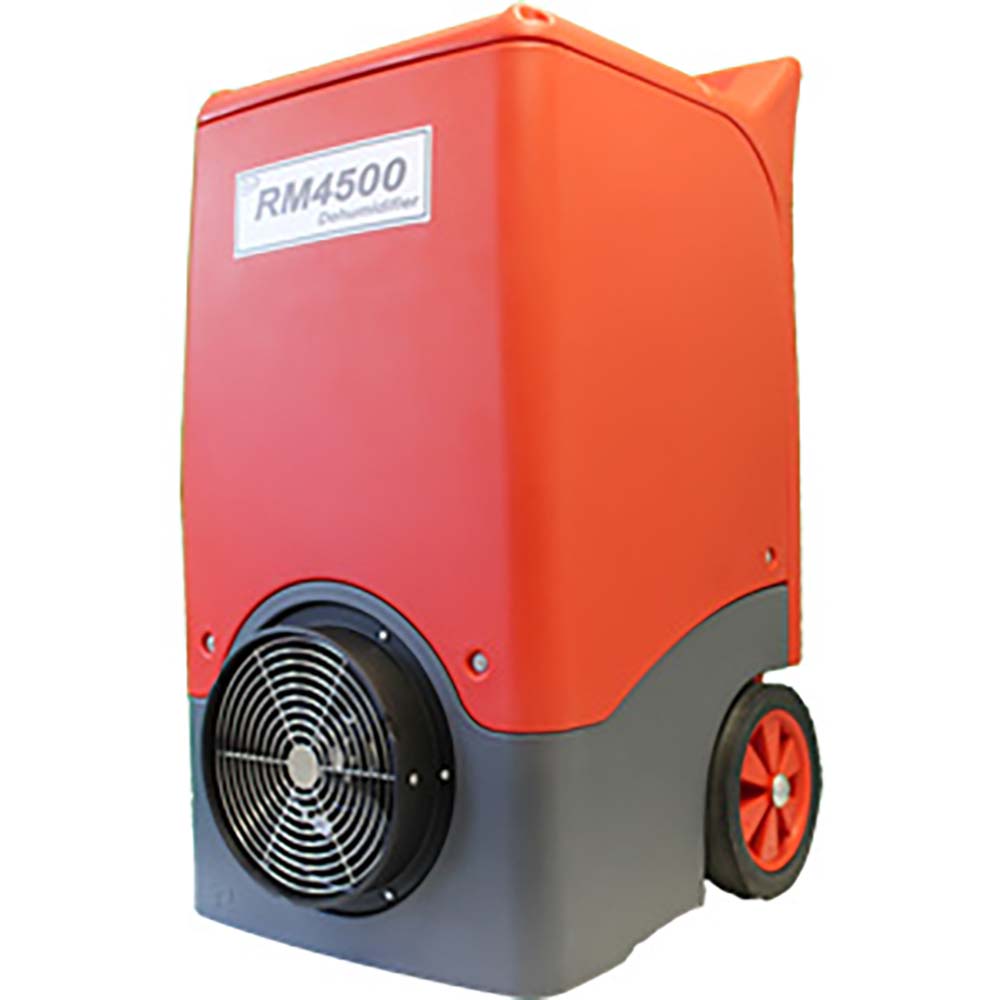

EBAC RM4500 Professional Dehumidifier, 150 Pints/Day, 10,594 Cu. Ft., 110V, 1-Phase, 1.2kW, 10570RG-US

EBAC RM4500 Professional Dehumidifier, 150 Pints/Day, 10,594 Cu. Ft., 110V, 1-Phase, 1.2kW

Professional Dehumidification for Restoration and Drying

The EBAC RM4500 is a professional dehumidifier designed for cleaning, restoration, commercial, and residential drying applications. This specific product variant is identified by manufacturer part number 10570RG-US. It provides a typical extraction rate of 150 pints per day and has a manufacturer-listed effective volume of 10,594 cubic feet.

The RM4500 is designed for environments where dependable moisture removal is required following water damage or during drying work. Actual moisture extraction depends on environmental conditions, including temperature, relative humidity, moisture load, and airflow.

110V Single-Phase Operation

The RM4500 operates on 110V, single-phase, 60 Hz electrical power. It has a listed power rating of 1.2kW and current rating of 12A. The unit provides 410 CFM airflow and has a listed noise level of 52 dBA.

Customers should verify that the intended installation location has a compatible 110V, single-phase, 60 Hz electrical supply before using the unit.

Rotationally Molded Housing

The RM4500 features a rotationally molded polyethylene housing designed for demanding drying and restoration environments. The manufacturer describes the housing as durable and suitable for commercial and residential work.

A ridged handle and large-diameter wheels support transportation and maneuverability when moving the equipment between drying locations.

High-Capacity Condensate Pump

The RM4500 includes an integral condensate pump for removing collected moisture. The manufacturer specifies a maximum pump height of 3 meters. A pump purge switch is also provided to help drain residual water from the pump tank before moving the machine.

The pumped condensate configuration can be useful when connecting the unit to a suitable permanent drain during restoration and drying work. Customers should verify the planned drainage arrangement before installation.

Reverse-Cycle Defrost

The RM4500 incorporates a reverse-cycle defrost system designed to clear ice from the coil during lower-temperature operation. The manufacturer specifies a minimum operating temperature of 37°F and a maximum operating temperature of 95°F.

The reverse-cycle defrost system helps support dehumidification operation within the manufacturer's specified temperature range. Customers should verify expected ambient conditions before selecting the unit.

Electronic Controls and Drying Performance

The RM4500 uses an on/off control switch and includes an electronic defrost timer. The unit also features a washable filter, allowing the filter to be removed and cleaned as part of routine equipment maintenance.

The manufacturer identifies the RM4500 as a professional drying unit capable of removing substantial amounts of moisture from the air. Its refrigeration-based design and airflow are intended for appropriate restoration and moisture-control applications.

Portable Restoration Design

The RM4500 measures 43.8 inches high x 25.7 inches wide x 24.8 inches deep and weighs 172 pounds. Large-diameter wheels and the integrated handle help support movement and positioning at job sites.

The unit is free standing and ductable, providing flexibility for installations where ducting is appropriate. Customers should follow the manufacturer's installation requirements when using ducting or connecting condensate drainage.

Key Features

• Professional dehumidifier for cleaning and restoration applications
• Manufacturer part number 10570RG-US
• 150 pints/day typical extraction
• 10,594 cubic feet effective volume
• 110V, single-phase, 60 Hz operation
• 1.2kW power rating
• 12A current rating
• 410 CFM airflow
• 52 dBA listed noise level
• R407c refrigerant
• Reverse-cycle defrost
• Electronic defrost timer
• Integral condensate pump
• Pump purge switch
• Washable filter
• Large-diameter wheels
• Ridged handle
• Rotationally molded polyethylene housing
• Free-standing design
• Ductable design
• Cable wrap
• Molded mains plug

What's Included

• 1x RM4500 Dehumidifier
• 1x RM4500 Owner's Manual
• 1x 3/8-inch PVC Tube I/D - 7.8M long
• 1x Quick Release Hose Coupling

Product Resources

Review the manufacturer's product resources for additional technical, installation, operating, maintenance, and replacement-parts information before ordering or installing the EBAC RM4500.

• Product Brochure
• Product Manual
• Product Wiring Diagram
• Product Wiring Schematic

Applications for the EBAC RM4500

The EBAC RM4500 is designed for professional cleaning, restoration, and drying applications. Its 150 pints/day typical extraction rating, 10,594 cubic foot effective volume, integral condensate pump, and mobile rotationally molded housing make it suitable for appropriately designed commercial and residential drying environments.

Water Damage Restoration

The RM4500 can be used as part of water damage restoration work where moisture needs to be removed from an affected environment. The unit's 150 pints/day typical extraction rating provides substantial moisture-removal capacity for suitable restoration applications.

Commercial Drying

The RM4500 is designed for commercial drying environments where portable dehumidification equipment is required. Its wheels and handle allow the equipment to be positioned at appropriate locations during drying operations.

Residential Restoration

The manufacturer identifies the RM4500 range as suitable for commercial and residential work. The unit can be used where the application requires a professional dehumidifier with pumped condensate removal and mobile equipment handling.

Cleaning and Restoration Work

The RM4500 is listed by the manufacturer within its Cleaning & Restoration range. It can assist restoration professionals with moisture removal following water-related events when operated within the manufacturer's specified conditions.

Pumped Condensate Applications

The integral condensate pump allows collected moisture to be discharged through an appropriate drain arrangement. The manufacturer specifies a maximum pump height of 3 meters. Customers should confirm the planned drainage route and installation requirements before operation.

Lower-Temperature Drying

The RM4500 features reverse-cycle defrost and is specified for operation from 37°F to 95°F. The defrost system is designed to help clear ice from the coil during operation within the specified temperature range.

Ducted Applications

The RM4500 is identified as ductable. Where ducting is required, the installation should follow the manufacturer's recommendations and account for airflow requirements and the specific drying environment.

Typical Application Areas

Installation Considerations

The RM4500 requires a 110V, single-phase, 60 Hz electrical supply. The unit measures 43.8 inches high x 25.7 inches wide x 24.8 inches deep and weighs 172 pounds. Adequate space should be provided for equipment placement, airflow, maintenance access, and condensate discharge.

The unit's integral condensate pump and maximum pump height should be considered when planning the drainage arrangement. Customers should verify the electrical supply and site conditions before installation.

Frequently Asked Questions

The following FAQs cover common questions about the EBAC RM4500, including the exact SKU, extraction capacity, electrical requirements, pump configuration, operating range, and applications.

What is the EBAC RM4500?

The EBAC RM4500 is a professional dehumidifier designed for cleaning, restoration, commercial, and residential drying applications.

What is the part number for this RM4500?

The manufacturer part number for this specific RM4500 variant is 10570RG-US.

How much moisture does the RM4500 remove?

The manufacturer lists a typical extraction rating of 150 pints per day.

What effective volume is listed for the RM4500?

The manufacturer lists an effective volume of 10,594 cubic feet.

What voltage does the RM4500 require?

The unit requires 110V, single-phase, 60 Hz electrical power.

How much power does the RM4500 use?

The manufacturer lists a power rating of 1.2kW and current rating of 12A.

What is the airflow rating?

The EBAC RM4500 has a listed airflow of 410 CFM.

What is the noise level?

The manufacturer lists a noise level of 52 dBA.

What refrigerant does the RM4500 use?

The manufacturer lists R407c refrigerant.

Does the RM4500 have a condensate pump?

Yes. The RM4500 includes an integral condensate pump.

Does the RM4500 have a pump purge function?

Yes. The unit includes a pump purge switch for draining residual water from the pump tank before moving the machine.

What is the maximum pump height?

The manufacturer specifies a maximum pump height of 3 meters.

Does the RM4500 have reverse-cycle defrost?

Yes. The unit features a reverse-cycle defrost system.

What is the operating temperature range?

The manufacturer specifies an operating temperature range of 37°F to 95°F.

Does the RM4500 have an electronic humidistat?

No. The manufacturer's specification table lists the electronic humidistat as not included on the RM4500 variant.

Does the RM4500 have a washable filter?

Yes. The unit includes a washable filter.

Can the RM4500 be ducted?

Yes. The manufacturer identifies the RM4500 as ductable.

What are the dimensions?

The manufacturer lists dimensions of 43.8 inches high x 25.7 inches wide x 24.8 inches deep.

How much does the RM4500 weigh?

The unit weighs 172 pounds.

Is the RM4500 portable?

The unit features a ridged handle and large-diameter wheels to support transportation and maneuverability.

What type of housing does the RM4500 use?

The RM4500 uses a rotationally molded polyethylene housing.

Where can the RM4500 be used?

The manufacturer identifies the RM4500 range for cleaning and restoration work and describes the equipment as suitable for commercial and residential applications.

What comes with the 10570RG-US unit?

The package includes one RM4500 dehumidifier, one RM4500 owner's manual, one 3/8-inch PVC tube with a 7.8-meter length, and one quick-release hose coupling.
