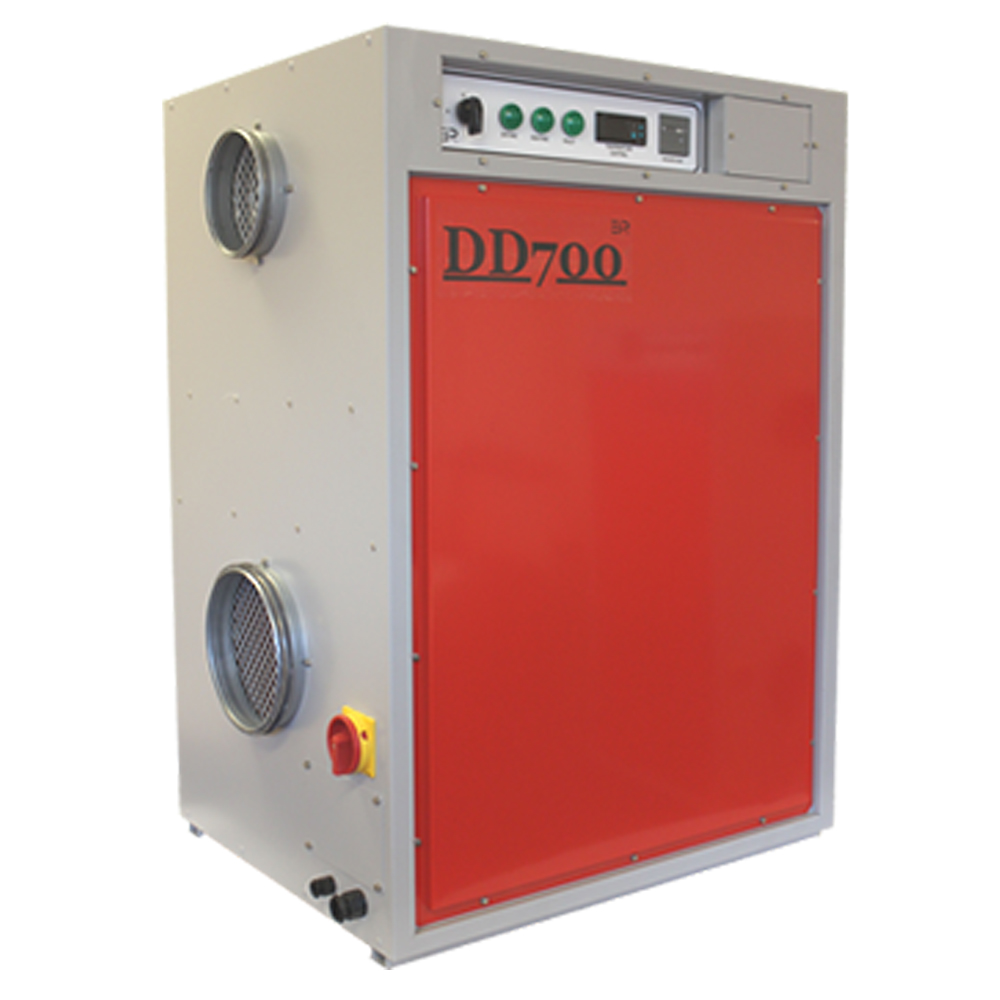

EBAC DD700 (220V) Industrial Desiccant Dehumidifier, 231 Pints/Day, 7.5kW, 10550GR-US

EBAC DD700 Industrial Desiccant Dehumidifier, 231 Pints/Day, 220V, 7.5kW

High-Capacity Desiccant Dehumidification

The EBAC DD700 is an industrial desiccant dehumidifier designed for applications requiring high-capacity moisture removal, low humidity, deep drying, and condensation control. This specific configuration is identified by manufacturer part number 10550GR-US and operates at 220V, 3-phase, 60 Hz.

The DD700 provides a high extraction setting of 231 pints per day at 27°C and 60% relative humidity. It also offers High Efficiency and Deep Drying settings, allowing the drying performance to be selected according to the requirements of the application.

Desiccant Adsorption Technology

The DD700 uses a silica-gel desiccant rotor to remove moisture from process air. Moist air is drawn into the dehumidifier and passed over the rotating silica-gel wheel. Moisture is absorbed by the desiccant material before the air leaves the unit as dry air.

A separate regeneration air stream passes through a heated section of the rotor. The heat releases the moisture collected by the silica gel, and the resulting hot, wet air is exhausted outside the area being dried. This continuous adsorption and regeneration process allows the DD700 to provide moisture removal without conventional condensate collection.

Three Selectable Drying Settings

An electronic thermostat and variable-speed EC fans allow the DD700 to be configured for High Extraction, High Efficiency, or Deep Drying. At 27°C and 60% relative humidity, the manufacturer lists 231 pints/day for High Extraction, 184 pints/day for High Efficiency, and 205 pints/day for Deep Drying.

220V Three-Phase Operation

The 10550GR-US configuration operates at 220V, 3-phase, 60 Hz, with a listed power rating of 7.5kW and current rating of 20A. Verify that the intended installation location has the appropriate electrical supply before ordering.

High Airflow Capacity

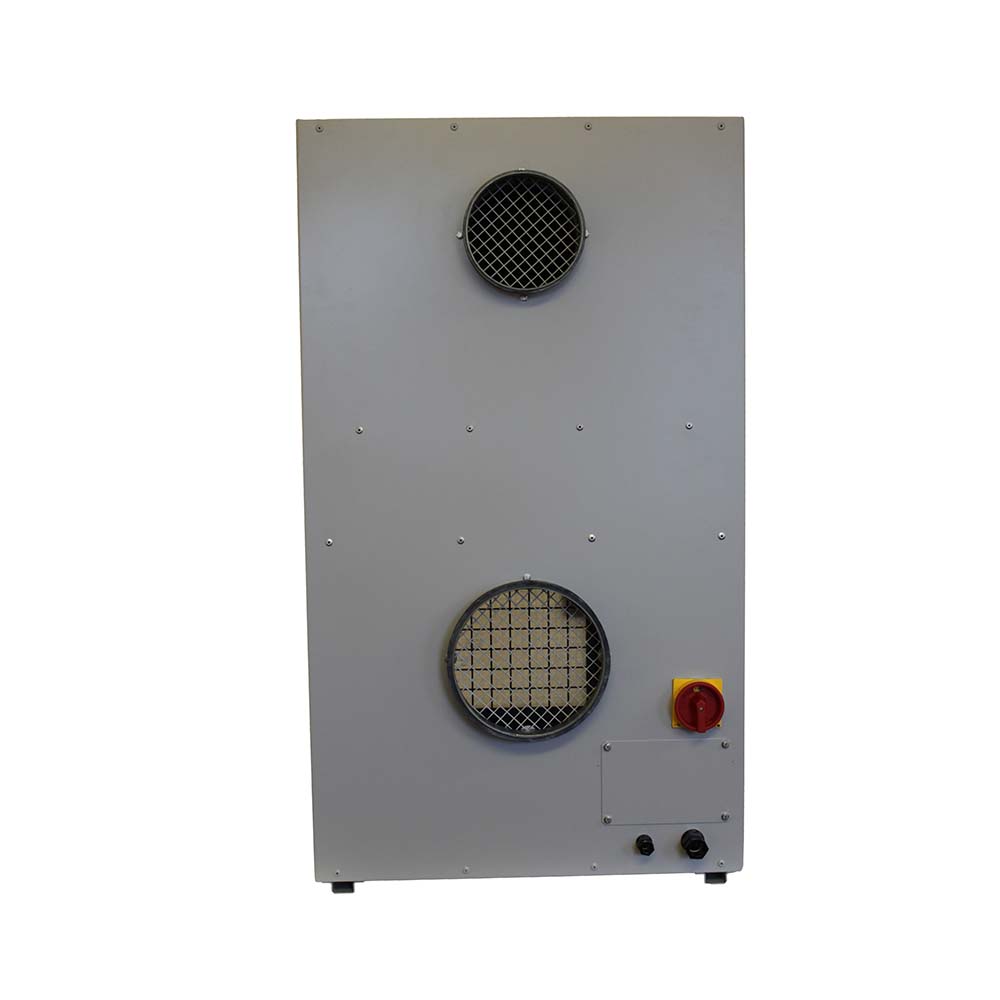

The DD700 provides a maximum process dry-air airflow of 883 CFM and a nominal process airflow of 410 CFM. Nominal regeneration wet-air airflow is 95 CFM. The process air duct size is 8 inches and the regeneration air duct size is 6 inches.

Variable-Speed EC Fans

Two EC high-efficiency fans with variable-speed operation provide flexibility when commissioning and installing the unit. The variable fan speeds work with the electronic thermostat to support the selected drying mode.

Compact Upright Design

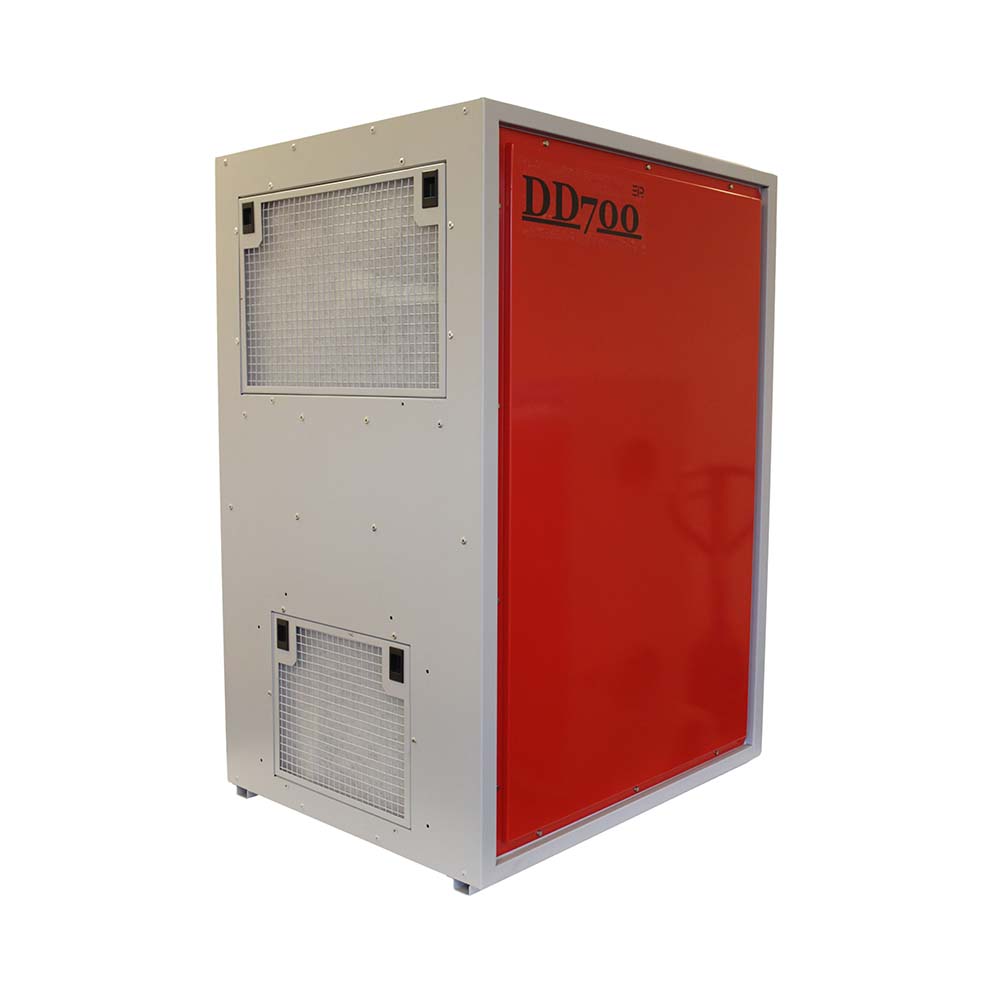

Despite its high moisture-removal capacity, the DD700 uses an upright design intended for space-restricted areas. The unit measures 40 inches high x 28 inches wide x 23 inches deep and weighs 170 pounds.

PTC Heater and Continuous Drying

The DD700 incorporates a high-capacity PTC heater. The manufacturer states that the PTC heater ensures maximum drying is reached quickly and maintained while the unit is operating.

Humidity Control

The DD700 includes a remote humidity sensor facility and can be used with optional humidistat accessories. A rotary humidistat, humidistat with internal sensor, and humidistat with external sensor are available as optional accessories.

Operating Temperature Range

The DD700 is specified for operation from -4°F to 104°F. Desiccant dehumidifiers can perform effectively in cooler environments and applications requiring low dew points, deep drying, or low humidity levels.

Key Features

• EBAC DD700 industrial desiccant dehumidifier
• Manufacturer part number 10550GR-US
• 231 pints/day high extraction setting
• 184 pints/day high efficiency setting
• 205 pints/day deep drying setting
• 220V, 3-phase, 60 Hz operation
• 7.5kW power rating
• 883 CFM maximum dry-air airflow
• 410 CFM nominal dry-air airflow
• 95 CFM nominal wet-air airflow
• 8-inch process air duct
• 6-inch regeneration air duct
• 13.6 RPH rotor wheel speed
• Two EC high-efficiency fans
• Variable fan speeds
• High-capacity PTC heater
• Electronic controls
• Adjustable thermostat
• Manual and automatic mode selection
• Remote humidity sensor facility
• Hours-run meter

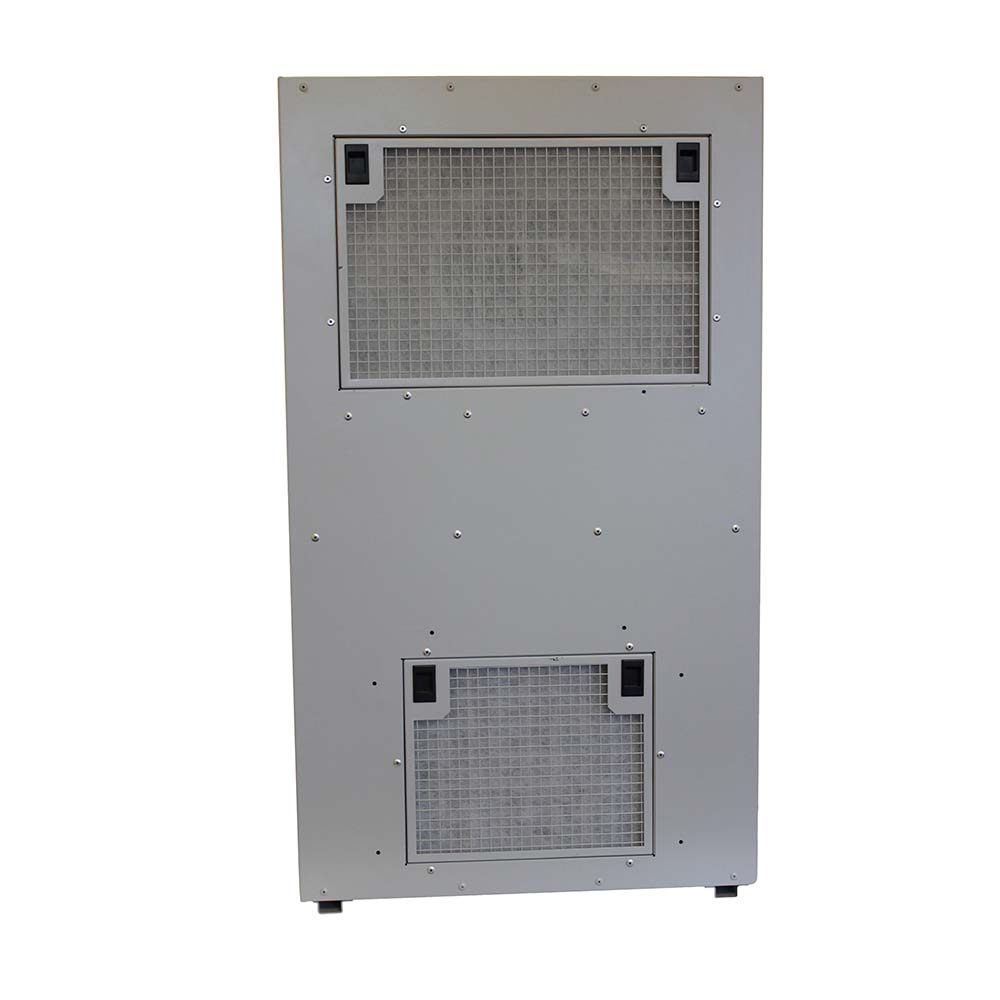

• Process and regeneration air filters
• Dual air inlet design
• Status indicators
• Self-contained design
• High-temperature safety cut-outs
• -4°F to 104°F operating temperature range

What's Included

• 1x DD700 220V Desiccant Dehumidifier
• 1x DD700 220V Owner's Manual

Buying Guide

Product Resources

Review the manufacturer's DD700 product resources for additional operating, installation, maintenance, and technical information before purchasing or installing the unit.

• Product Brochure
• Product Instruction Manual
• Product Wiring Diagram
• Product Wiring Schematic

Applications for the EBAC DD700

The EBAC DD700 is designed for applications where high-capacity moisture control, low humidity, deep drying, or condensation management is required. The manufacturer identifies desiccant dehumidification for industrial and moisture-sensitive environments.

Industrial Manufacturing

The DD700 can be considered for manufacturing and processing environments where humidity needs to be controlled. Its selectable High Extraction, High Efficiency, and Deep Drying settings provide flexibility for different drying requirements.

Pharmaceutical Applications

The manufacturer identifies pharmaceutical environments among the application areas for the DD700. Appropriate humidity control can be important in moisture-sensitive manufacturing and storage environments.

Confectionery and Hygroscopic Products

The manufacturer identifies confectionery and the manufacture, packaging, or storage of hygroscopic products as applications for desiccant dehumidification. The DD700 can provide continuous moisture removal in appropriately designed installations.

Cold Stores

Desiccant dehumidifiers can operate effectively at low temperatures. The DD700 has a specified operating range from -4°F to 104°F, making it suitable for appropriately designed low-temperature moisture-control applications within that range.

Water Damage Applications

The manufacturer lists water damage among DD700 application areas. The high extraction setting can provide high-capacity moisture removal where the equipment is properly sized and installed.

Defense and Power Industries

The manufacturer identifies defense industry and power stations among the application areas for the DD700. The unit's rugged construction and selectable drying modes support demanding industrial moisture-control requirements.

Plastics

The DD700 is also identified for plastics-related applications. Desiccant drying can be used where humidity needs to be controlled around moisture-sensitive processes or materials.

Frequently Asked Questions

What is the EBAC DD700?

The EBAC DD700 is an industrial desiccant dehumidifier designed for high-capacity moisture removal, low humidity, deep drying, and condensation control.

What is the part number for this configuration?

The manufacturer part number is 10550GR-US.

What is the extraction capacity?

The DD700 provides a high extraction setting of 231 pints per day at 27°C and 60% relative humidity. High Efficiency is 184 PPD and Deep Drying is 205 PPD under the same stated test conditions.

What voltage does the 10550GR-US require?

This configuration operates at 220V, 3-phase, 60 Hz.

What is the power rating?

The manufacturer lists a power rating of 7.5kW for 10550GR-US.

What is the maximum process airflow?

The maximum process dry-air airflow is 883 CFM. Nominal process airflow is 410 CFM.

What is the regeneration airflow?

The nominal regeneration wet-air airflow is 95 CFM.

What are the duct sizes?

The process air duct size is 8 inches and the regeneration air duct size is 6 inches.

What operating modes are available?

The DD700 offers High Extraction, High Efficiency, and Deep Drying settings through its electronic thermostat and variable-speed EC fan system.

Does the DD700 have variable fan speeds?

Yes. The unit incorporates two EC high-efficiency fans with variable-speed operation.

Can the DD700 use a humidistat?

Yes. The unit includes a remote humidity sensor facility, and optional rotary, internal-sensor, and external-sensor humidistats are available.

What is the operating temperature range?

The manufacturer specifies an operating range from -4°F to 104°F.

What are the dimensions?

The DD700 measures 40 inches high x 28 inches wide x 23 inches deep.

How much does the DD700 weigh?

The manufacturer lists the unit weight at 170 pounds.

What is the rotor wheel speed?

The rotor wheel speed is listed at 13.6 revolutions per hour.

Does the DD700 produce condensate water?

No. Desiccant dehumidification removes moisture through adsorption and regeneration rather than conventional refrigeration-style condensate collection.

What is included with 10550GR-US?

The package includes one DD700 220V desiccant dehumidifier and one DD700 220V owner's manual.

What should I verify before ordering?

Verify the exact 10550GR-US part number, 220V three-phase electrical supply, required drying mode, airflow requirements, duct configuration, operating temperature, available installation space, and any optional humidistat or duct accessories.
