EBAC DD1200 Industrial Desiccant Dehumidifier, 562 Pints/Day, 220V
High-Capacity Industrial Moisture Control
The EBAC DD1200 is a high-capacity industrial desiccant dehumidifier designed for applications requiring effective moisture removal, low humidity, condensation control, deep drying, and low dew-point conditions. This listing is specifically for manufacturer part number 10540GR-US, the 220V three-phase configuration.
The DD1200 provides a High Extraction capacity of 562 pints per day at 27°C and 60% relative humidity. The unit also offers High Efficiency and Deep Drying settings with capacities of 402 PPD and 508 PPD respectively under the manufacturer's stated test conditions.
Desiccant Dehumidification Technology
The DD1200 uses adsorption-based desiccant technology to remove moisture from process air. Air is drawn into the unit and passed over a rotating wheel impregnated with silica gel. Moisture is absorbed by the silica gel before the air leaves the dehumidifier as warm, dry air.
As the silica gel wheel rotates, a separate regeneration air stream passes through a portion of the wheel. The regeneration air is heated before passing over the wheel, releasing the absorbed moisture. The resulting hot, wet air is then exhausted outside the area being dried.
Three Drying Preferences
An electronic thermostat and fully variable EC fans allow the user to select the desired drying preference. The DD1200 provides High Extraction, High Efficiency, and Deep Drying settings for different moisture-control requirements.
- High Extraction: 562 PPD at 27°C and 60% RH
- High Efficiency: 402 PPD at 27°C and 60% RH
- Deep Drying: 508 PPD at 27°C and 60% RH
220V Three-Phase Configuration
The 10540GR-US configuration operates at 220V, 3-phase, 60 Hz. It has a listed power rating of 11.8kW. Verify that the available electrical supply is suitable for the unit before installation.
High Airflow Capacity
The DD1200 provides a maximum process dry-air airflow of 883 CFM, nominal process dry-air airflow of 705 CFM, and nominal regeneration wet-air airflow of 195 CFM. The process air duct size is 8 inches and the regeneration air duct size is 6 inches.
Variable-Speed EC Fans

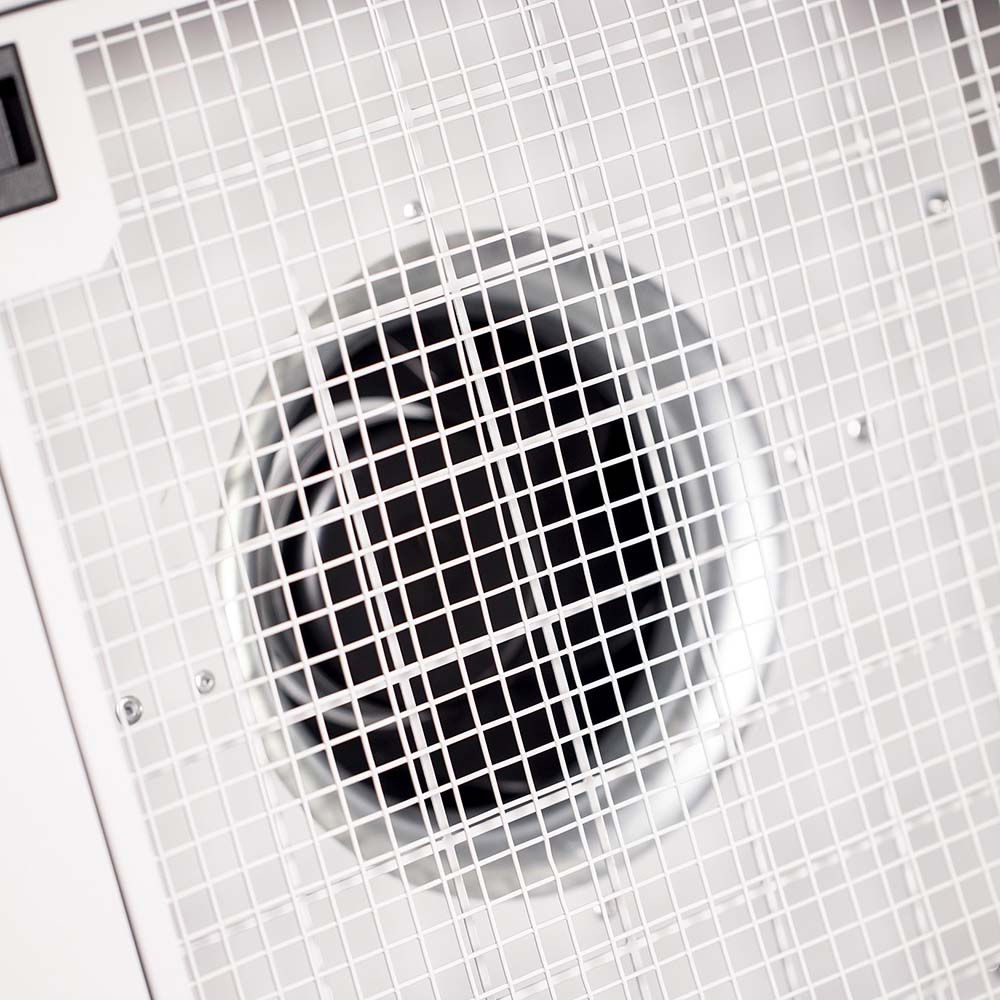

The DD1200 incorporates two high-efficiency EC fans with variable-speed operation. This allows the unit to be installed and commissioned across a wide range of applications while supporting the selected drying preference.
PTC Heater
The DD1200 incorporates a PTC heater designed to ensure maximum drying is reached immediately and maintained while the unit is operating.

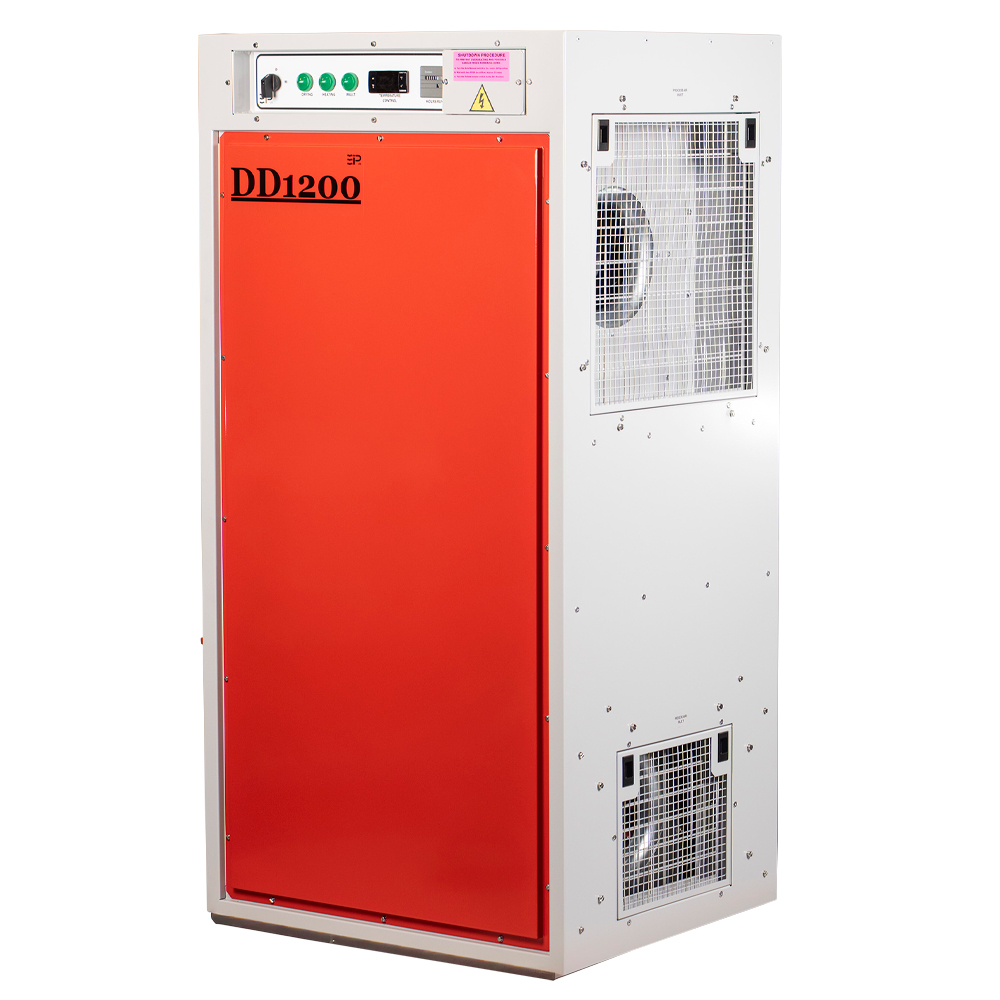

Compact Upright Design
The DD1200 features an upright, compact design intended to accommodate space-restricted areas. The unit measures 56 inches high x 28 inches wide x 23 inches deep and weighs 200 pounds.
Humidity Control
The DD1200 includes a remote humidity sensor facility and provides an external humidistat connection for maintaining a preset humidity condition. Optional humidistat accessories are available for different sensing configurations.
Low-Temperature Moisture Removal
Desiccant dehumidification is particularly effective in cooler climates and applications requiring low dew points, deep drying, or low humidity levels. The DD1200 has a specified operating temperature range of -4°F to 104°F.
Key Features
- EBAC DD1200 industrial desiccant dehumidifier
- Manufacturer part number 10540GR-US
- 562 PPD High Extraction setting
- 402 PPD High Efficiency setting
- 508 PPD Deep Drying setting
- 220V, 3-phase, 60 Hz operation
- 11.8kW power rating
- 883 CFM maximum process airflow
- 705 CFM nominal process airflow
- 195 CFM nominal regeneration airflow
- 8-inch process air duct
- 6-inch regeneration air duct
- 13.6 RPH rotor wheel speed
- Two EC high-efficiency fans
- Variable fan speeds
- High-capacity PTC heaters

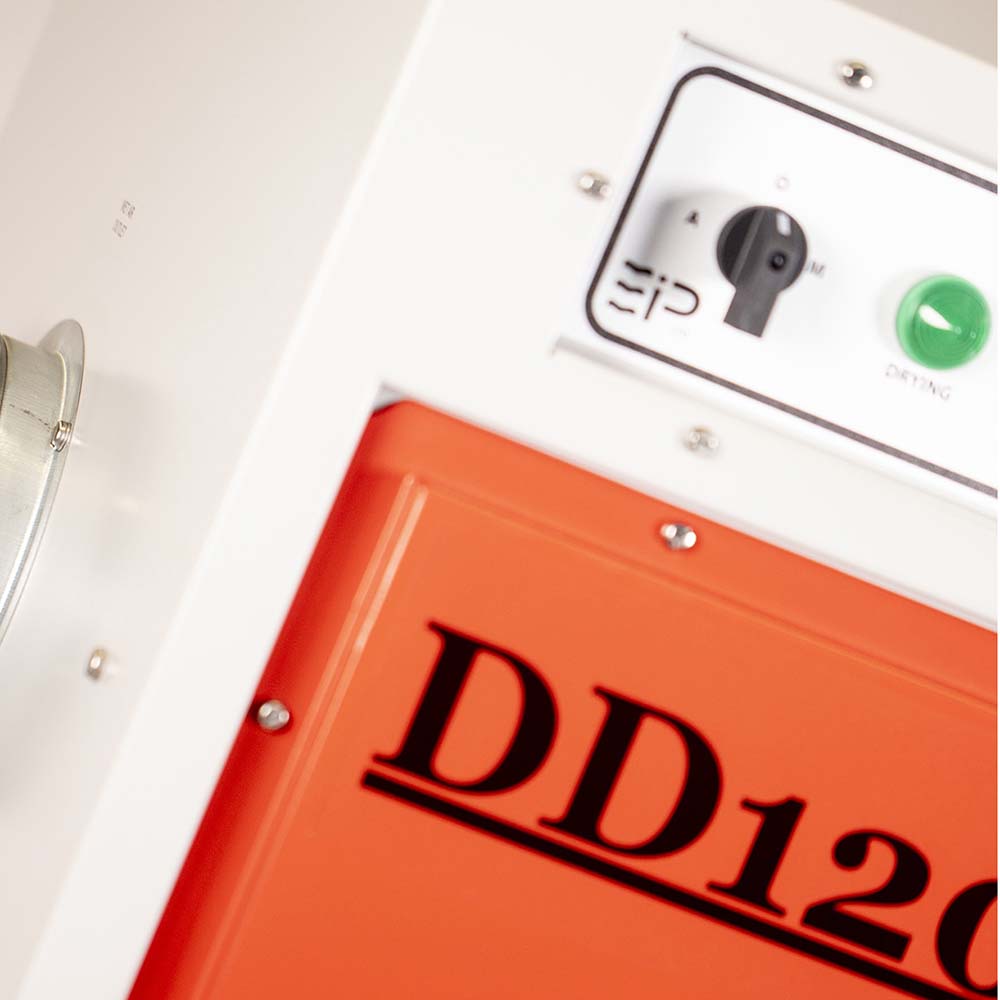

- Electronic controls
- Adjustable thermostat
- Manual / automatic mode selection
- Remote humidity sensor facility
- Hours-run meter
- Process / regeneration air filter
- Rubber anti-vibration feet
- Dual air inlet design
- Free-standing design

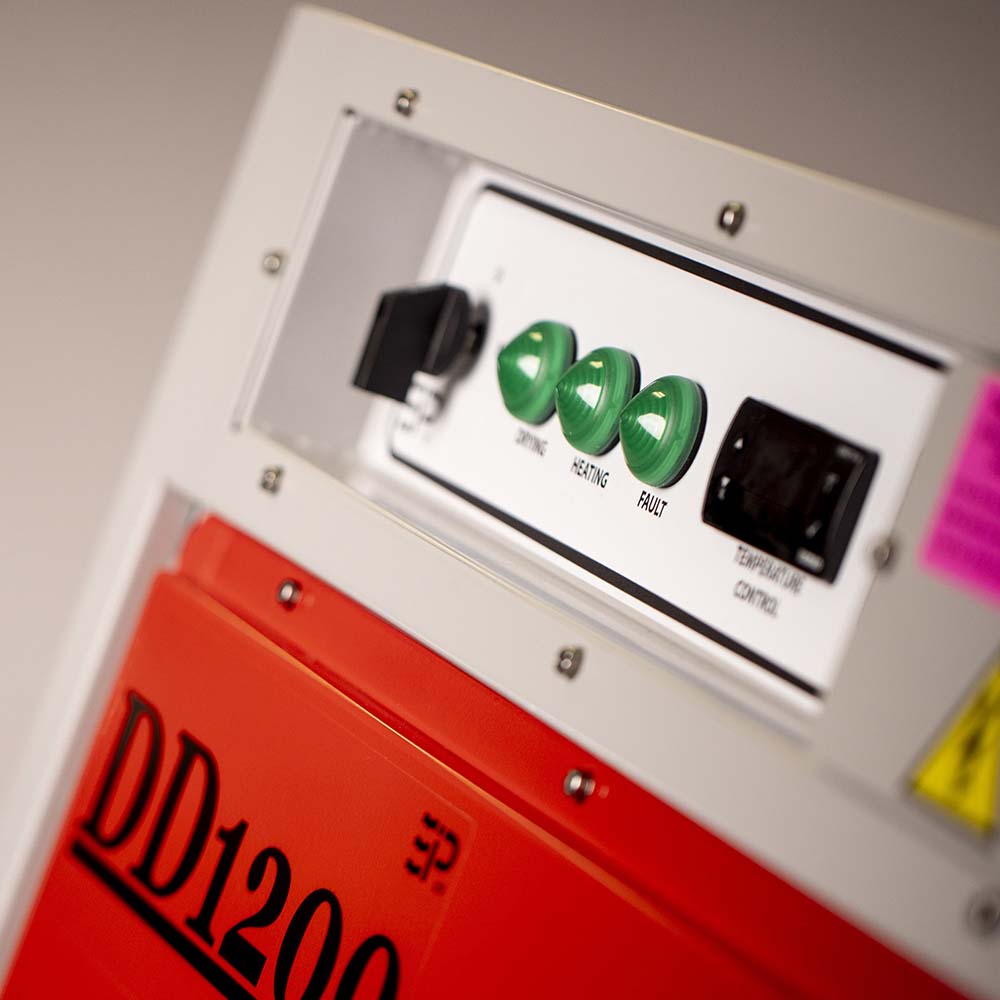

- Status indicators
- Self-contained design
- High-temperature safety cut-outs
What's Included
- 1x DD1200 220V Desiccant Dehumidifier
- 1x DD1200 220V Owner's Manual
- 1x Free Plug
