EBAC DD900 Industrial Desiccant Dehumidifier, 364 Pints/Day, 460V, 9.8kW, 10521GR-US

EBAC DD900 Industrial Desiccant Dehumidifier, 364 Pints/Day, 460V, 9.8kW

High-Capacity Industrial Desiccant Dehumidification

The EBAC DD900 is a high-capacity industrial desiccant dehumidifier designed for moisture control applications requiring low humidity, deep drying, condensation control, and continuous moisture removal. This listing is specifically for manufacturer part number 10521GR-US, the 460V three-phase configuration.

The DD900 provides a High Extraction capacity of 364 pints per day at 27°C and 60% relative humidity. It also provides selectable High Efficiency and Deep Drying settings of 286 PPD and 323 PPD respectively under the manufacturer's stated test conditions.

Desiccant Moisture Removal

The DD900 uses adsorption-based desiccant technology to remove moisture from process air. Incoming air passes over a rotating wheel impregnated with silica gel. Moisture is absorbed by the desiccant wheel before the air leaves the unit as warm, dry air.

As the wheel rotates, a separate regeneration air stream is heated and passed through the regeneration section. The absorbed moisture is released into the regeneration air and exhausted outside the area being dried. This continuous process allows the DD900 to provide moisture removal without conventional refrigeration-style condensate collection.

Three Drying Settings

The DD900 incorporates an electronic thermostat and variable-speed EC fans that allow the desired drying preference to be selected. The available settings are High Extraction, High Efficiency, and Deep Drying.

• High Extraction: 364 PPD at 27°C and 60% RH
• High Efficiency: 286 PPD at 27°C and 60% RH
• Deep Drying: 323 PPD at 27°C and 60% RH

460V Three-Phase Configuration

The 10521GR-US configuration operates at 460V, 3-phase, 60 Hz. It has a listed power rating of 9.8kW and a current rating of 13A. Verify the available electrical supply before installation.

High Airflow Capacity

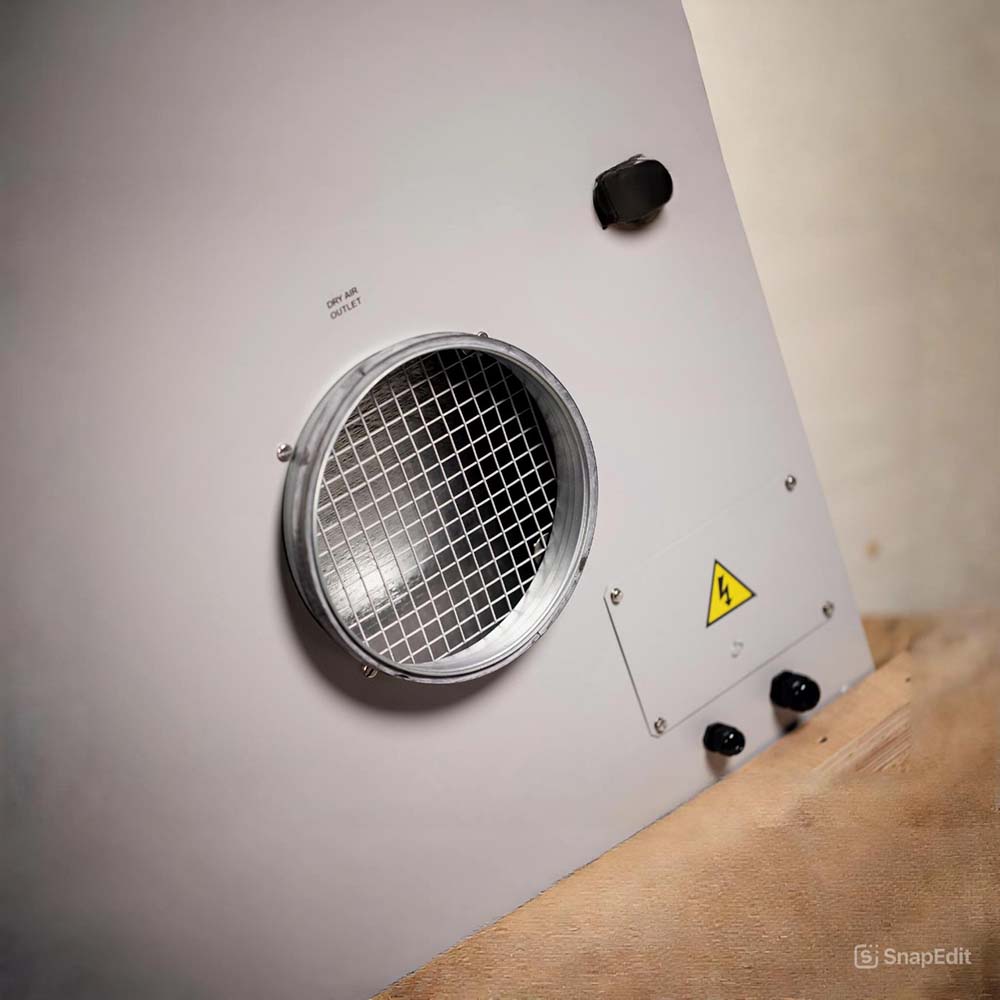

The DD900 provides a maximum process dry-air airflow of 883 CFM, nominal process dry-air airflow of 530 CFM, and nominal regeneration wet-air airflow of 147 CFM. The process air duct size is 8 inches and the regeneration air duct size is 6 inches.

Variable-Speed EC Fans

Two EC high-efficiency fans with variable-speed operation provide flexibility during installation and commissioning. The variable-speed fan system works with the electronic thermostat to support the selected drying mode.

High-Capacity PTC Heaters

The DD900 incorporates high-capacity PTC heaters for the regeneration process. The manufacturer states that the PTC heater helps maximum drying to be reached immediately and maintained while the unit is operating.

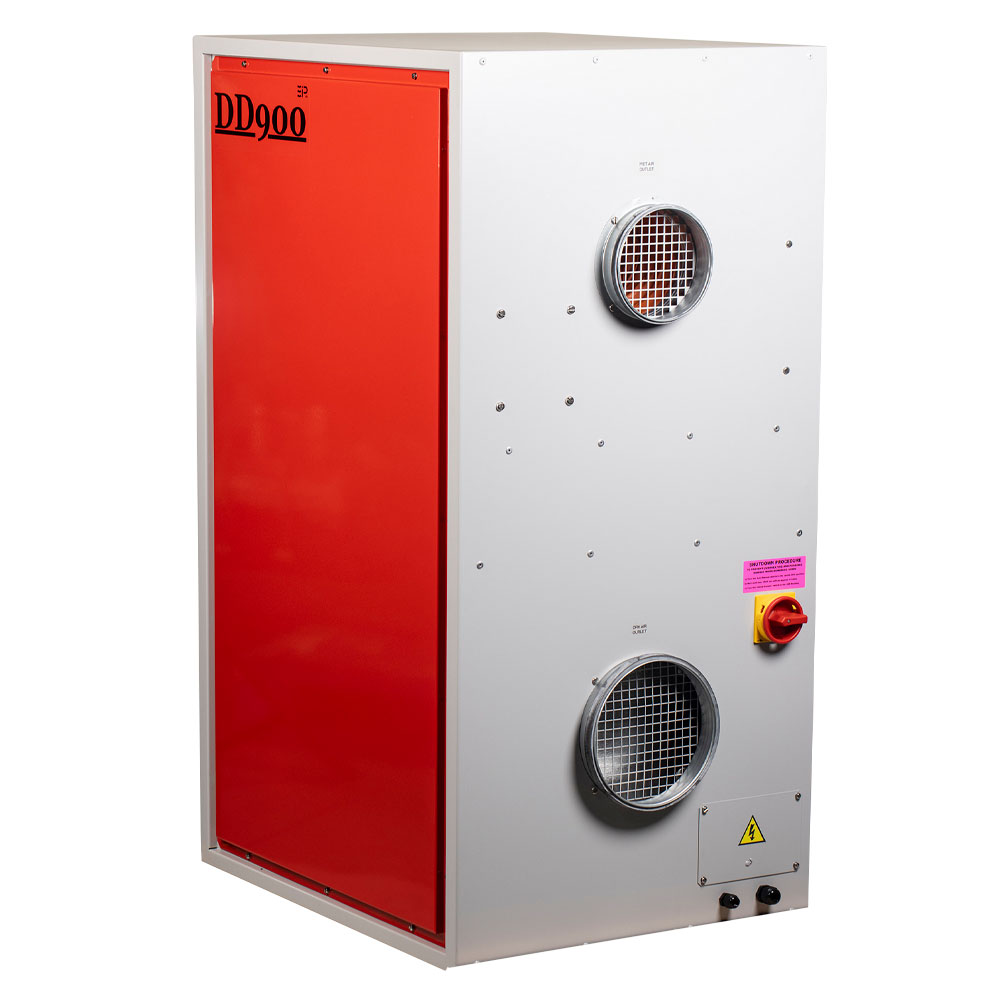

Compact Upright Design

The DD900 uses an upright design intended to fit within space-restricted areas. The unit measures 48 inches high x 28 inches wide x 23 inches deep and weighs 198 pounds.

Humidity Control

The DD900 includes a remote humidity sensor facility and supports optional humidistat accessories. Available options include a rotary humidistat, humidistat with internal sensor, and humidistat with external sensor.

Low-Temperature Operation

The manufacturer specifies an operating temperature range from -4°F to 104°F. Desiccant dehumidifiers are suited to applications where low dew points, deep drying, or low humidity levels are required, including cooler environments.

Key Features

• EBAC DD900 industrial desiccant dehumidifier
• Manufacturer part number 10521GR-US
• 364 PPD High Extraction setting
• 286 PPD High Efficiency setting
• 323 PPD Deep Drying setting
• 460V, 3-phase, 60 Hz operation
• 9.8kW power rating
• 13A current rating
• 883 CFM maximum process airflow
• 530 CFM nominal process airflow
• 147 CFM nominal regeneration airflow
• 8-inch process air duct
• 6-inch regeneration air duct
• 13.6 RPH rotor wheel speed
• Two EC high-efficiency fans
• Variable fan speeds
• High-capacity PTC heaters

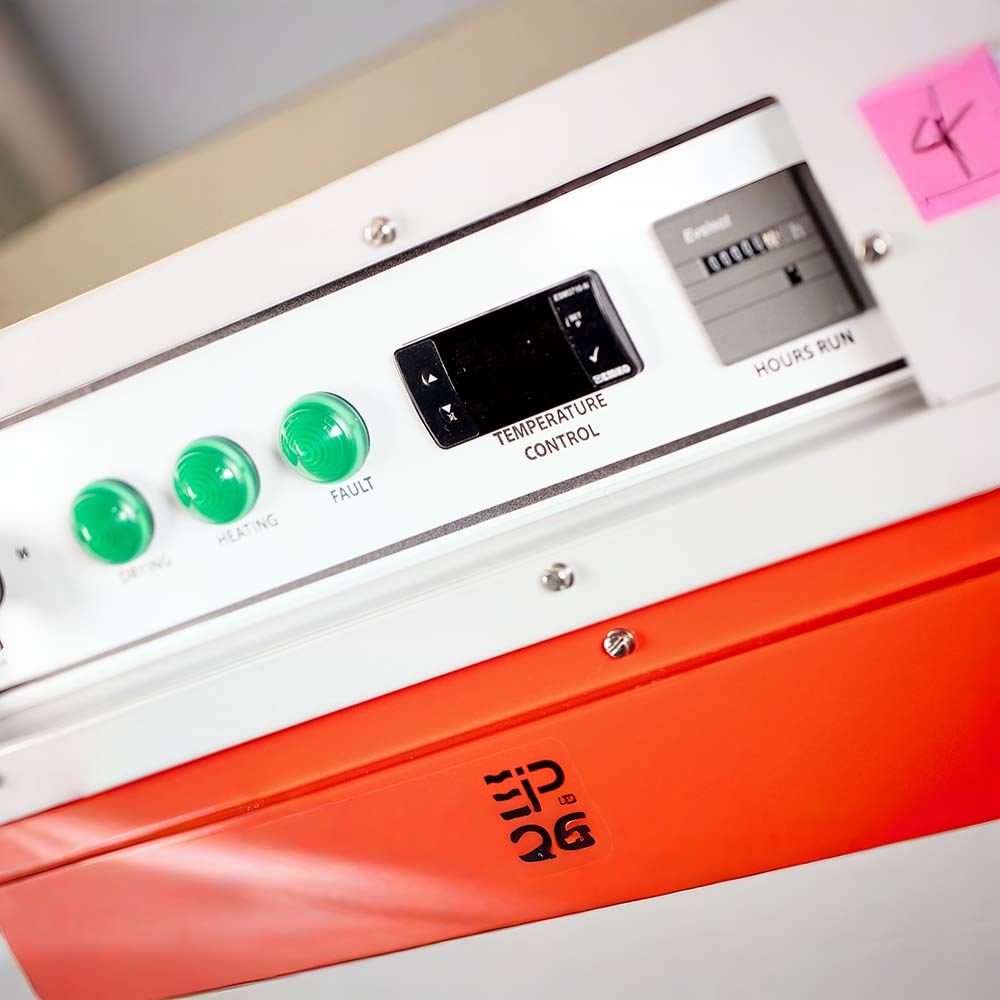

• Electronic controls
• Adjustable thermostat
• Manual / automatic mode selection
• Remote humidity sensor facility
• Hours-run meter
• Process / regeneration air filters
• Dual air inlet design
• Free-standing design
• Status indicators
• Self-contained design
• High-temperature safety cut-outs

What's Included

• 1x DD900 460V Desiccant Dehumidifier
• 1x DD900 460V Owner's Manual

Buying Guide

Review the manufacturer's resources for additional installation, maintenance, replacement-parts, wiring, and technical information before installing the DD900.

• Product Brochure
• Product Instruction Manual
• Product Wiring Diagram
• Product Wiring Schematic

Applications for the EBAC DD900

The EBAC DD900 is designed for high-capacity moisture control where low humidity, deep drying, or condensation management is required. The manufacturer identifies desiccant dehumidification for industrial and moisture-sensitive environments.

Industrial Manufacturing

The DD900 can be used in appropriately designed manufacturing and processing environments where humidity control is required. Its selectable drying settings provide flexibility for different moisture-control requirements.

Pharmaceutical Applications

Desiccant dehumidification can be used in pharmaceutical environments where controlled humidity is required for suitable manufacturing, packaging, or storage applications.

Confectionery and Hygroscopic Products

The manufacturer identifies confectionery and the manufacture, packaging, or storage of hygroscopic products as applications for desiccant dehumidification.

Cold Stores

The DD900 has a specified operating range of -4°F to 104°F, making it suitable for appropriately designed low-temperature moisture-control applications within this range.

Water Damage Applications

The DD900 provides a High Extraction setting of 364 PPD at the manufacturer's stated test conditions, making it suitable for appropriately sized high-capacity drying applications.

Power Stations and Defense Industry

The manufacturer identifies power stations and defense industry applications for the DD900. The unit's high-capacity drying performance and industrial design support demanding moisture-control requirements.

Plastics

The DD900 is also identified for plastics-related applications where humidity needs to be controlled around suitable processes or moisture-sensitive materials.

Frequently Asked Questions

What is the EBAC DD900?

The EBAC DD900 is a high-capacity industrial desiccant dehumidifier designed for moisture removal, low humidity, deep drying, and condensation control.

What is the part number for this configuration?

The manufacturer part number is 10521GR-US.

What is the extraction capacity?

The High Extraction setting is 364 PPD at 27°C and 60% relative humidity. High Efficiency is 286 PPD and Deep Drying is 323 PPD under the same stated conditions.

What voltage does 10521GR-US require?

This exact configuration operates at 460V, 3-phase, 60 Hz.

What is the current rating?

The manufacturer lists the current rating at 13A for 10521GR-US.

What is the power rating?

The DD900 10521GR-US has a listed power rating of 9.8kW.

What is the maximum process airflow?

The maximum process dry-air airflow is 883 CFM. Nominal process airflow is 530 CFM.

What is the regeneration airflow?

The nominal regeneration wet-air airflow is 147 CFM.

What are the duct sizes?

The process air duct size is 8 inches and the regeneration air duct size is 6 inches.

What drying modes are available?

The DD900 provides High Extraction, High Efficiency, and Deep Drying settings through its electronic thermostat and variable-speed EC fan system.

Does the DD900 have variable fan speeds?

Yes. The unit incorporates two EC high-efficiency fans with variable-speed operation.

Can the DD900 use a humidistat?

Yes. The unit includes a remote humidity sensor facility, and optional rotary, internal-sensor, and external-sensor humidistats are available.

What is the operating temperature range?

The manufacturer specifies an operating range from -4°F to 104°F.

What are the dimensions?

The DD900 measures 48 inches high x 28 inches wide x 23 inches deep.

How much does the DD900 weigh?

The manufacturer lists the unit weight at 198 pounds.

What is the rotor wheel speed?

The rotor wheel speed is listed at 13.6 revolutions per hour.

What is included with 10521GR-US?

The package includes one DD900 460V desiccant dehumidifier and one DD900 460V owner's manual.

What should I verify before ordering?

Verify the exact 10521GR-US part number, 460V three-phase electrical supply, required drying mode, airflow requirements, duct configuration, operating temperature, installation space, and optional accessories.
