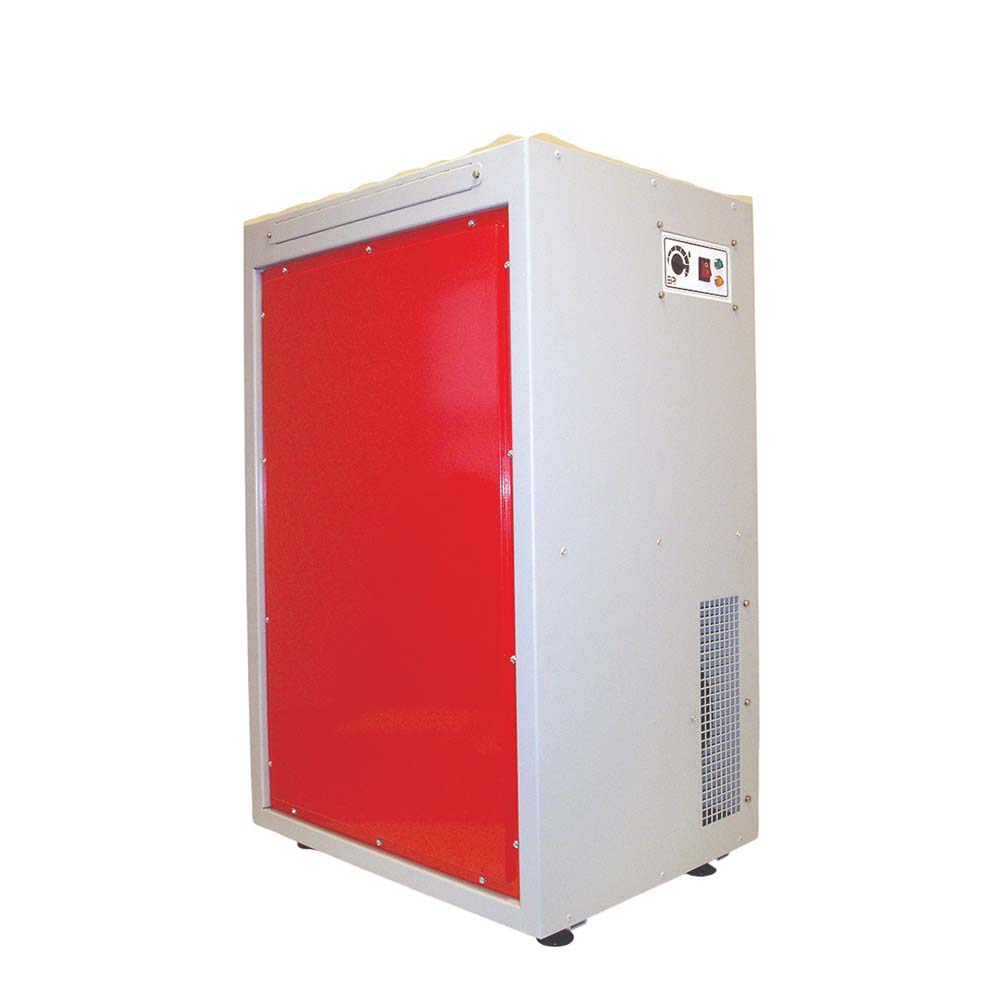

EBAC FreeStar Commercial Industrial Dehumidifier, 105 Pints/Day, 10,594 Cu. Ft., 110V, 900W, 10283GR-US

EIPL FreeStar Commercial Industrial Dehumidifier, 105 Pints/Day, 300 m3, 110V

High-Capacity Moisture Control

The EIPL FreeStar is designed to provide energy-efficient humidity control in commercial and industrial environments. Its refrigeration-based dehumidification system removes moisture from the air while the internal humidistat helps maintain the selected humidity level through automatic operation.

The manufacturer lists typical extraction of 105 pints per day and an effective volume of 300 m3. Actual moisture removal can vary according to temperature, relative humidity, moisture load, airflow, and environmental conditions.

Two-Stage Cooling and Drying

The FreeStar incorporates two-stage cooling and drying along with an air-to-air heat exchange system. Moist air is drawn through the unit and passes over the cold evaporator coil, where moisture condenses. The air is then reheated before being returned to the surrounding space.

This refrigeration process allows the unit to continuously circulate air while progressively reducing the relative humidity of an appropriately sized area.

Reverse Cycle Defrost for Low-Temperature Operation

The EIPL FreeStar features a temperature-sensitive reverse cycle defrost system. The manufacturer specifies an operating temperature range from 33°F to 105°F, allowing the unit to operate in cooler environments within its rated range.

The reverse cycle defrost system is designed to automatically remove frost from the unit when required, helping support continued operation under suitable low-temperature conditions.

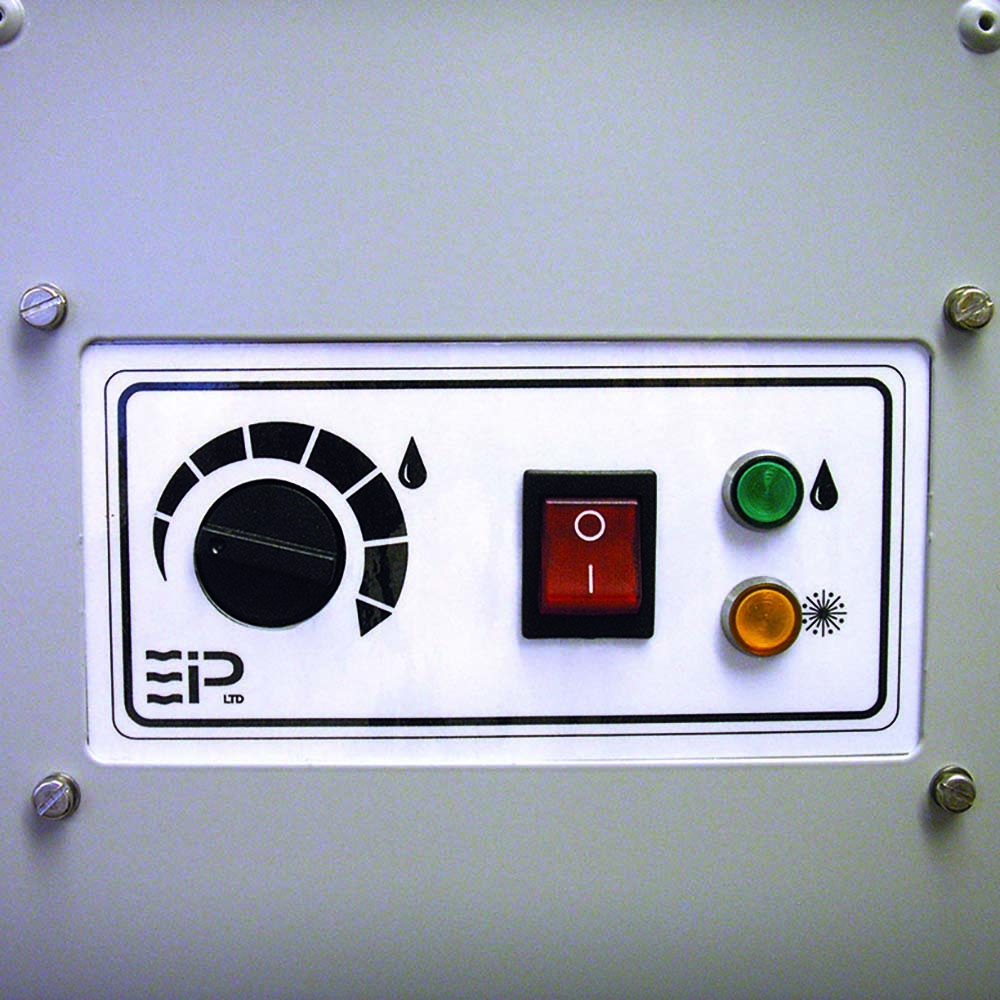

Adjustable Humidity Control

The FreeStar includes an internal humidistat and also provides a facility for a remote humidistat. The humidity control allows the unit to switch on and off automatically according to the selected humidity level.

Automatic humidity control can help avoid unnecessary continuous operation when the desired level of dryness has been reached.

High-Static Airflow

The FreeStar uses a high-static backward-inclined fan designed to maximize air delivery over longer distances. The manufacturer lists airflow at 914 m3/hr.

This airflow configuration makes the unit suitable for appropriate HVAC and facility environments where air circulation and moisture removal need to be coordinated.

Built for Commercial and Industrial Environments

The FreeStar features an epoxy powder-coated chassis, adjustable feet, and a fitted mains ground-fault interrupter plug. These features support installation in suitable commercial and industrial settings.

The unit measures 38 inches high x 24 inches wide x 19 inches deep and weighs 160 pounds. Customers should verify the available floor space, access route, and installation requirements before ordering.

Integrated Condensate Pump

The FreeStar includes an internal high-capacity condensate pump for removing collected moisture. A quick-release hose coupling and a 25-foot PVC drain hose are also listed among the product features.

The included drainage arrangement can simplify condensate removal where the installation permits appropriate routing. Customers should verify the intended drainage location and hose routing before installation.

Efficient Refrigeration-Based Dehumidification

The FreeStar uses a rotary compressor and refrigeration-based moisture removal. Moist air is drawn into the unit, cooled across the evaporator coil, and dehumidified as moisture condenses. The air then passes through the condenser coil before being discharged back into the room.

The manufacturer lists 900W power consumption, 8A current, and a noise level of 57 dBA. The unit operates on 110V, single-phase, 60 Hz electrical power.

Washable Inlet Filter

A washable inlet filter is included as part of the FreeStar's design. The filter can be removed for cleaning as part of appropriate routine maintenance.

Maintaining the inlet filter according to the manufacturer's instructions helps keep the air intake clear and supports proper operation.

Key Features

• High-capacity commercial and industrial dehumidifier
• 105 pints/day typical extraction
• 300 m3 effective volume listed by the manufacturer
• 110V, single-phase, 60 Hz operation
• 900W power consumption
• 8A current
• 914 m3/hr airflow
• 57 dBA listed noise level
• Two-stage cooling and drying
• Low amp draw
• Washable inlet filter
• High-static backward-inclined fan
• Adjustable feet
• Fitted mains GFI plug
• Internal high-capacity condensate pump
• Internal humidistat
• Facility for remote humidistat
• Temperature-sensitive defrost control
• Reverse cycle defrost system
• Rotary compressor
• Epoxy powder-coated chassis
• 25-foot power cord
• 25-foot PVC drain hose
• Quick-release hose coupling
• Status indicators
• Operating temperature range of 33°F to 105°F

What's Included

• 1 x FreeStar Dehumidifier
• 1 x FreeStar Owner's Manual
• 1 x 6 Pin Plug
• 1 x PVC Tube - 3/8-inch ID - 7.8 meters long
• 1 x Quick Release Hose Clip

Product Resources

Review the manufacturer's resources for additional installation, maintenance, replacement-parts, wiring, and technical information before installing the FreeStar.

• Product Brochure
• Product Instruction Manual
• Product Wiring Diagram
• Product Wiring Schematic

Applications for the EIPL FreeStar

The EIPL FreeStar is a commercial and industrial dehumidifier designed for humidity control in a wide range of suitable HVAC and facility environments. The manufacturer identifies applications including offices, laboratories, storage areas, restaurants, bars, museums, locker rooms, computer and telecommunication rooms, and basements.

Offices

Offices can experience humidity fluctuations due to building conditions, occupancy, ventilation, and seasonal changes. The FreeStar can provide dedicated humidity control for suitable office environments where its capacity, dimensions, and noise level are appropriate.

Laboratories

Laboratory areas may require controlled environmental conditions for appropriate facility management. The FreeStar can be considered for suitable laboratory humidity-control applications when its operating requirements meet the facility's needs.

Customers should follow any environmental requirements associated with laboratory equipment or processes and should not rely on the dehumidifier as a substitute for specialized environmental controls.

Storage Areas

Storage areas can require humidity management to maintain suitable environmental conditions for stored materials and equipment. The FreeStar can provide moisture removal in appropriately sized storage environments.

Before installation, evaluate the size of the storage area, expected moisture load, temperature, and drainage requirements.

Restaurants and Bars

Restaurants and bars can experience elevated humidity due to food preparation, occupancy, washing, ventilation, and other facility activities. The FreeStar can be used for suitable humidity-control applications where its electrical, installation, and environmental requirements can be met.

Museums

Museums may require controlled humidity conditions as part of broader facility environmental management. The FreeStar can provide dehumidification for suitable areas where the equipment's operating characteristics are appropriate.

For sensitive collections or specialized environments, follow the environmental specifications established for the collection and facility.

Locker Rooms

Locker rooms can experience increased humidity from showers, wet clothing, occupancy, and regular facility use. The FreeStar can be considered for appropriate commercial locker-room humidity-control applications.

Computer and Telecommunication Rooms

Computer and telecommunication rooms may require controlled environmental conditions for facility operation. The manufacturer identifies these rooms as potential applications for the FreeStar.

Customers should verify the environmental requirements of the equipment installed in the room and ensure that the dehumidifier's operating conditions are suitable.

Basements

Basements can experience elevated humidity and moisture-related environmental conditions. The FreeStar can provide dehumidification for appropriately sized basement areas where suitable electrical power and condensate drainage are available.

Typical Facilities

Environmental Considerations

The FreeStar is specified for operation from 33°F to 105°F. Its reverse cycle defrost system is designed to support operation in cooler conditions within the manufacturer's specified range.

Customers should evaluate the expected temperature, humidity, moisture load, air circulation, and available installation space before selecting the unit.

Drainage Considerations

The FreeStar includes an integral condensate pump and drainage components. The supplied PVC tube is listed as 3/8-inch inside diameter and 7.8 meters long. Confirm that the planned condensate route is suitable for the installation.

Frequently Asked Questions

The following FAQs address common questions about the EIPL FreeStar commercial and industrial dehumidifier, including capacity, electrical requirements, installation, operation, drainage, and applications.

What is the EIPL FreeStar?

The EIPL FreeStar is a high-capacity commercial and industrial dehumidifier designed for humidity control in suitable HVAC, commercial, industrial, and facility environments.

What is the part number for the FreeStar?

The manufacturer part number for the FreeStar is 10283GR-US. Verify this part number when ordering to ensure you are selecting the exact product.

How much moisture does the FreeStar remove?

The manufacturer lists typical extraction of 105 pints per day. Actual moisture removal can vary according to environmental conditions and moisture load.

What is the effective volume of the FreeStar?

The manufacturer lists an effective volume of 300 m3.

What voltage does the FreeStar use?

The FreeStar operates on 110V, single-phase, 60 Hz electrical power.

How much power does the FreeStar consume?

The manufacturer lists power consumption at 900W and current at 8A.

What is the airflow rating?

The FreeStar has a listed airflow of 914 m3/hr.

What is the operating temperature range?

The manufacturer specifies an operating temperature range of 33°F to 105°F.

Does the FreeStar have a humidistat?

Yes. The FreeStar includes an internal humidistat and provides a facility for a remote humidistat.

Does the FreeStar have automatic defrost?

Yes. The unit uses a temperature-sensitive reverse cycle defrost system.

What type of compressor does the FreeStar use?

The manufacturer specifies a rotary compressor.

Does the FreeStar have a condensate pump?

Yes. The FreeStar includes an integral high-capacity condensate pump.

What drain hose is included?

The product includes a PVC tube listed as 3/8-inch inside diameter and 7.8 meters long, along with a quick-release hose clip.

What are the dimensions of the FreeStar?

The manufacturer lists dimensions of 38 inches high x 24 inches wide x 19 inches deep.

How much does the FreeStar weigh?

The FreeStar weighs 160 pounds.

How loud is the FreeStar?

The manufacturer lists the noise level at 57 dBA.

Does the FreeStar have a washable filter?

Yes. The unit features a washable inlet filter.

Does the FreeStar include a GFI plug?

Yes. The manufacturer lists a fitted mains ground-fault interrupter plug.

What type of fan does the FreeStar use?

The FreeStar uses a high-static backward-inclined fan. The manufacturer lists airflow at 914 m3/hr.

Where can the FreeStar be used?

Manufacturer-identified applications include offices, laboratories, storage areas, restaurants, bars, museums, locker rooms, computer and telecommunication rooms, and basements.

Can the FreeStar be used in a basement?

Yes. Basements are identified by the manufacturer as a potential application. The installation should meet the unit's temperature, electrical, capacity, space, and drainage requirements.

Can the FreeStar be used in an office?

Yes. Offices are among the manufacturer-identified applications. Customers should consider the unit's 57 dBA listed noise level, dimensions, and capacity when selecting an installation location.

Can the FreeStar be used in a laboratory?

Yes. Laboratories are identified as an application. However, customers should verify any environmental requirements associated with laboratory equipment, processes, or materials before installation.

Can the FreeStar be used in a museum?

Yes. Museums are listed by the manufacturer as an application. For sensitive collections, follow the required environmental conditions established for the facility and collection.

What comes with the EIPL FreeStar?

The standard package includes the FreeStar dehumidifier, FreeStar owner's manual, a 6-pin plug, a 3/8-inch ID PVC tube measuring 7.8 meters long, and a quick-release hose clip.

What should I verify before ordering the FreeStar?

Verify the exact FreeStar / 10283GR-US part number, required capacity, 300 m3 effective volume, 110V electrical supply, available installation space, expected operating temperature, and condensate drainage arrangement.

Is the FreeStar suitable for commercial use?

Yes. The FreeStar is identified by the manufacturer as a commercial and industrial dehumidifier designed for suitable HVAC and facility applications.

What is the difference between the FreeStar and another EIPL dehumidifier?

EIPL offers multiple dehumidifier models with different capacities, dimensions, electrical requirements, and operating specifications. Specifications from another model should not be substituted for the FreeStar. Verify the exact model and part number before ordering.

Does the FreeStar have remote humidistat capability?

Yes. The manufacturer lists a facility for a remote humidistat in addition to the internal humidistat.
