EBAC PD220-D Industrial Dehumidifier, 190 Pints/Day, 21,189 Cu. Ft., 220V, 2,100W, 10157GY-US

EBAC PD220-D Industrial Dehumidifier

High-Capacity Industrial Humidity Control

The EBAC PD220-D is a high-capacity industrial dehumidifier designed to remove excess moisture from large interior spaces. This exact configuration is identified by manufacturer part number 10157GY-US and operates at 220V, single phase, 60 Hz. The unit provides a typical extraction rate of 190 pints per day at 80°F and 60% RH and 220 pints per day at 80°F and 80% RH, with an effective volume of 21,189 cubic feet.

The PD220-D combines an adjustable digital control humidistat, two-speed centrifugal fan, temperature-sensitive reverse-cycle defrost, internal diagnostics, recirculation mode, and ducting capability. Its self-contained design supports straightforward installation, while the included duct flanges allow the unit to be configured for ducted applications when required.

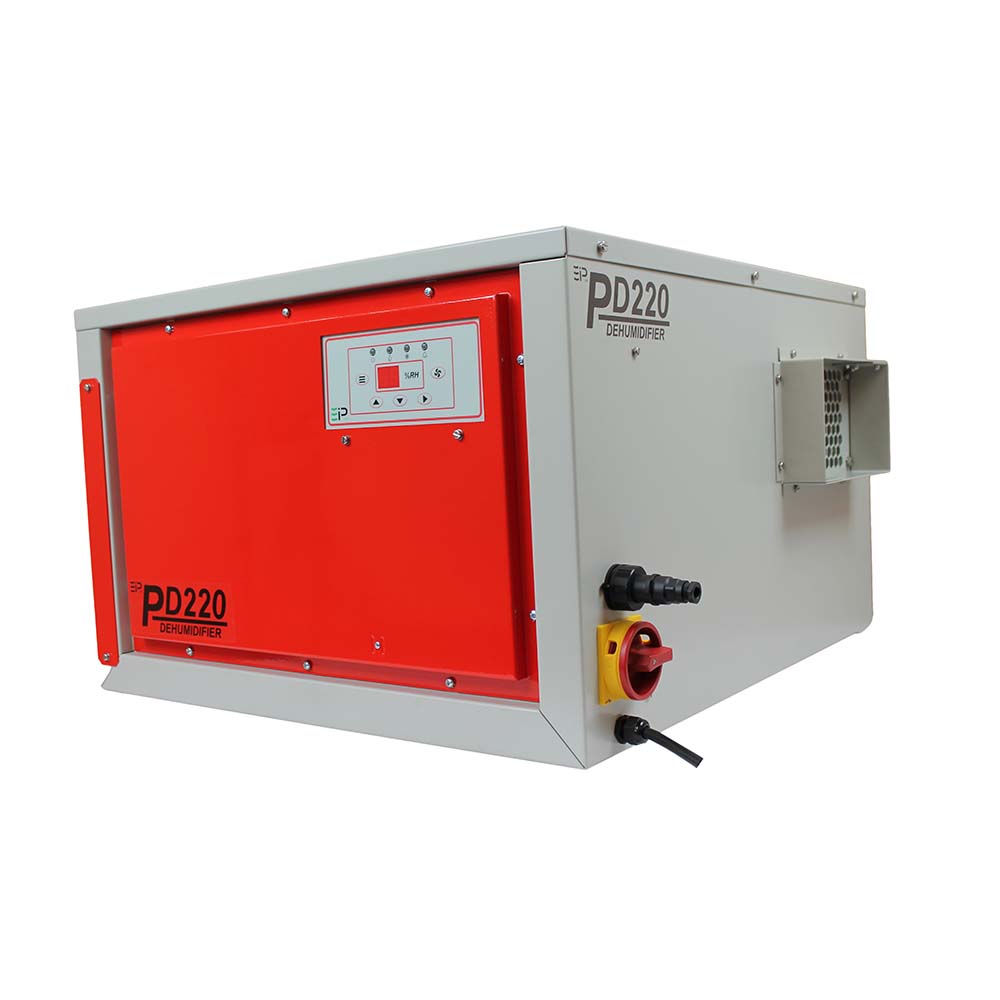

Digital Humidity Control

The PD220-D features an internal humidistat and control system for managing humidity levels. The adjustable digital control humidistat allows the desired relative humidity level to be selected. A remote humidistat option and remote touch panel interface are also available for installations requiring remote humidity control or monitoring.

System status indicators and an internal diagnostics menu provide information about unit operation. Recirculation mode is also available when air circulation is required without active dehumidification.

High-Capacity Moisture Removal

The manufacturer specifies typical extraction of 190 pints per day at 80°F/60% RH and 220 pints per day at 80°F/80% RH. With an effective volume of 21,189 cubic feet, the PD220-D is designed for appropriately sized large-area humidity-control applications.

Refrigeration-Based Dehumidification

The PD220-D removes moisture through a refrigeration process. Moist air is drawn into the unit by the fan and passes over the cold evaporator coil. As the air is cooled below its dew point, moisture condenses on the evaporator coil and collects in the condensate tray before being discharged through the condensate tube.

The cooled air then passes through the hot condenser coil, where it is reheated using energy recovered during the cooling process together with heat generated by the compressor. The air is returned to the space at a slightly higher temperature and with lower absolute humidity.

Temperature-Sensitive Reverse-Cycle Defrost

The PD220-D incorporates EIPL's temperature-sensitive reverse-cycle defrost system. The system automatically melts frost buildup from the evaporator coil, supporting dehumidification operation within the manufacturer's specified operating range of 33°F to 95°F.

Two-Speed Centrifugal Fan

The unit uses a two-speed centrifugal fan. Manufacturer specifications list airflow of 586 CFM at low speed and 665 CFM at high speed. The listed noise level is 73 dBA.

Self-Contained and Ductable Design

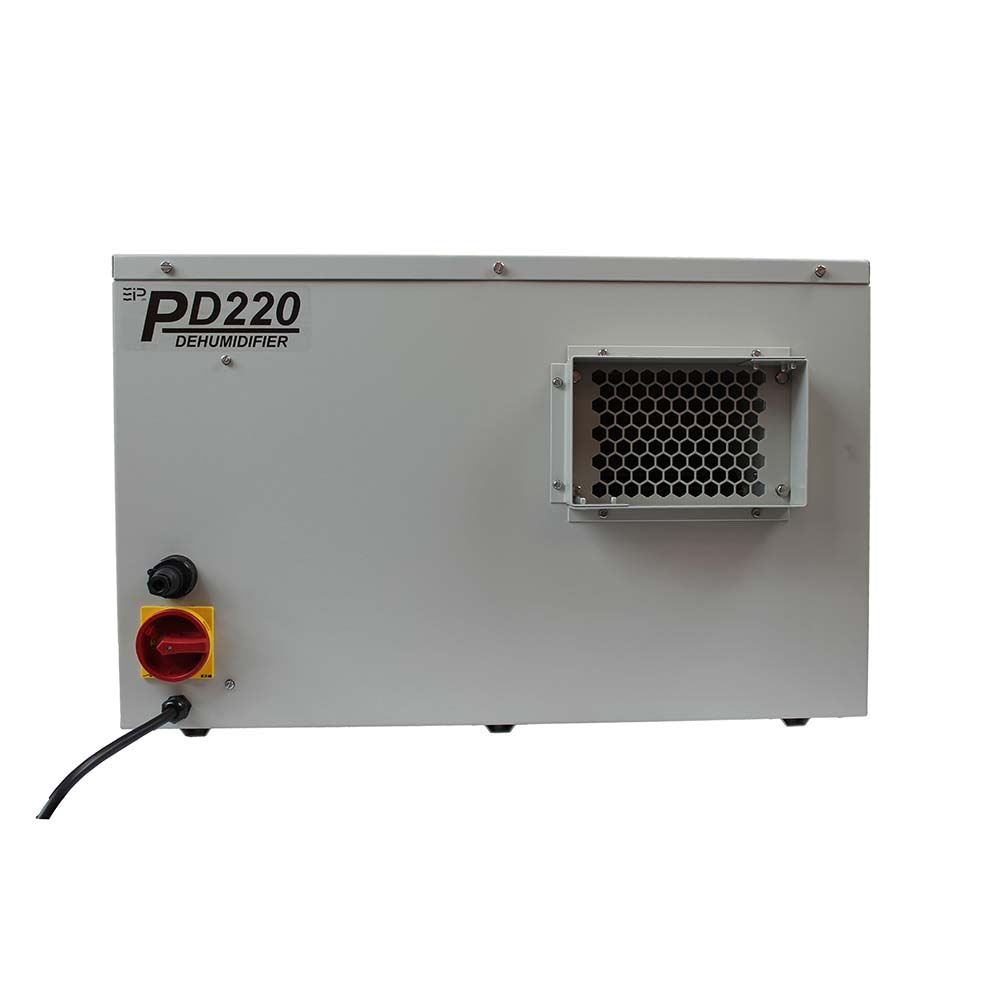

The PD220-D is self-contained for quick and easy installation and can be ducted if desired. Duct flanges are included, providing flexibility for installations that require controlled air distribution.

Heavy-Duty Construction

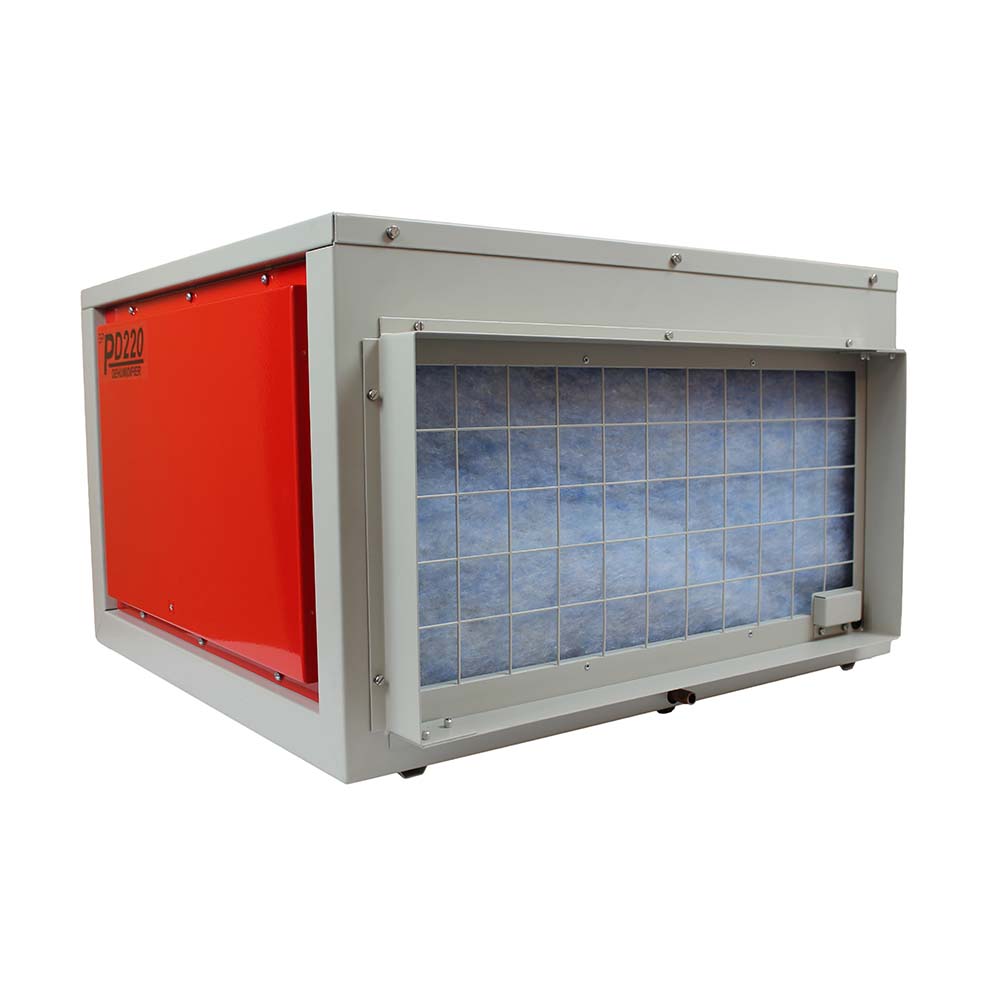

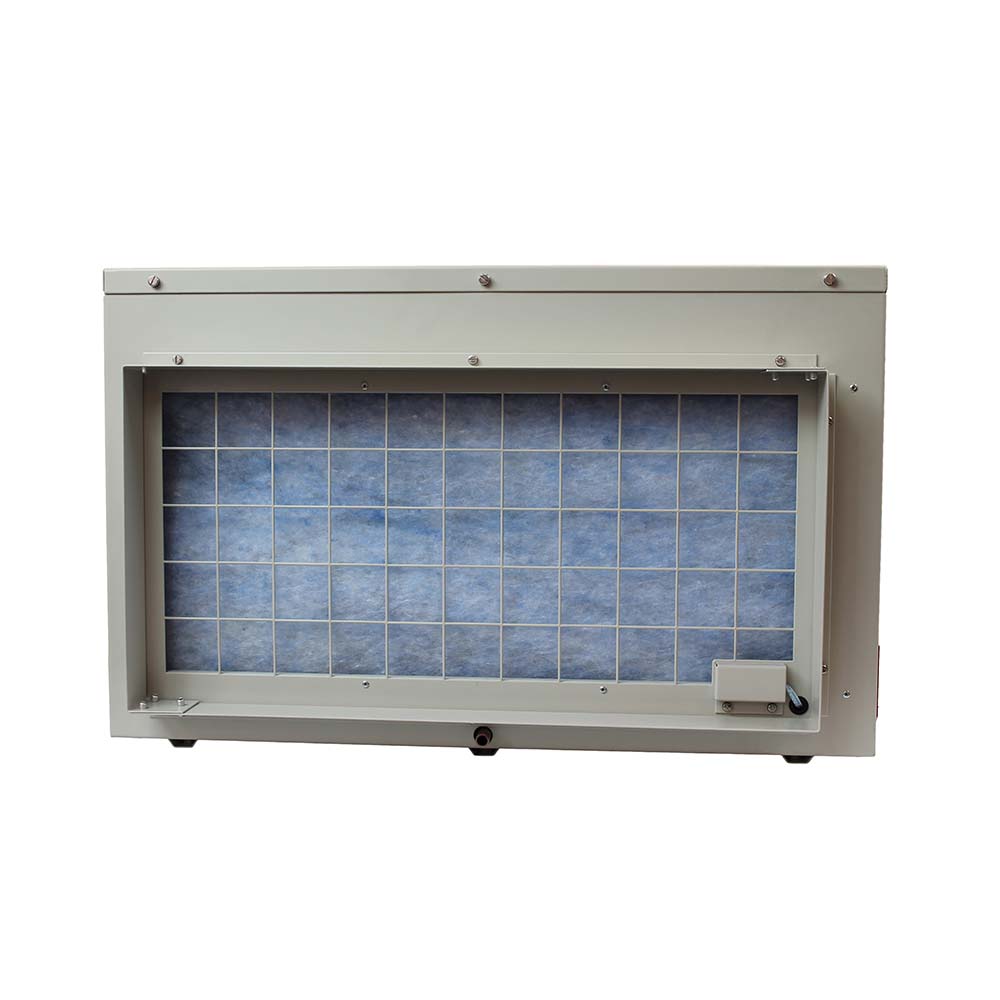

The manufacturer describes the PD220-D as using totally enclosed coils housed in an epoxy-coated, heavy-gauge steel case. An epoxy powder coating is also listed among the product features. The unit includes an easy-to-change cartridge air filter.

Key Features

• High-capacity industrial dehumidifier
• Model PD220-D
• Part number 10157GY-US
• 190 ppd typical extraction at 80°F/60% RH
• 220 ppd typical extraction at 80°F/80% RH
• 21,189 cu. ft. effective volume
• 220V, single phase, 60 Hz
• 2,100W power
• 10A current
• 586 CFM low-speed airflow
• 665 CFM high-speed airflow
• 73 dBA noise level
• R32 refrigerant
• Adjustable digital control humidistat
• Internal humidistat and control
• Remote humidistat option
• Remote touch panel interface
• System status indicators
• Internal diagnostics menu
• Recirculation mode
• Electronic defrost control
• Temperature-sensitive defrost
• Reverse-cycle defrost
• Two fan speeds
• Centrifugal fan
• Duct flanges
• Cartridge air filter
• Epoxy powder coating

What's Included

• 1 x PD220-D Dehumidifier
• 1 x PD220-D Owner's Manual
• 1 x 6 Pin Plug
• 1 x 3/8" PVC Tube I/D � 3M long
• 1 x Jubilee Clip

Product Resources

Review the manufacturer's product resources for technical, installation, operating, maintenance, and wiring information before purchasing or installing the EBAC PD220-D.

• Product Brochure
• Product Instruction Manual
• Product Wiring Diagram
• Product Wiring Schematic

Confirm the Exact SKU

This listing is specifically for PD220-D, part number 10157GY-US. Verify the model and part number before ordering to ensure the correct configuration is selected.

Consider Dehumidification Capacity

The PD220-D provides typical extraction of 190 pints per day at 80°F/60% RH and 220 pints per day at 80°F/80% RH. The effective volume is 21,189 cubic feet. Select the unit according to the actual space volume, moisture load, temperature, and humidity requirements.

Verify Electrical Requirements

This exact SKU operates at 220V, single phase, 60 Hz, with 2,100W power and 10A current. Verify the available electrical supply before installation.

Consider Drainage

The PD220-D is equipped with a 1/2-inch O/D gravity drain. Plan an appropriate condensate drainage route during installation.

Consider Ducted Installation

The unit includes duct flanges and can be ducted if desired. Review the installation requirements and available space before selecting a ducted configuration.

Remote Control Options

A remote humidistat and remote touch panel are available as options. These accessories can be considered when remote humidity monitoring or control is required.

Applications for the EBAC PD220-D

The EBAC PD220-D is a high-capacity dehumidifier intended for humidity control in large interior spaces. The manufacturer describes the PD digital range for industry, institutions, swimming pools, and other appropriately sized applications where controlled humidity is required.

Industrial and Institutional Spaces

The PD220-D is part of EIPL's high-capacity PD digital range designed for industrial and institutional humidity-control applications. Its 21,189 cubic foot effective volume and high extraction capacity make it suitable for appropriately sized spaces.

Swimming Pool and Spa Areas

The manufacturer identifies pool and spa environments as applications where water vapor and evaporation can increase humidity. The PD220-D can be considered for appropriately sized indoor pool or spa environments where its capacity and operating conditions are suitable.

Large Interior Spaces

The PD220-D can be used in large interior areas where excess moisture needs to be removed. Its adjustable humidistat allows the desired relative humidity level to be selected and controlled.

Ducted Applications

The unit includes duct flanges and can be configured for ducted operation. This provides flexibility for installations where controlled air distribution is required.

Low-Temperature Environments

The temperature-sensitive reverse-cycle defrost system supports operation within the manufacturer's specified range of 33°F to 95°F. Applications should remain within this operating range.

Installation Considerations

The PD220-D measures 17.5 inches high x 27.5 inches wide x 26 inches deep and weighs 168 pounds. Provide adequate space for airflow, service access, condensate drainage, and any duct connections. Verify the 220V single-phase electrical supply before installation.

Frequently Asked Questions

What is the EBAC PD220-D?

The EBAC PD220-D is a high-capacity industrial dehumidifier designed for humidity control in large interior spaces.

What is the part number for the PD220-D?

The manufacturer part number is 10157GY-US.

What voltage does SKU 10157GY-US use?

The PD220-D 10157GY-US operates at 220V, single phase, 60 Hz.

What is the power rating?

The manufacturer lists 2,100W power and 10A current.

How much moisture does the PD220-D remove?

The typical extraction rate is 190 pints per day at 80°F/60% RH and 220 pints per day at 80°F/80% RH.

What is the effective volume?

The manufacturer lists an effective volume of 21,189 cubic feet.

What is the airflow?

The airflow is 586 CFM at low speed and 665 CFM at high speed.

How many fan speeds does the PD220-D have?

The PD220-D has two fan speeds.

What type of fan does the PD220-D use?

The manufacturer specifies a centrifugal fan.

What refrigerant does the PD220-D use?

The manufacturer lists R32 refrigerant.

What is the noise level?

The manufacturer lists a noise level of 73 dBA.

Does the PD220-D have a humidistat?

Yes. The PD220-D includes an internal humidistat and control with an adjustable digital control humidistat.

Is a remote humidistat available?

Yes. The manufacturer lists a remote humidistat option.

Is a remote touch panel available?

Yes. The PD220-D has a remote touch panel interface, with the Remote Touch Panel available as an accessory.

Does the PD220-D have a diagnostics menu?

Yes. The unit includes an internal diagnostics menu and system status indicators.

Does the PD220-D have a defrost system?

Yes. It includes electronic defrost control and temperature-sensitive reverse-cycle defrost.

What is the operating temperature range?

The manufacturer specifies a minimum operating temperature of 33°F and a maximum operating temperature of 95°F.

Can the PD220-D be ducted?

Yes. The manufacturer states that the unit can be ducted if desired, and duct flanges are provided.

Does the PD220-D have a gravity drain?

Yes. The manufacturer specifies a 1/2-inch O/D gravity drain.

What type of compressor does it use?

The manufacturer specifies a rotary compressor.

What are the dimensions?

The PD220-D measures 17.5 inches high x 27.5 inches wide x 26 inches deep.

How much does the PD220-D weigh?

The unit weighs 168 pounds.

What applications can the PD220-D be used for?

The manufacturer describes the PD digital range for industrial, institutional, swimming pool, spa, and other appropriately sized humidity-control applications.

What comes with SKU 10157GY-US?

The package includes one PD220-D Dehumidifier, one PD220-D Owner's Manual, one 6 Pin Plug, one 3/8-inch PVC tube with 3-meter length, and one Jubilee Clip.

What is the heat recovery rating?

The manufacturer lists heat recovery at 15,500 BTU.
