EBAC PD150-D Industrial Dehumidifier, 145 Pints/Day, 15,892 Cu. Ft., 220V, 1,900W, 10156GY-US

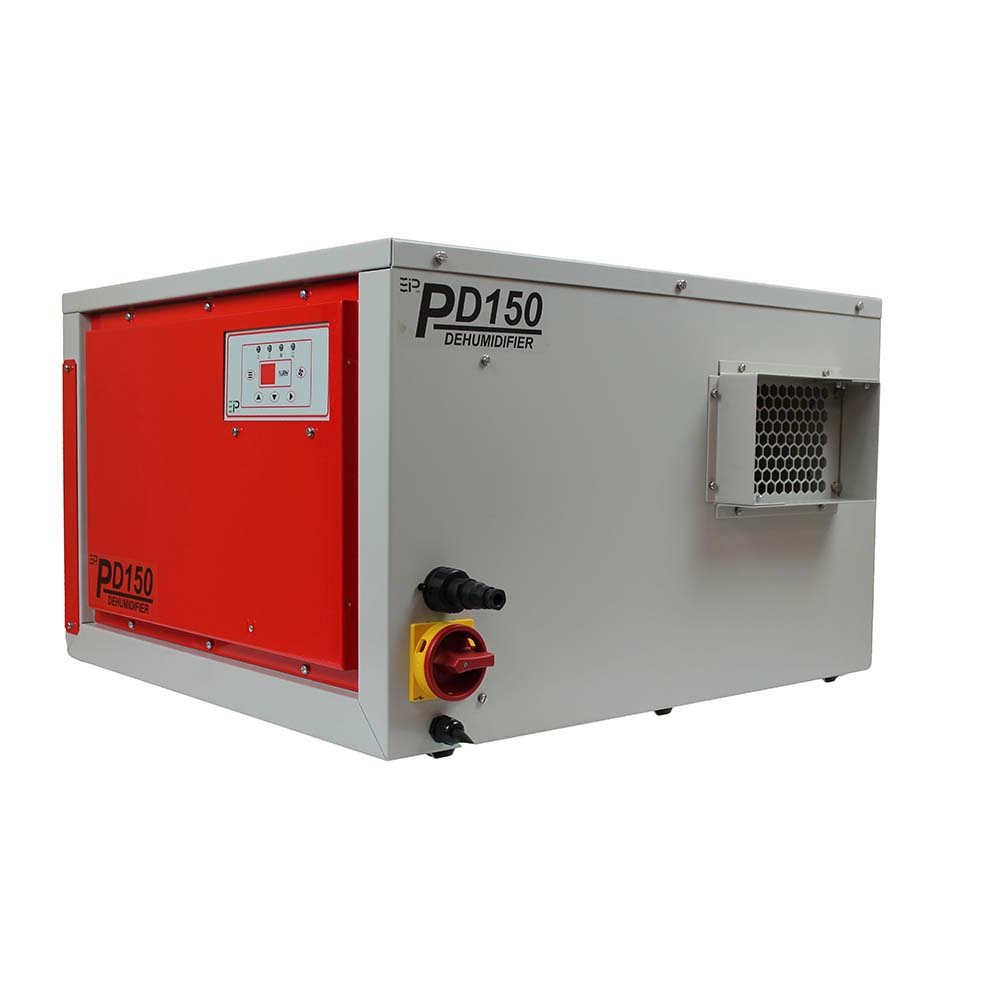

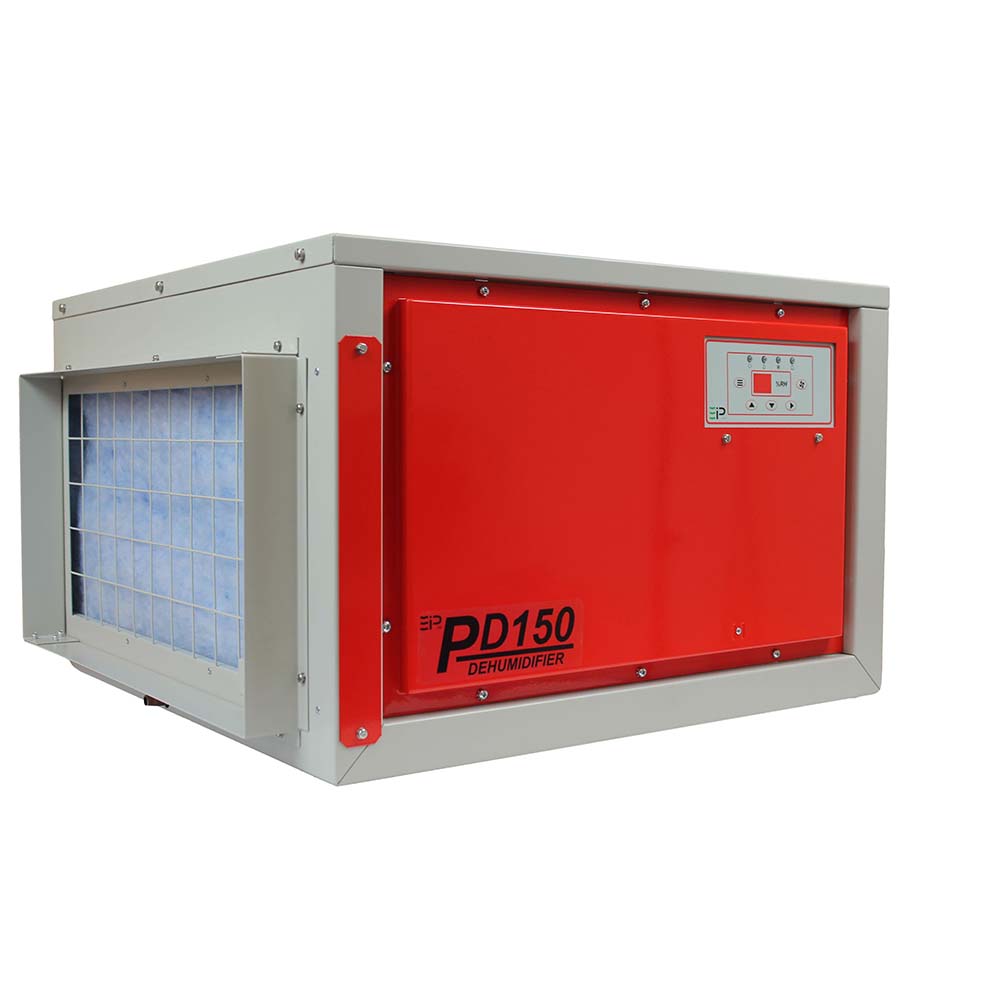

EBAC PD150-D Industrial Dehumidifier

High-Capacity Industrial Humidity Control

The EBAC PD150-D is a high-capacity industrial dehumidifier designed for humidity control in large interior spaces. This exact configuration is identified by manufacturer part number 10156GY-US and operates on 220V, single phase, 60 Hz power. The unit provides a typical extraction rate of 145 pints per day at 80°F and 60% RH and 170 pints per day at 80°F and 80% RH, with an effective volume of 15,892 cubic feet.

The PD150-D combines an adjustable digital control humidistat, two-speed centrifugal fan, temperature-sensitive reverse-cycle defrost, internal diagnostics, and ducting capability. It is designed as a self-contained unit for quick installation and can also be configured for ducted applications.

Digital Humidity Control

The PD150-D features an internal humidistat and control system that allows humidity levels to be managed according to application requirements. A remote humidistat option and remote touch panel interface are also available for applications requiring remote monitoring or control.

The system includes status indicators and an internal diagnostics menu to help monitor unit operation. Recirculation mode is also provided when air circulation is required without active dehumidification.

High-Capacity Moisture Removal

The manufacturer rates the PD150-D for typical extraction of 145 pints per day at 80°F and 60% RH and 170 pints per day at 80°F and 80% RH. Its effective volume is listed at 15,892 cubic feet, making it suitable for appropriately sized large-area humidity-control applications.

Refrigeration-Based Dehumidification

The PD150-D removes moisture using a refrigeration process. Moist air is drawn into the unit by the fan and passes over the cold evaporator coil. As the air temperature falls below its dew point, moisture condenses on the evaporator coil and is collected in the condensate tray before draining away through the condensate tube.

The cooled air then passes across the hot condenser coil, where it is reheated using recovered energy and heat generated by the compressor. The resulting air is returned to the space warmer and with lower absolute humidity.

Temperature-Sensitive Reverse-Cycle Defrost

The PD150-D incorporates EIPL's temperature-sensitive reverse-cycle defrost system. The defrost function automatically melts frost buildup from the evaporator coil, supporting dehumidification operation within the manufacturer's specified temperature range of 33°F to 95°F.

Two-Speed Centrifugal Fan

A two-speed centrifugal fan provides selectable airflow operation. The manufacturer specifies 586 CFM at low speed and 665 CFM at high speed. The unit has a listed noise level of 69 dBA.

Self-Contained and Ductable Design

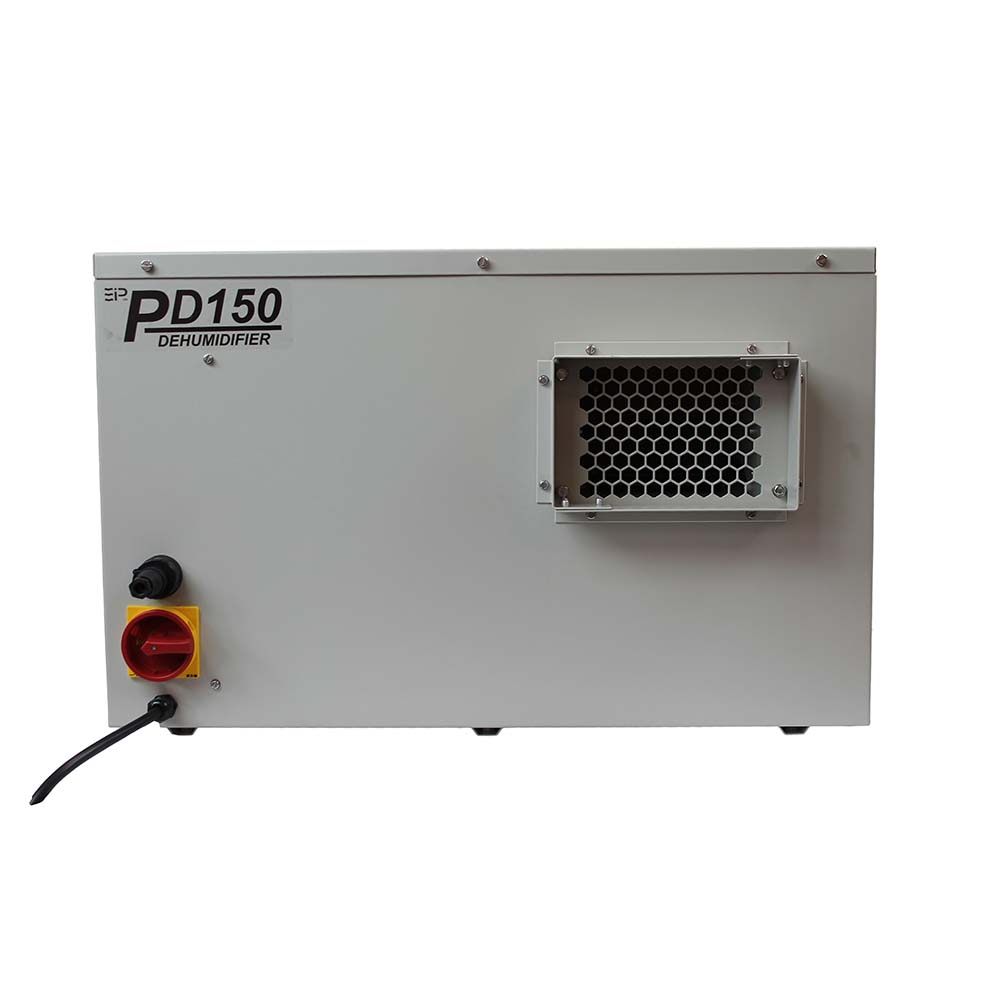

The PD150-D is designed as a self-contained dehumidifier for quick and easy installation. Duct flanges are provided, allowing the unit to be used in appropriately designed ducted systems where the installation requires controlled air distribution.

Heavy-Duty Construction

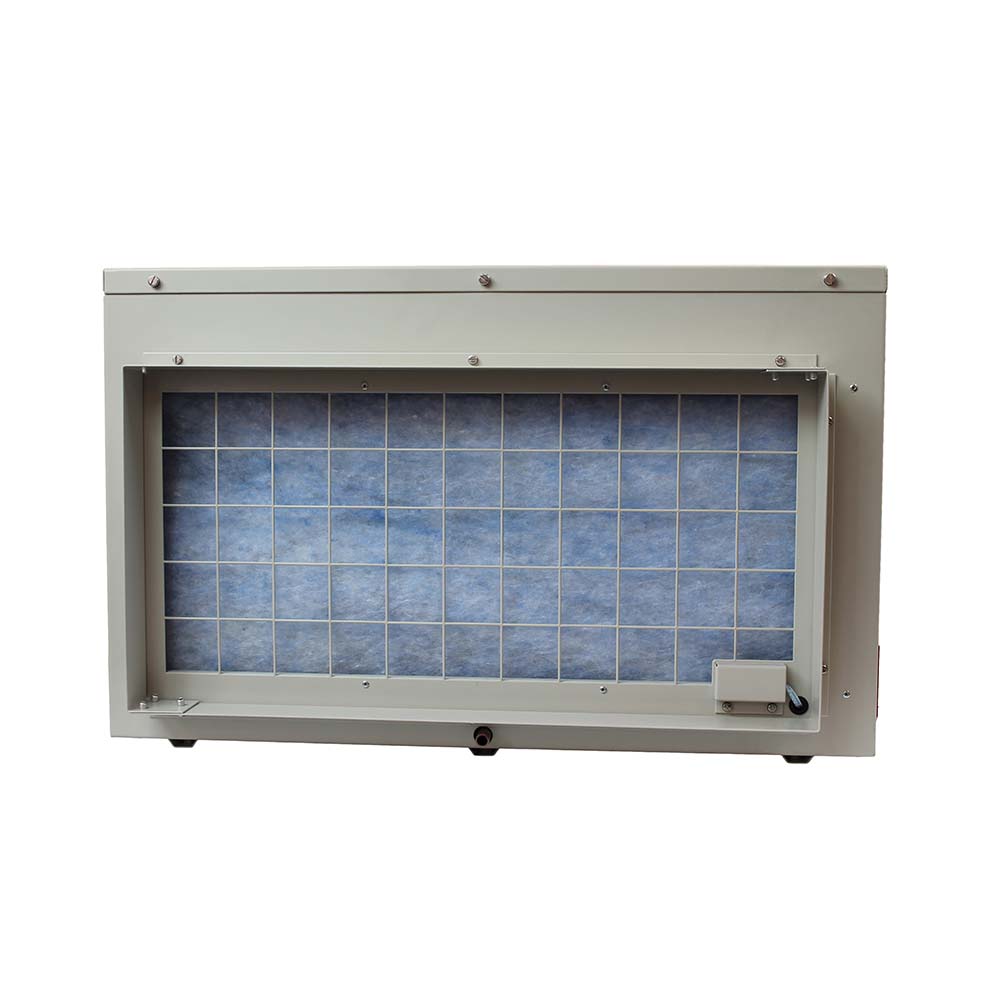

The PD150-D uses totally enclosed coils housed in an epoxy-coated, heavy-gauge steel case. The manufacturer also specifies epoxy powder coating as part of the unit's construction. A cartridge air filter is provided for filtration and can be changed when required.

Key Features

• High-capacity industrial dehumidifier
• Model PD150-D
• Part number 10156GY-US
• 145 ppd typical extraction at 80°F/60% RH
• 170 ppd typical extraction at 80°F/80% RH
• 15,892 cu. ft. effective volume
• 220V, single phase, 60 Hz
• 1,900W power
• 9A current
• 586 CFM low-speed airflow
• 665 CFM high-speed airflow
• 69 dBA noise level
• R32 refrigerant
• Adjustable digital control humidistat
• Internal humidistat and control
• Remote humidistat option
• Remote touch panel interface
• System status indicators
• Internal diagnostics menu
• Recirculation mode
• Electronic defrost control
• Temperature-sensitive reverse-cycle defrost
• Two fan speeds
• Centrifugal fan
• Duct flanges
• Cartridge air filter
• Epoxy powder coating

What's Included

• 1 x PD150-D Dehumidifier
• 1 x PD150-D Owner's Manual
• 1 x 6 Pin Plug
• 1 x 3/8" PVC Tube I/D � 3M long
• 1 x Jubilee Clip

Product Resources

Review the manufacturer's product resources for additional technical, installation, operating, maintenance, and wiring information before purchasing or installing the EBAC PD150-D.

• Product Brochure
• Product Instruction Manual
• Product Wiring Diagram
• Product Wiring Schematic

Applications for the EBAC PD150-D

The EBAC PD150-D is a high-capacity dehumidifier intended for humidity control in large interior spaces. The manufacturer describes the PD digital range for industry, institutions, swimming pools, and other appropriately sized applications where controlled humidity is required.

Industrial and Institutional Spaces

The PD150-D is part of EIPL's high-capacity PD digital range designed for industrial and institutional humidity-control applications. Its 15,892 cubic foot effective volume and high extraction capacity make it suitable for appropriately sized spaces.

Swimming Pool and Spa Areas

The manufacturer identifies pool and spa environments as applications where high humidity can occur due to continuous evaporation. The PD150-D can be considered for appropriately sized indoor pool or spa environments where its capacity and operating conditions are suitable.

Large Interior Spaces

The PD150-D can be used in large interior areas where excess moisture needs to be removed. Its adjustable humidistat allows the desired relative humidity level to be selected and maintained.

Ducted Applications

The unit includes duct flanges and can be configured for ducted operation. This allows the PD150-D to be incorporated into installations where controlled air distribution is required.

Low-Temperature Environments

The temperature-sensitive reverse-cycle defrost system supports operation within the manufacturer's specified range of 33°F to 95°F. Applications should remain within this operating range.

Installation Considerations

The PD150-D measures 17.5 inches high x 27.5 inches wide x 26 inches deep and weighs 146 pounds. Provide adequate space for airflow, service access, condensate drainage, and any duct connections. Verify the 220V single-phase electrical supply before installation.

Frequently Asked Questions

What is the EBAC PD150-D?

The EBAC PD150-D is a high-capacity industrial dehumidifier designed for humidity control in large interior spaces.

What is the part number for the PD150-D?

The manufacturer part number is 10156GY-US.

What voltage does SKU 10156GY-US use?

The PD150-D 10156GY-US operates at 220V, single phase, 60 Hz.

What is the power rating?

The manufacturer lists 1,900W power and 9A current.

How much moisture does the PD150-D remove?

The typical extraction rate is 145 pints per day at 80°F/60% RH and 170 pints per day at 80°F/80% RH.

What is the effective volume?

The manufacturer lists an effective volume of 15,892 cubic feet.

What is the airflow?

The airflow is 586 CFM at low speed and 665 CFM at high speed.

How many fan speeds does the PD150-D have?

The PD150-D has two fan speeds.

What type of fan does the PD150-D use?

The manufacturer specifies a centrifugal fan.

What refrigerant does the PD150-D use?

The manufacturer lists R32 refrigerant.

What is the noise level?

The manufacturer lists a noise level of 69 dBA.

Does the PD150-D have a humidistat?

Yes. The PD150-D includes an internal humidistat and control with an adjustable digital control humidistat.

Is a remote humidistat available?

Yes. The manufacturer lists a remote humidistat option.

Is a remote touch panel available?

Yes. The PD150-D has a remote touch panel interface, with the Remote Touch Panel available as an accessory.

Does the PD150-D have a diagnostics menu?

Yes. The unit includes an internal diagnostics menu and system status indicators.

Does the PD150-D have a defrost system?

Yes. It includes electronic defrost control and temperature-sensitive reverse-cycle defrost.

What is the operating temperature range?

The manufacturer specifies a minimum operating temperature of 33°F and a maximum operating temperature of 95°F.

Can the PD150-D be ducted?

Yes. The manufacturer states that the unit can be ducted if desired, and duct flanges are provided.

Does the PD150-D have a gravity drain?

Yes. The manufacturer specifies a 1/2-inch O/D gravity drain.

What type of compressor does it use?

The manufacturer specifies a rotary compressor.

What are the dimensions?

The PD150-D measures 17.5 inches high x 27.5 inches wide x 26 inches deep.

How much does the PD150-D weigh?

The unit weighs 146 pounds.

What applications can the PD150-D be used for?

The manufacturer describes the PD digital range for industrial, institutional, swimming pool, spa, and other appropriately sized humidity-control applications.

What comes with SKU 10156GY-US?

The package includes one PD150-D Dehumidifier, one PD150-D Owner's Manual, one 6 Pin Plug, one 3/8-inch PVC tube with 3-meter length, and one Jubilee Clip.

What is the heat recovery rating?

The manufacturer lists heat recovery at 9,350 BTU.
