Frequently Asked Questions
What is the EBAC PD120-D?
The EBAC PD120-D is a high-capacity commercial dehumidifier designed for humidity control in damp interior spaces and other appropriately sized applications.
What is the part number for the 220V model?
The manufacturer part number for the 220V PD120-D is 10155GY-US.
What voltage does the 10155GY-US require?
This specific variant operates at 220V, single phase, 60 Hz.
How much moisture does the PD120-D remove?
The manufacturer lists typical extraction of 120 pints per day at 80°F and 60% RH and 140 pints per day at 80°F and 80% RH.
What effective volume is listed for the PD120-D?
The manufacturer lists an effective volume of 10,594 cubic feet.
How much power does the 220V model use?
The manufacturer lists power consumption at 1,200W and current at 5.5A for the 220V 10155GY-US version.
What is the airflow rating?
The 220V version provides 586 CFM at low speed and 665 CFM at high speed.
How many fan speeds does the PD120-D have?
The unit has two fan speeds and uses a centrifugal fan.
What is the noise level?
The manufacturer lists a noise level of 69 dBA.
What refrigerant does the 10155GY-US use?
The manufacturer lists R32 refrigerant for the 220V 10155GY-US configuration.
Does the PD120-D have digital humidity control?
Yes. The unit includes an internal humidistat and control with adjustable digital humidity control.
Can the PD120-D use a remote humidistat?
Yes. The manufacturer lists a remote humidistat option and remote humidistat interface.
Can the PD120-D use a remote touch panel?
Yes. The unit includes a remote touch panel interface, and EIPL lists the Remote Touch Panel as an available accessory.
Can the PD120-D be ducted?
Yes. The manufacturer states that the PD120-D can be ducted if desired and lists duct flanges as a feature.
How is condensate drained?
The 220V PD120-D uses a 1/2-inch outside-diameter gravity drain. The package includes a 3/8-inch PVC tube with a 3-meter length and a Jubilee Clip.
Does this SKU include a condensate pump?
No pump is listed for the 10155GY-US configuration. The manufacturer specifies a gravity drain for this model.
What is the operating temperature range?
The manufacturer specifies an operating temperature range of 33°F to 95°F.
Does the PD120-D have automatic defrost?
Yes. The unit features electronic temperature-sensitive reverse-cycle defrosting.
What type of compressor does it use?
The manufacturer lists a rotary compressor.

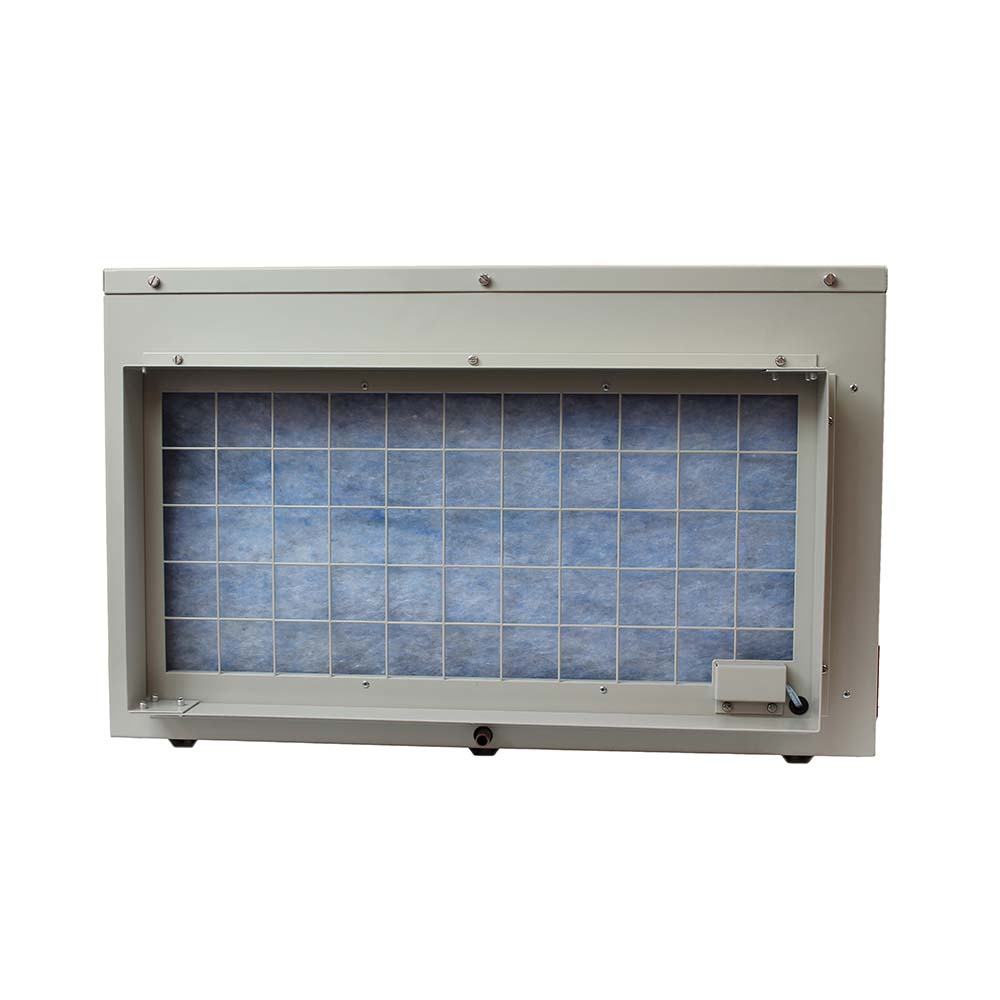

Does the PD120-D have a filter?
Yes. The unit uses a cartridge air filter that is designed to be easy to change.
What are the dimensions?
The manufacturer lists dimensions of 17.5 inches high x 27.5 inches wide x 26 inches deep.
How much does the unit weigh?
The unit weighs 137 pounds.
What applications can the PD120-D be used for?
EIPL describes its dehumidifiers for damp interior spaces and condensation removal from windows, walls, and ceilings. The PD digital range is also identified for swimming pool and spa applications.
Can the PD120-D operate as a stand-alone unit?
Yes. The manufacturer states that the PD range can operate as a stand-alone unit or be installed into a ducted system.
What comes with the 10155GY-US?
The package includes one PD120-D 220V dehumidifier, one PD120-D 220V owner's manual, one 6 Pin Plug, one 3/8-inch PVC tube with a 3-meter length, and one Jubilee Clip.
What accessories are available?
EIPL lists a Remote Touch Panel, Rotary Humidistat, Digital Humidistat with Internal Sensor, Digital Humidistat with External Sensor, and PVC Tube as available accessories.
Ordering Reminder: This listing is specifically for the EBAC PD120-D 220V, part number 10155GY-US. Confirm the 220V electrical requirement, 10,594 cubic foot effective volume, 120 pints/day typical extraction at 80°F and 60% RH, R32 refrigerant, dimensions, and gravity-drain configuration before purchasing.
