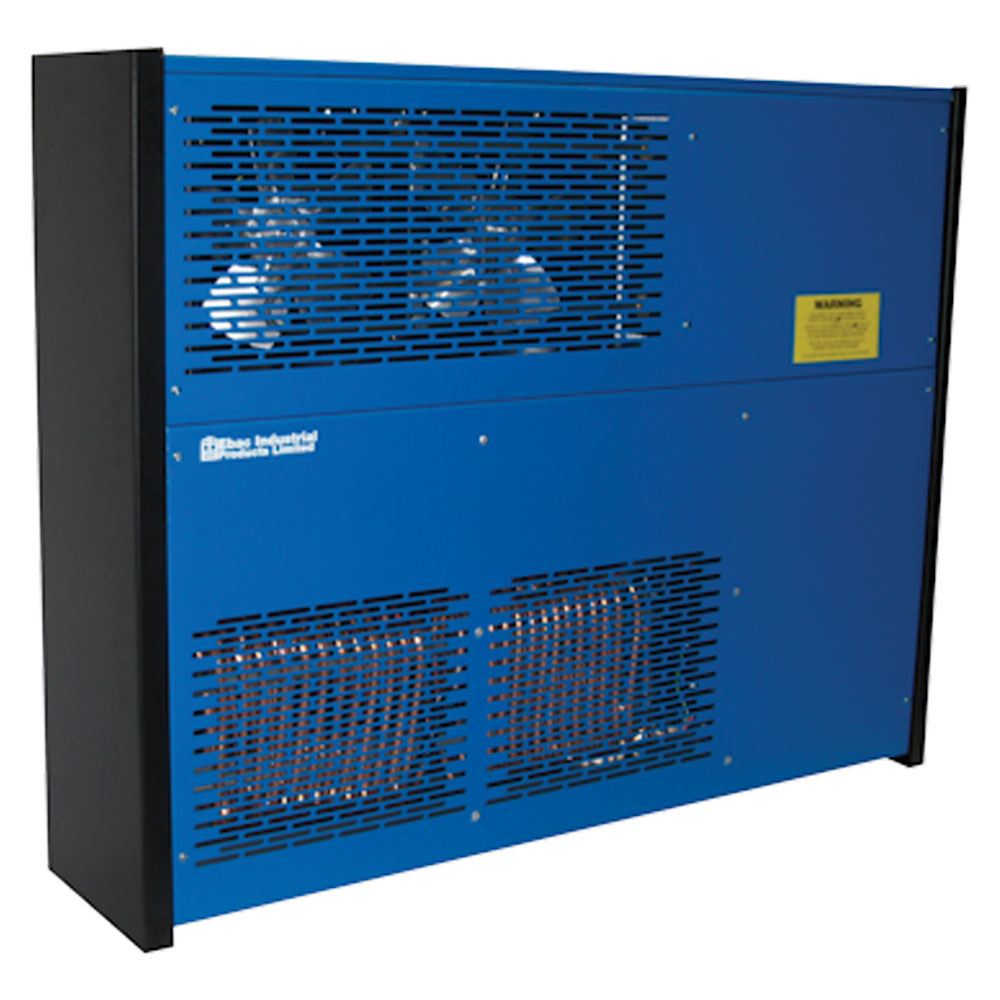

EBAC FD100 Lumber Dryer, 7m3, 220V, 1,100W, 1,500W Heater, 13223BB-US

The EBAC FD100 is a packaged lumber drying system designed for wood retailers, craftsmen, and woodworking professionals who require quality kiln-dried wood. With a typical load capacity of 7m3, the FD100 is designed for installation into a home-built drying chamber and provides controlled drying for wood that needs to reach the required moisture content.

The FD100 is supplied with the STC1 Controller, which provides proportional timer control for the drying cycle and thermostat control for the heating cycle. Once the appropriate controls are set according to the drying instructions, the drying operation is designed to run virtually automatically.

The FD100 operates at temperatures up to 122°F and uses a 1,100W dryer with a 1,500W heater. The system is designed to provide controlled drying while helping minimize wood degrade. Loads containing mixed species and different board thicknesses can be dried together.

The FD100 is designed to help wood retailers and craftsmen gain greater control over their lumber supply. By drying wood in-house, users can choose when to dry lumber and produce dried wood according to their requirements. EIPL also states that this approach can help reduce inventory requirements and provide greater flexibility when purchasing wood.

Buying Guide

Review the manufacturer's resources for additional installation, maintenance, replacement-parts, wiring, and technical information before installing the FD100.

• Product Brochure
• Product Instruction Manual
• Product Wiring Diagram
• Product Wiring Schematic

Applications for the EIPL FD100

The EBAC FD100 is designed for controlled lumber drying applications, including:

• Wood retailers
• Woodworking professionals
• Craftsmen
• Cabinet-making operations
• Quality kiln-dried wood production
• Hardwood drying
• Softwood drying
• Mixed species lumber loads
• Mixed thickness board loads
