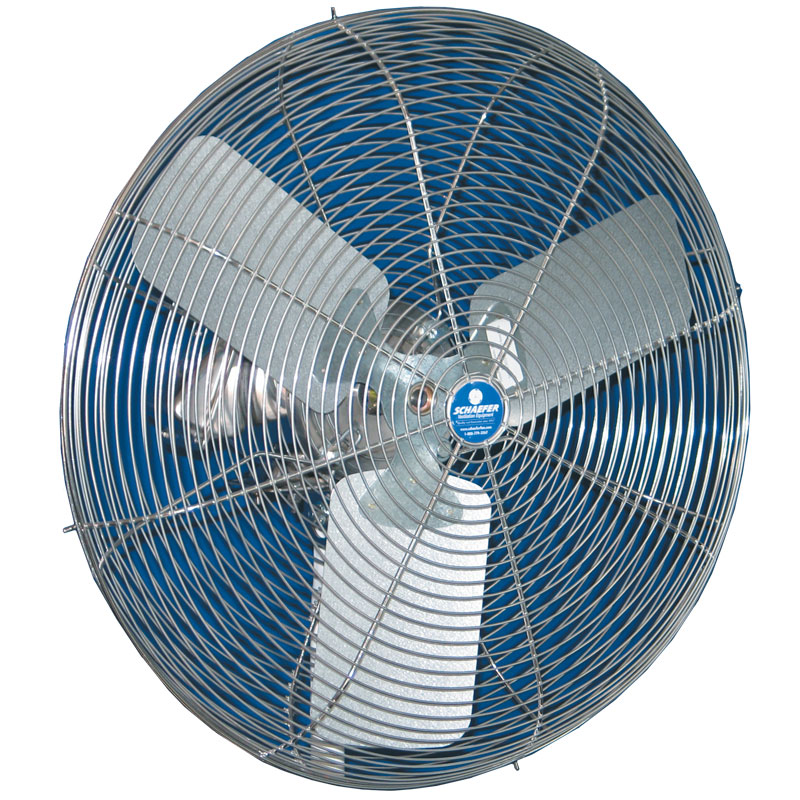

Washdown Duty Circulation Fans
Schaefer's OSHA Compliant Air Circulation Fans are the perfect solution for effectively and efficiently moving air in work areas where strict hygiene requirements exist, including food and beverage processing facilities, kitchens, hospitals and other clean, corrosive or humid environments.
These ventilation fans are designed to withstand pressure washing in the harshest conditions without affecting the performance or functionality of the fan. Increase producitivity and improve safety in the work environment with Schaefer Washdown Duty Circulation Fans!
Motor Type:
- SWD - Complete stainless steel for extremely corrosive environments (2-year warranty)
Features
- OSHA compliant guards ensure safety and are constructed with electro-polished 304 stainless steel in order to withstand harsh environments and prevent corrosion
- Blades offered in both stainless steel or polypropylene
- Blades and motors are carefully matched to maximize performance and efficiency while improving noise levels
- Robust, stainless steel wall and ceiling mounting options available
- Made in the USA
Specifications
- Diameter: 24"
- Motor: SWD
- Blade: Stainless Steel
- HP: 1/2
- Phase: 1
- Volts: 115/230
- Amps: 8.2/4.1
- Thrust (lbf): 4.94
- CFM: 6855
- RPM: 1725
- Weight: 52
- Tested: BESS LAB
