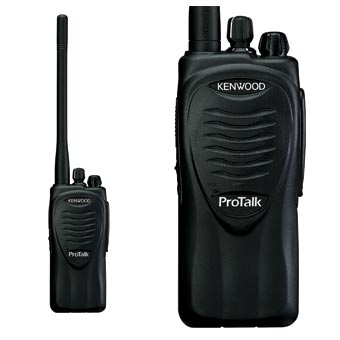

Kenwood's compact TK-3202LU16P transceivers, based on a proven design, represents ergonomic excellence.
Pick one up and you'll immediately appreciate how easy it is to use. Powerful too: equipped with scan, and built-in VOX, it offers reliable performance in all conditions, thanks to MIL-STD 810 & IP54/55 weatherproofing.
Indoors or out, rain or shine, the smart new high powered ProTalk on-site radios are star performers!

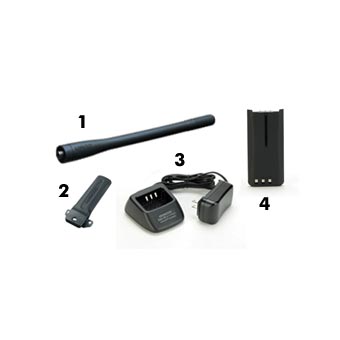

Included Accessories:
- Removable Antenna
- KBH-10 Spring Action Belt Clip
- KSC-35K 3-Hour Fast Charger
- KNB-45L Li-Ion Battery
Accessories are also available for seperate purchase, see related items below.
Compact, ergonomic contours with a Natural comfortable hold and easy to use. Kenwood's LP Li-Ion powered ProTalk® is simply the best Communications Tool for heavy duty work environments.
COMPACT DESIGN
The ProTalk’s rounded ergonomic contours naturally fit the hand for a superbly comfortable hold, while the non-slip elastomer channel knob with improved torque characteristics ensures positive select operation.
INTERNAL VOX/HANDS FREE READY
Enjoy the convenience of hands-free operation using any optional headset accessory. The internal VOX (voice-operated transmission) provides PTT control with the simple act of talking. VOX is great for specialized tasks and events where hands-free, constant or repetitive communications are necessary (10-level sensitivity adjustment).
FUNCTION KEYS
The two side PF1 and PF2 keys make functions easiliy available on the TK-2202LV16P/TK-3202LU16P, with PF1 key for activating the Lock function and PF2 key for Scan w/temp delete function permitting a custom usage for specific users.
LOCK
Lock all user controls (except PTT and volume) to prevent accidental channel changes.
SCAN
Scanning is a simple way to monitor multiple channels and the TK-3202LU16P (16-channel capacity) offers scan modes.
VOICE ANNUNCIATION
When you select different channels, these ProTalk radios can be set to provide voice annunciation channel numbers.
WIRELESS CLONING
This wireless feature simplifies the setup of several radios to function identically and eliminates repetitive setup actions of individual radios. (Dealer function only)
TK-3202LU16P Frequencies
- Channel
- Frequency
- Code (Hz)
- 1
- 464.5000
- 67.0
- 2
- 464.5000
- 77.0
- 3
- 464.5000
- 88.5
- 4
- 464.5000
- 179.9
- 5
- 464.5000
- 100.0
- 6
- 464.5500
- 67.0
- 7
- 464.5500
- 82.5
- 8
- 464.5500
- 94.8
- 9
- 464.5500
- 179.9
- 10
- 464.5500
- 100.0
- 11
- 467.8125
- 67.0
- 12
- 467.8500
- 67.0
- 13
- 467.8750
- 67.0
- 14
- 467.9000
- 67.0
- 15
- 461.1875
- 67.0
- 16
- 461.2125
- 67.0
GENERAL SPECIFICATIONS:
- Model #:
- TK-3202LU16P
- Frequency Range:
- 450-490 MHz
- No. of Channels:
- 16 Channels
- Channel Spacing:
- Wide/Narrow - 25 kHz/12.5 kHz
- Channel Step:
- 5,6.25KHz
- Operating Voltage:
- 7.5V DC±20%
- Battery Life:
- KNB-45L (2000mAh) - Approx. 12 hours - (5-5-90 duty cycle)
- Operating Temp. Range:
- -22°F ~ +140°F (-30°C ~ +60°C)
- Frequency Stability:
- ±2.5ppm (-22°C ~ +140°C)
- Antenna Impedance:
- 50 O
- Channel Frequency Spread:
- 40 MHz
- Dimensions (W x H x D):
- Radio Only - 2.13" x 4.8" x 0.83" (54 x 122 x 21.1 mm)
- Dimensions (W x H x D):
- Radio w/ Battery - 2.13" x 4.8" x 1.30" (54 x 122 x 33 mm)
- Weight:
- Radio Only - 5.6oz (160g)
- Weight:
- Radio w/ KNB-45L - 9.9oz (280g)
- FCC ID:
- ALH36923210
- IC Certification:
- 282D-36923210
RECEIVER SPECIFICATIONS - (Measurements made per TIA/EIA-603):
- Sensitivity (12dB SINAD):
- Wide/Narrow - 0.25µV/0.28µV
- Selectivity:
- Wide/Narrow - 70dB/60dB
- Intermodulation Distortion:
- Wide/Narrow - 65dB/60dB
- Spurious Response:
- 60dB
- Audio Output:
- 500mW w/ less than 10% distortion
TRANSMITTER SPECIFICATIONS - (Measurements made per TIA/EIA-603):
- RF Power Output:
- High/Low - 4W/1W
- Spurious Response:
- 65dB
- Modulation:
- Wide/Narrow - 16KØF3E/11KØF3E
- FM Noise:
- Wide/Narrow - 45/40dB
- Audio Distortion:
- Less than 5%
Kenwood follows a policy of continuous advancement in development. For this reason specifications may be changed without notice.
